SK Battery
1 / 5

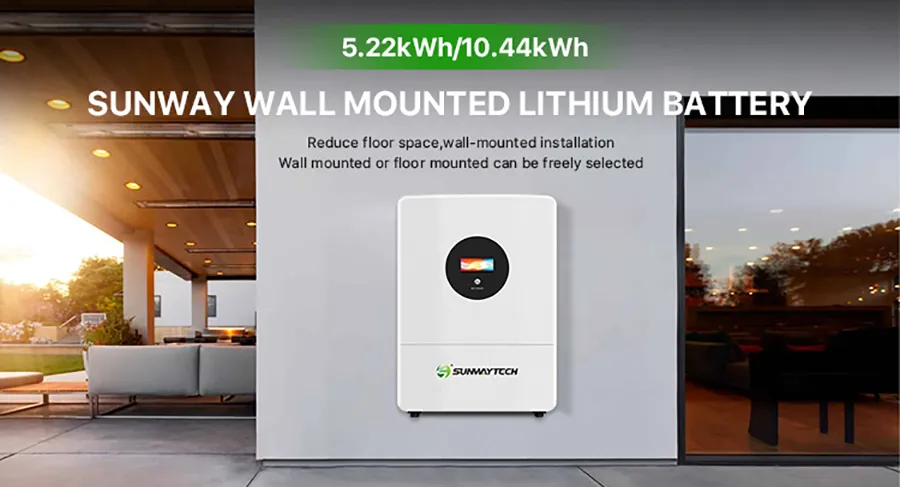

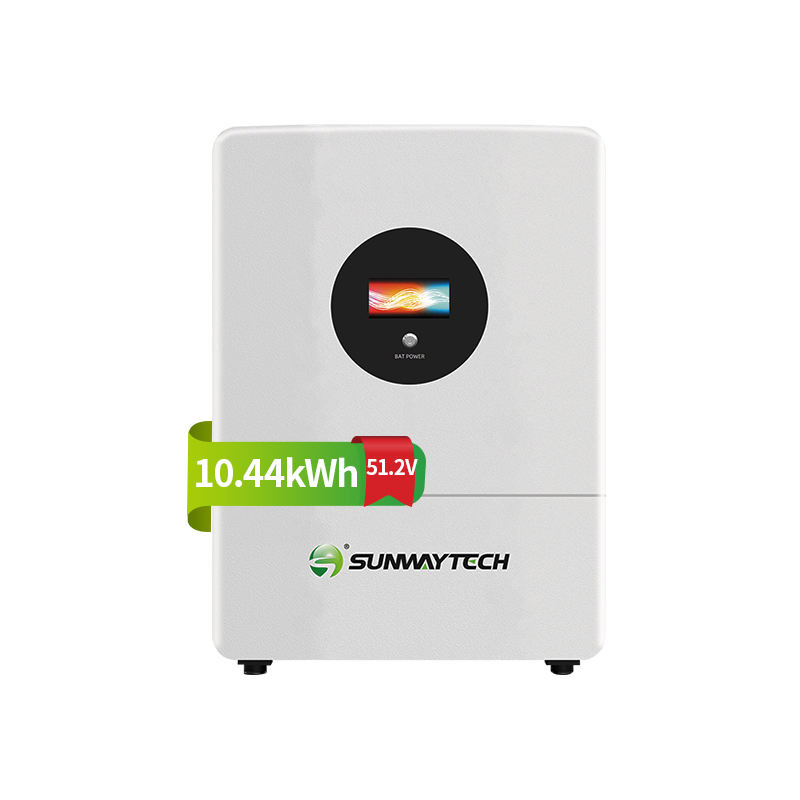

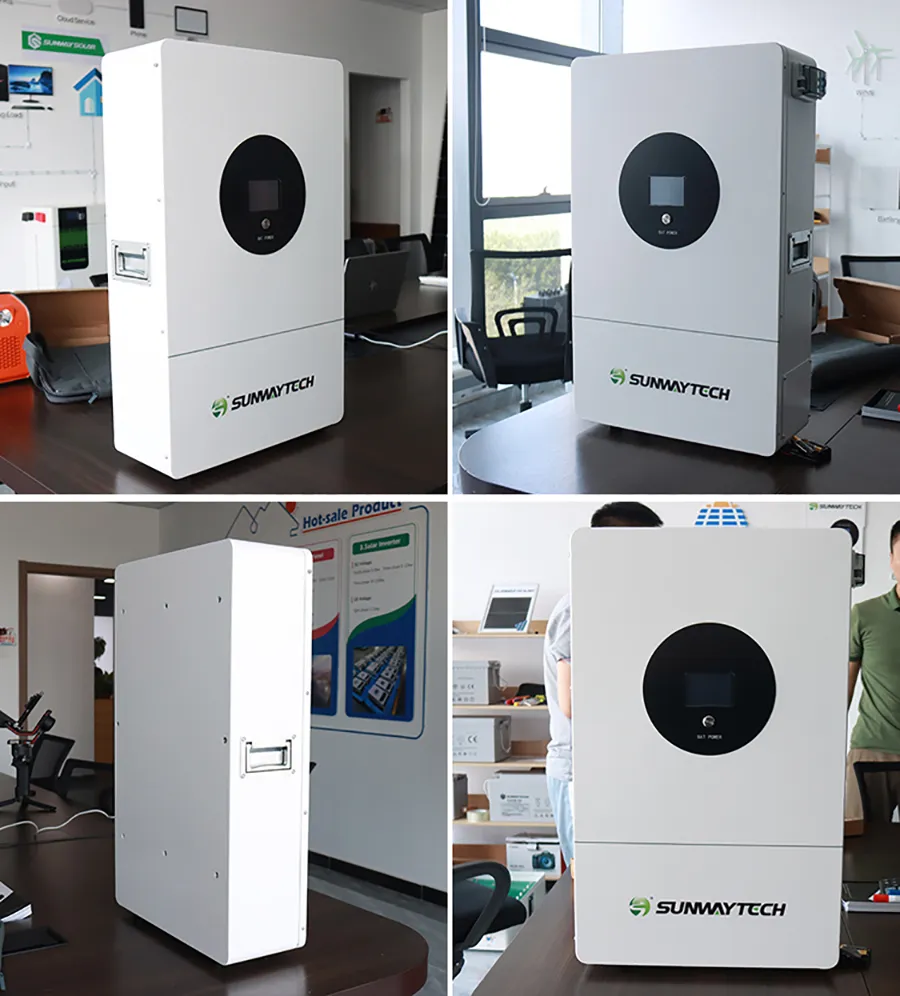

The wall-mounted battery with a capacity of 5.22 to 10.44kWh is an innovative energy storage solution for homes and commercial buildings. This battery is sleek and compact, designed to be mounted on a wall, making it ideal for those who have limited space.
The high-performance battery can store excess energy generated by solar panels or wind turbines, allowing users to use the stored energy during peak energy demand or when renewable energy sources are not producing enough energy.
| Models | SW51B100TW2 | SW51B200TW2 |
|---|---|---|
| Usable Capacity | 5.22kWh | 10.44kWh |
| Normal Capacity | 102Ah | 204Ah |
| Voltage | 51.2V | 51.2V |
| Discharge Voltage Range | 43.2V~58.4V | 43.2V~57.6V |
| Max. Charging/Discharging | 75A | 100A |
| Max. Output Power | 3840W | 5120W |
| DOD | 90% | 90% |
| Cycle Life | ≥6000 | ≥6000 |
| Communication | CAN/RS485 | CAN/RS485 |
| Net Weight | 48.5kg | 94kg |

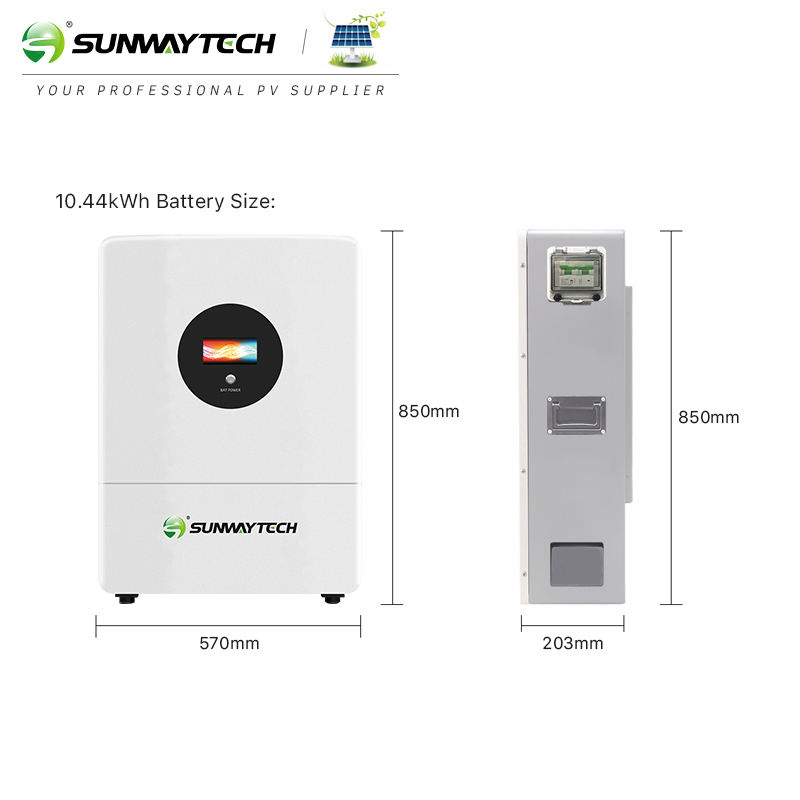

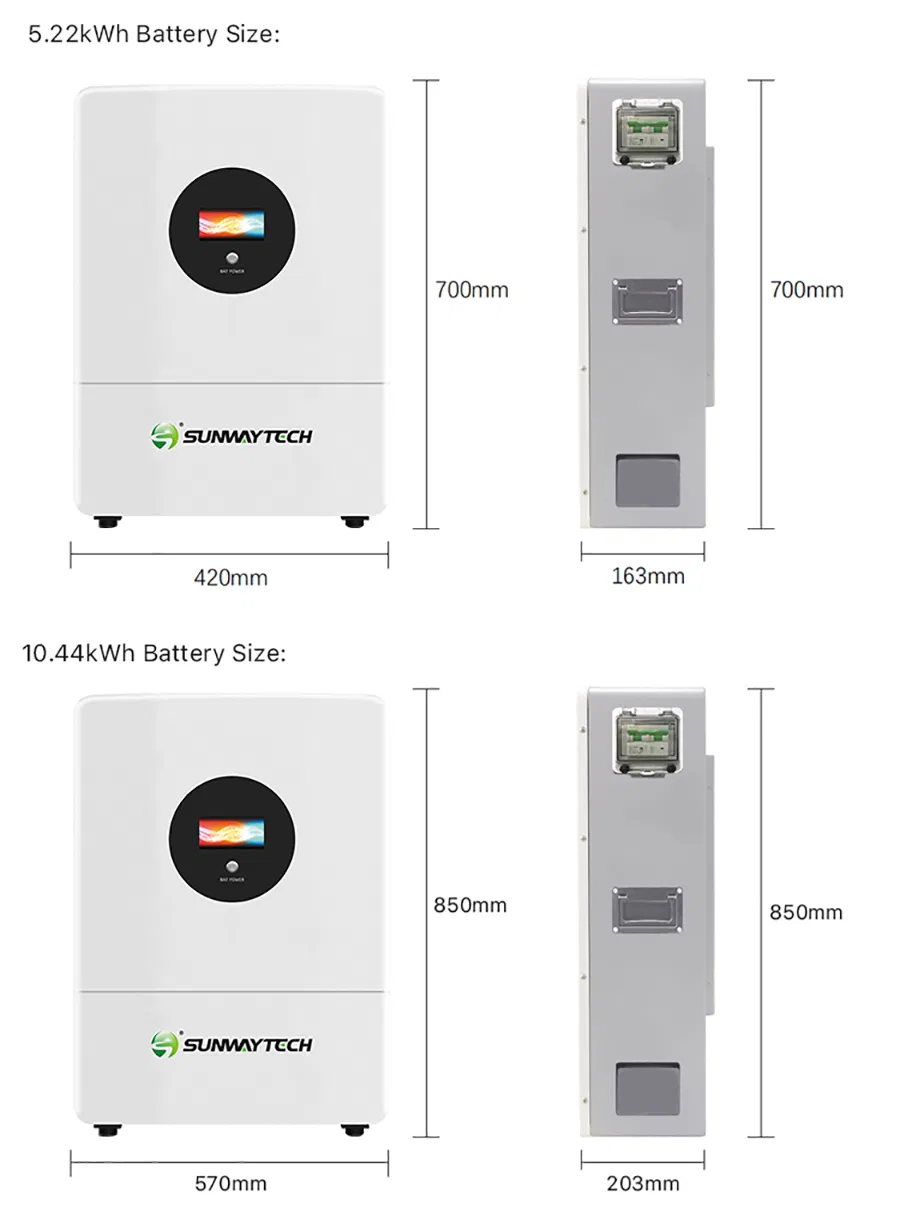

| Dimension | 420*163*700mm | 850*570*203mm |
| Design Life | 10 Years | |
| Features | HD touch screen, active balance | |
