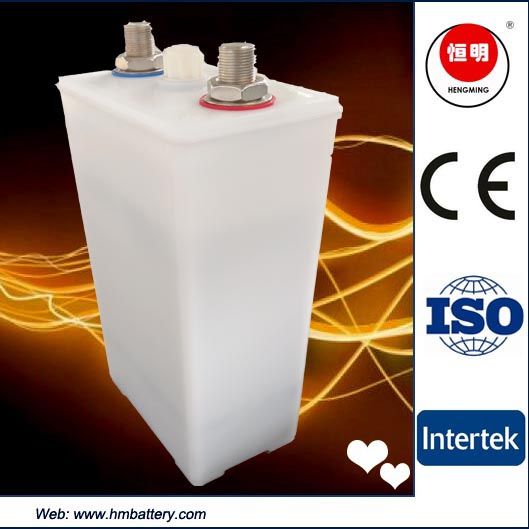

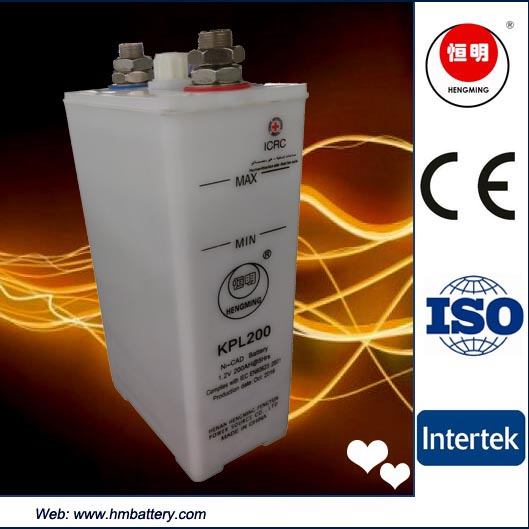

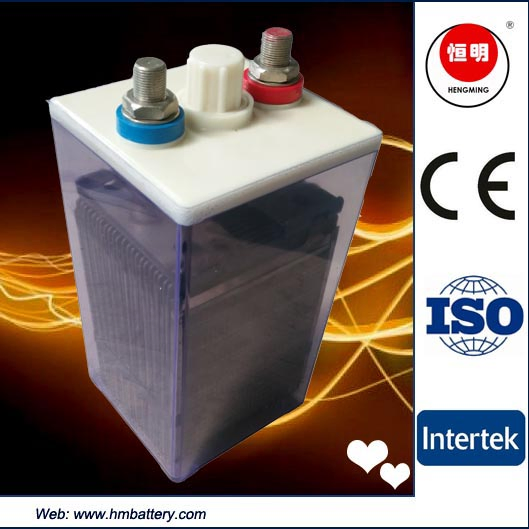

Solar Industry Rechargeable Deep Cycle Kpl200 Ni-CD Pocket Storage Battery Emergency Light Power Backup Power Station Battery

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
KPL200
Nominal Voltage
1.2V
Discharge Rate
Low Discharge Rate
Shape
Prismatic Single
Electrolyte
Alkaline
Rechargeable
Chargeable
Container Material
ABS/PP
Filled Weight
14kg
Thread of Pole
M20*1.5
Specification
167*162*345mm
Origin
China
Production Capacity
470,000 cells/Year
🔋 Product Description
KPL Series nickel cadmium batteries are designed for general industrial applications where absolute reliability is a necessity. Service-proven pocket-plate technology ensures long uninterrupted battery life without the risk of sudden loss of power. KPL Series batteries are suitable for low discharge rate applications (between 1 hour to 100 hours) such as railroad signaling and control systems, photovoltaic, emergency lighting, telecommunications, etc.
In many applications along the track, batteries are used to meet peak electricity demand and to provide back-up power to all systems in case of emergency. These batteries must meet a range of demanding requirements:
  • Complete reliability over a long, predictable lifetime.
  • Excellent electrical performance and high resistance to electrical and mechanical abuse.
  • Operation in ambient temperatures from -30°C (-22°F) to +40°C (+104°F), with extremes from -40°C to +55°C.
  • Minimal maintenance needs.
  • Capable of operating with renewable energy sources.
Only nickel-cadmium technology can meet these requirements cost-effectively.
📝 Technical Specifications
Cell Type Nominal Voltage (V) Rated Capacity (Ah) Dimension (mm) Thread of pole Weight (filled) (Kg) Container Material
L W H
GN101.2108539156M81.0PP
GN501.25013861266M103.2ABS
GN100-(2)1.210013979362M106ABS/PP
GN1501.2150167162345M20×1.512ABS
GN2001.2200167162345M20×1.514ABS
GN5001.2500285172490M20×1.533.6ABS
GN12001.21100395185560M20×1.5-ABS

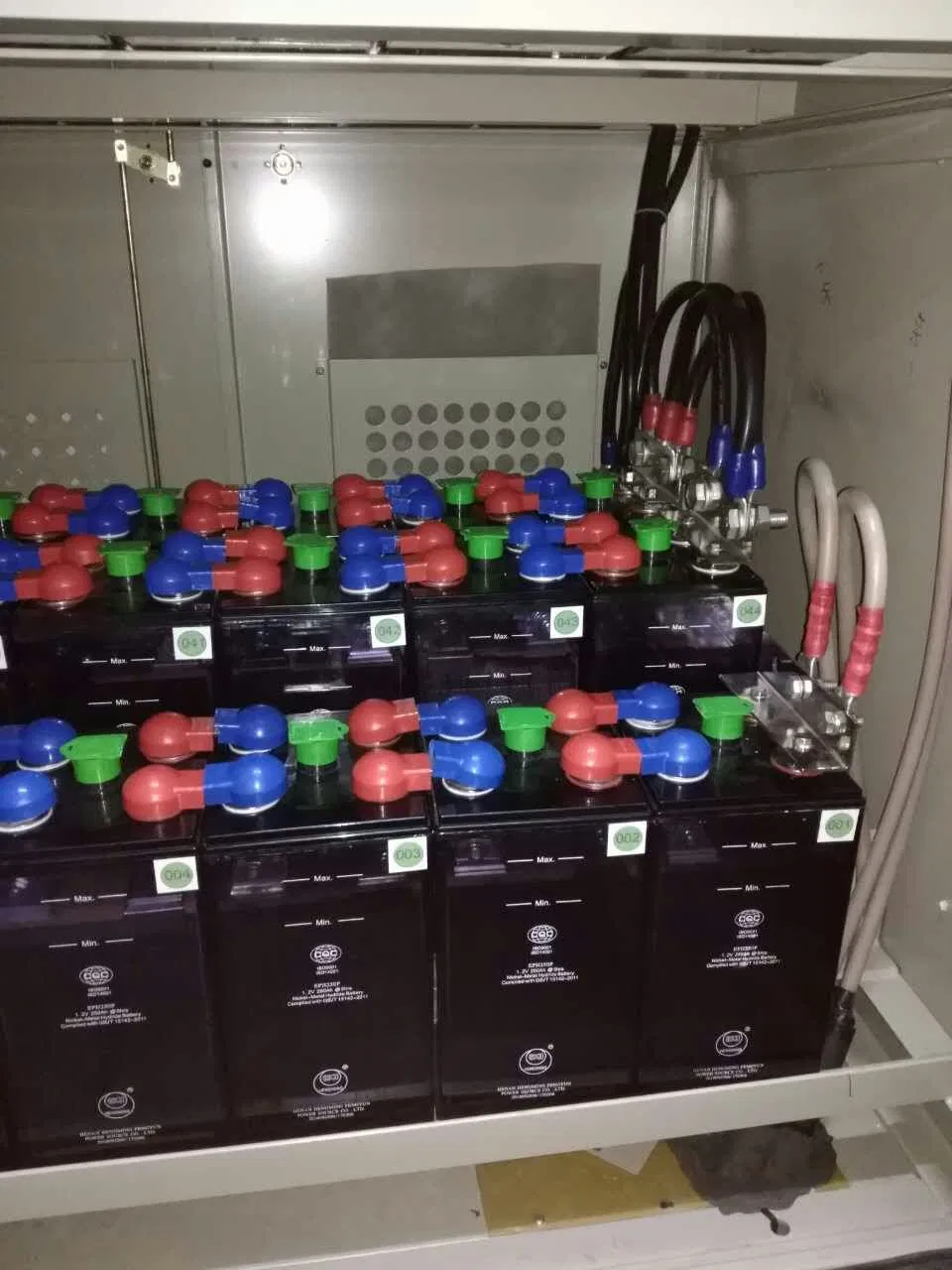

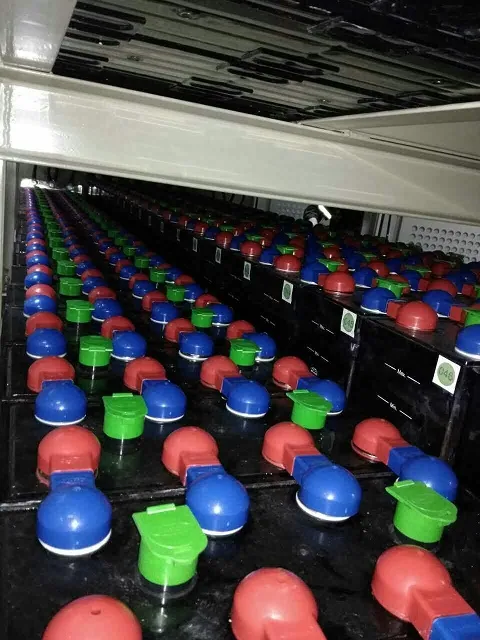

🖼️ Product Gallery
Frequently Asked Questions
Q1: What are the main applications for the KPL series Ni-CD batteries? A: They are ideal for low discharge rate applications such as railroad signaling, photovoltaic systems, emergency lighting, and telecommunications.
Q2: What is the benefit of pocket-plate technology? A: It ensures a long, uninterrupted service life and eliminates the risk of sudden power loss.
Q3: Can these batteries operate in extreme weather? A: Yes, they are designed to function in ambient temperatures ranging from -40°C to +55°C.
Q4: Do these batteries require frequent maintenance? A: No, the KPL series is designed for minimal maintenance needs over its lifetime.
Q5: Are they compatible with renewable energy? A: Yes, they are perfectly capable of operating with renewable energy sources like solar power.
Q6: What materials are used for the container? A: The containers are typically made from durable ABS or PP (Polypropylene) materials.
