Basic Information
Model NO.:DCG200-12
Nominal Voltage:12V
Discharge Rate:Low Discharge Rate
Shape:Square Battery
Rechargeable:Chargeable
Color:Light Grey
Package:Carton, Then Pallet
Specification:JIS, DIN, IEC
Capacity:50000PCS/Month
HS Code:85072000
Product Description

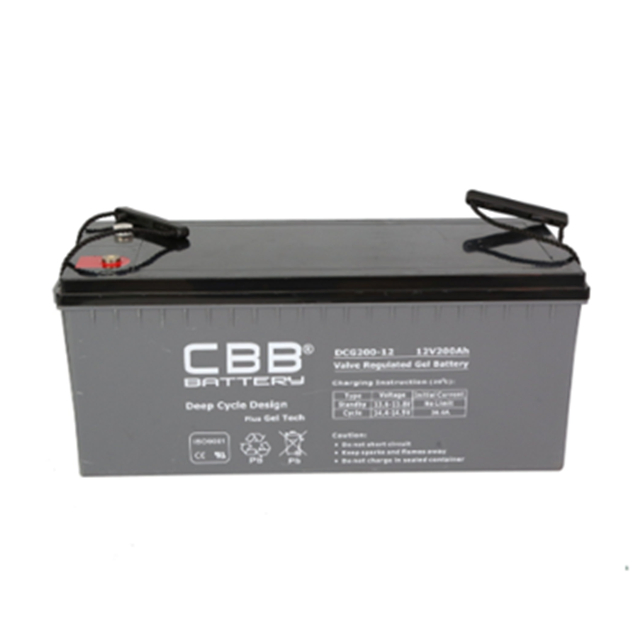

DCG SERIES Gel Batteries for Deep Cycle Services
Deep-Cycle Gel (DCG) batteries are maintenance-free and require no watering, providing unmatched quality and power through advanced deep cycle technology. Featuring long-lasting runtime and exceptional battery life in demanding applications, the proprietary Gel formulation prevents stratification and offers superior engineering durability.
Key Specifications:
• Voltage & Capacity: 12V 200AH
• Model No.: NPCG200-12
• Dimension: L532 * W206 * H216 * TH222 mm
• Terminal: T5 | Weight: 59kgs
Technical Features
- Excellent energy storage capacity with high reliability
- Designed in accordance with IEC 60254-1 (700 Cycles at 75% DOD)
- 10 years design life at 20°C ambient temperature
- Grid plate construction with lead calcium alloy
- Low gassing due to internal gas recombination
- Superior temperature resistance performance
- Excellent deep cycle and low current discharge performance
- Non-Spillable construction with explosion-proof safety valves
- Operating range: -40°C to +55°C
- Completely recyclable and maintenance-free
Applications
Aerial Work Platform (AWP)
Material Handling
Floor Machines
Recreational Vehicles (RV)
Electric Boats / Golf Carts
Renewable Energy (Solar/Wind)
Wheelchairs / Medical Devices
Remote Monitoring
Model Specifications Data
| Model No |
Voltage(V) |
Capacity(Ah) |
L(mm) |
W(mm) |
H(mm) |
Weight(kg) |
Terminal |
| DCG200-6 | 6 | 200 | 306 | 168 | 220 | 30.7 | T5 |
| DCG225-6 | 6 | 225 | 243 | 187 | 275 | 32.2 | T5 |
| DCG310-6 | 6 | 310 | 295 | 178 | 354 | 46.3 | T5/T6 |
| DCG100-12 | 12 | 100 | 307 | 169 | 211 | 30.7 | T3 |
| DCG150-12 | 12 | 150 | 484 | 171 | 241 | 46.3 | T4 |
| DCG200-12 | 12 | 200 | 532 | 206 | 216 | 59.0 | T4 |
Product Gallery
Frequently Asked Questions
Q1: What are the main benefits of DCG series batteries?
They are maintenance-free, offer high energy storage capacity, and have a long cycle life (700 cycles at 75% DOD).
Q2: Can these batteries be used in extreme temperatures?
Yes, DCG batteries are designed to operate efficiently within a wide range of -40°C to +55°C.
Q3: Are these batteries safe for indoor use?
Yes, they feature a non-spillable design and internal gas recombination which ensures very low gassing and enhanced safety.
Q4: What certifications do your batteries hold?
Our products meet ISO9001/14001, CE, and UL standards, complying with JIS, DIN, and IEC specifications.
Q5: Is the battery housing durable?
Yes, we use high-quality ABS containers and covers (UL94HB as standard, UL94V-0 optional) for maximum durability.
Q6: Are the batteries environmentally friendly?
Absolutely, the DCG series is completely recyclable at the end of its service life.
