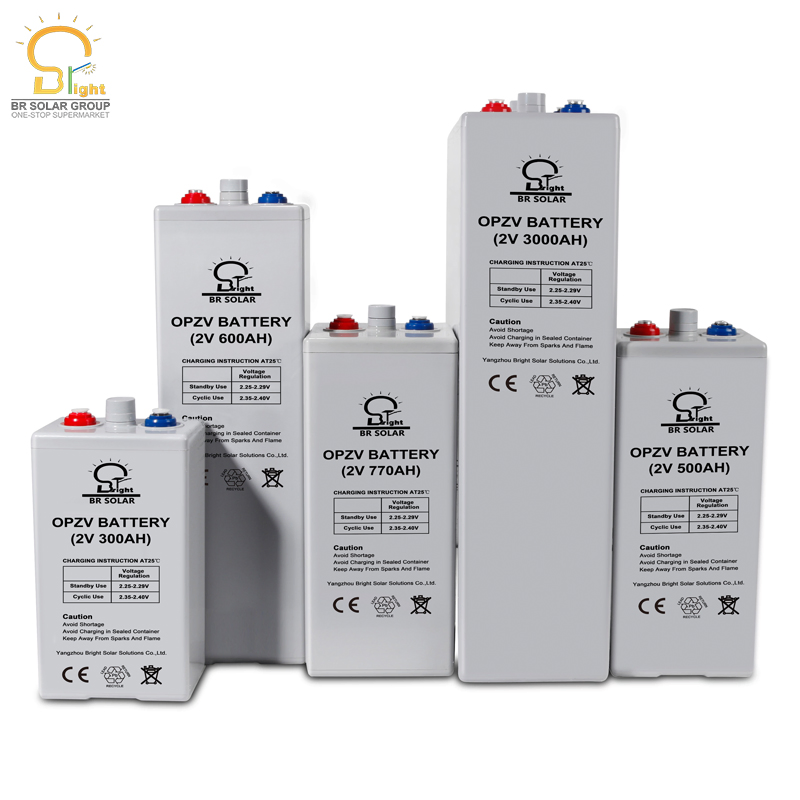

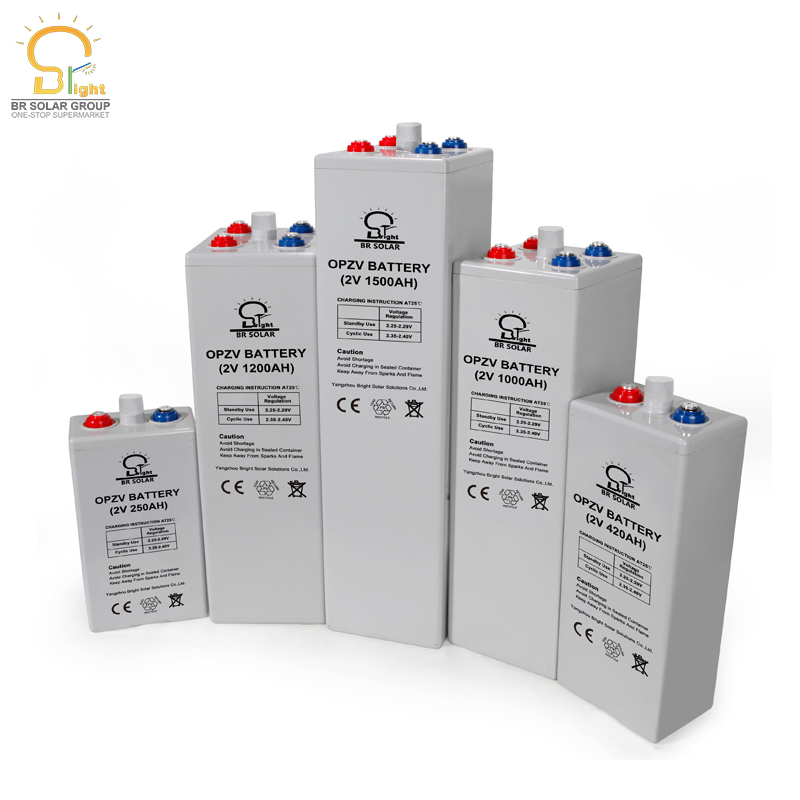

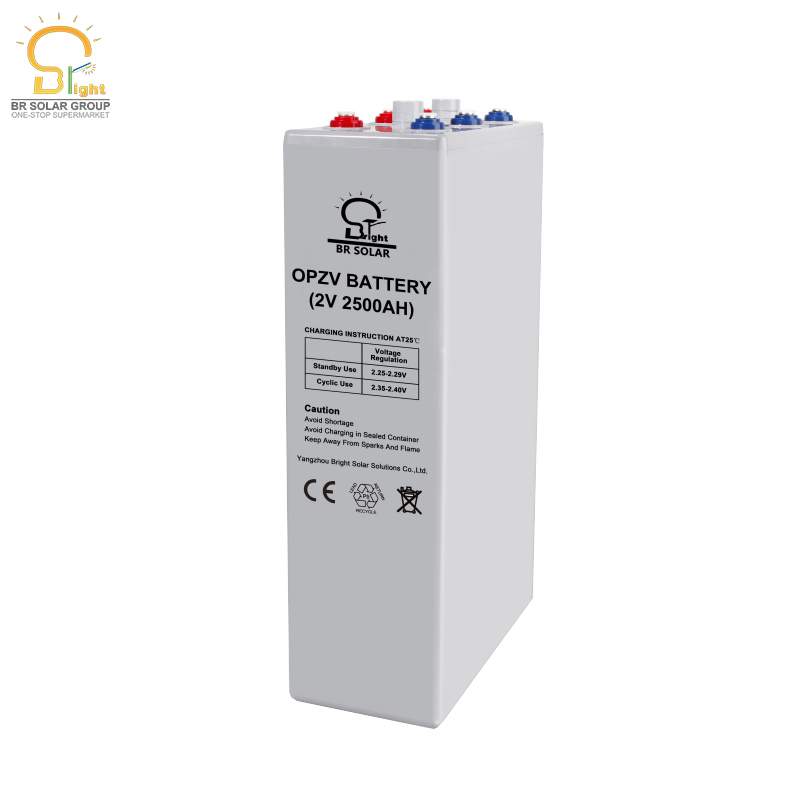

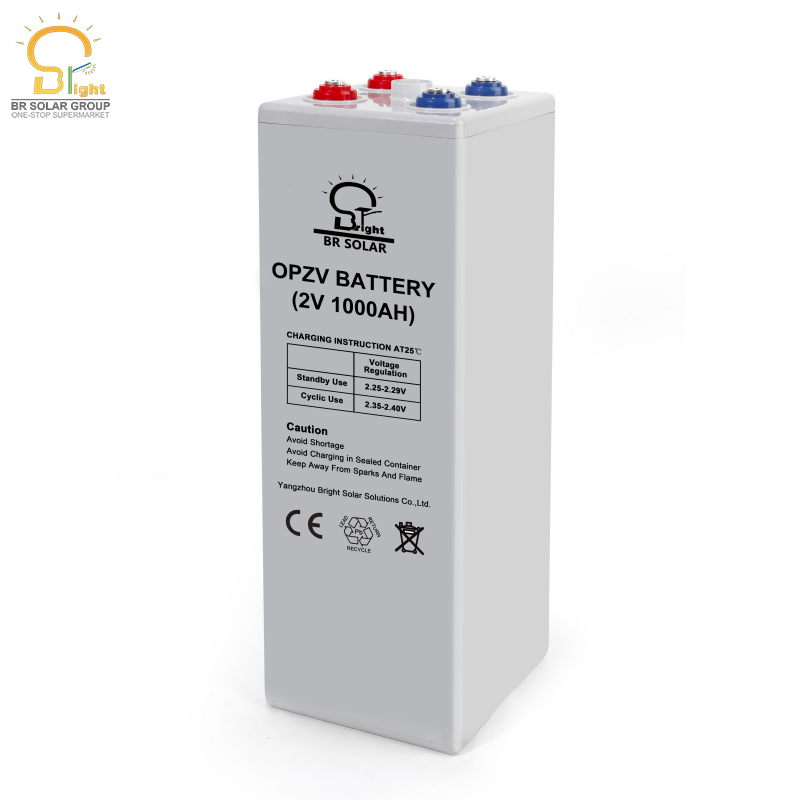

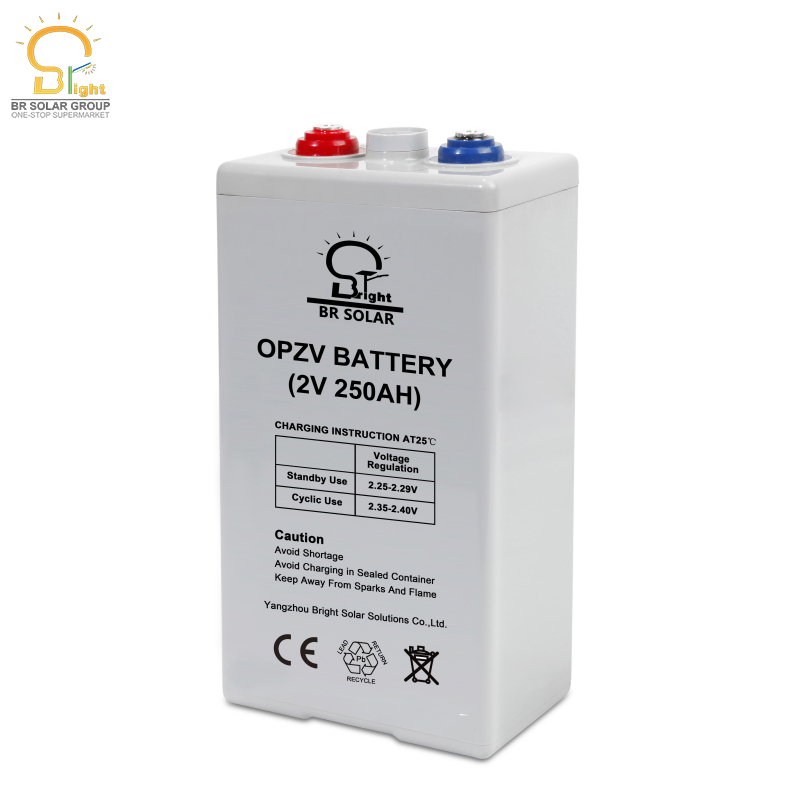

Gelled Br Solar; as Solar Wooden Pack Deep Cycle 2V Battery

1 / 5

Gelled Br Solar; as Solar Wooden Pack Deep Cycle 2V Battery

Customization:	Available
Type:	Gelled Battery
Usage:	UPS, Electric Power, Lighting, Boat

Send Inquiry

Product Description

Basic Specifications

Model NO.

OPzV Series

Nominal Voltage

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Gelled Battery

Installation

Packaged

Rechargeable

Chargeable

Battery Type

OPzV Battery

Warranty

5 Years

Size Range

2V 300ah to 3000ah

Origin

China

HS Code

85072000

Product Overview

Tubular Gel Battery (OPzV): Rechargeable sealed maintenance-free battery featuring a long lifespan specifically designed for solar power stations and renewable energy systems. Available in 2V/12V configurations ranging from 30AH to 3000AH.

Technical Parameters

Nominal Voltage	2V (1 cell)	Operating Temp. Range	Maximum: -40~55°C (-40~131°F)
Nominal Capacity	1500AH (10hr, 1.80V/cell)	Recommended Temp.	-15~50°C (5~122°F)
Nominal Capacity	891AH (1hr, 1.60V/cell)	Cycle Use	2.35~2.40V (-5m V/°C)
Dimensions	275 x 210 x 795 mm	Standby Use	2.25V (-3m V/°C)
Approx Weight	106.5Kg	Terminal	M8
Self Discharge	Less than 3% per month at 25°C (77°F)

Key Advantages

🌿 Real Green Power

Special lead-free alloys and Nano-material Gel ensure no harmful spillages even if the cover is compromised.

⚡ High Efficiency

Low internal resistance allows for superior battery capacity and high-efficiency discharge performance.

⏳ Extended Lifespan

Design life exceeds 2000 cycles at 25ºC, significantly higher than the industry standard for traditional batteries.

🌡️ Wide Temp Adaptability

Reliable performance across a wide temperature range from -30ºC to 55ºC.

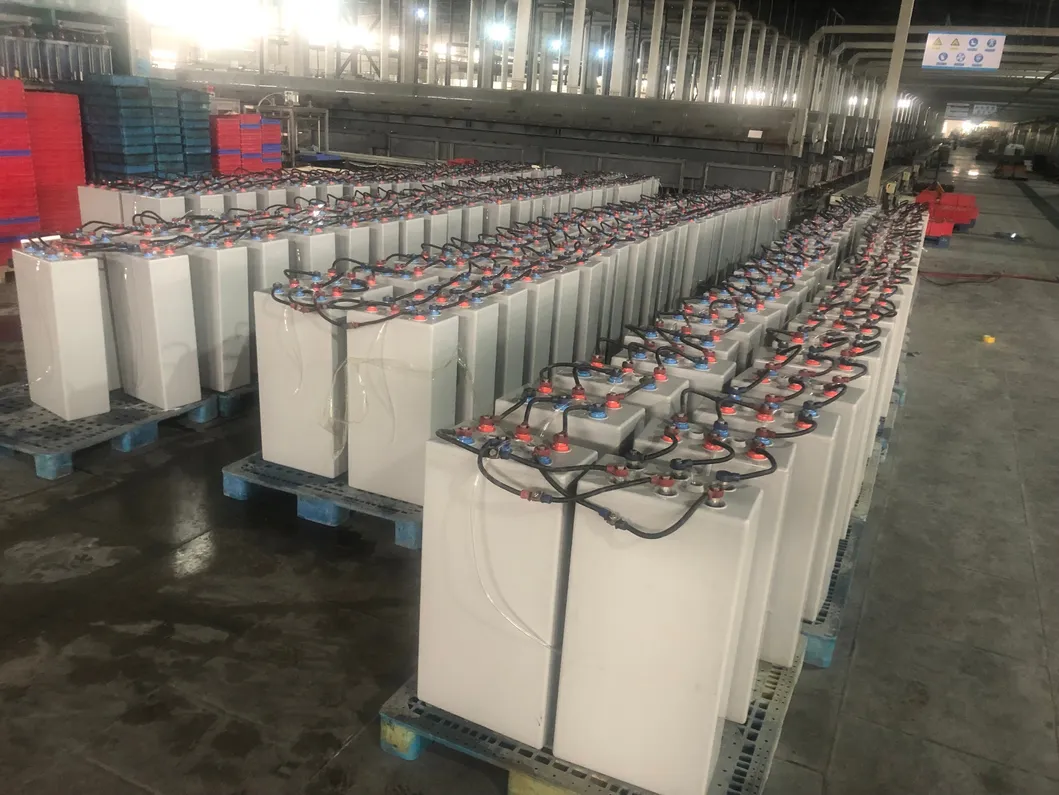

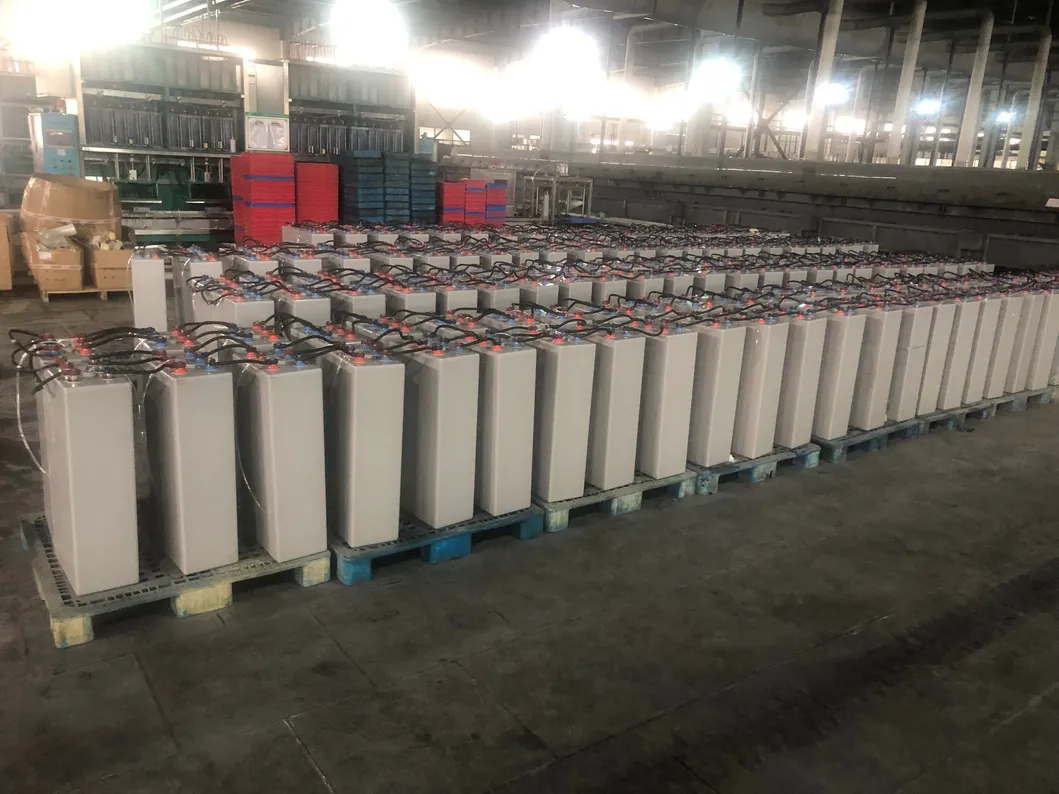

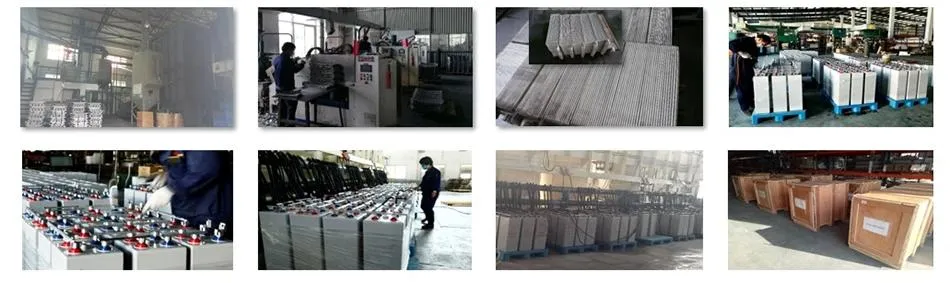

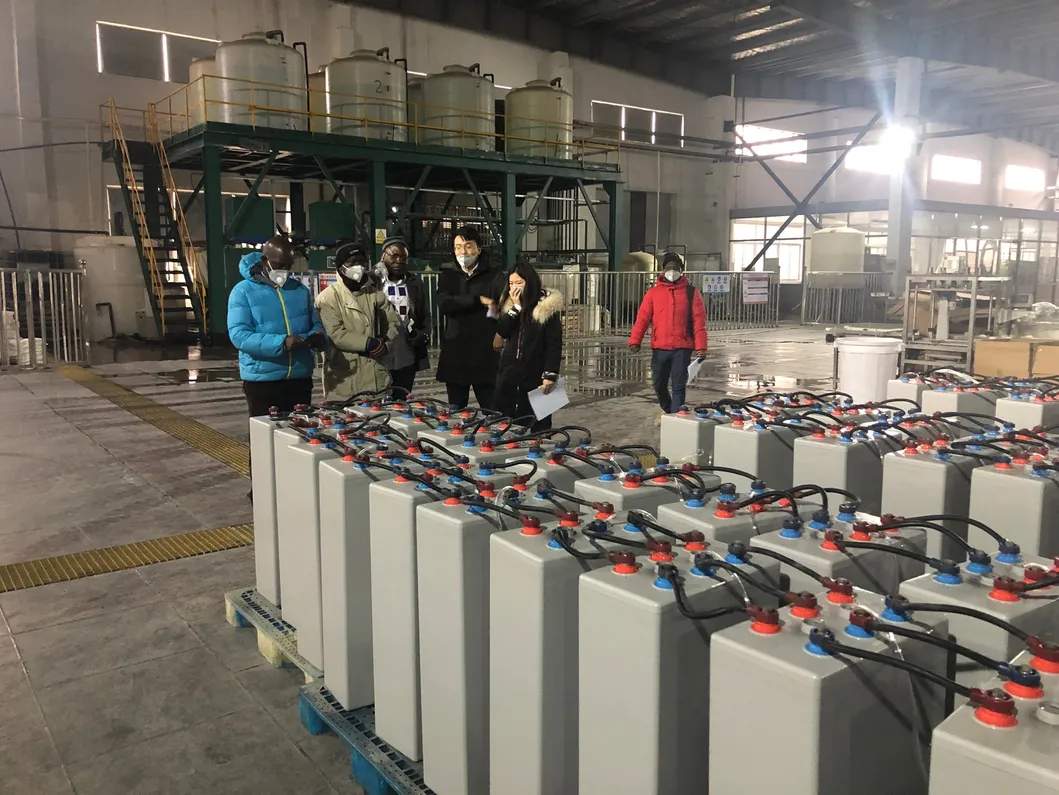

Manufacturing Excellence

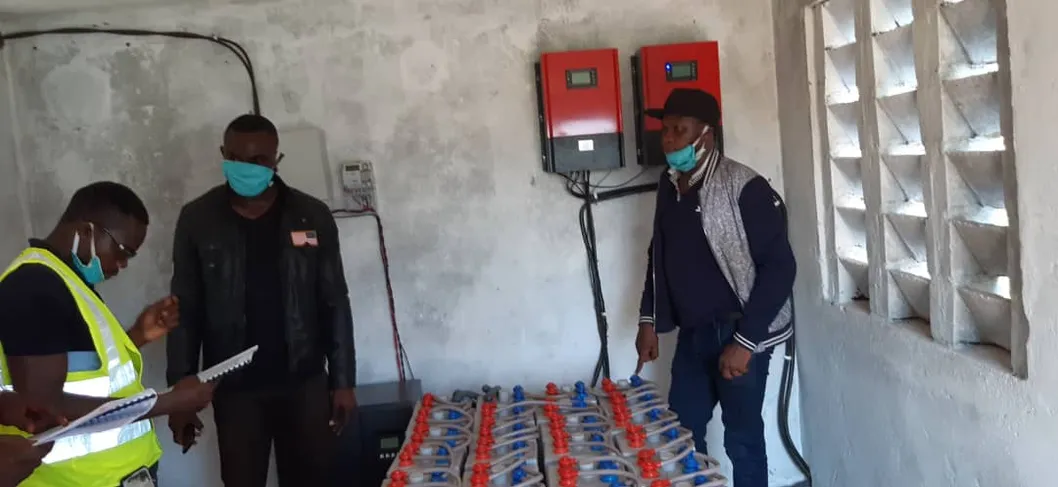

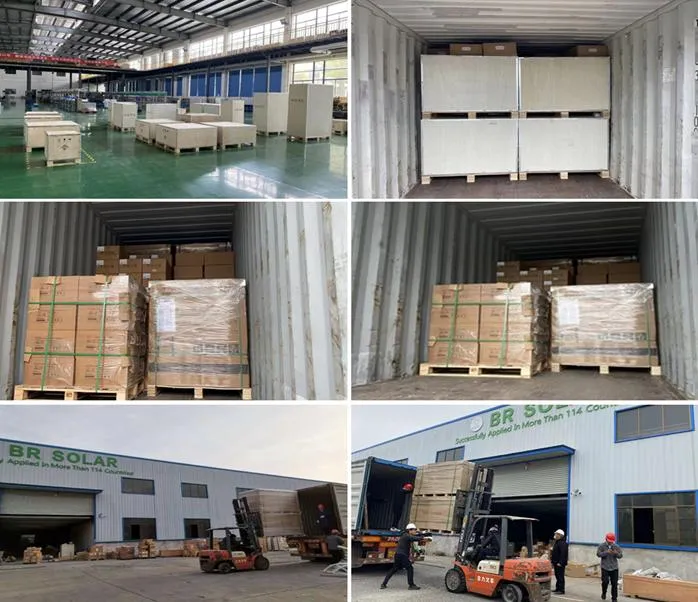

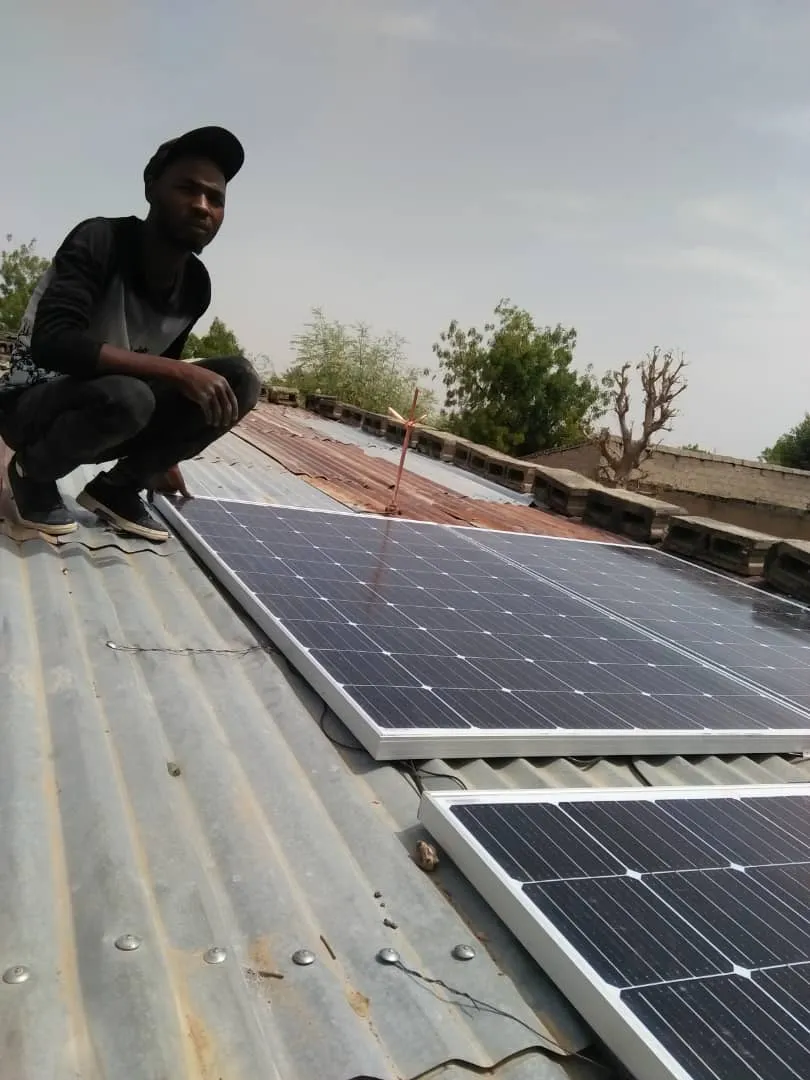

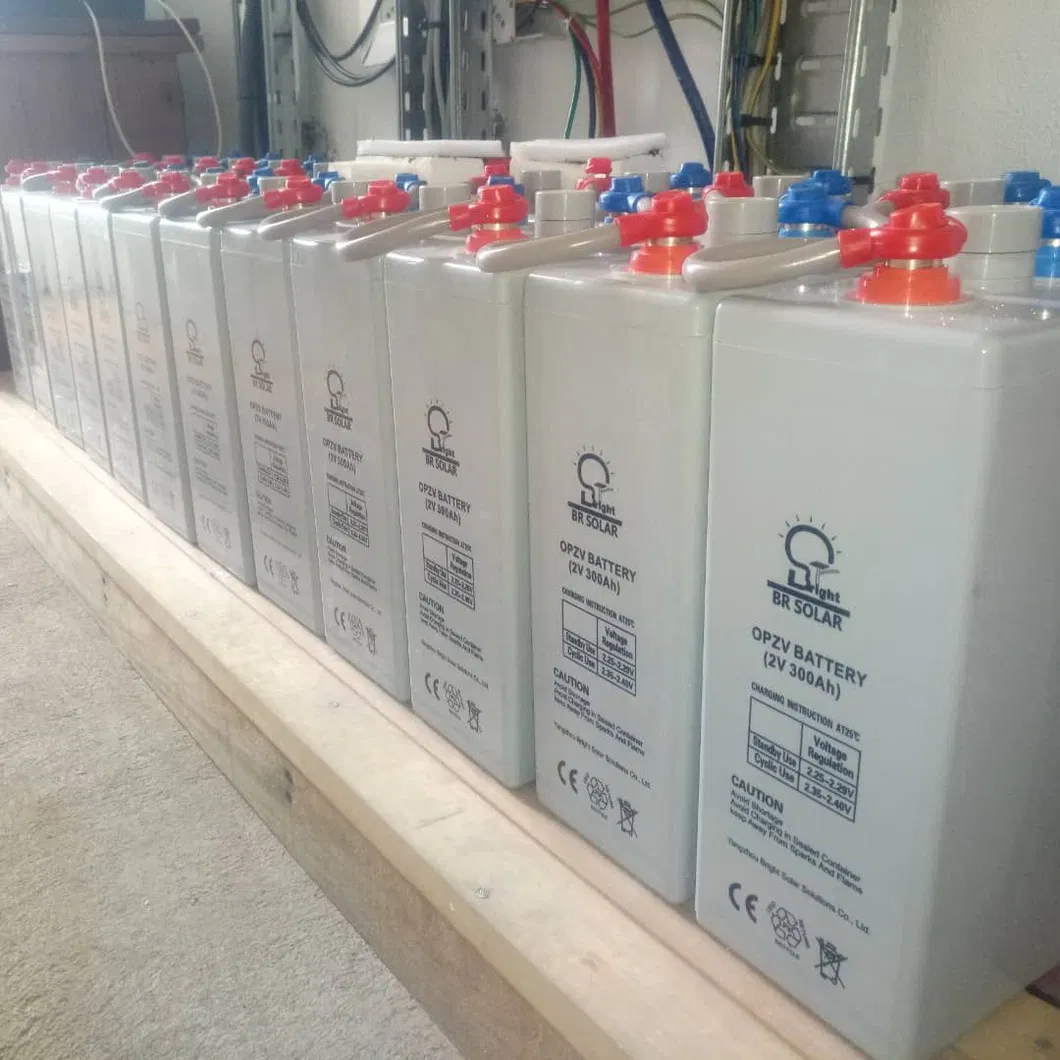

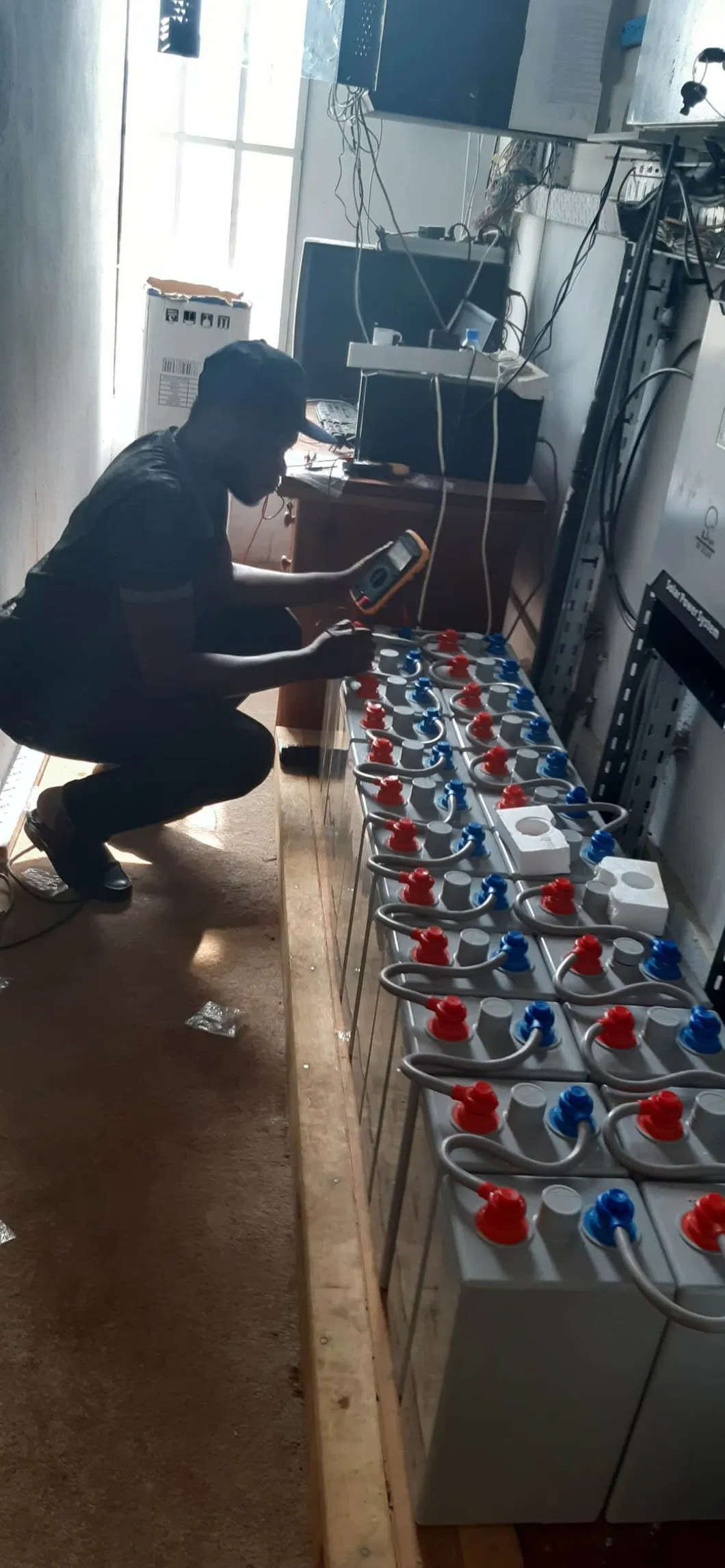

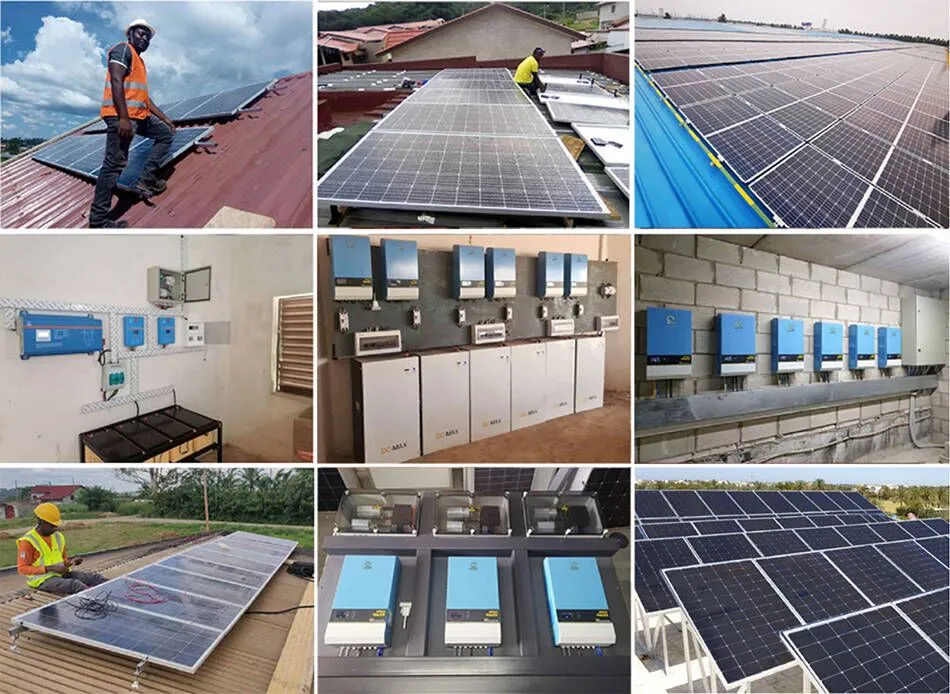

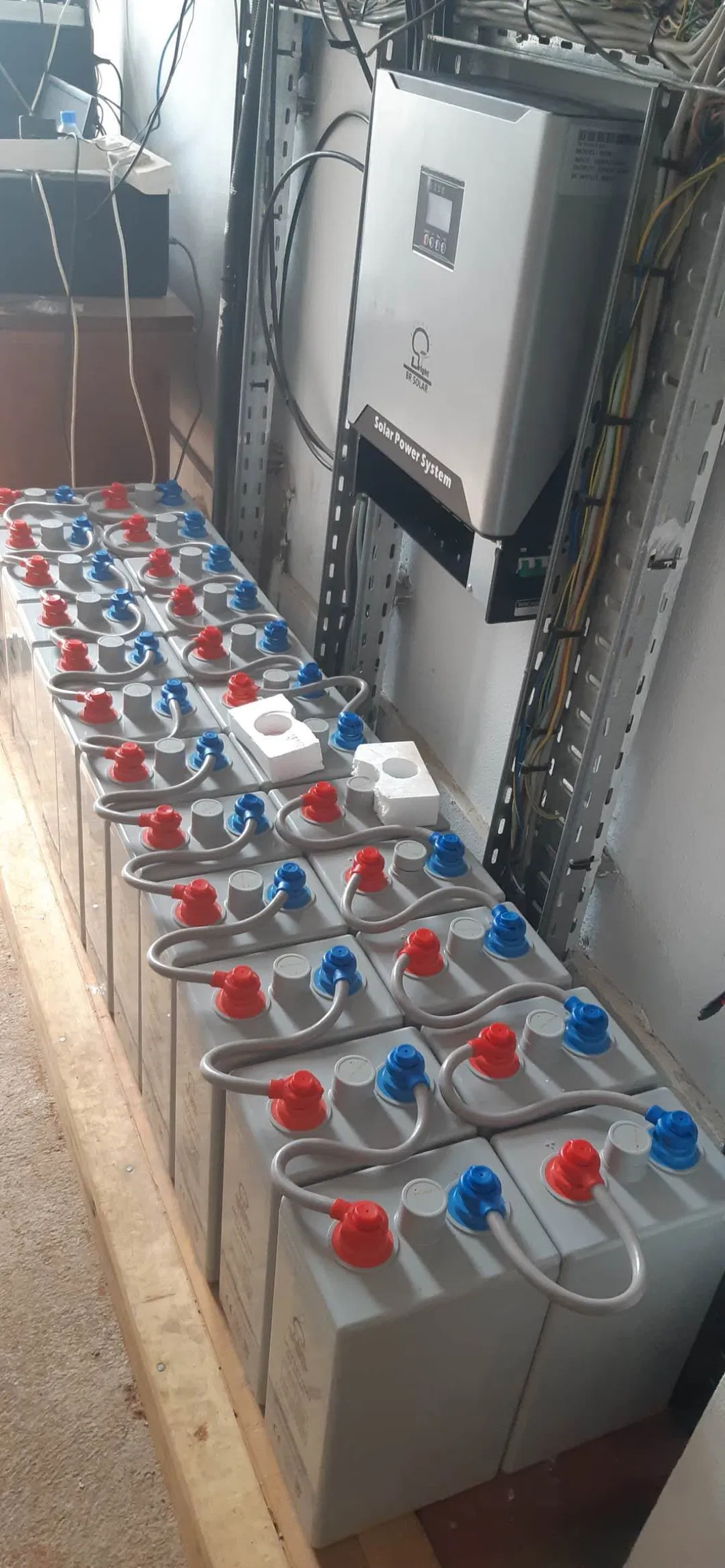

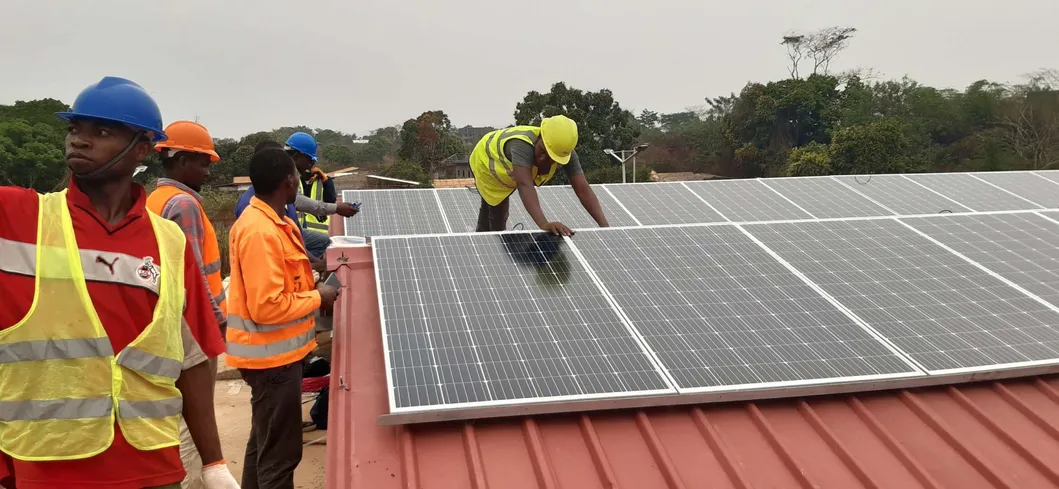

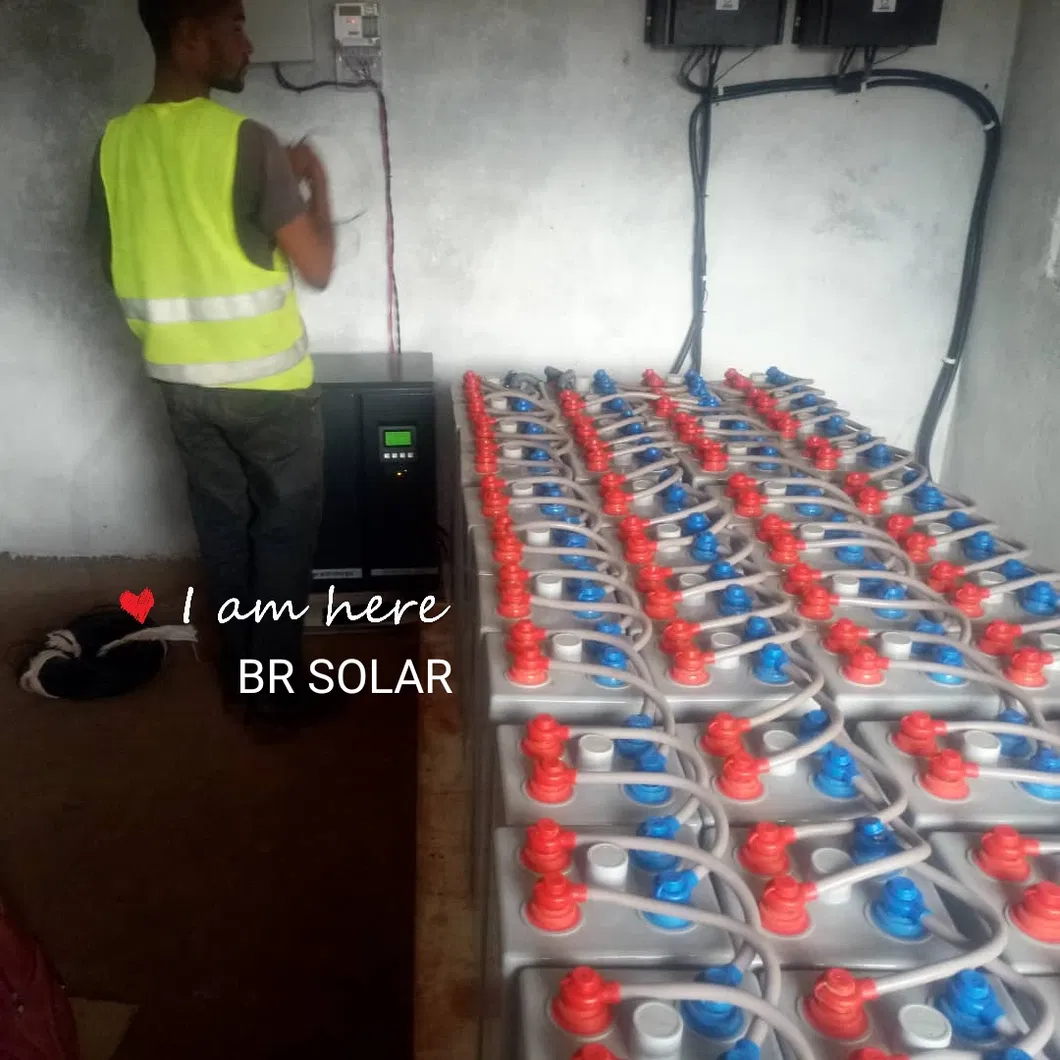

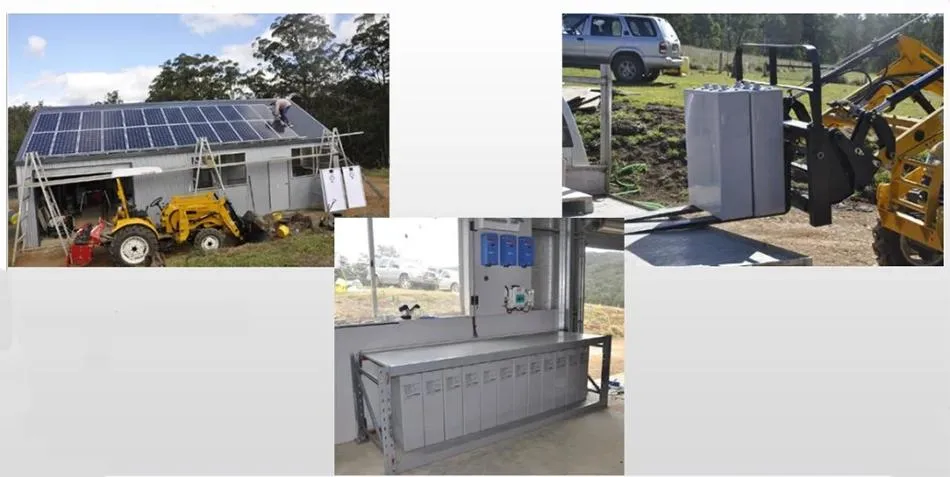

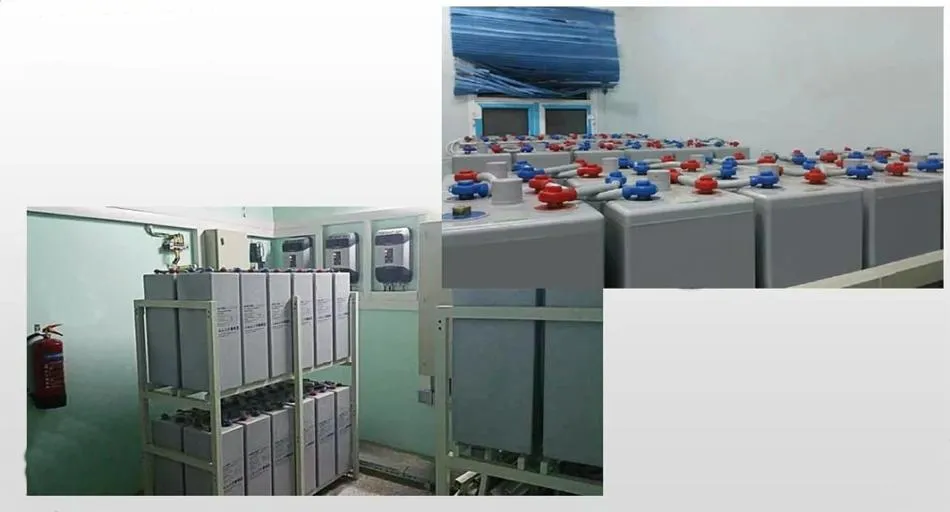

Packaging & Site Installation

Frequently Asked Questions

1. What is the typical lifespan of an OPzV battery?

The design life of our OPzV batteries is usually 5-8 years, with a cycle life of over 2000 times at 25ºC, which is significantly higher than standard batteries.

2. Are these batteries truly maintenance-free?

Yes, these are sealed gel batteries that require no water topping or regular electrolyte maintenance throughout their service life.

3. Can the battery operate in extreme temperatures?

Absolutely. The battery is designed to operate within a wide temperature range from -30ºC to 55ºC, making it suitable for various climates.

4. What is the self-discharge rate?

The self-discharge rate is extremely low, at less than 3% per month, ensuring the battery retains energy even during storage.

5. What makes OPzV batteries "Green"?

They utilize special alloys and Nano-material Gel without harmful substances like antimony or cadmium, and the gel structure prevents any acid leaks.

6. What happens if the battery is deeply discharged to 0V?

These batteries have excellent recovery capabilities. Even after discharging near 0V, they can recover up to 90% of their initial capacity through proper recharging procedures.
