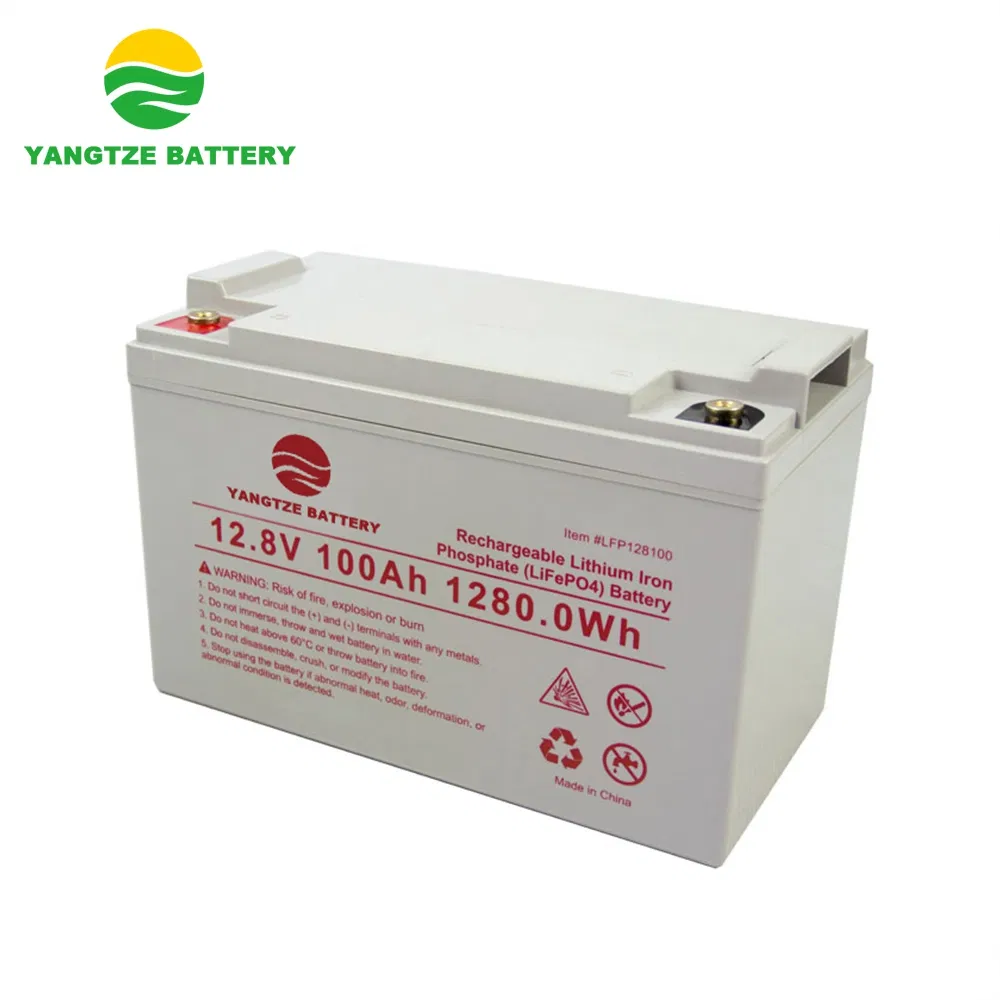

12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
1 / 5
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery
12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery

12V Deep Cycle Lithium Ion Battery 12.8V 100ah LiFePO4 Battery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LFeLi-12100M
Material
Lithium Iron Phosphate (LiFePO4)
Certificate
Ce/RoHS/ISO9001/ISO14001/IEC60896/IEC61427
Maintenance
Free
Warranty
5 Years
Terminal
Copper / M6
Nominal Voltage
12.8V
Nominal Capacity
100Ah
Usage
Car, Bus, UPS, Solar, Electric Bicycle, Boat
IP Class
IP65
12V 100Ah LiFePO4 Battery Banner
Key Features
🔄
Longer Cycle Life

Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.

⚖️
Lighter Weight

About 40% of the weight of a comparable lead acid battery. A "drop-in" replacement for lead acid batteries.

⚡
Higher Power

Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

🛡️
Superior Safety

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact or short circuits.

Applications
Wheelchairs and Scooters Solar/Wind Energy Storage Back-up Power for UPS Golf Trolleys & Buggies Electric Bikes
Technical Specifications
Electrical CharacteristicsNominal Voltage12.8V
Nominal Capacity100Ah
Energy1280Wh
Cycle Life>2000 cycles @ 1C 100% DOD
Standard ChargeCharge Voltage14.6±0.2V
Charge Current100A
Max. Charge Current100A
Standard DischargeContinuous Current100A
Discharge Cut-off Voltage8V
EnvironmentalCharge Temperature0ºC to 55ºC
Discharge Temperature-20ºC to 60ºC
MechanicalDimensions342mm*173mm*220mm
Weight13.60kg (29.98lbs)
Product Presentation

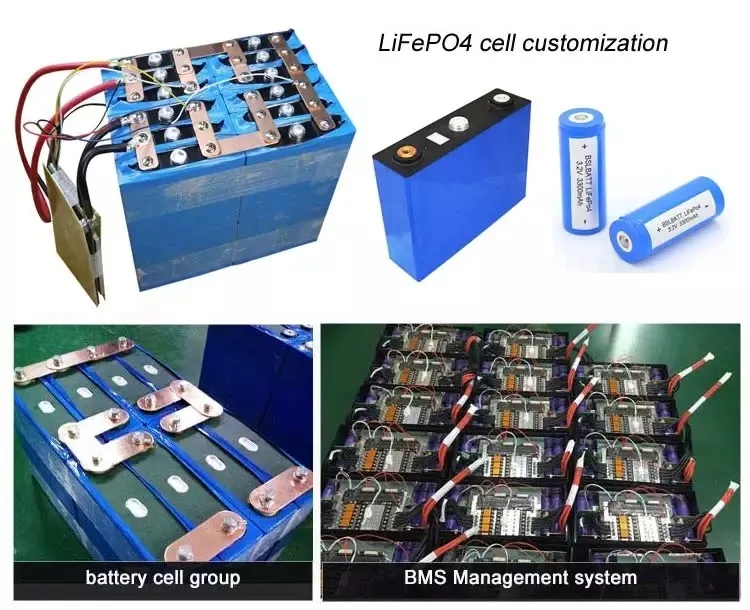

Product View 1

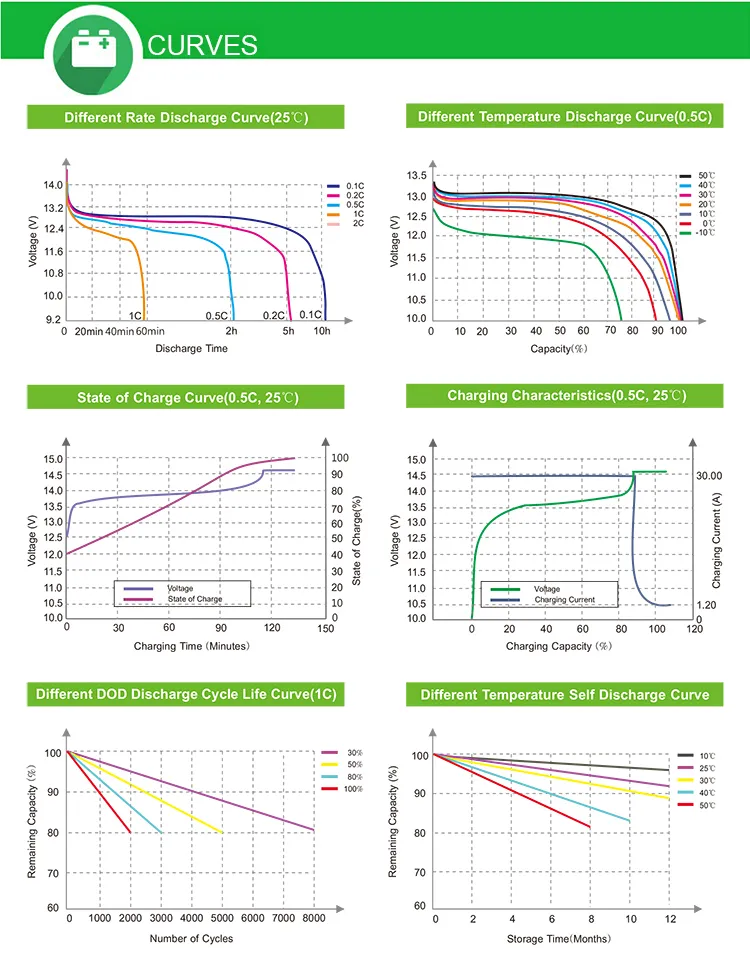

Product View 2

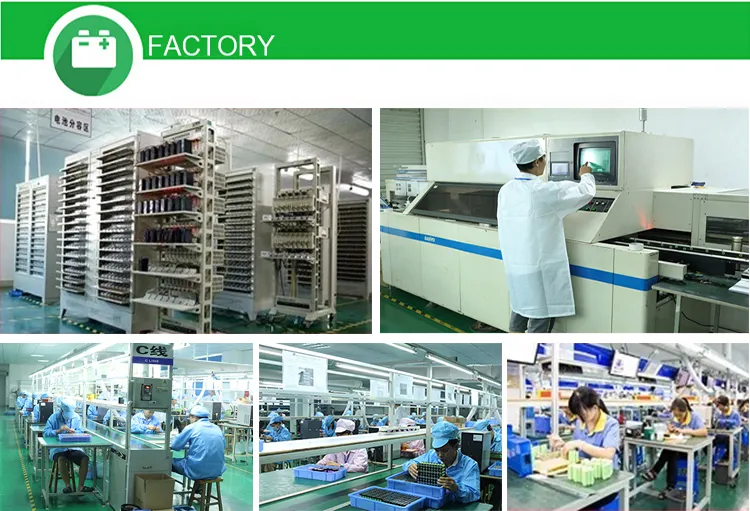

Product View 3

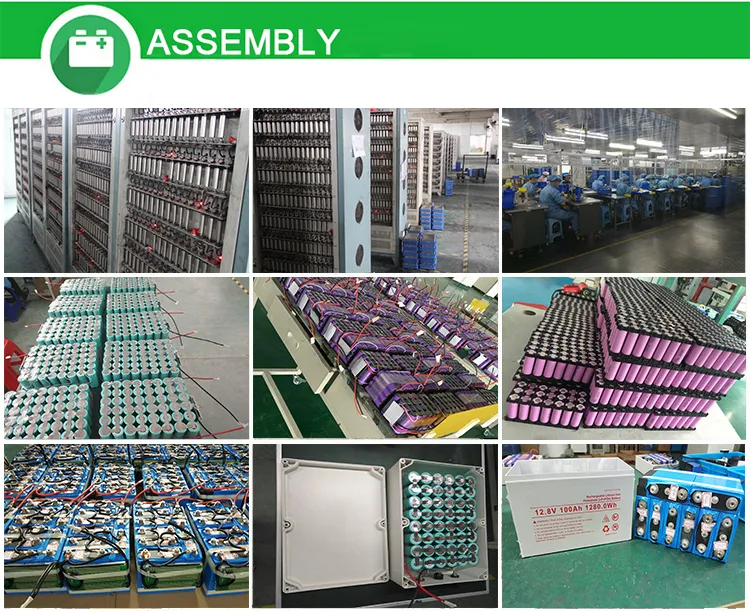

Product View 4
Product View 5
Product View 6

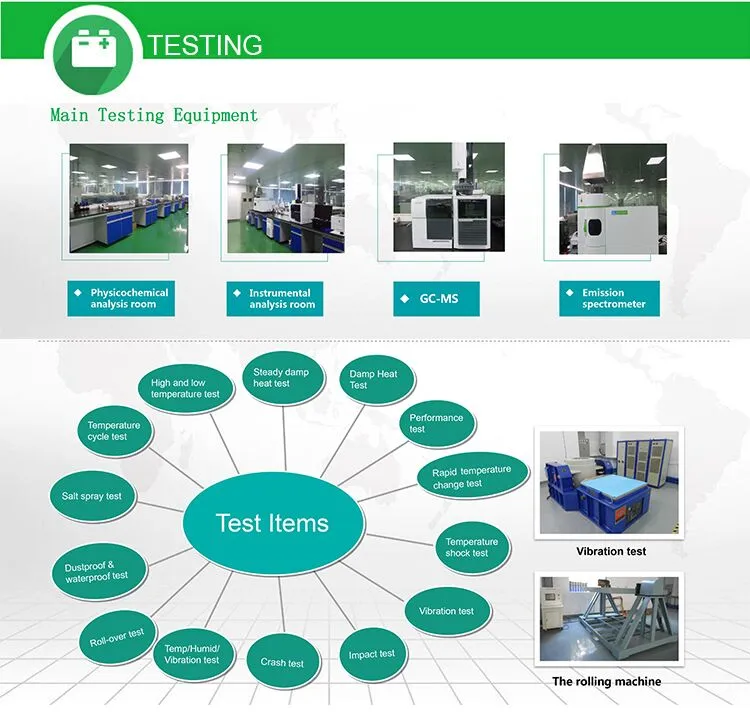

Product View 7
Product View 8
Product View 9
Frequently Asked Questions
What is the expected lifespan of the LFeLi-12100M battery?
The battery offers an exceptional cycle life of over 2,000 cycles at 100% Depth of Discharge (DOD) at 1C, which is significantly longer than traditional lead-acid batteries.
How does the weight compare to lead-acid batteries?
This lithium battery is approximately 40% of the weight of a comparable lead-acid battery, making it much easier to handle and install as a "drop-in" replacement.
What are the safety features of LiFePO4 technology?
Lithium Iron Phosphate (LiFePO4) chemistry is inherently safe. It eliminates risks of explosion or combustion even under high impact, overcharging, or short circuit conditions.
What is the operating temperature range?
The battery performs reliably in a wide temperature range, from -20ºC to 60ºC for discharge and 0ºC to 55ºC for charging.
Can this battery be used for solar energy storage?
Yes, it is ideal for solar and wind energy storage, as well as UPS backups, golf trolleys, electric bikes, and marine applications.
What is the ingress protection (IP) rating?
The battery case is rated IP65, providing excellent protection against dust and low-pressure water jets from any direction.
