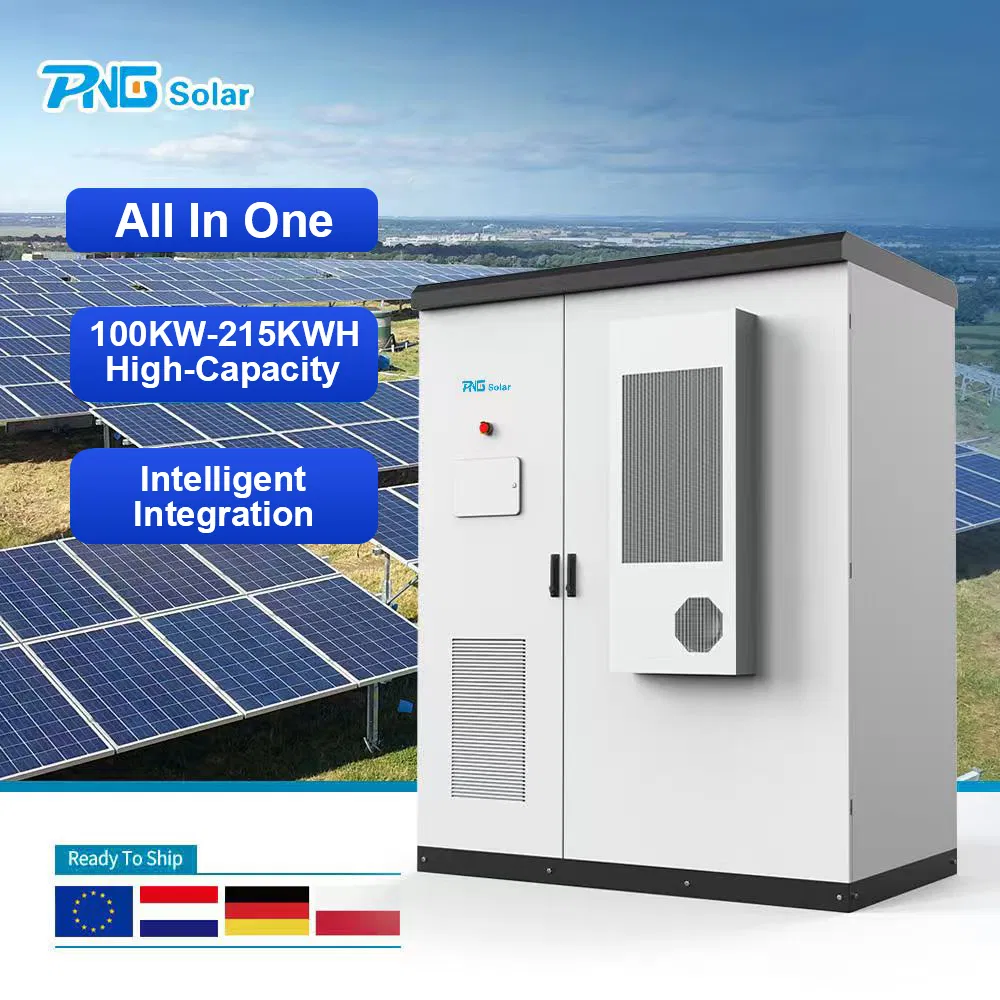

Industrial Solar Energy Storage System 215kwh 241kwh LiFePO4 Battery Energy Storage System

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Cabinet Floor-Mounted

Product Description

⚡ Basic Info & Overview
Model NO.
PNG100KW-215KWH
Energy Capacity
100kWh-500kWh
Power Configuration
100kW-250kW
Cycle Life
8000 cycles
Cooling Method
Fan Cooling
Nominal Energy
215.04kwh
Battery Cell
New a+ Grade, 3.2V 280ah, Prismatic
Design Life
10 years
Warranty
5 years or 8000 cycles
IP Rating
IP 54
🏢 Industrial Expertise

A professional and leading manufacturer of quality solar modules. Our facility is located in a primary production base of the photovoltaic industry, surrounded by global industry leaders. The business covers the R&D, production, and sales of PV modules, residential, commercial, and large-scale solar plants. We supply turn-key services and all essential materials for international markets.

With 3 production lines and an annual capacity of 1.2GW, we facilitate efficient lead production times. Sophisticated production experience and a global sales network attract customers worldwide. For residential and commercial solar energy systems, we provide on-grid, off-grid, and hybrid solutions using high-quality materials. Quality is our soul.

Industrial Storage
Battery System
Solar Energy Storage
🛠️ Product Description

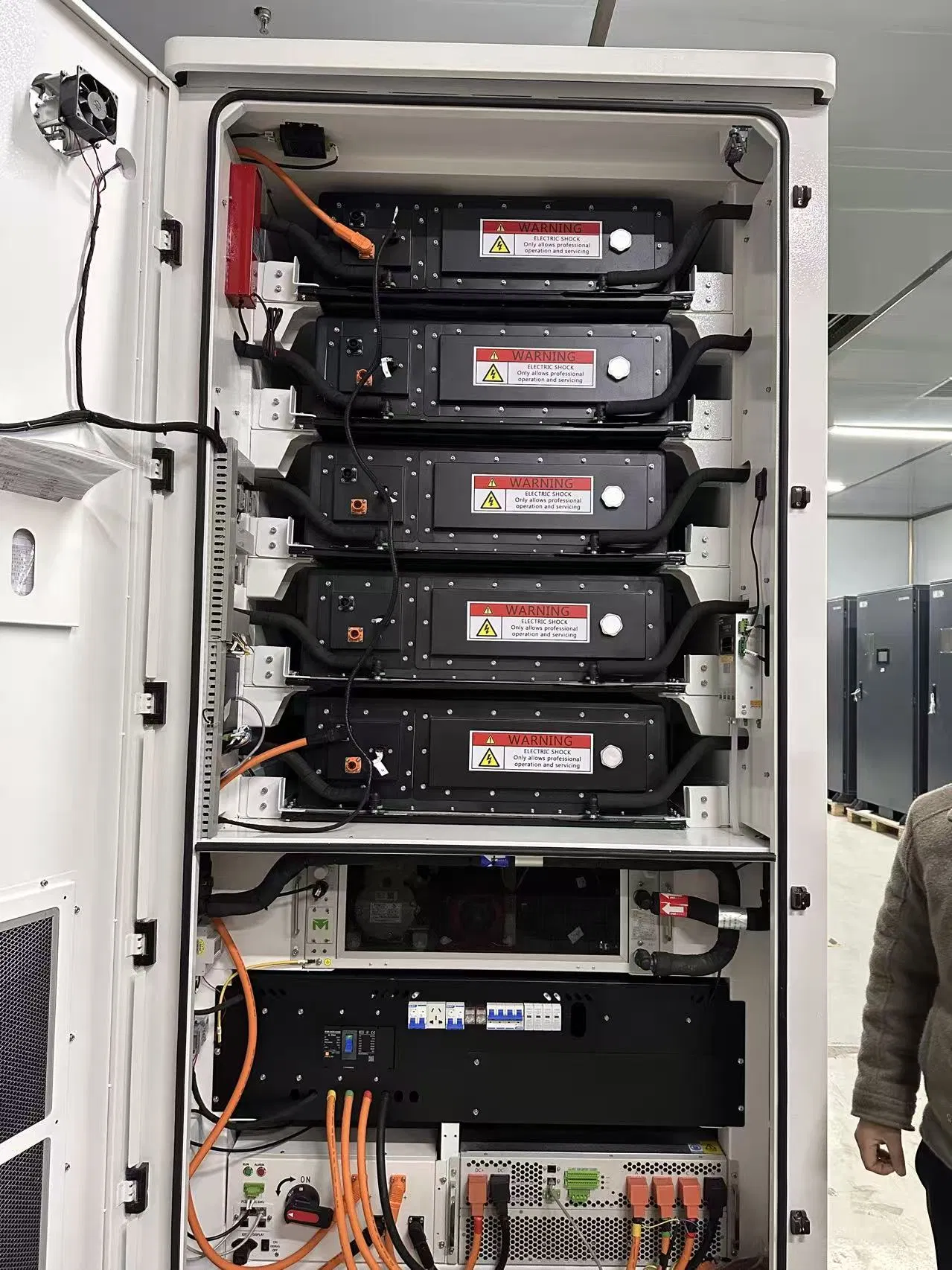

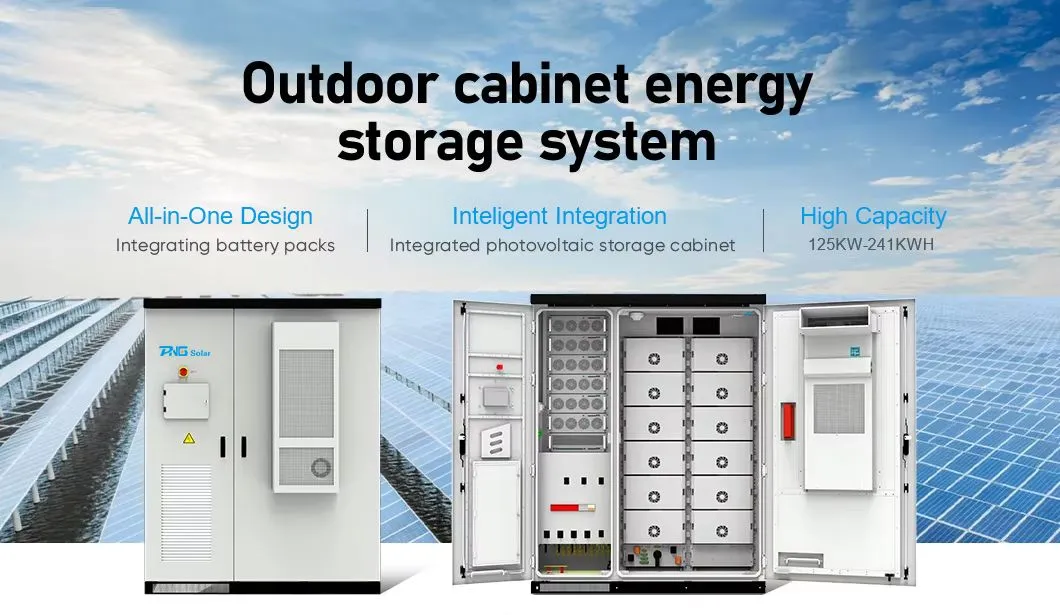

Product View
High-Voltage Box Specifications
Dimension483*648*222.5mm
Weight25kgs
Rated Current250A
Rated Voltage1000V
Voltage Sampling Range0~1500V

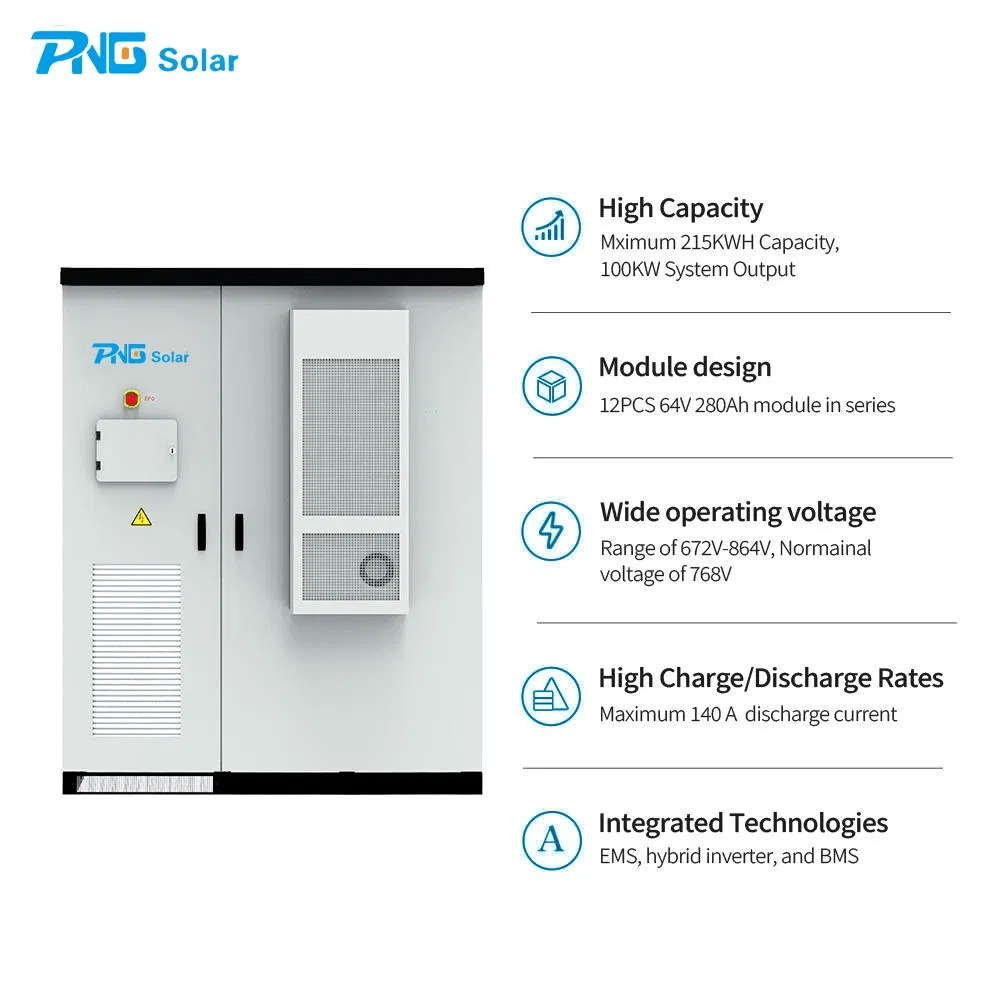

All-in-One LFP Cabinet Specifications
ModelPNG 100kw-215kwh
Nominal Energy215.04KWH
Nominal Voltage768V
Battery ChemistryLithium Iron Phosphate (LiFePO4)
Cycle Life>8000 cycles (@25ºC, 0.5P/0.5P)
Cell Specification3.2V 280Ah
Inverter Rated Output100KW
Fire ExtinguishingAerosol fire extinguishing
Dimension (W*D*H)1600*1000*2350mm
WeightApprox. 2.5T
CommunicationLAN/CAN/RS485

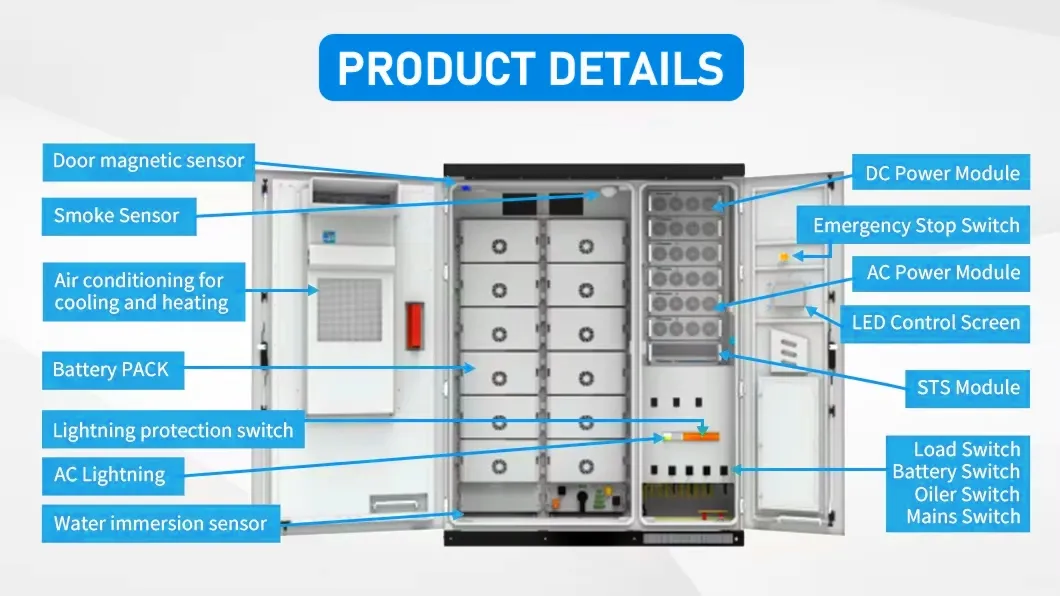

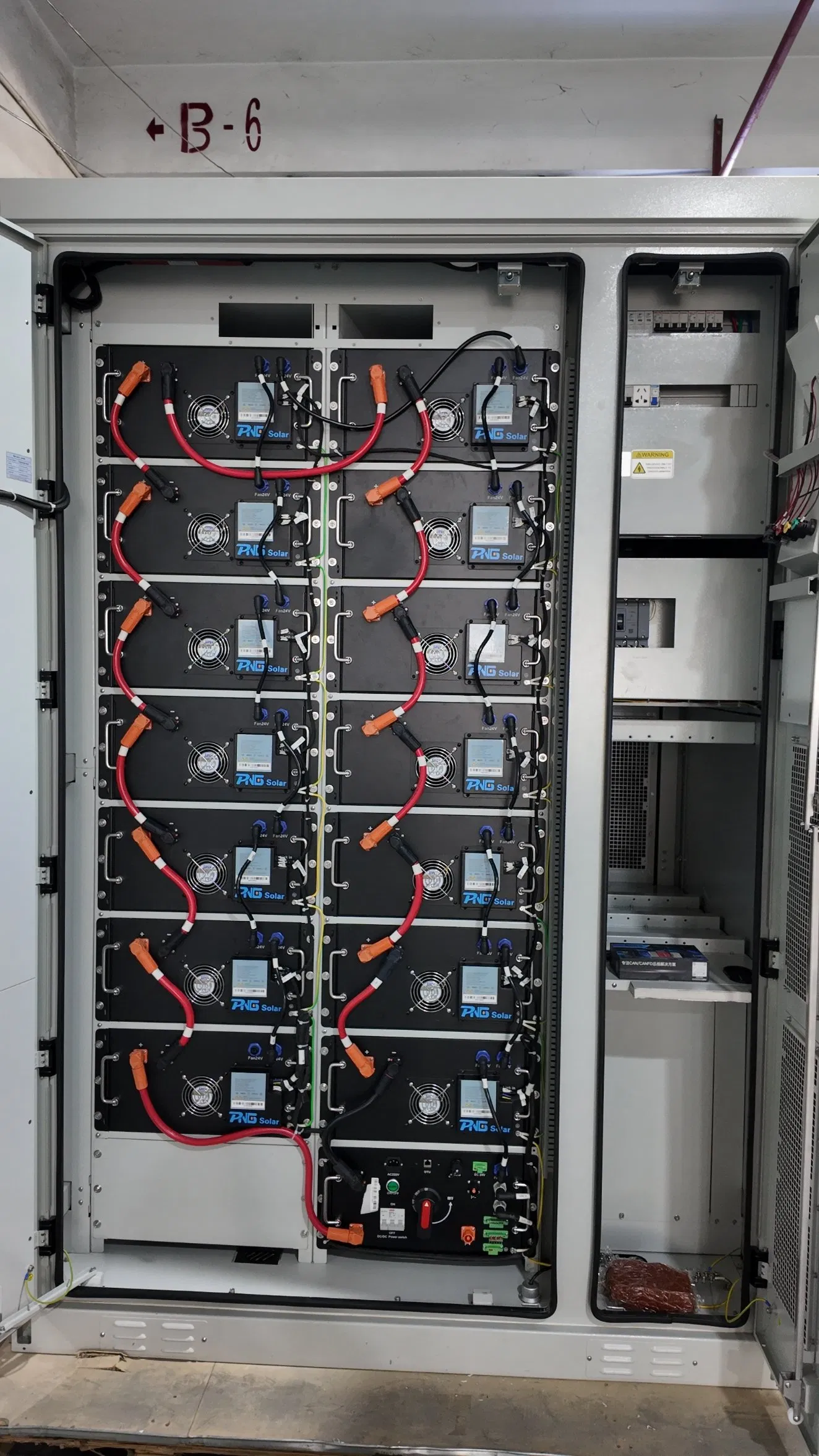

Internal Components

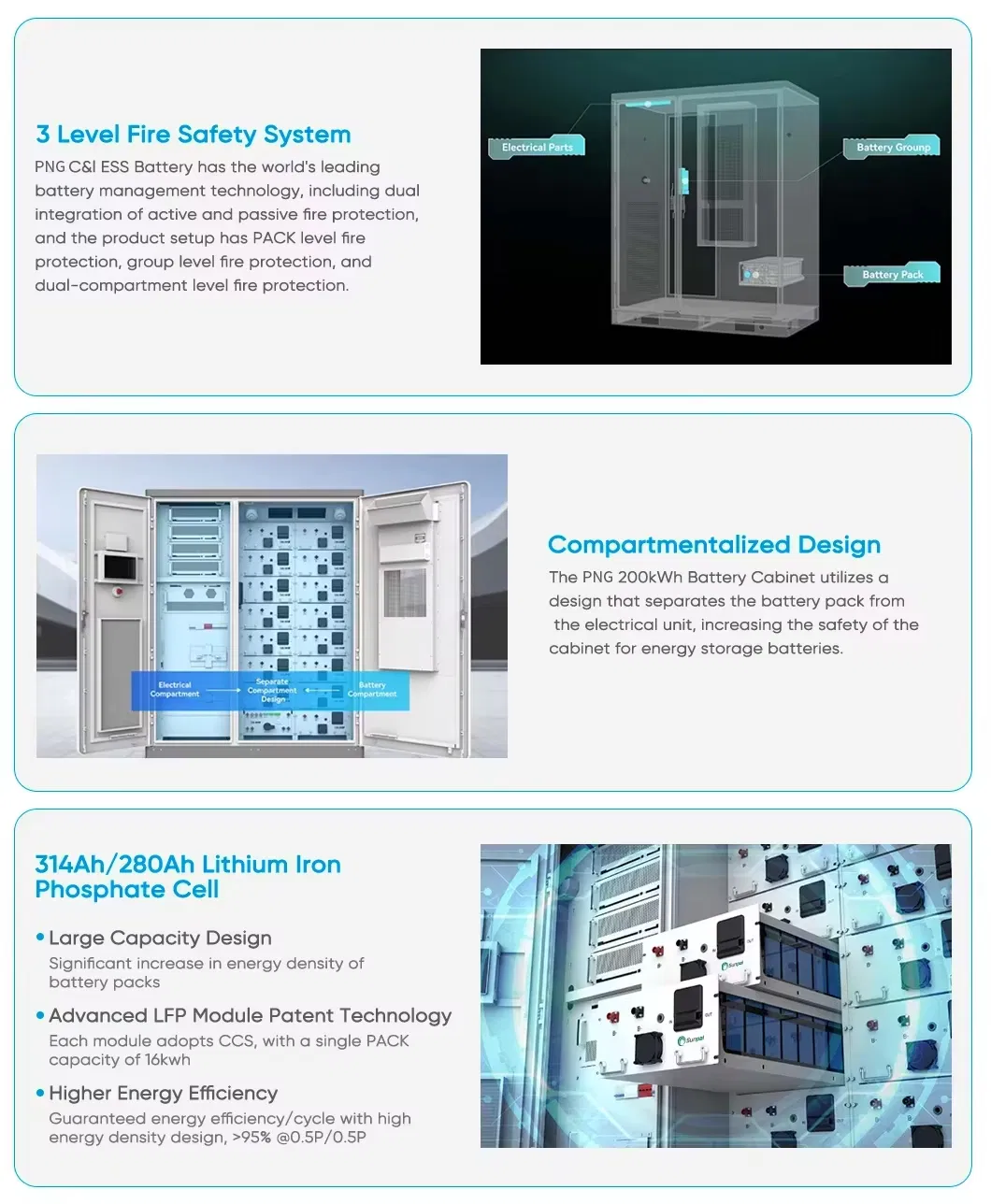

Detailed Specs

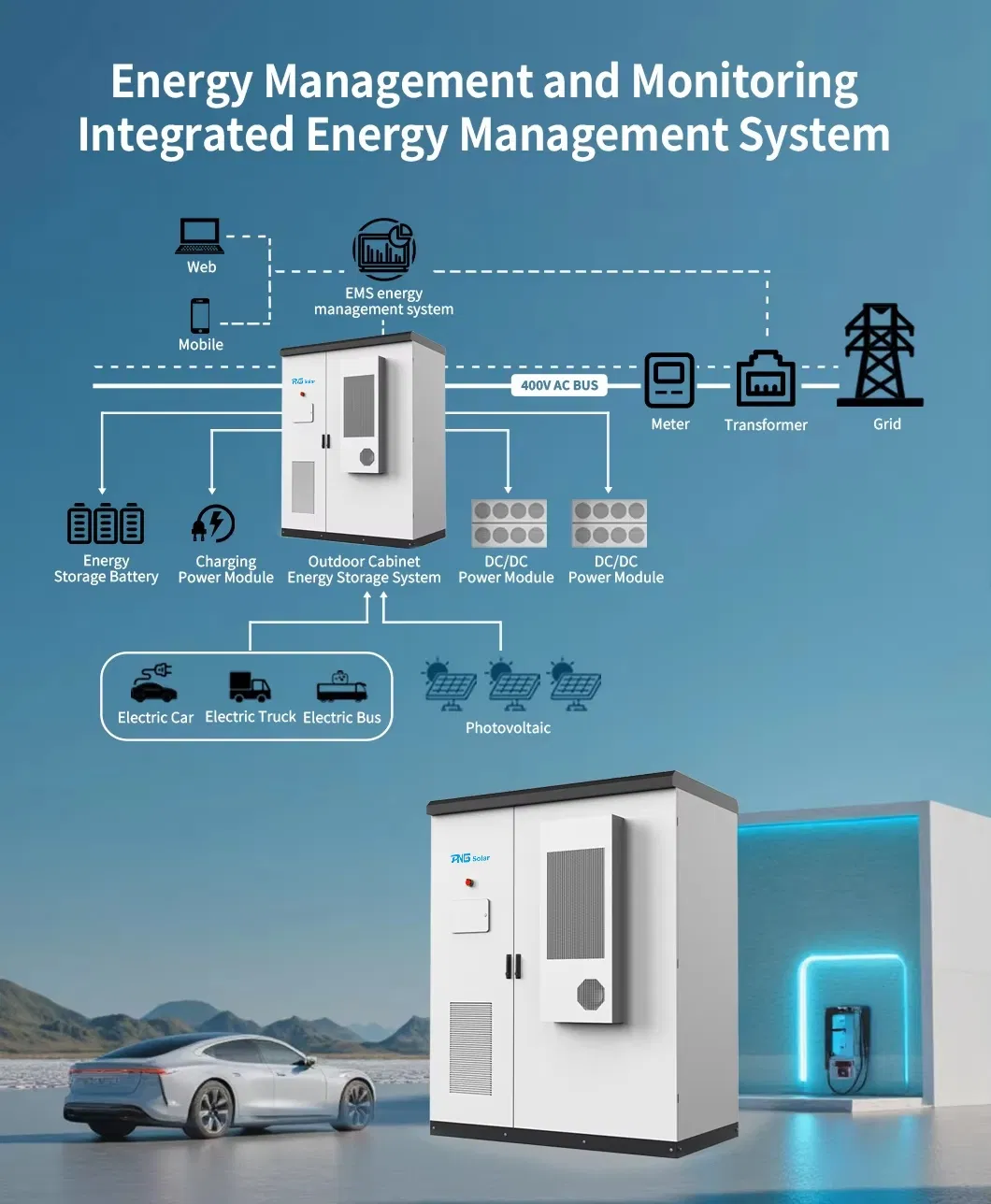

Layout
Dimension Drawing
📦 Packaging & Shipping
Package Size
1600cm * 1000cm * 2350cm
Gross Weight
2500.00kg
Lead Time
45 days (1-10 pcs), Negotiable (>10 pcs)

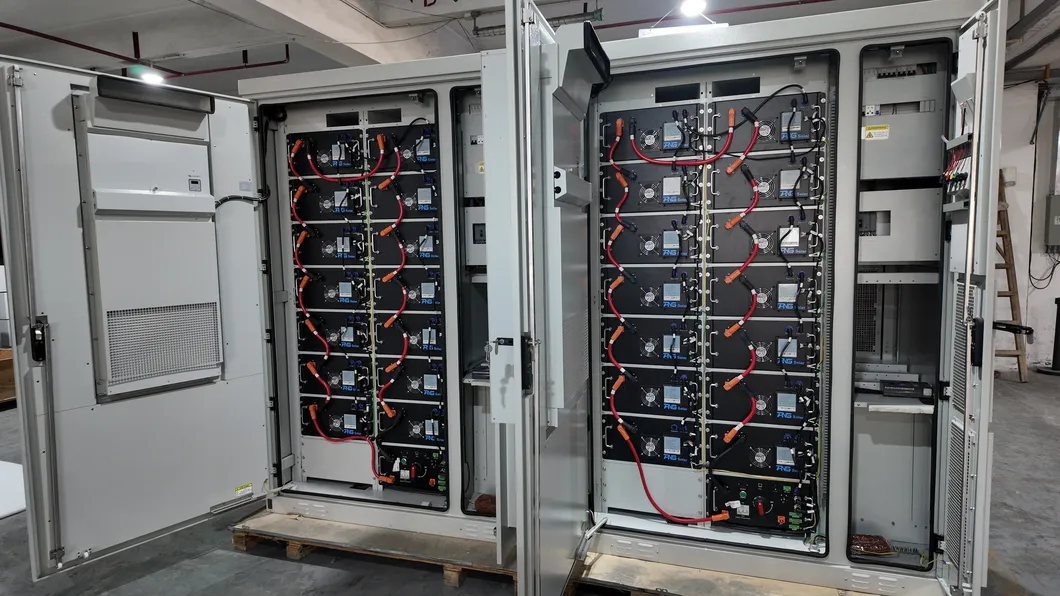

Packaging

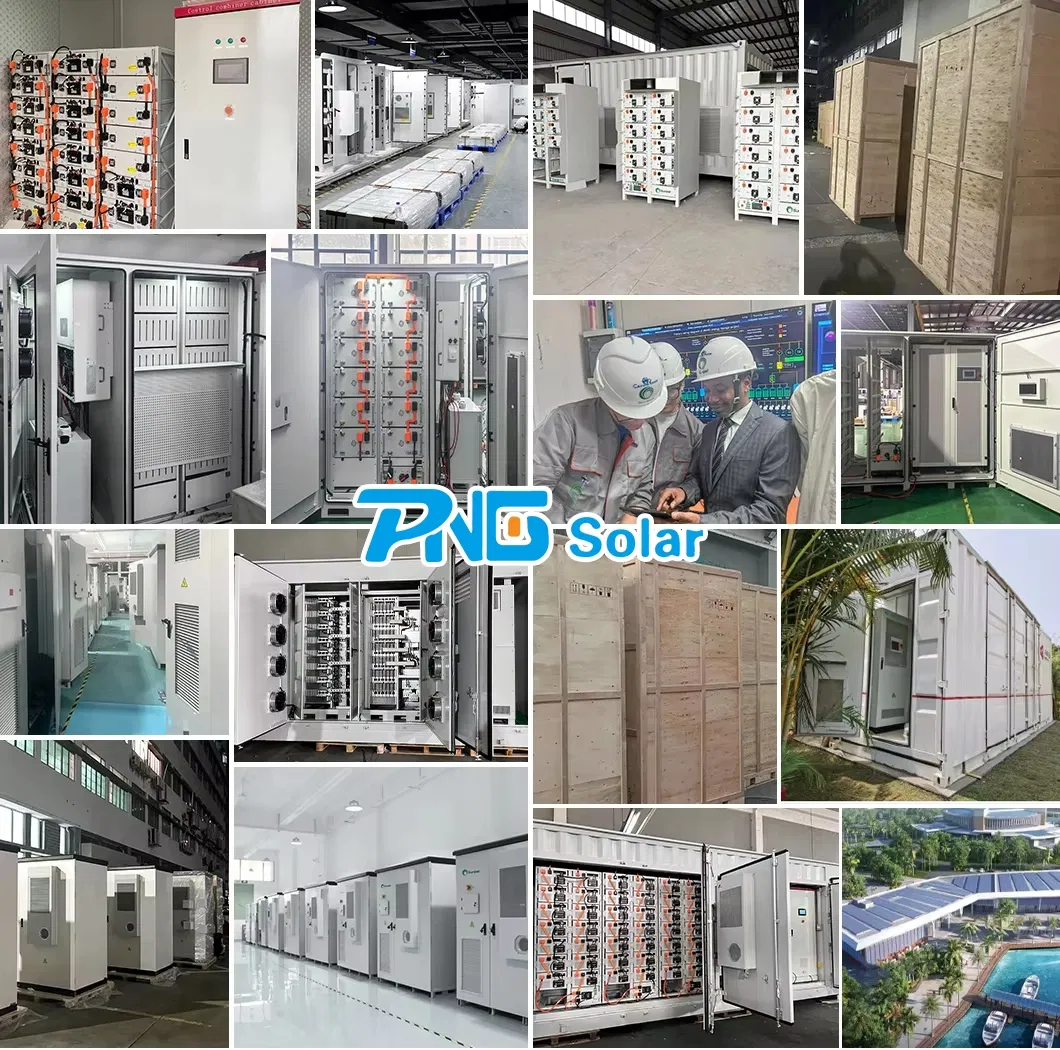

Shipping Preparation

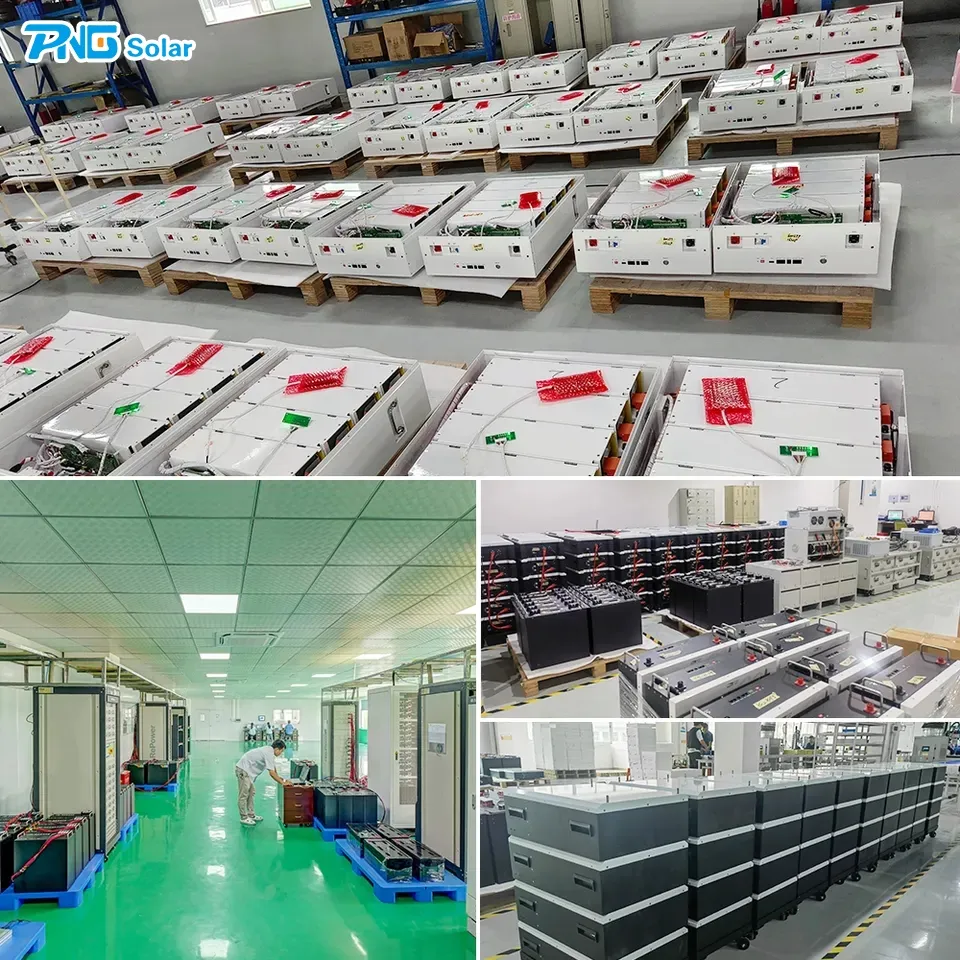

Logistics
🌟 Successful Projects

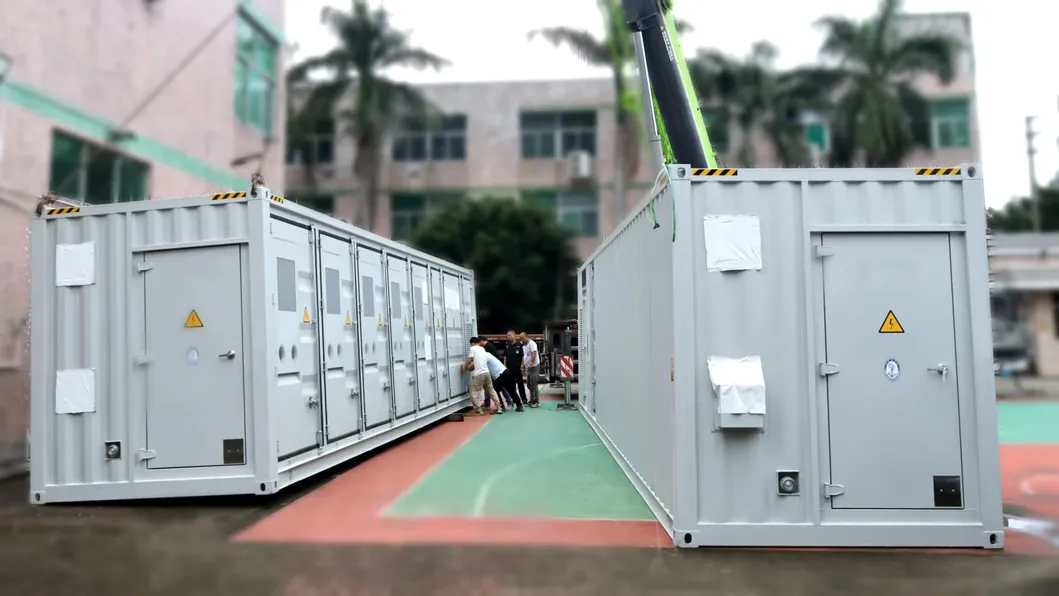

Project 1

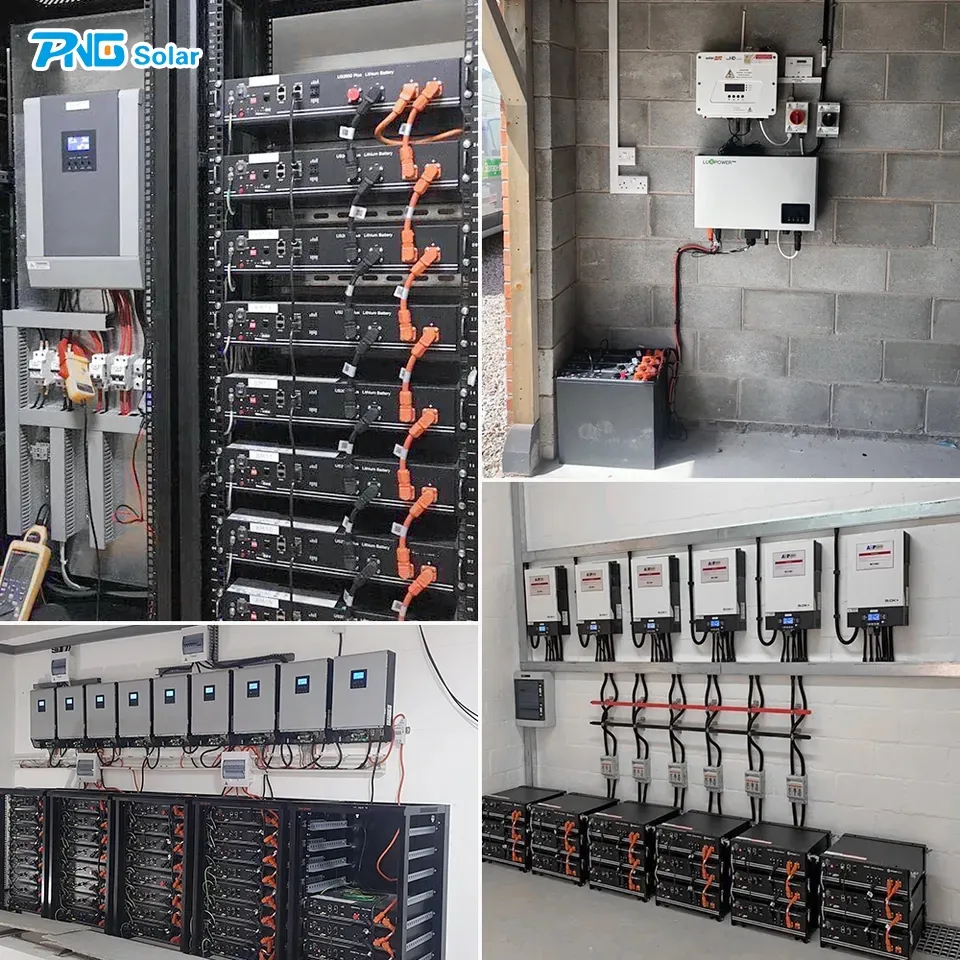

Project 2

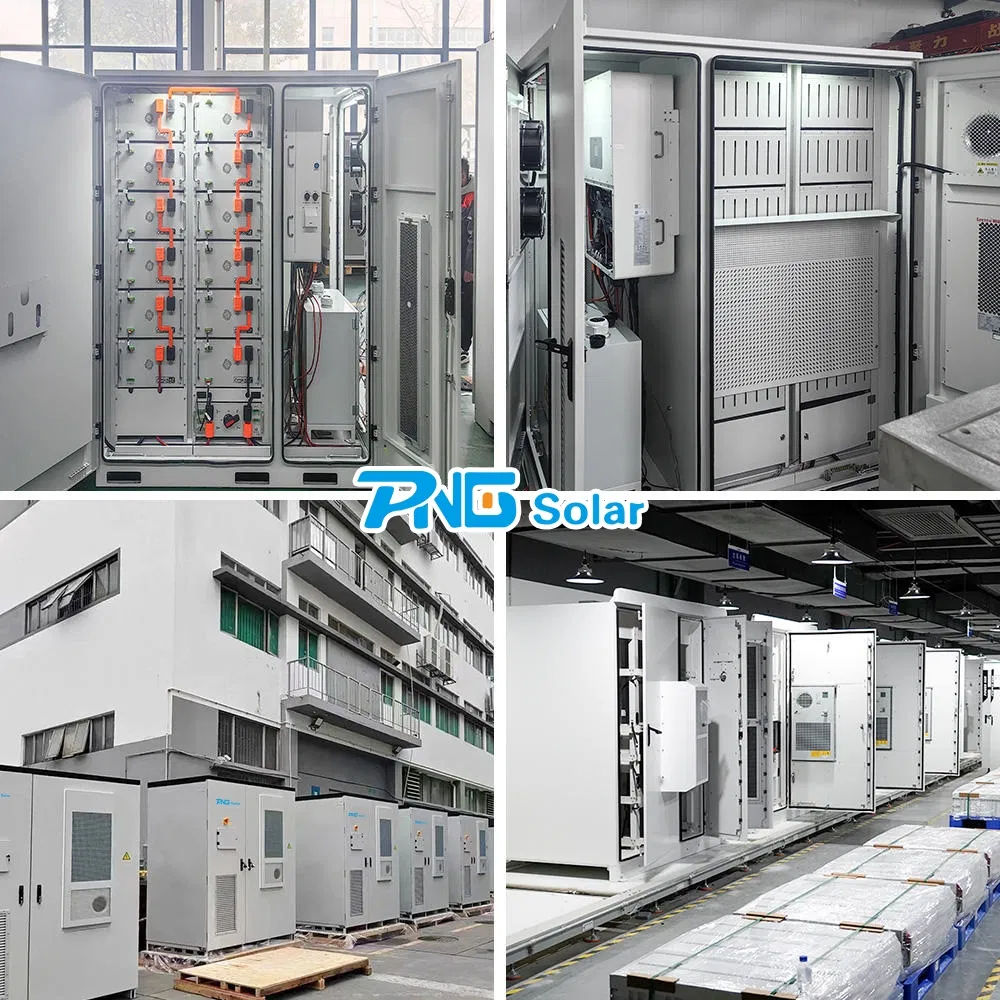

Project 3

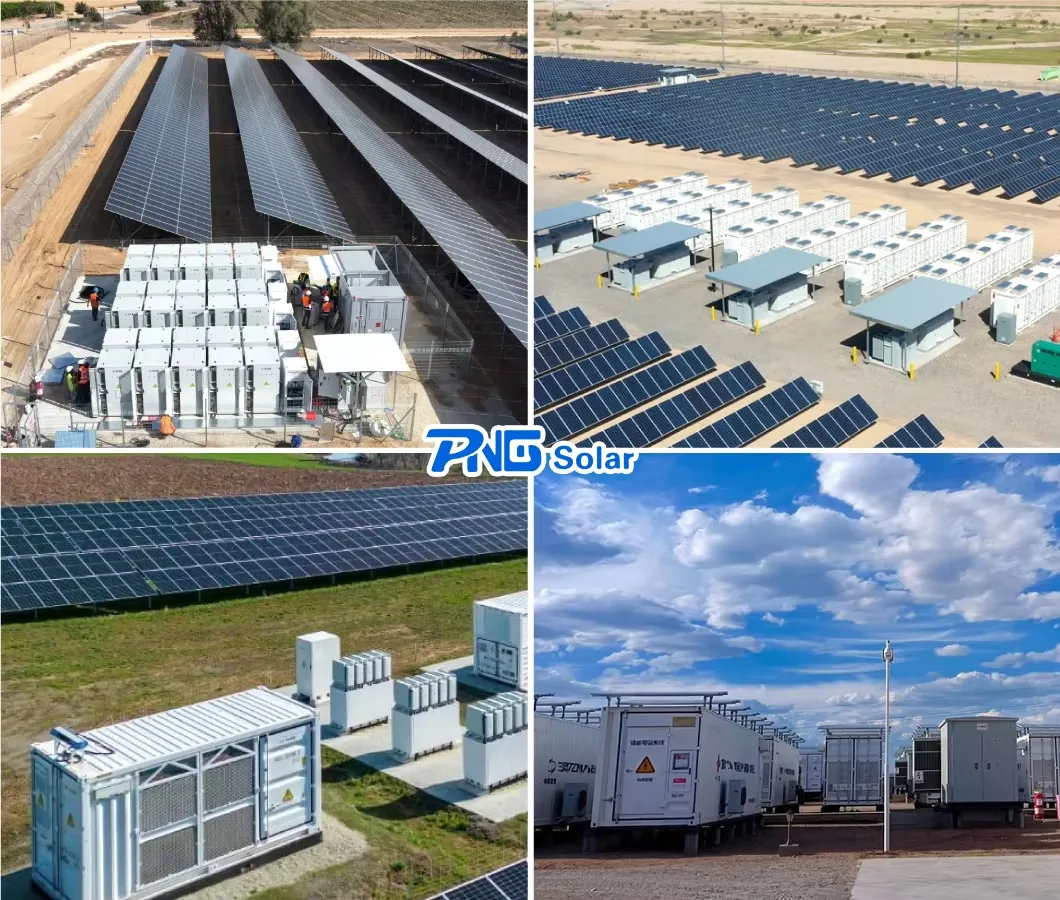

Project Highlight
📜 Certifications
Certificates
❓ Frequently Asked Questions
Q1: What products can I purchase for a complete solar solution?
A1: You can buy Solar Panels, Solar Systems (on-grid, off-grid, hybrid), Gel and Lithium batteries, and Inverters. We provide complete integrated solutions.
Q2: What is the cycle life and warranty for the energy storage system?
A2: The system features LiFePO4 battery technology with a cycle life of over 8000 cycles. We offer a 5-year warranty or 8000 cycles based on performance.
Q3: Are these systems certified for international transport and safety?
A3: Yes, our products comply with major safety and transport standards including IEC62619, IEC/EN61000, UN38.3, and MSDS.
Q4: What are the cooling and safety features of the LFP Cabinet?
A4: The unit utilizes fan/air cooling for temperature management and is equipped with an integrated Aerosol fire extinguishing system for maximum safety.
Q5: What services and delivery terms are available?
A5: We accept various delivery terms including FOB, CFR, CIF, EXW, DDP. Payments are accepted in USD, EUR, and CNY via T/T, L/C, or PayPal.
Q6: What is the typical lead time for an order?
A6: For orders between 1 to 10 pieces, the standard lead time is 45 days. Larger orders are subject to negotiation based on production capacity.
