Deye Ess Bos-G Intelligent BMS Industrial Battery 100ah 51.2V Home Battery Storage System Container

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

Overview

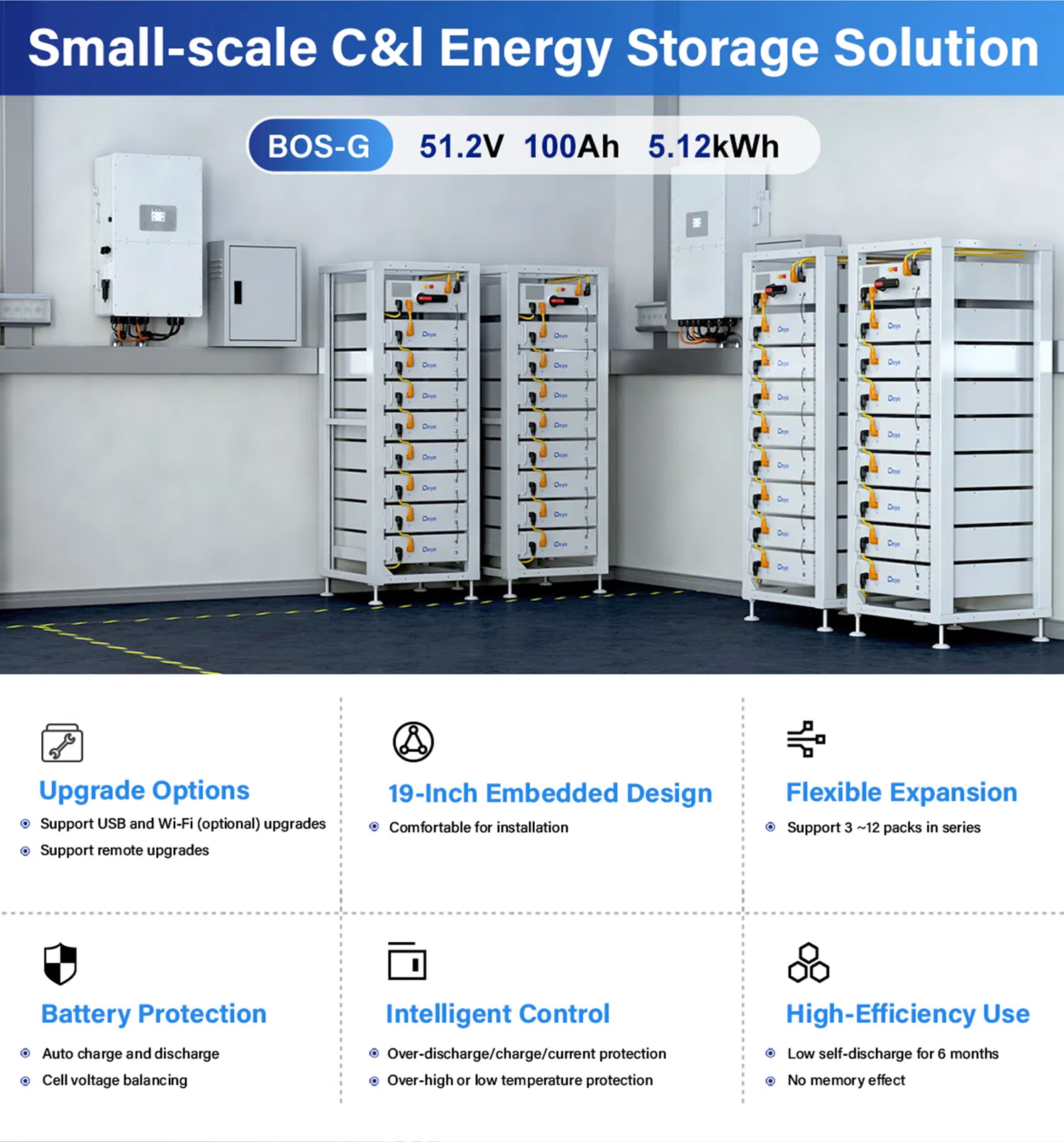

Battery Storage System
Model NO.Bos-GRechargeableNo
Cell ChemistryLiFePO4Module Energy (kWh)5.12
Nominal Voltage (V)51.2Capacity (Ah)100

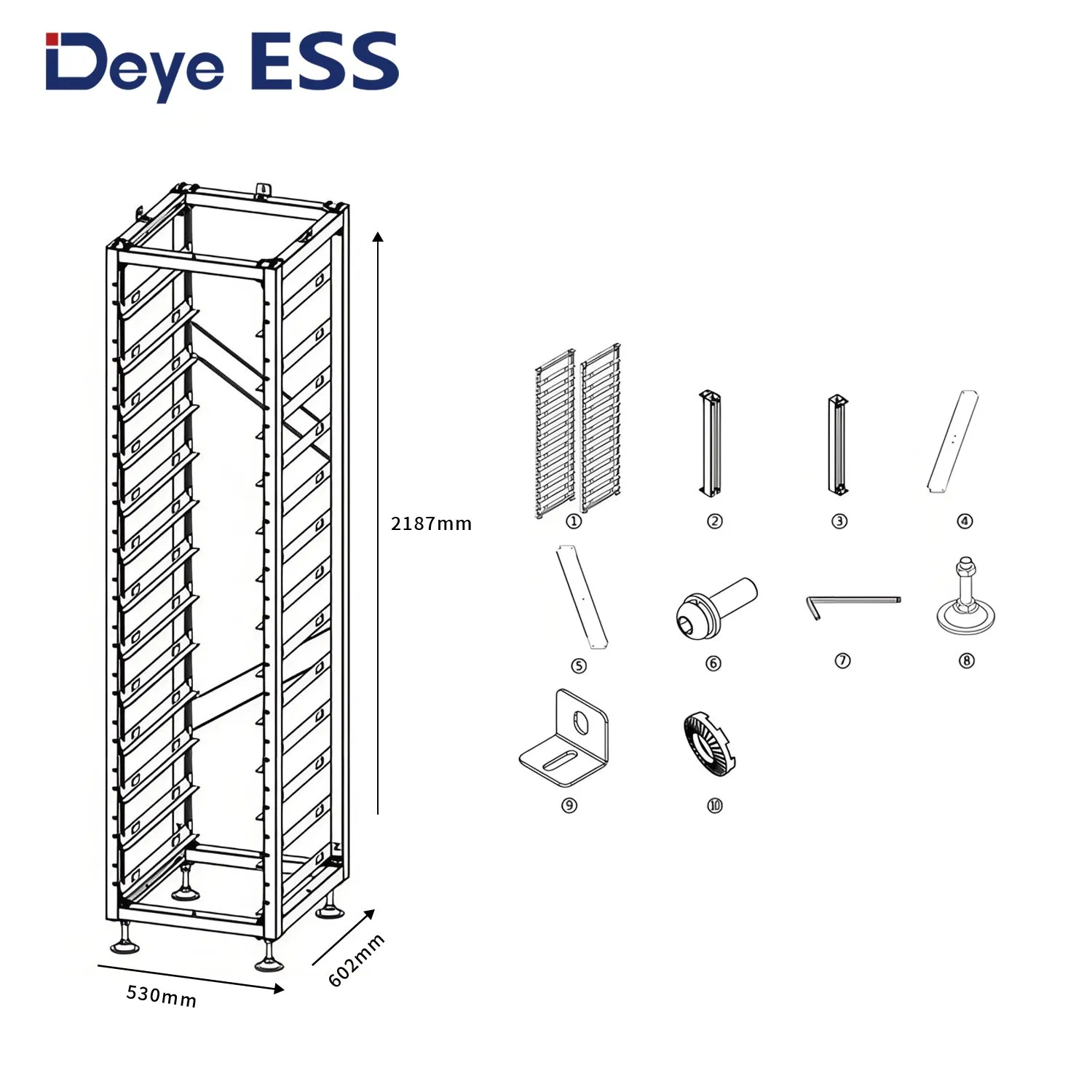

InstallationRack MountingStorage Temp (°C)0~35
DOD90%Warranty10 Years
CertificationUn38.3, IEC, CecHS Code8507802000

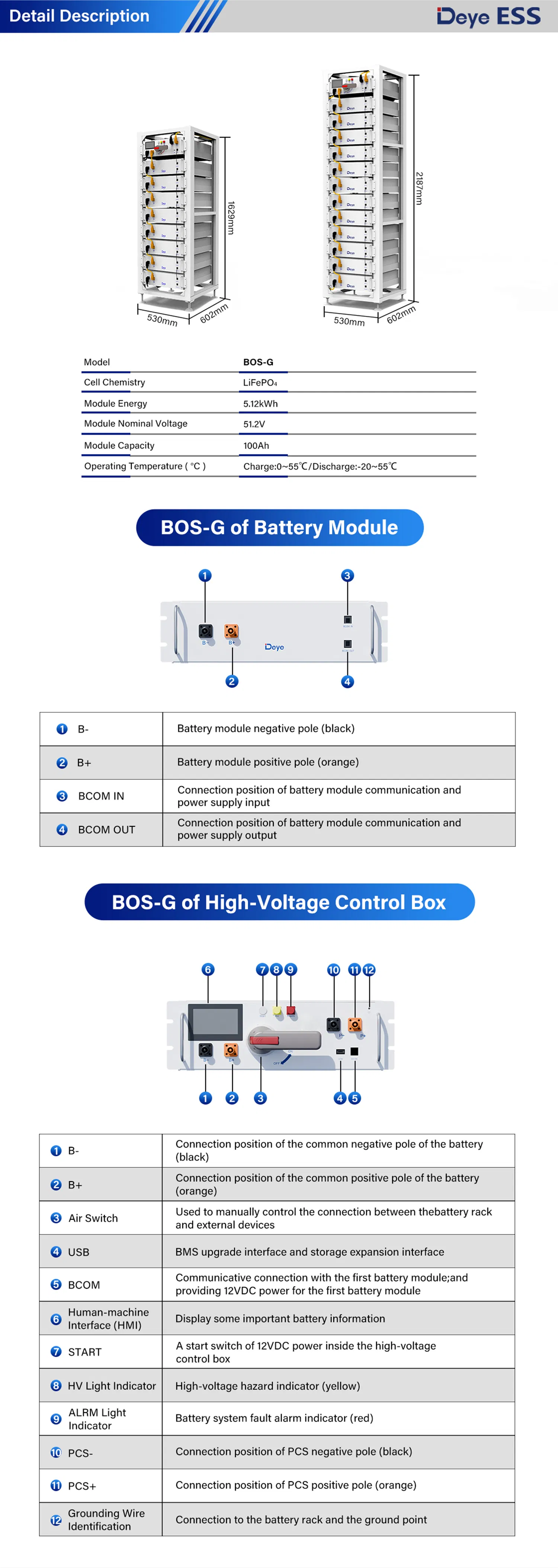

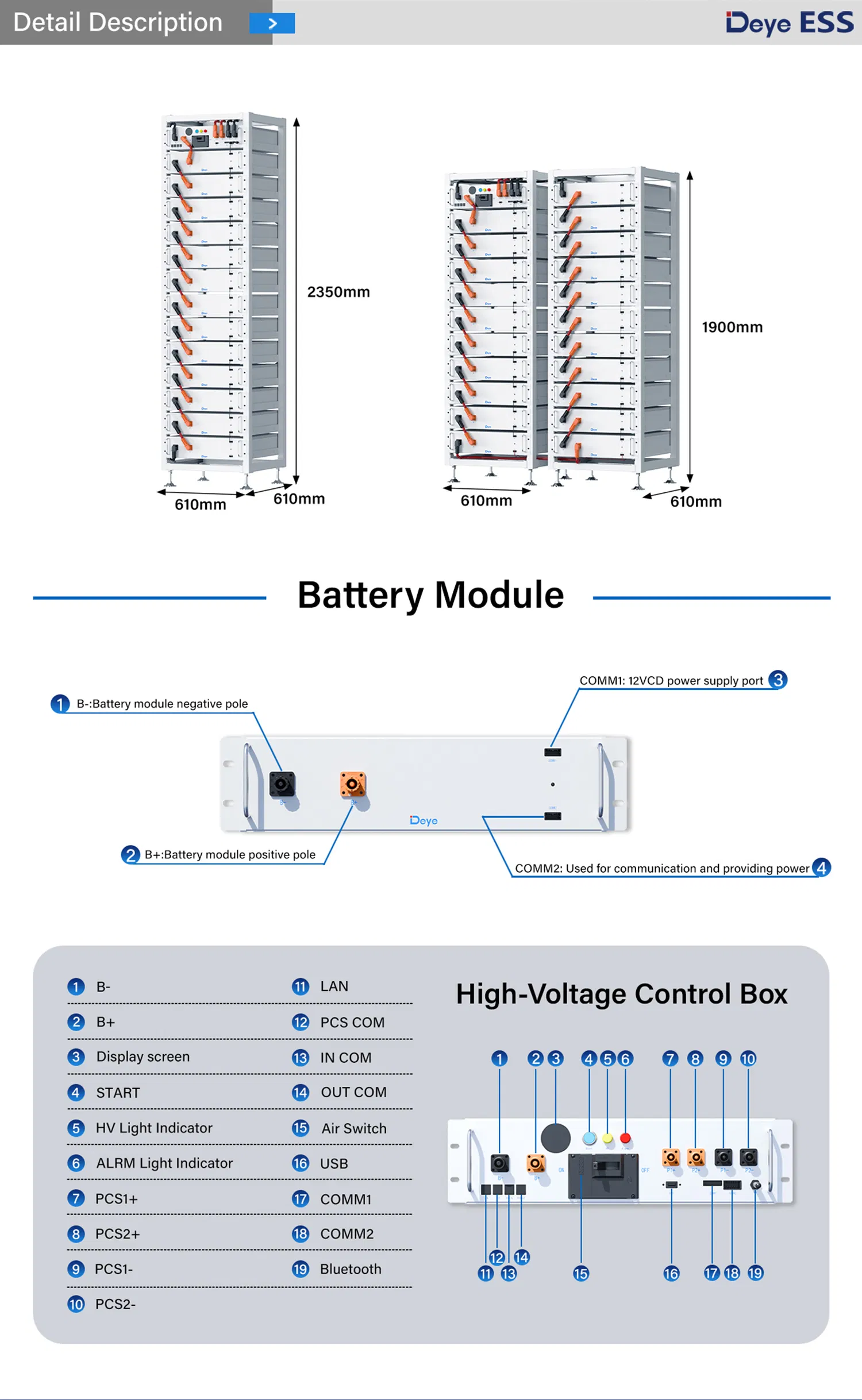

Product Description
Model B0S-G
Cell ChemistryLiFePO4
Module Energy( kWh)5.12
Module Nominal Voltage (V)51.2
Module Capacity(Ah)100
Battery Module NumberB0S-G15BOS-G30BOS-G45BOS-G60
Qty In Series Optional36912
System Nominal Voltage (V)153.6307.2460.8614.4
System Energy(kWh)15.3630.7246.0861.44
Usable Energy( kWh)13.8227.6441.4755.29
Working Temperature(°C)Charge 0~55 / Discharge -20~55
Cycle Life26±2°C, 0.5C/0.5C, EOL70% ≥ 6000
Warranty10 years

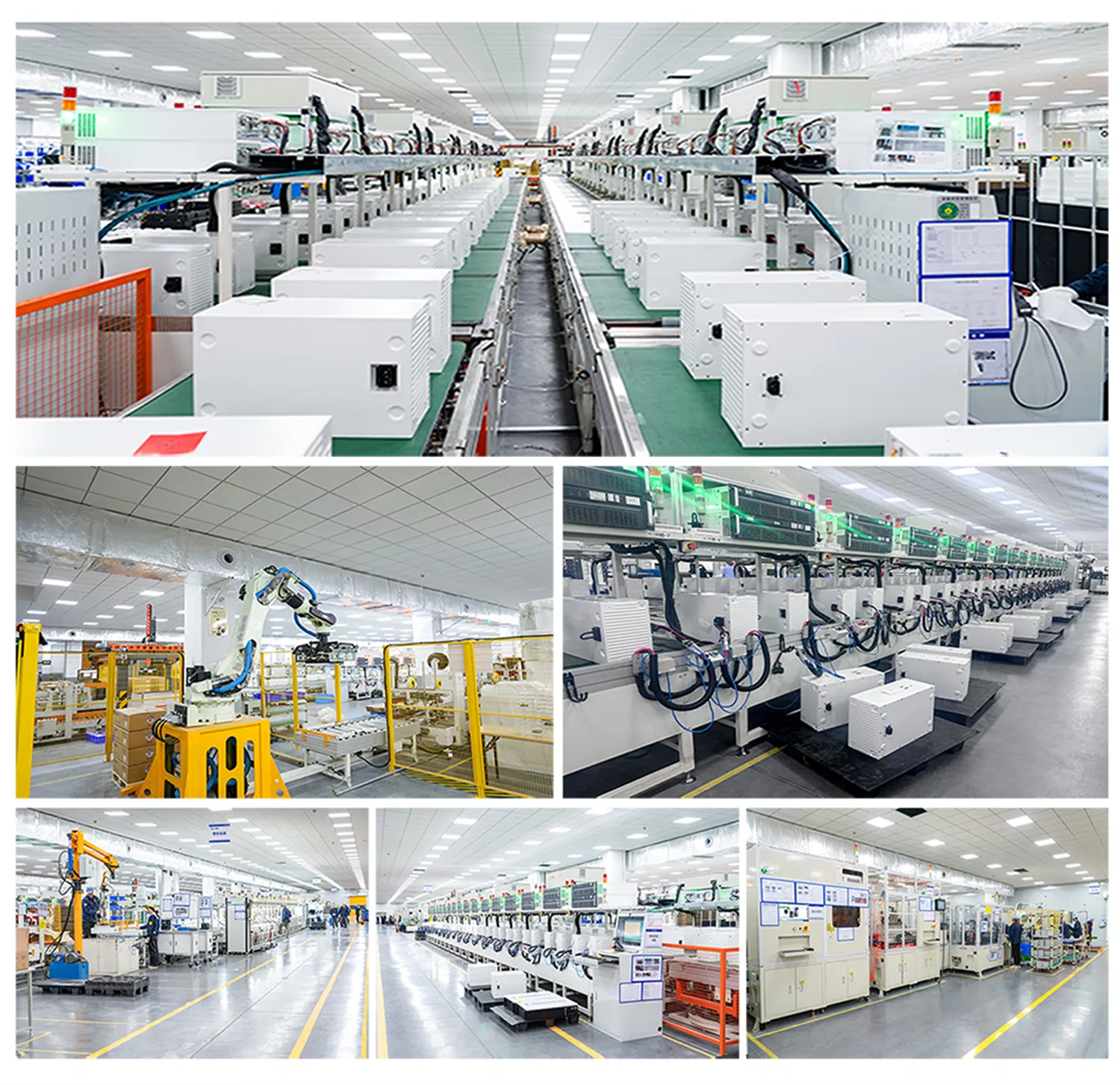

Technology & Innovation
Energy Storage Systems, with mastery of energy storage technologies, brings high quality energy storage solutions to the world. A full range of inverter & energy storage products are available, integrating R&D, production, sales, and service. The engineering team continues to develop safe, durable, and environmentally friendly energy storage products, as well as system solutions for renewable energy applications.
Certifications & Shipping

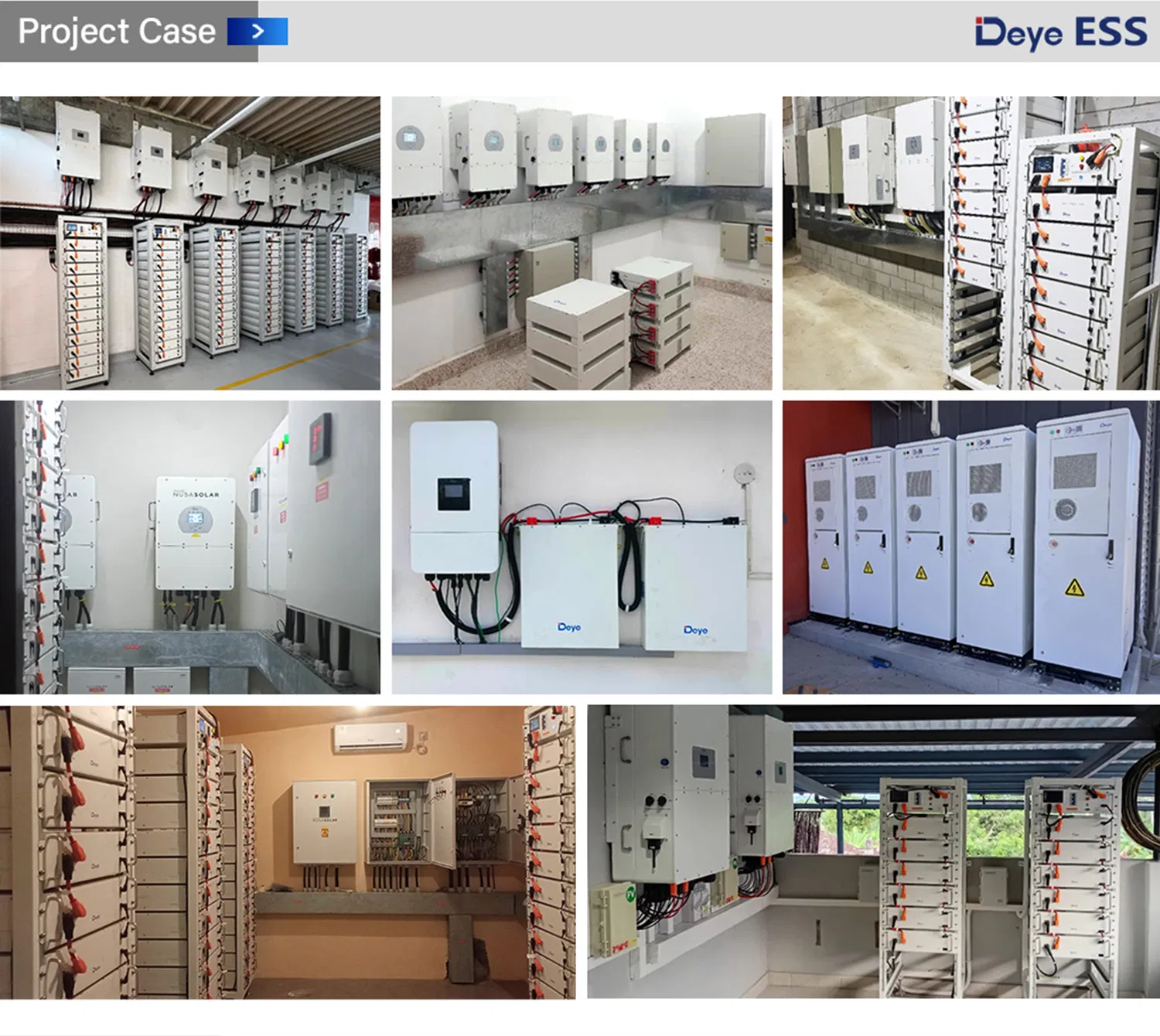

Global Project Cases
After Sales Service
Frequently Asked Questions
What is the cell chemistry used in the Bos-G system?
The system utilizes LiFePO4 (Lithium Iron Phosphate) chemistry, known for its high safety standards and long cycle life.
How long is the warranty period for this battery storage?
This product comes with a 10-year warranty, ensuring long-term reliability and support for your energy storage needs.
What is the expected cycle life of the battery modules?
The battery is designed for a cycle life of ≥6000 cycles at 26±2°C with 0.5C charge/discharge rates until 70% EOL.

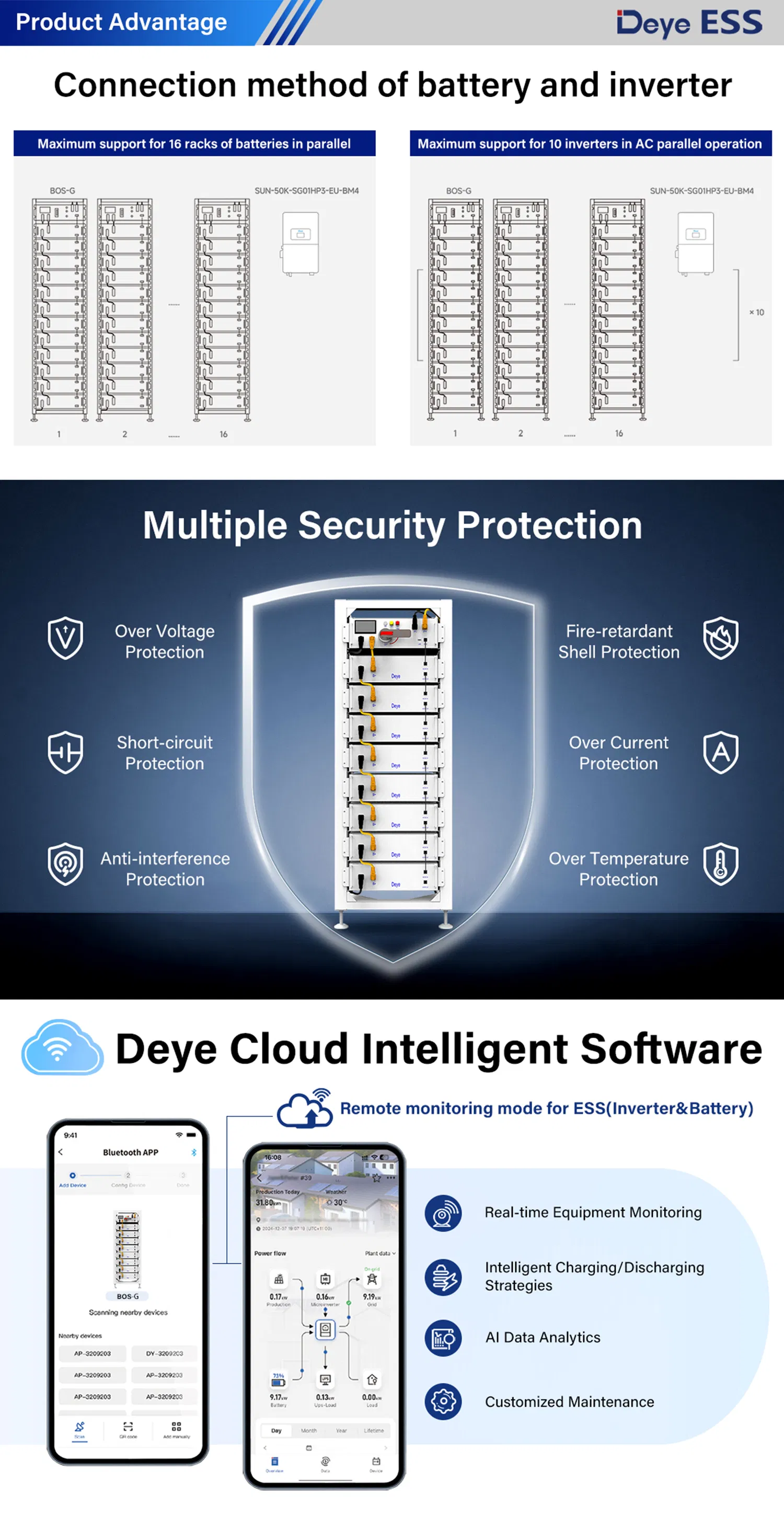

Can the system be expanded for higher energy requirements?
Yes, the system is modular. You can choose from 3 to 12 modules in series to achieve capacities ranging from 15.36kWh to 61.44kWh.
What are the operating temperature ranges?
The charging temperature range is 0~55°C, and the discharge temperature range is -20~55°C.
Which certifications has the Bos-G battery passed?
The system is fully certified with UN38.3, IEC, and CEC standards for international safety and transport compliance.
