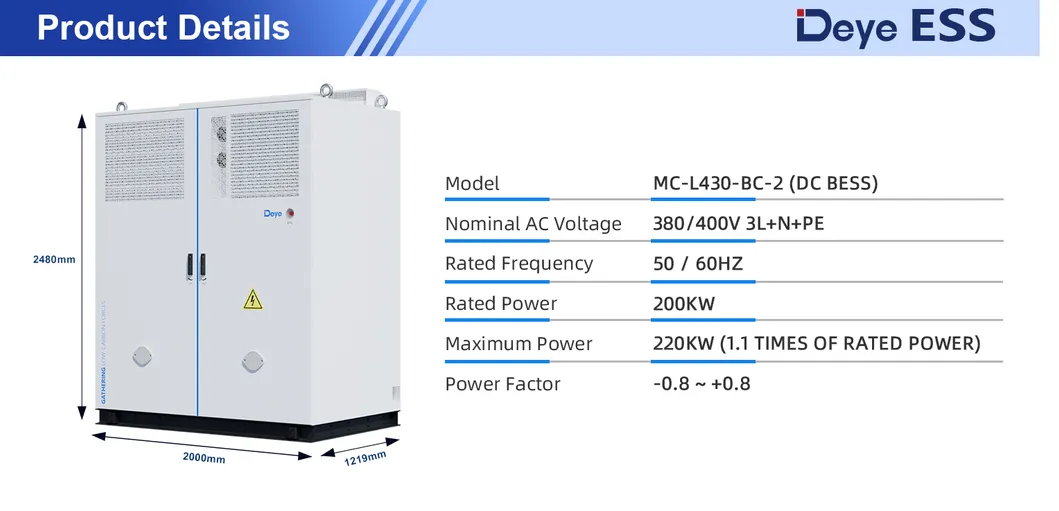

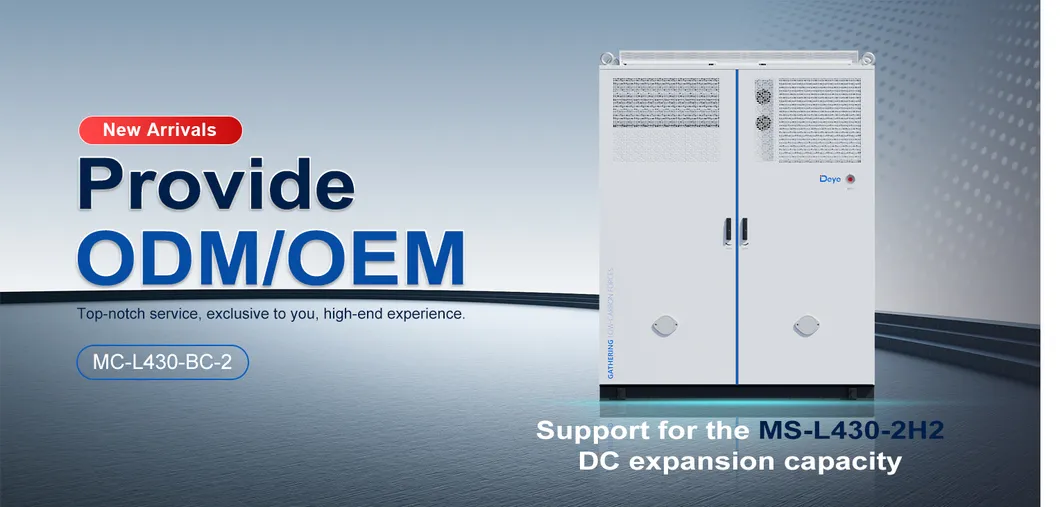

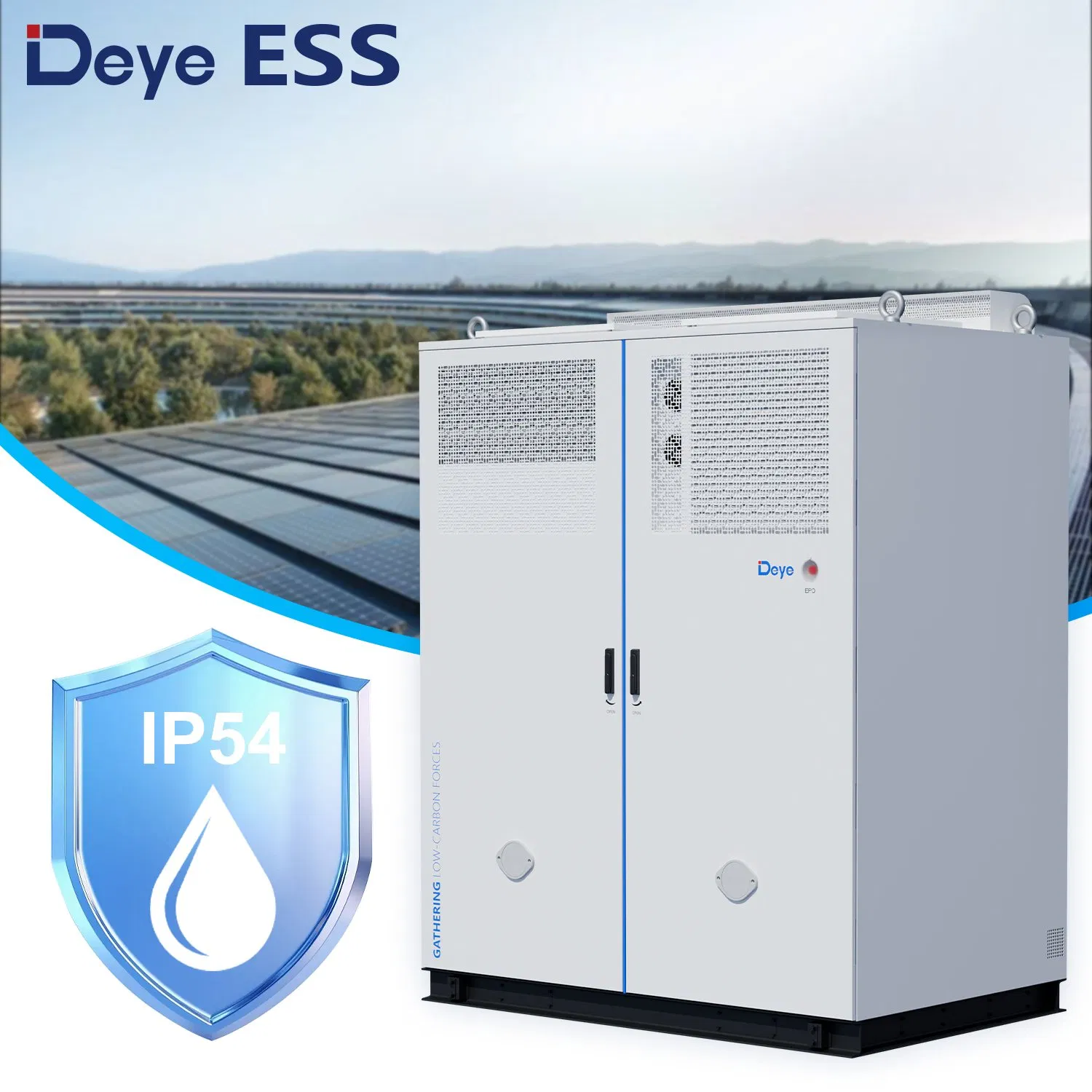

| Model | MS-LC430-BC-2 (DC BESS) |
|---|---|
| System Parameters | |
| Operating Temperature | -30ºC to +55ºC |
| Storage Temperature | -30ºC to +60ºC |
| Humidity | 0-95% (No condensation) |

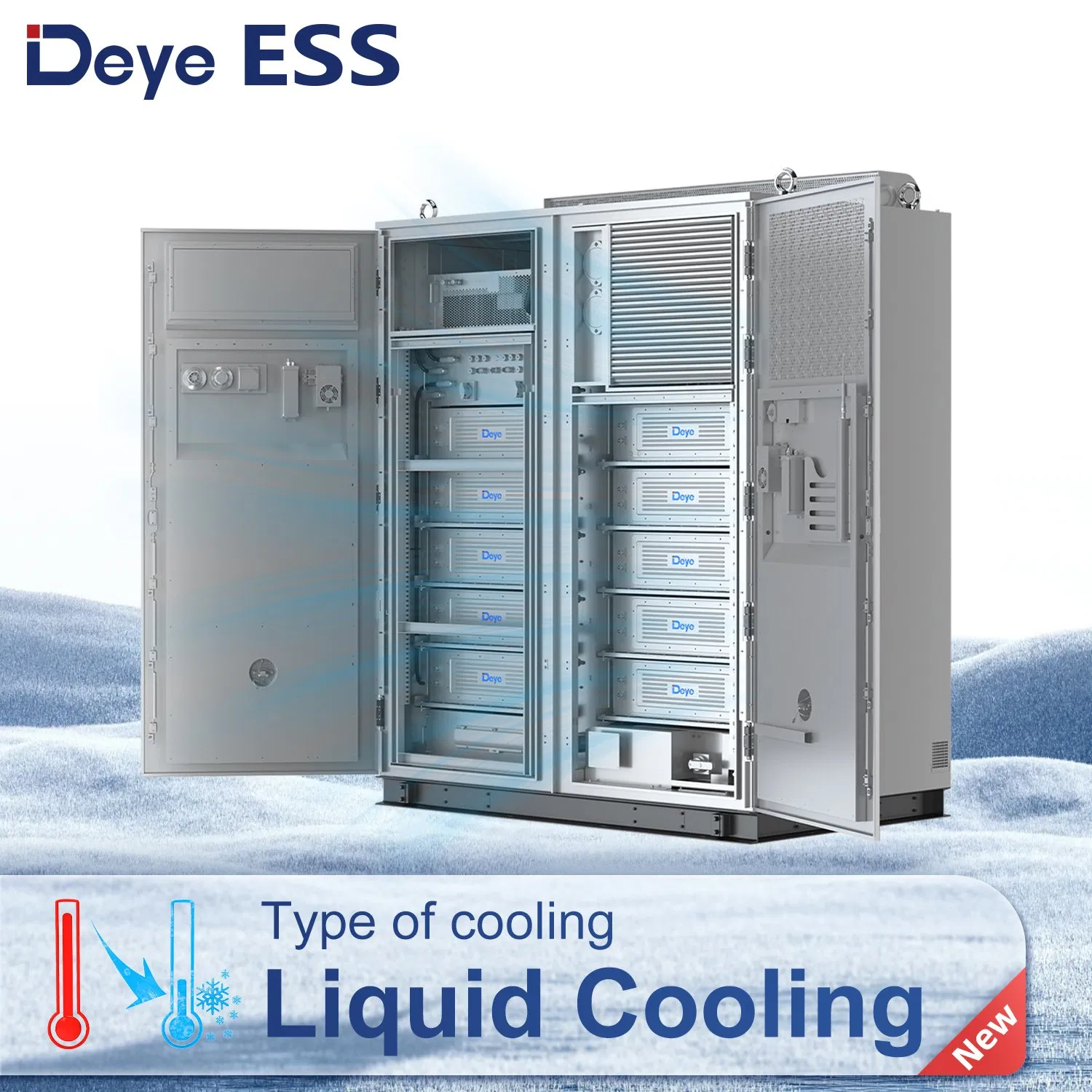

| Type of Cooling | Liquid cooling |
| Fire Suppression | Aerosol, Water |

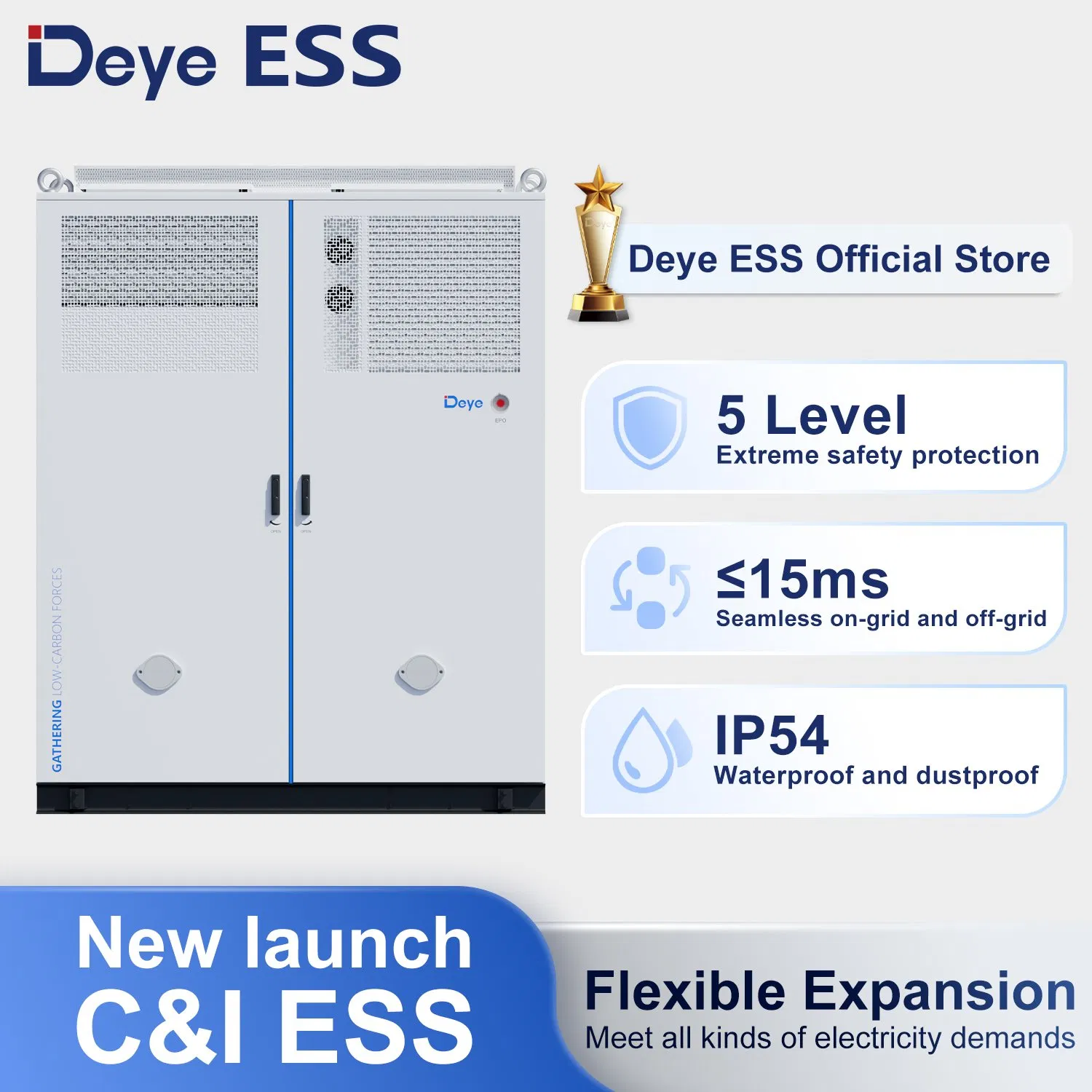

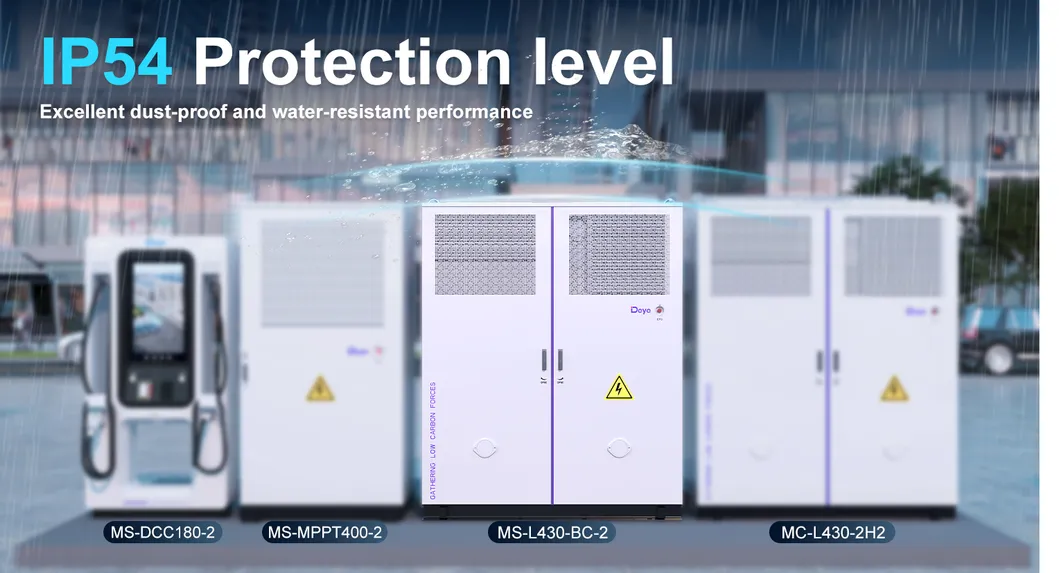

| Ingress Protection | IP54 |
| Anticorrosion Grade | ≥C4 |
| Altitude | ≤2000m |
| Communication | RS485, Modbus TCP, DIDO |
| Weight | ≤4300kg |

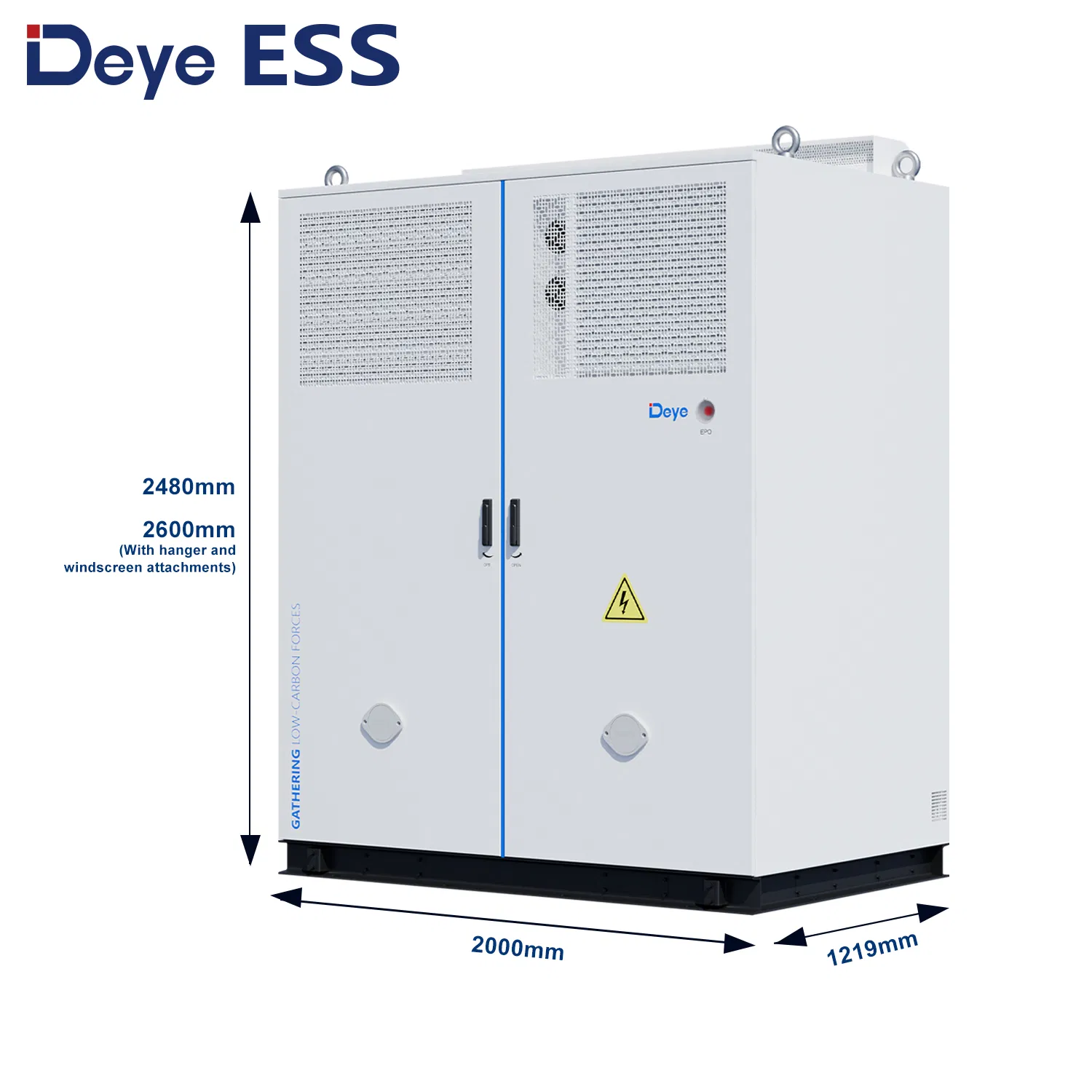

| Dimensions (W×D×H) | 2000×1300×2480mm |
| DC Data | |
| Battery Type | LiFePO4 |
| Nominal Capacity | 280Ah |
| Nominal Energy | 430.08kWh |
| Nominal DC Voltage | 768Vd.c. |
| DC Voltage Range | 636Vd.c - 876Vd.c. |
| Charge and Discharge Rate | Charge 0.5P, Discharge 1P |
Seasonal Changes and Energy Mastery: The rhythmic flow of seasons inspires our mastery of energy conversion. Our energy storage systems bring high-quality, sustainable solutions to the global market, focusing on safe, durable, and environmentally friendly products.

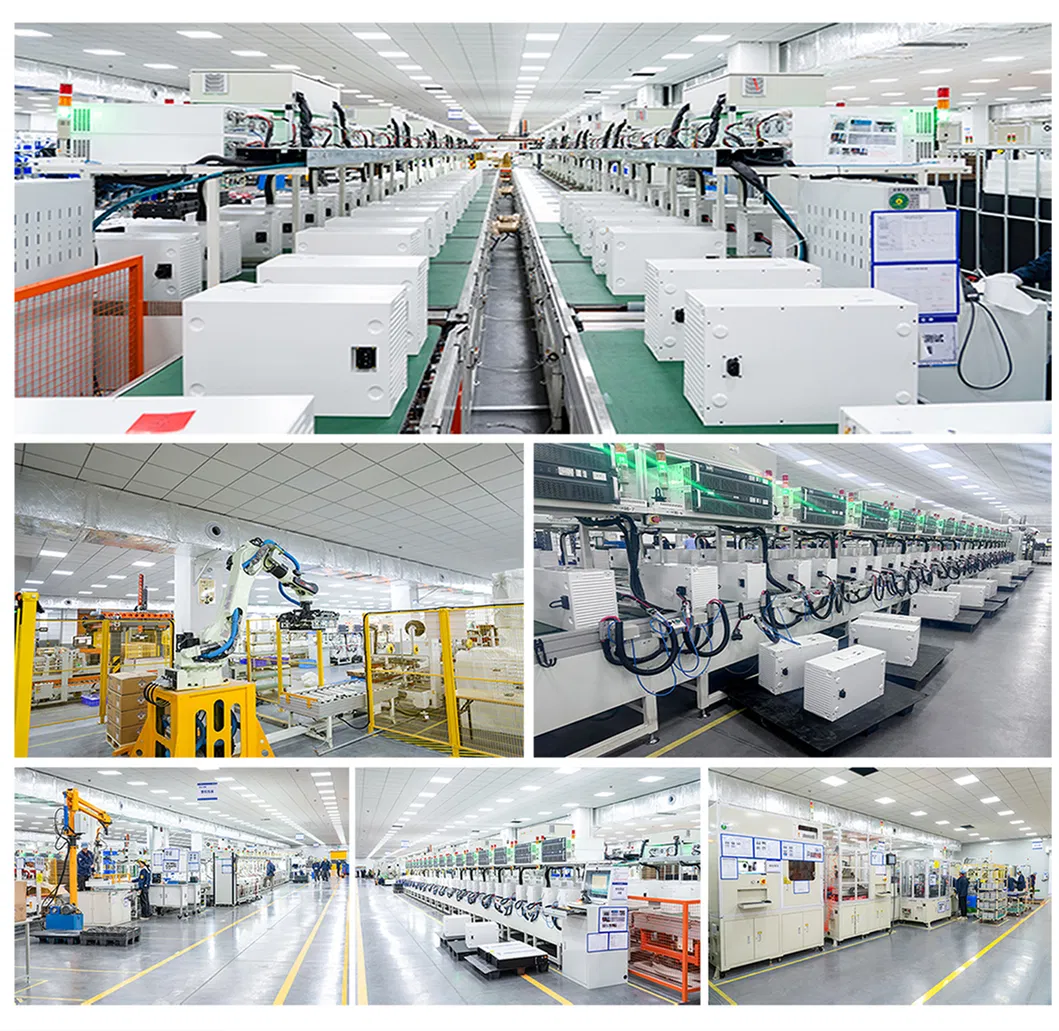

Innovation-Driven Development: As a high-tech manufacturer, we operate an all-in-one entity integrating R&D, production, sales, and service. Our intelligent manufacturing base produces world-class energy storage systems, Battery Management Systems (BMS), and energy IoT products where sustainability and efficiency are the primary focus.

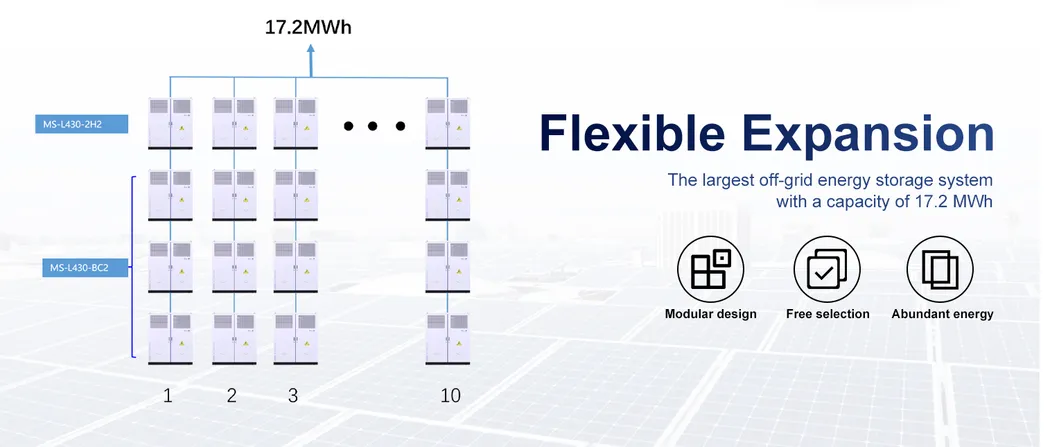

Comprehensive Solution Provider: We offer a complete range of product lines, including low-voltage household storage, high-voltage residential systems, portable power solutions, and utility-scale energy storage. We aim to be a one-stop solution provider with comprehensive coverage for all energy storage applications.
