Product Description

Basic Information

Model NO.

XINGHUI-125/261-230/400

Protection Class

IP55

Cooling Method

Liquid Cooling

Rated Output Voltage

400V, 3L/N/E

Voltage Range

650V~959V

Cell Type

3.2V/314ah LFP

System Efficiency

>90%

Communication

4G/LAN

Operating Temp

-25°C~55°C

Capacity

500,000 sets/Year

Product Description

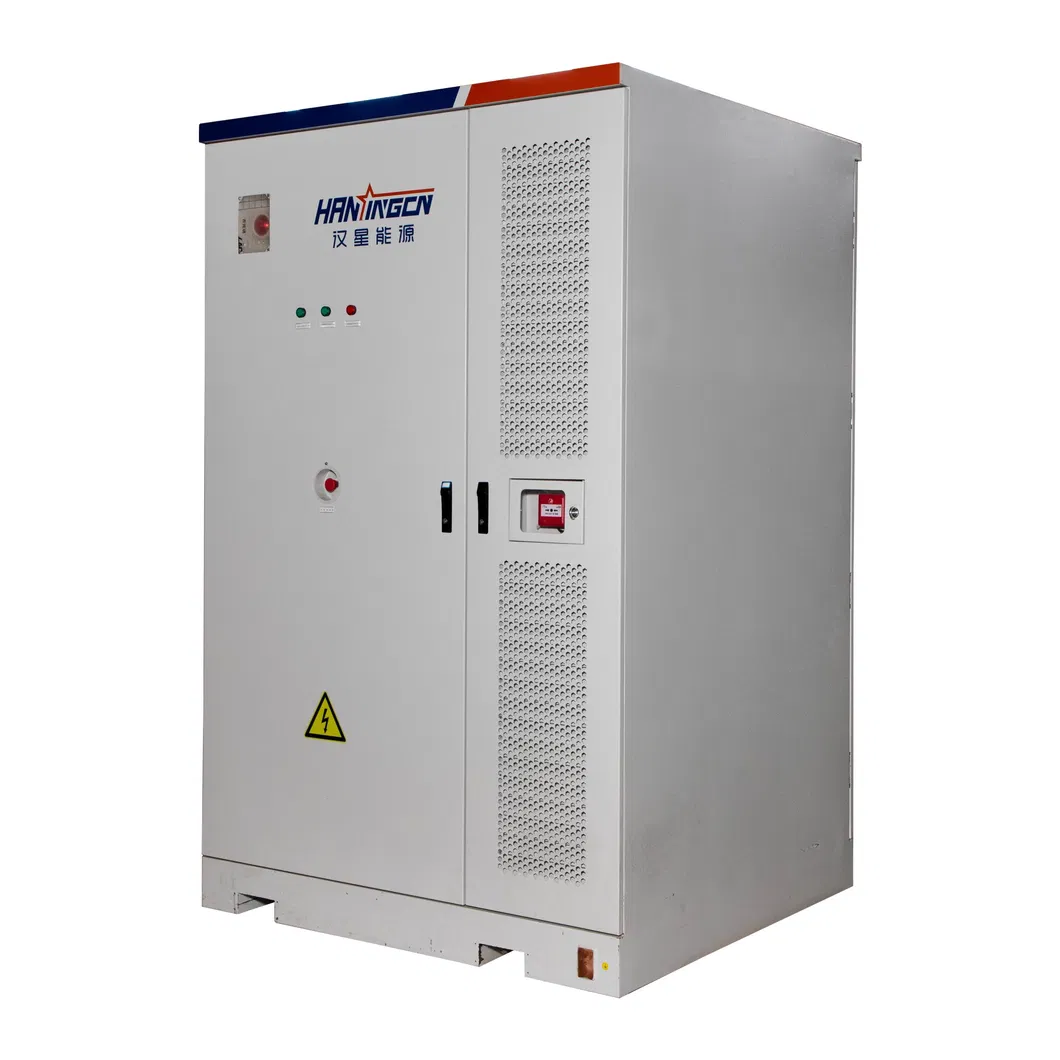

ENERGY STORAGE BATTERY

Our energy storage battery systems deliver cutting-edge power solutions designed for residential, commercial, and industrial applications. These high-performance systems serve as dependable emergency backup power sources, ensuring uninterrupted operation during grid outages while optimizing energy consumption for maximum cost savings.

KEY FEATURES

Safe and Reliable: Continuous emergency backup power source.

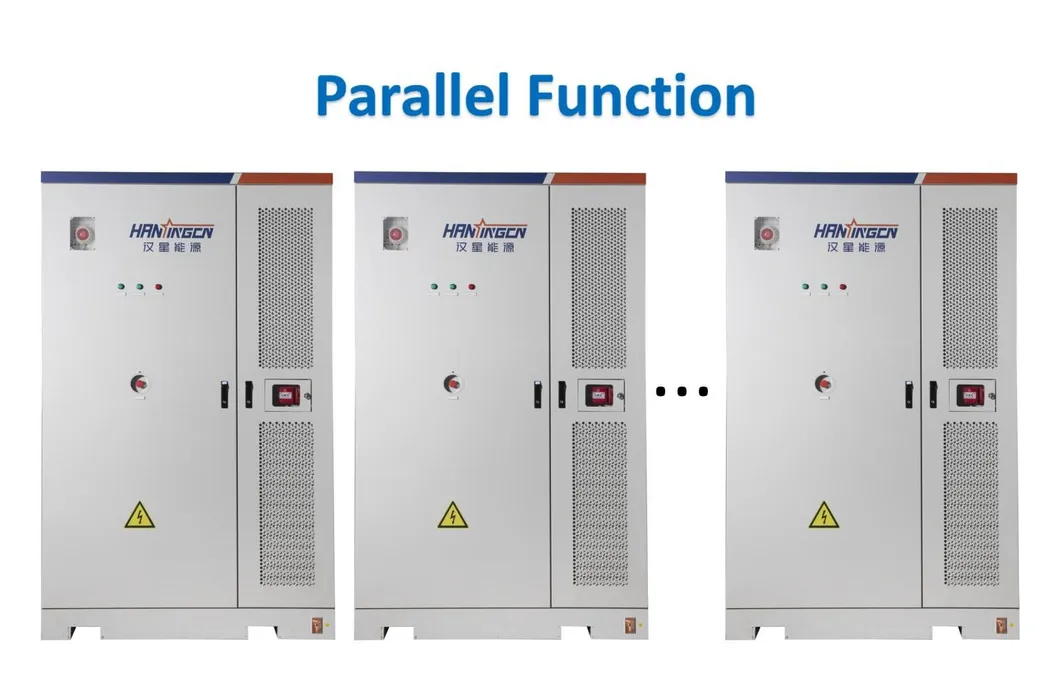

Flexible Configuration: Modular design for easy expansion and installation.
High Efficiency: Optimized usage to significantly reduce energy costs.
Intelligent O&M: Smart monitoring to promote green energy consumption.

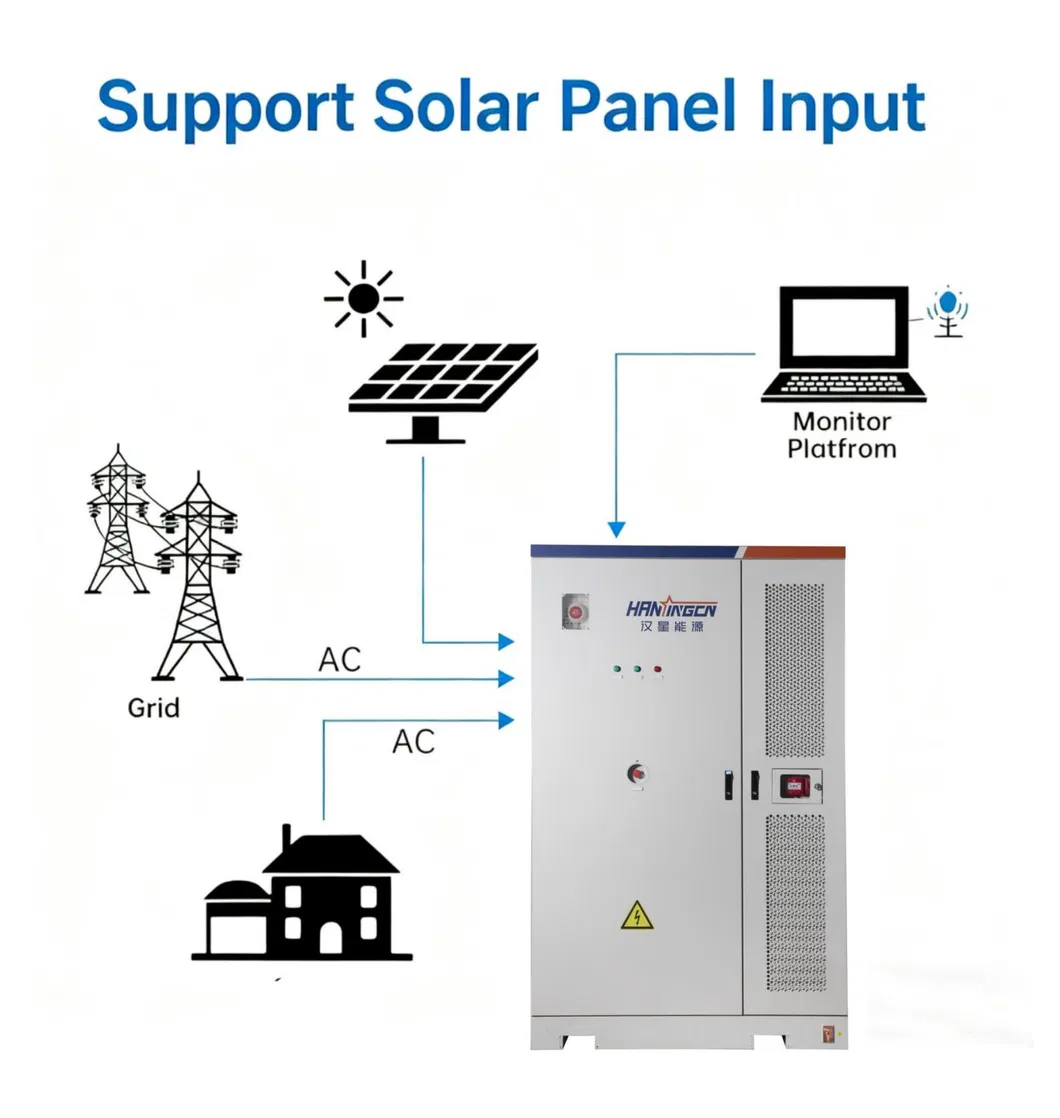

Grid-Friendly: Seamless grid-connected/off-grid switching.

Technical Parameters

COMMERCIAL ENERGY STORAGE SPECIFICATIONS
Nominal Voltage	230V/400V
Nominal Capacity	125KW/261KWH
Cycle Life	8000 cycles+

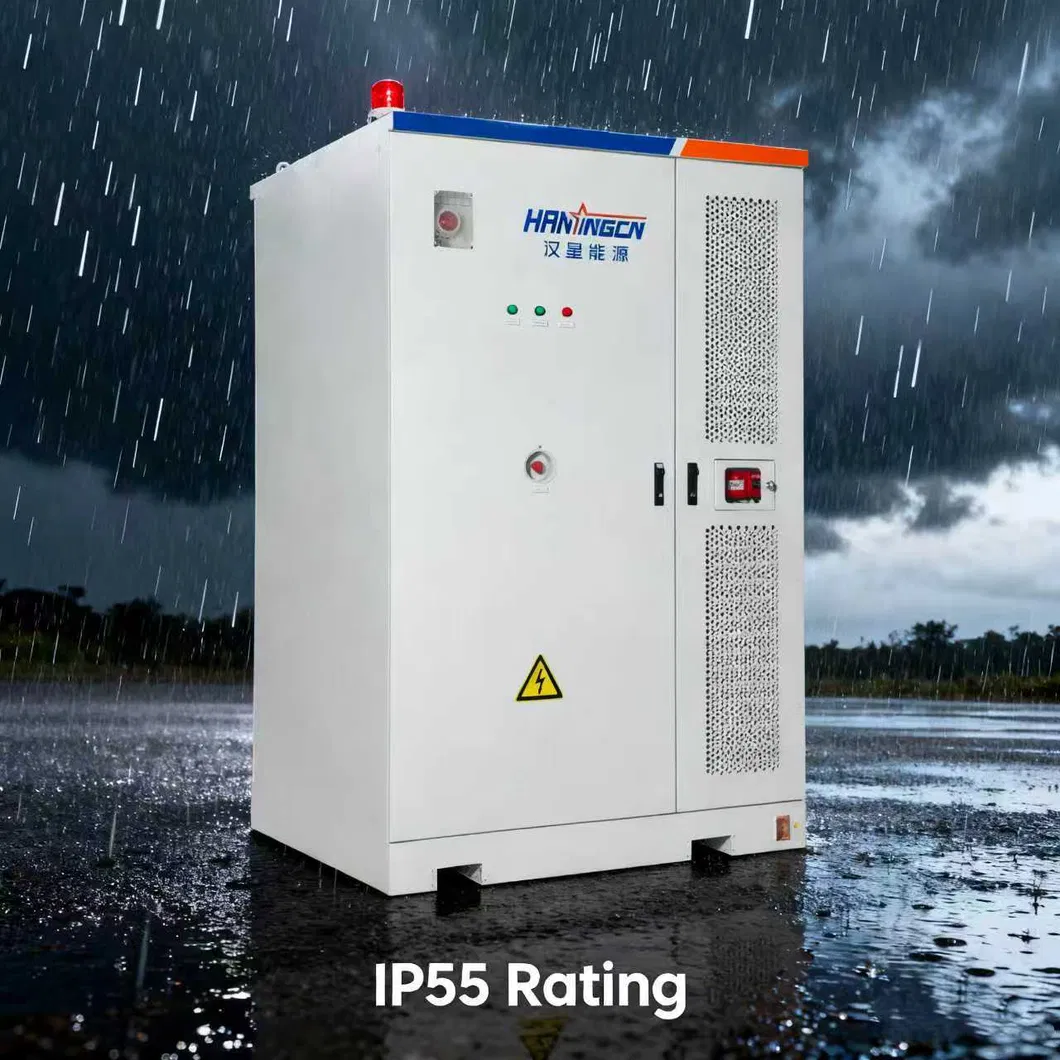

Protection Class	IP55
Cooling Method	Liquid Cooling
Rated Output Voltage	400V, 3L/N/E
Operating Voltage Range	650V~959V
Cell Type	3.2V/314Ah LFP
System Efficiency	>90%
Communication Method	4G/LAN

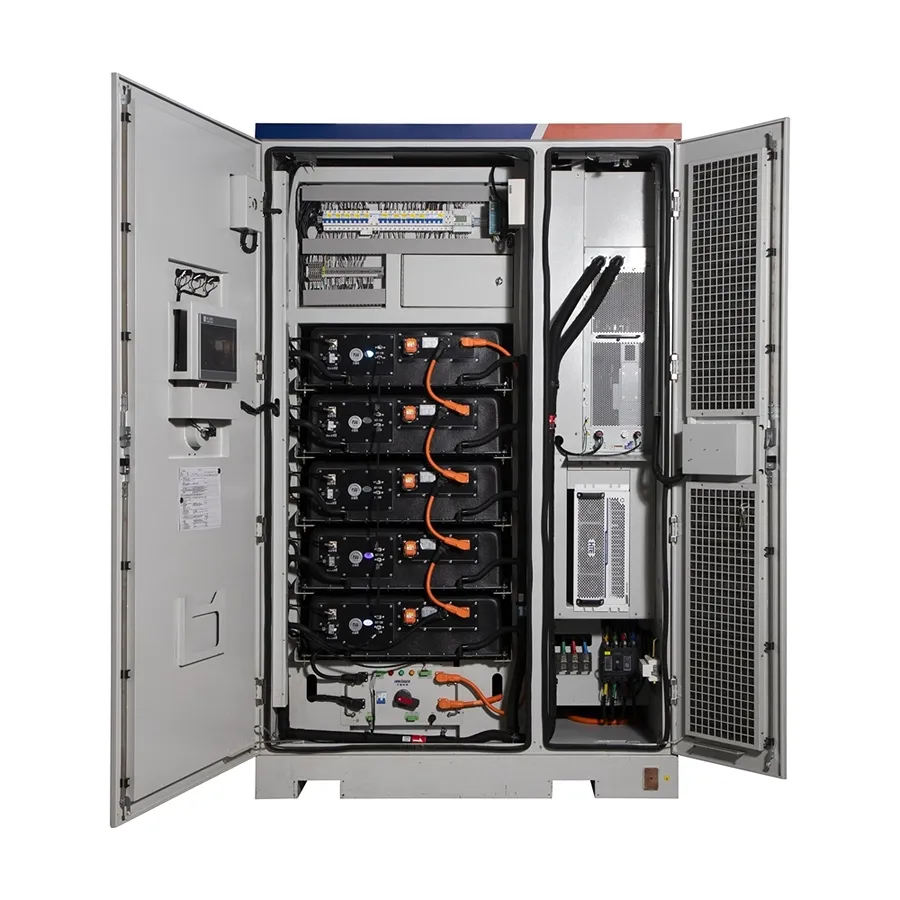

System Components

CORE BATTERY CELL

Achieves conversion between chemical and electrical energy. High-quality cells with long cycle life significantly reduce long-term operational costs.

BATTERY PACK

Combines cells in series/parallel for stable voltage. Features integrated cooling and multi-level protection (overcharge, overtemperature, overcurrent).

PCS (Power Convert System)

Bidirectional DC/AC conversion for energy interaction between storage, grid, and load. Supports fast response speeds and varied grid requirements.

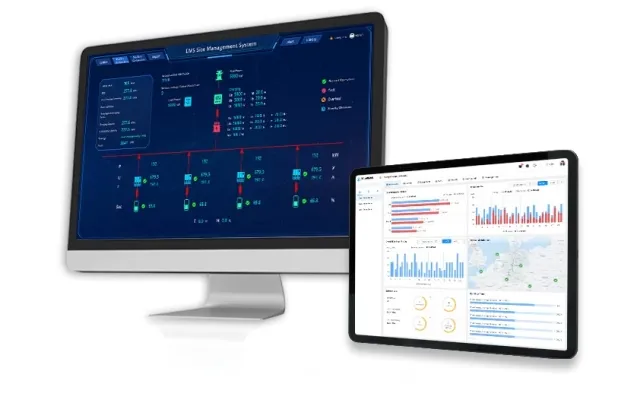

BMS & EMS

Real-time monitoring of voltage, temperature, SOC, and SOH. Formulates optimal charging strategies and ensures system stability through intelligent scheduling.

Management Strategies

PEAK-VALLEY ARBITRAGE: Buying low-cost electricity during off-peak hours and discharging during peak periods to maximize profit margins and ROI.

LOAD MANAGEMENT: Optimizing demand to minimize short-term peak loads and demand charges, avoiding costly infrastructure upgrades.

DEMAND RESPONSE: Voluntarily reducing consumption during shortages to support grid stability and earn economic incentives.

System Visuals

FAQ

Q1: What is the expected cycle life of the battery cells?

The system utilizes high-quality LFP cells providing a cycle life of over 8000 cycles, ensuring long-term reliability and cost-efficiency.

Q2: How does the cooling system work?

The system uses advanced liquid cooling technology to maintain optimal operating temperatures, enhancing safety and extending the lifespan of the battery components.

Q3: Can the system switch between grid-connected and off-grid modes?

Yes, the integrated PCS (Power Convert System) supports seamless switching between grid-connected and off-grid modes to ensure continuous power supply.

Q4: What are the primary applications for this storage cabinet?

It is ideal for commercial and industrial use, specifically for peak-valley arbitrage, load management, and as an emergency backup power source.

Q5: Is the system modular for future expansion?

Yes, the system features a modular design that allows for flexible configuration, easy installation, and convenient capacity expansion.

Q6: What communication methods are supported for monitoring?

The system supports 4G and LAN communication methods, enabling real-time remote monitoring via the Energy Management System (EMS).
