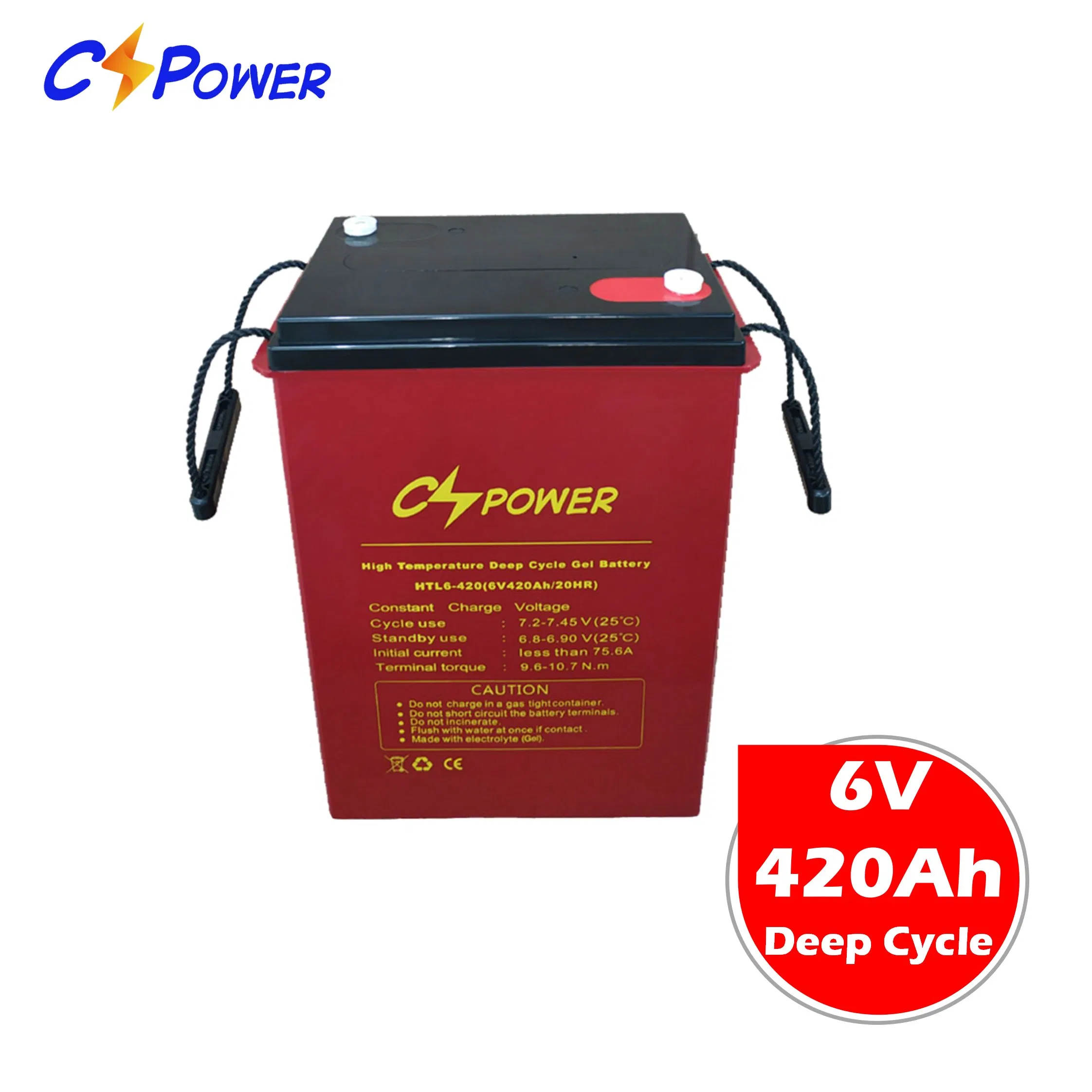

Cspower Htl6-420 6volt 420 Ah Deep Cycle Gel High-Temperature-Maintenance-Free/Rechargeable-Home Solar Battery with UL Certificate

1 / 5

Cspower Htl6-420 6volt 420 Ah Deep Cycle Gel High-Temperature-Maintenance-Free/Rechargeable-Home Solar Battery with UL Certificate

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Constant Safe Power For You!

High-Temp Deep Cycle GEL 12V/6V/8V Battery

Basic Specifications

Model NO.

HTL6-420

Nominal Voltage

12V 6V 8V

Discharge Rate

0.2-0.5c

Electrolyte

Gel

Installation

Fixed

Rechargeable

Chargeable

Weight

56.8kg (Gel Battery)

Warranty

3 Years

Cycle Life

1600 Cycles at 50% DOD

Design Life

20 Years

Material

High Pure Lead 99.997%

Case Material

ABS

Key Features

Patented High-Temp Deep Cycle Solar gel battery, 15-20 years long life, ideal for hot areas.

Environmentally friendly
Completely Maintenance-Free
Non-Spillable construction
Wide Temp Range (-20°C~+60°C)
Explosion Proof
High Discharge Rate Capability
Low Self Discharge
No Memory Effect

Technical Parameters (HTL6-420)

Parameter		Specification
Nominal Voltage		6V (3 cells per unit)
Design Floating Life @ 25ºC		20 Years
Capacity @ 25ºC	20 hour rate	420Ah
	10 hour rate	378Ah
	5 hour rate	334Ah
Internal Resistance		≤1.5mΩ (Full Charged)
Max. Discharge Current		1260A (5s)
Dimensions		295 x 178 x 404 mm

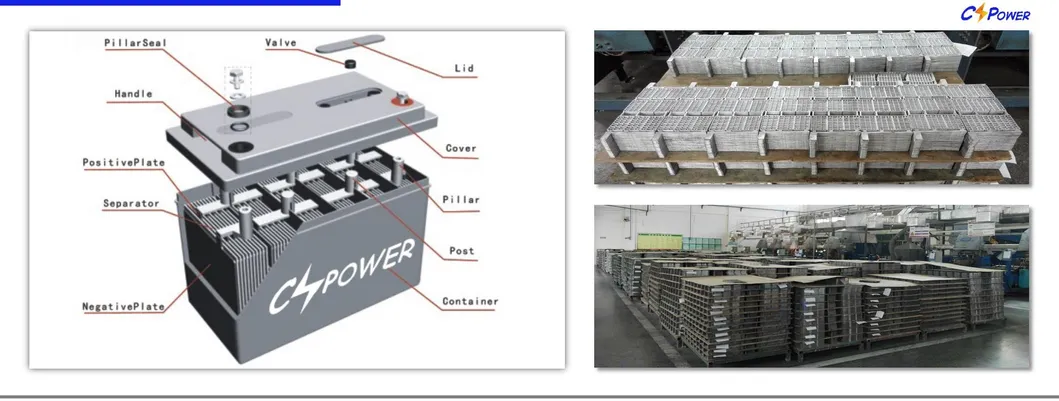

Product Structure & Components

Positive plate: Thick high Sn low Ca 3D flat pasted plate
Negative plate: Balanced Pb-Ca grid with Supper-C additives
Separator: Imported PVC separator for Gel battery
Electrolyte: Nano GEL electrolyte
Container: High-temperature resistance ABS
Seal: Two layers epoxy resin seal

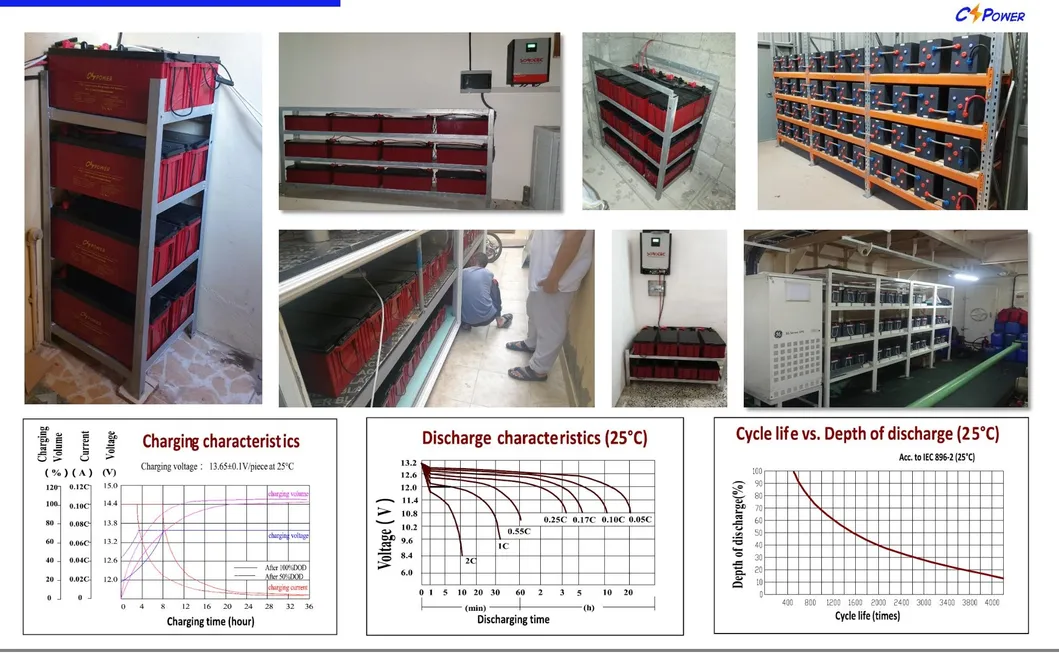

Applications & Quality Control

☀️ Solar/Wind Power 📡 Telecom Stations 🔋 UPS Systems 🚗 Electric Vehicles 🏥 Medical Equipment

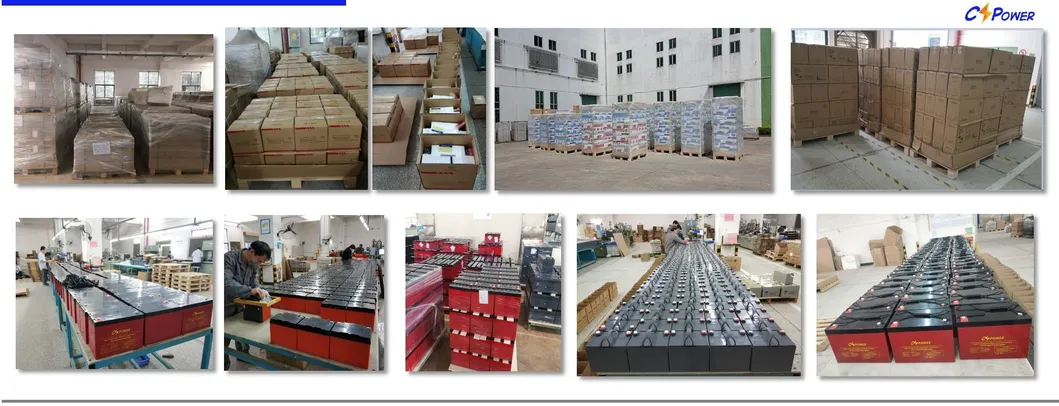

Certifications & Packing

Frequently Asked Questions

Can the battery be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We have MSDS and test reports for safe transport as non-dangerous products.

How about the delivery time?

Usually about 7 days for stock products, around 20 days for half-container products, and 30 days for 20ft full container orders.

Why does the battery have different capacities at different hour rates?

The capacity is dynamic and depends on the discharge current. A lower discharge current (like the 20-hr rate) allows the battery to deliver more Ah than a high discharge current (like the 2-hr rate).

What is the shelf life of a VRLA battery?

VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without recharging. In hot climates, recharge every 3 months.

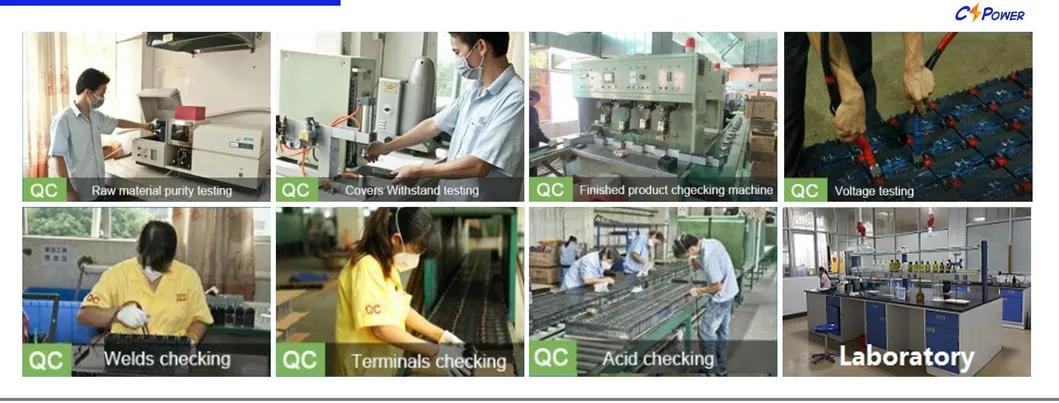

How do you control the product quality?

We adopt the ISO 9001 system, including Incoming Quality Control (IQC) for raw materials, Production Quality Control (PQC) for in-process inspection, and Outgoing Quality Control (OQC) before shipping.

Can I fast charge the battery?

Fast charging is not recommended as it is harmful to the battery's long-term health and cycle life.
