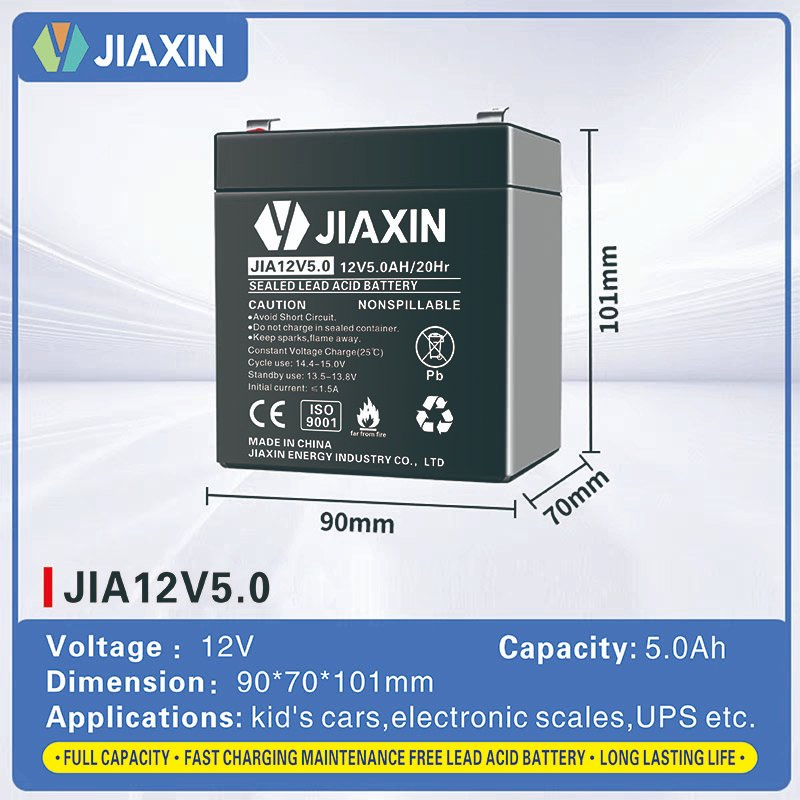

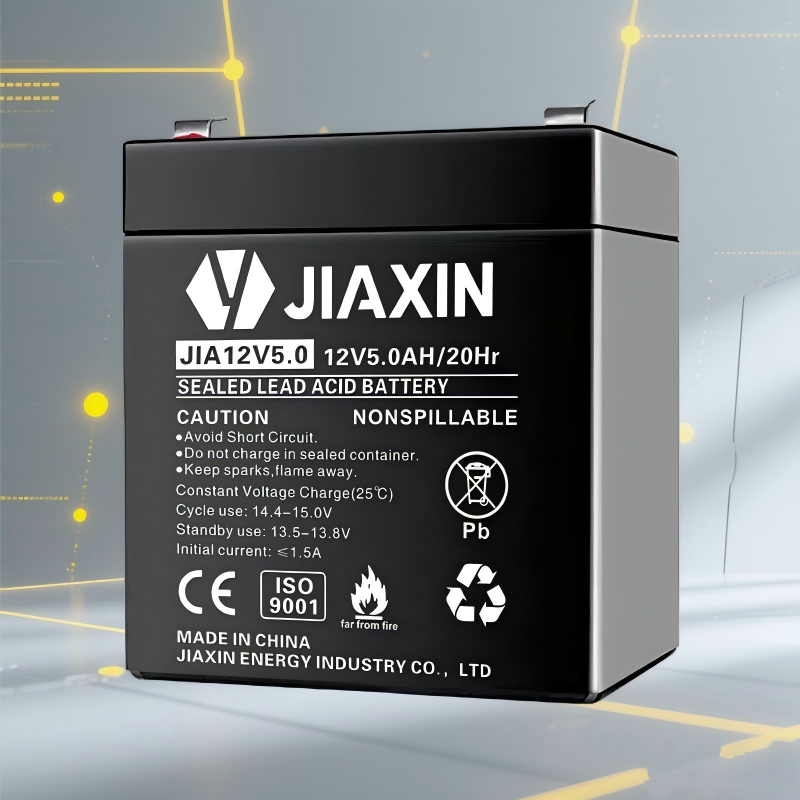

High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
1 / 5
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup
High-Performance 12V 5ah UPS Battery for Fire Emergency Backup

High-Performance 12V 5ah UPS Battery for Fire Emergency Backup

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model
JIA-12V5.0
Nominal Voltage
12V
Nominal Capacity
5.0ah
Discharge Rate
High Discharge Rate
Electrolyte
Acid
Cycle Use Voltage
14.4-15.0V
Standby Use
13.5-13.8V
Initial Current
Below 1.5A
Weight
About 1.55kgs
Dimensions (LxHxW)
90x70x101mm

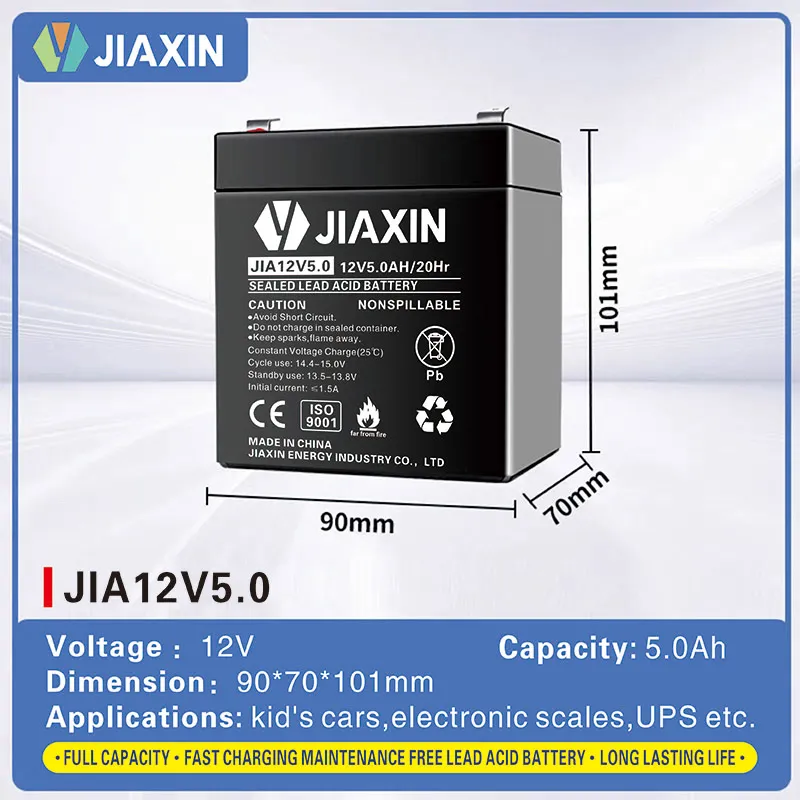

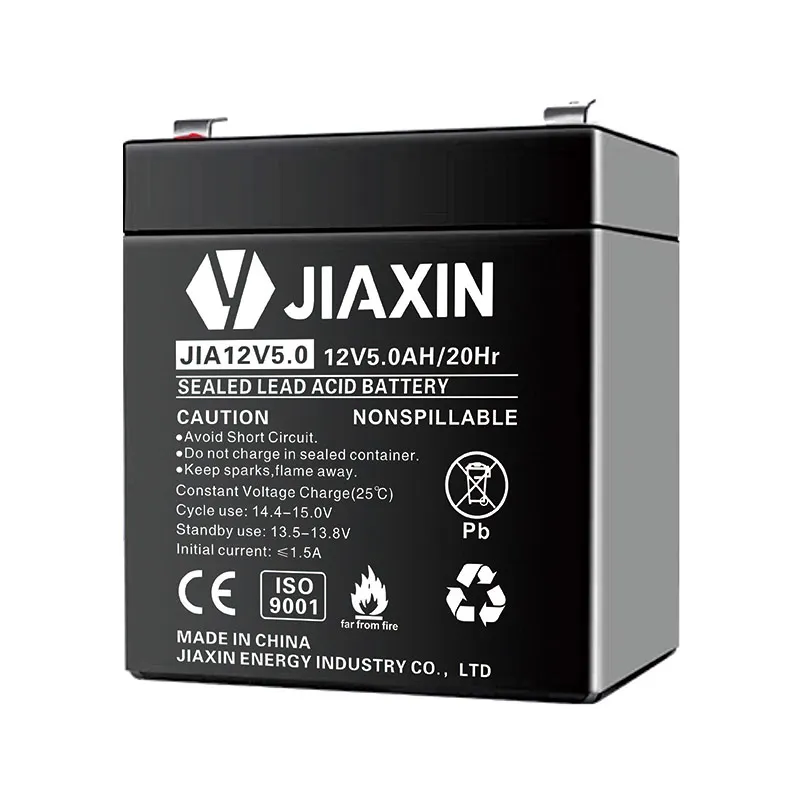

UPS Battery 12V 5ah
UPS Battery 12V 5ah
Key Features & Advantages
⚡
High Performance: Exceptional high rate discharge and outstanding cycle performance.
🔋
Superior Power: Enhanced rapid starting power surpassing conventional batteries.
🛡️
Premium Materials: 99.996% lead purity and Lead-Calcium alloy grids for longevity.
💎
Low Resistance: Silver-plated copper terminals for minimal electrical resistance and rust protection.
🔄
Maintenance Free: Hermetically sealed design with water-recycling gas compound.
🏗️
Durable Casing: Weatherproof ABS plastic shell with high/low temperature resistance.
📍
Flexible Orientation: Innovative AGM separator allows for any positioning without leakage.
⚠️
Safety Design: Silicon-Fluorin rubber safety cap is flameproof and leak-free.
Product Technical Details

This 12V 5.0Ah valve regulated lead acid battery is expertly engineered for Fire Safety Applications, Surveillance Systems, access control systems, and rolling shutter doors. Fireproof design guarantees safety and assurance in any environment. High-quality battery cells with dense internal structure ensure uniform electrochemical reactions during high-current discharge.

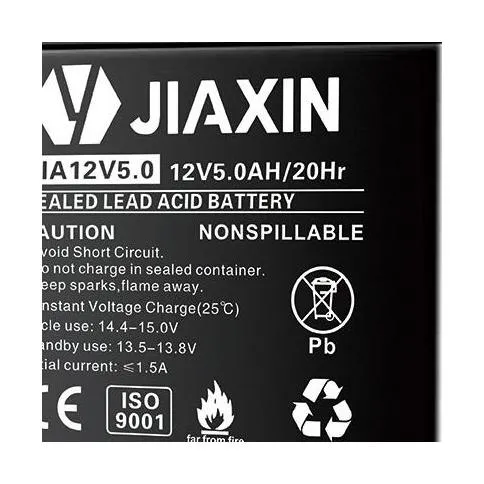

Battery Detail 1

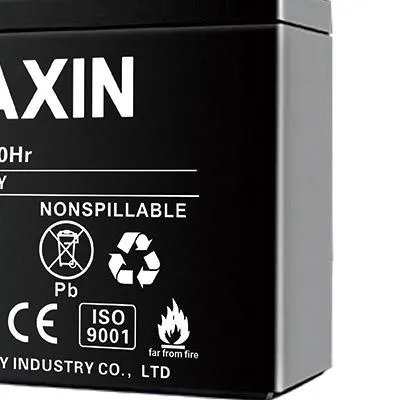

Battery Detail 2
Battery Detail 3
Charging & Discharge Characteristics

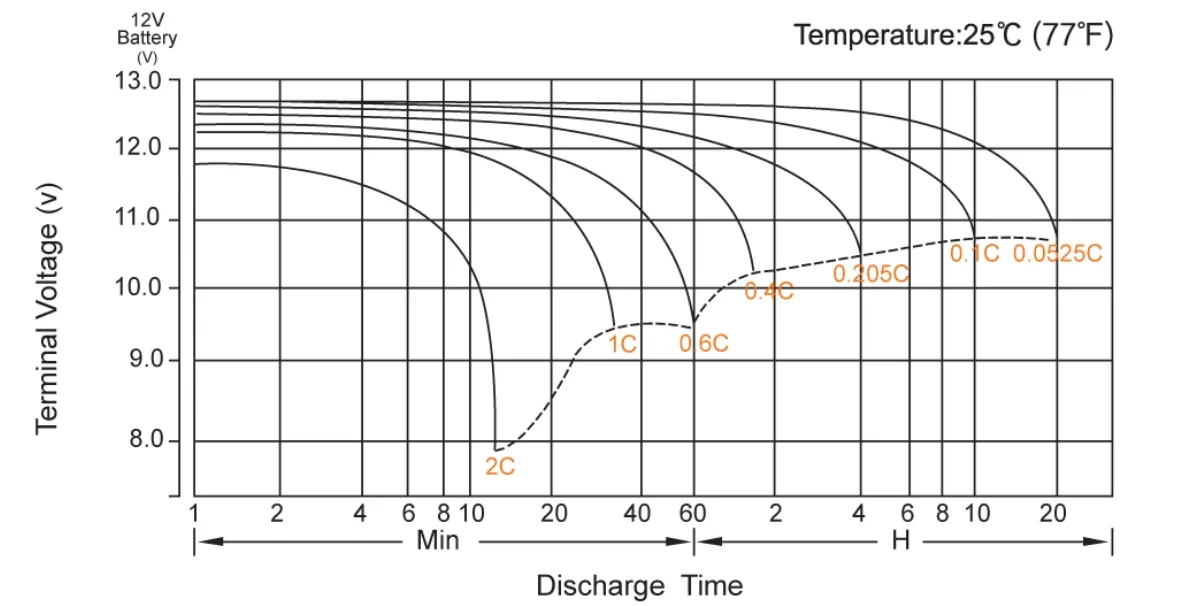

Discharge Characteristics Chart

Discharge Characteristics

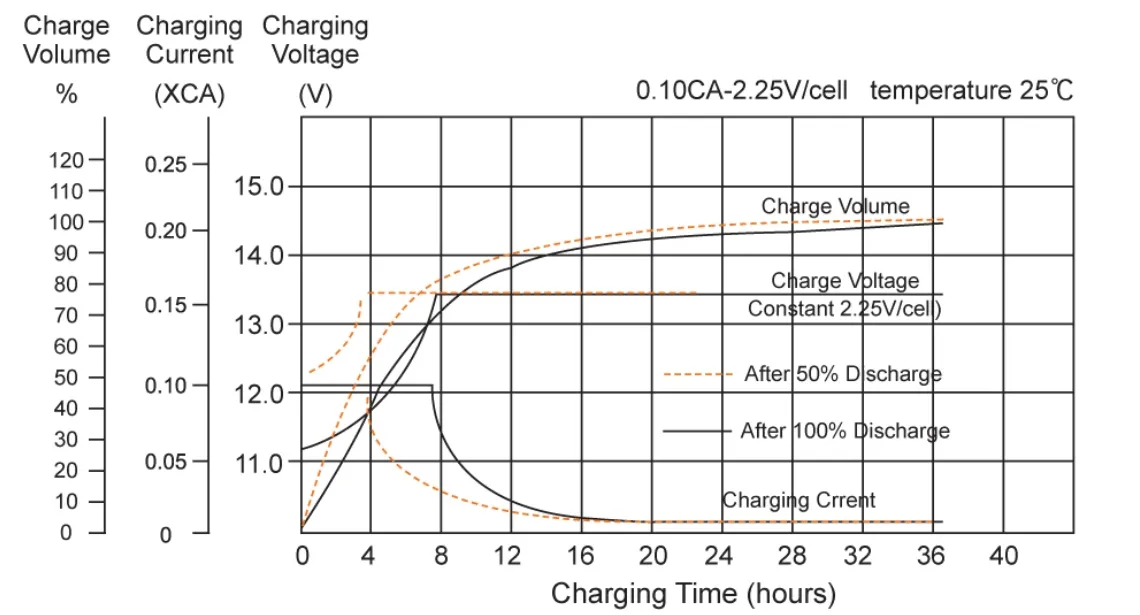

Float Charging Characteristics Chart

Float Charging Characteristics

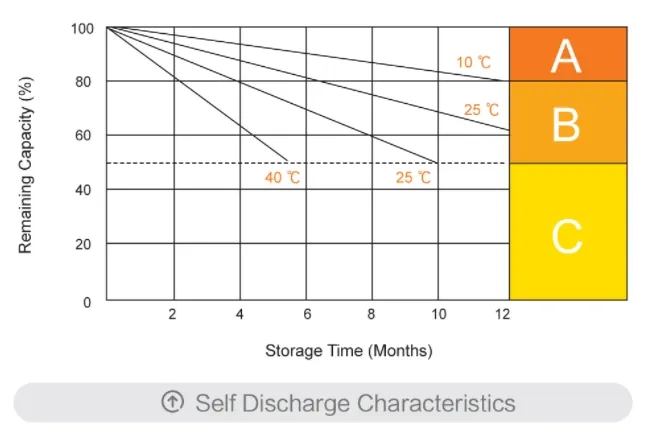

Self Discharge Characteristics

Self Discharge Characteristics

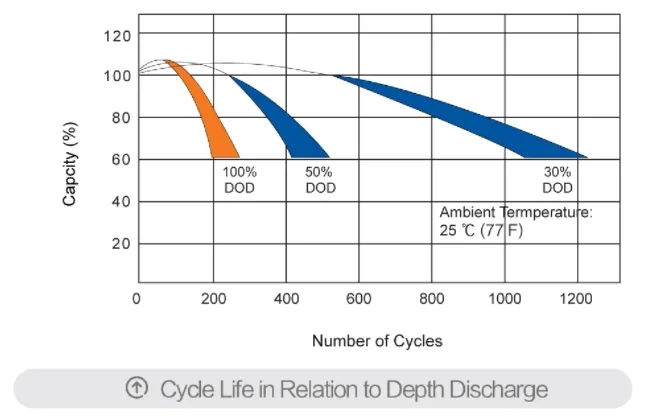

Cycle Life Chart

Cycle Life vs. Depth Discharge

Wide Applications

SLA Battery powers a diverse range of equipment including:

🔸UPS & Backup Power Supplies
🔸Emergency Lighting & Fire Safety
🔸Security & Communication Systems
🔸Electric Tools & Measurement Scales
🔸Kids' Electric Vehicles & Toys

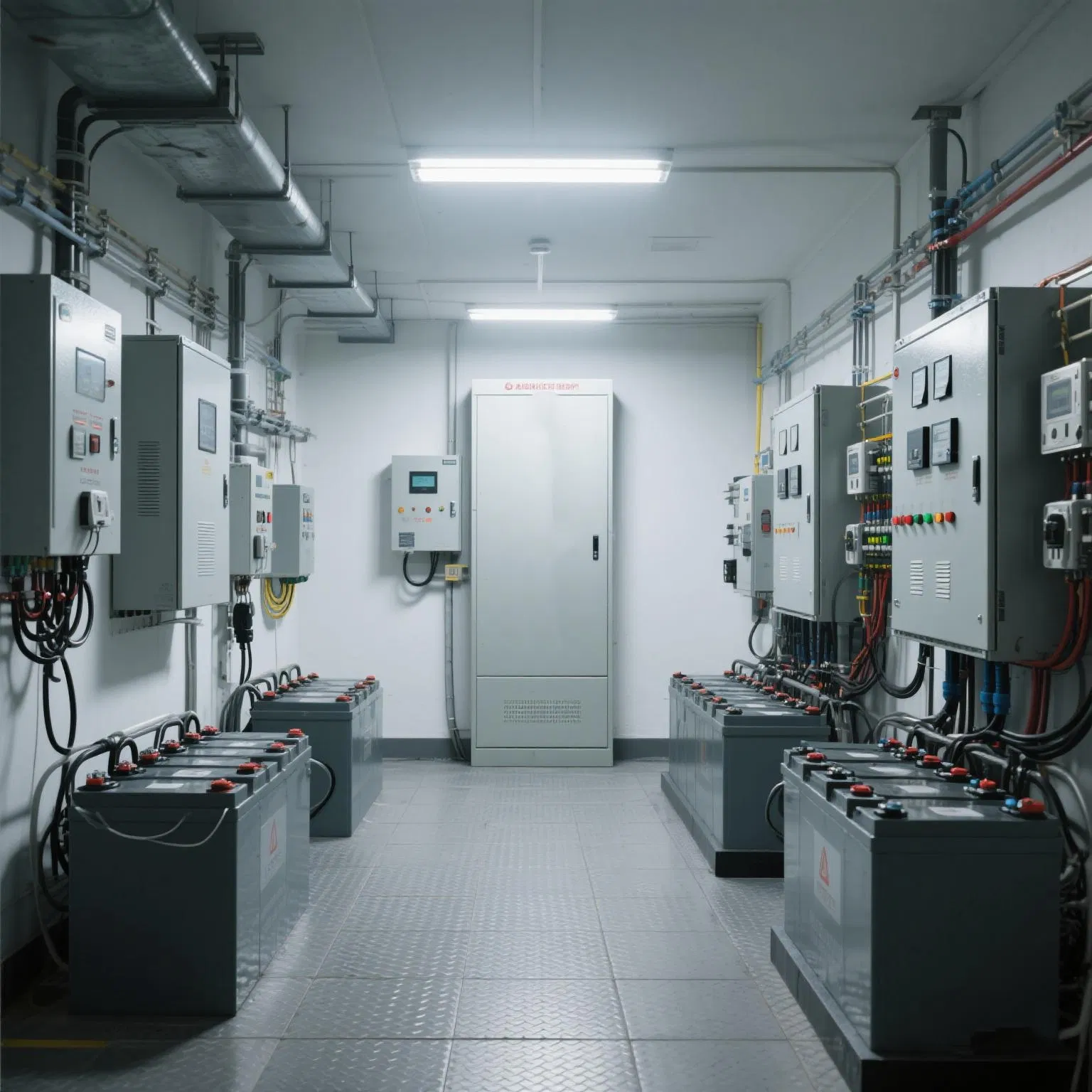

Application 1

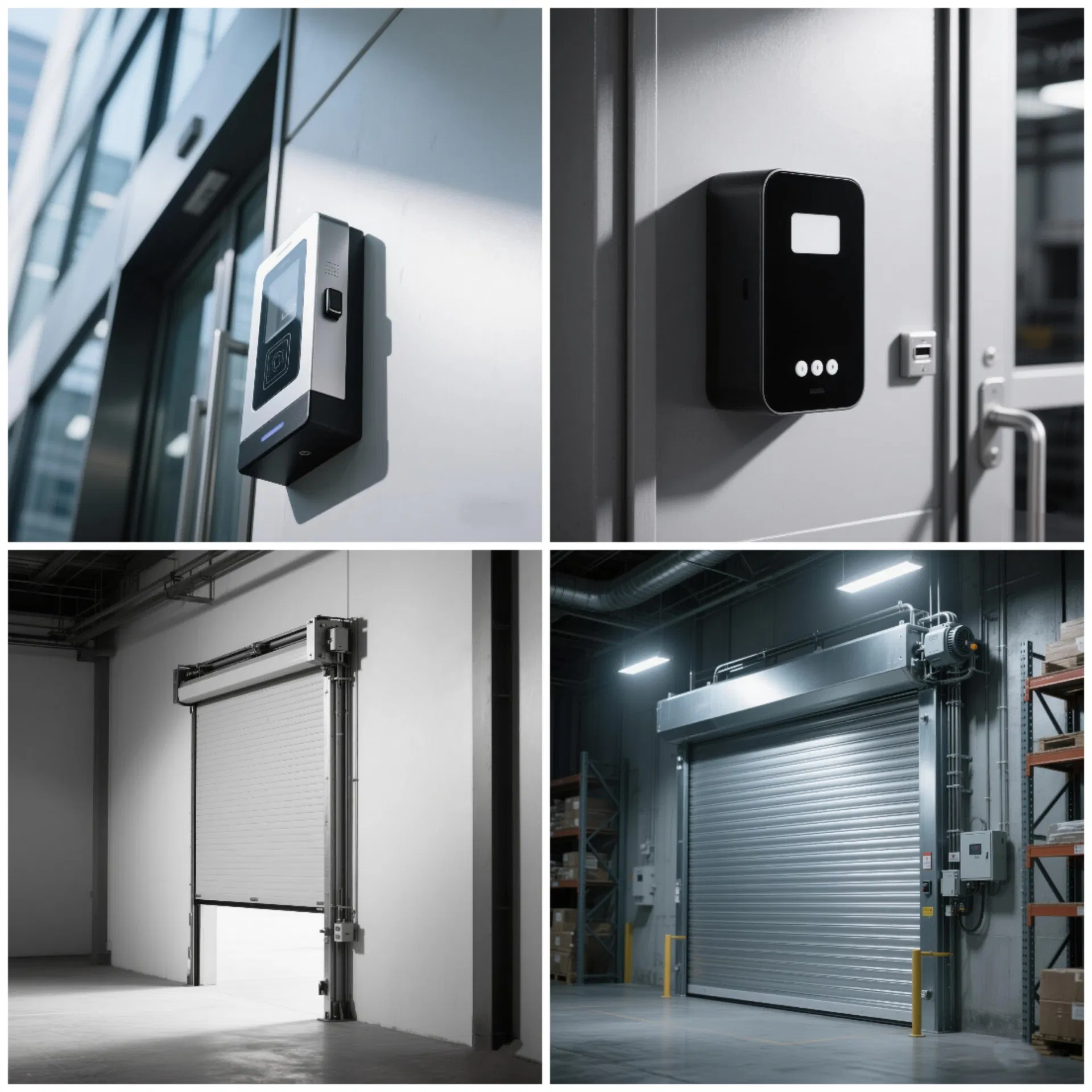

Application 2
Certifications & Production
OEM ODM
Certifications
Production & Facility
Facility 1

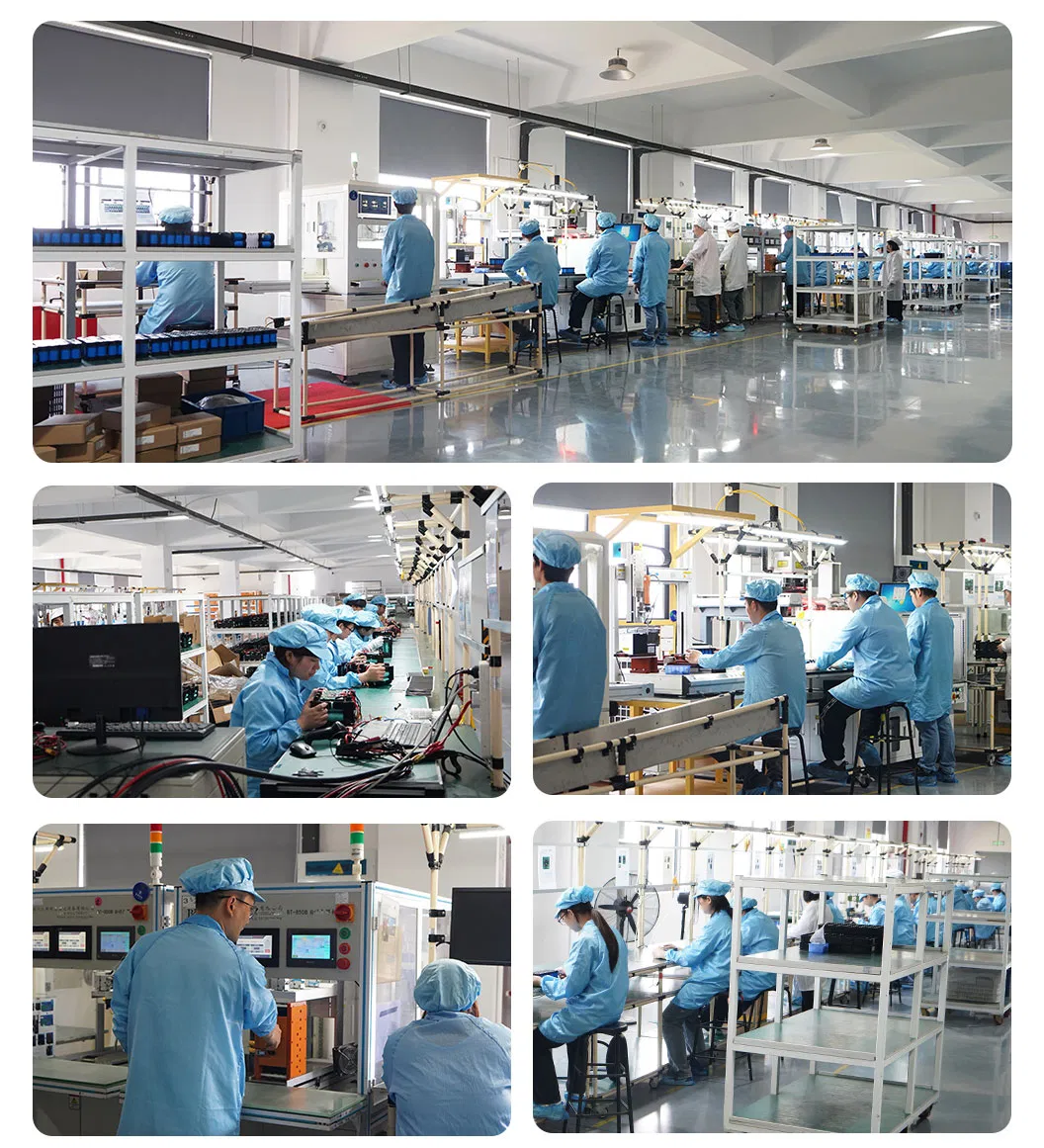

Facility 2

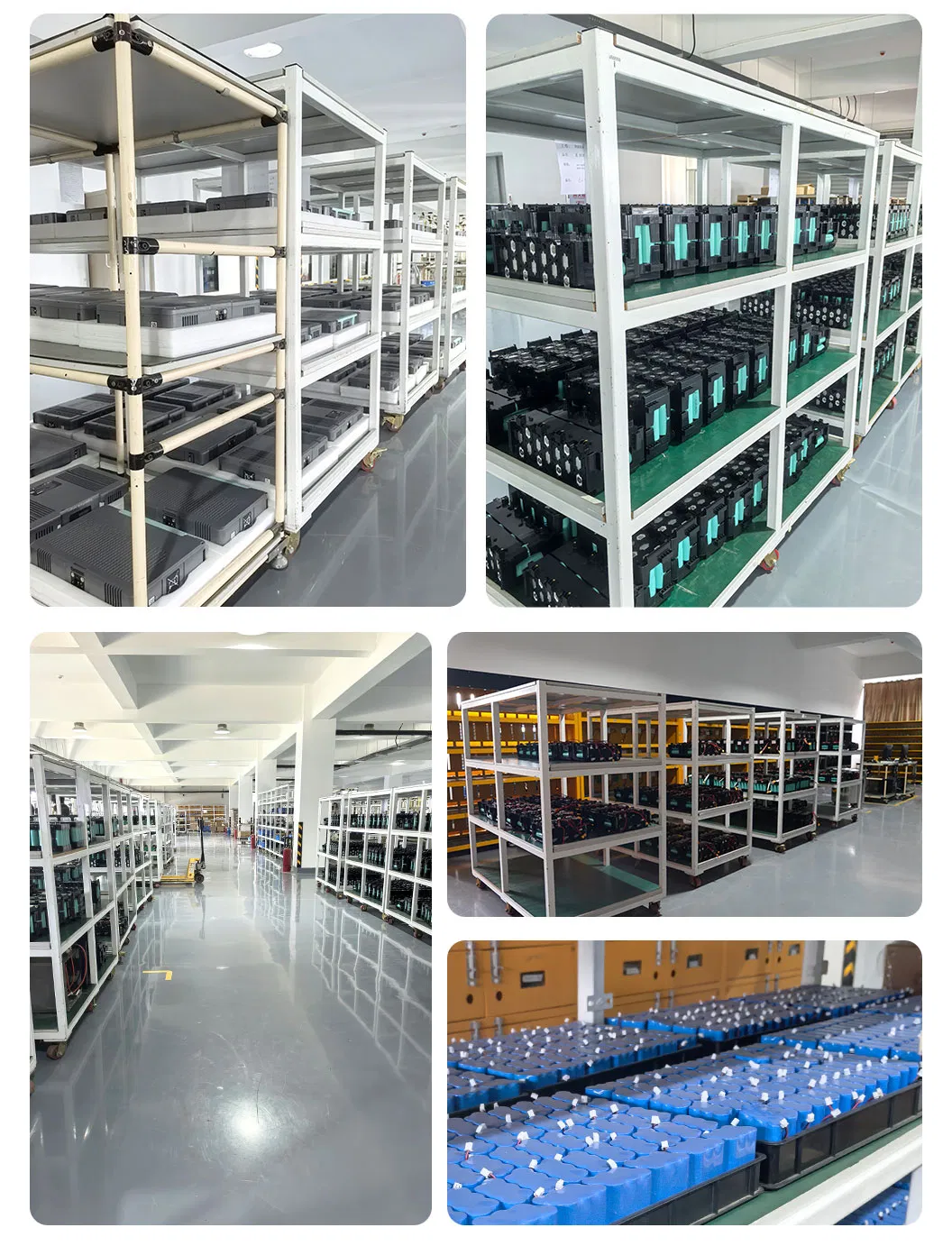

Facility 3
Frequently Asked Questions
What is the advantage of a Valve Regulated Lead Acid (VRLA) battery?
VRLA batteries are maintenance-free, non-spillable, and hermetically sealed. They use a gas recombination system to recycle water, eliminating the need for regular watering.
How should I store the battery if it's not in use?
Batteries should be stored in a cool, dry place. Due to self-discharge, it is recommended to recharge the battery at least every 6 months to maintain its capacity and longevity.
Can this battery be installed sideways?
Yes. Thanks to the innovative AGM (Absorbent Glass Mat) separator technology, the electrolyte is fully absorbed, making the battery leak-proof and allowing for installation in various positions.
What makes the silver-plated copper terminals better?
Silver-plated copper terminals offer the highest electrical conductivity, ensuring minimal power loss and providing excellent protection against rust and corrosion.
Is the casing durable for commercial use?
Yes, the battery uses a high-strength ABS plastic shell which is flame-retardant, weatherproof, and resistant to both high and low temperatures.
What is the expected charging voltage for standby use?
For standby (float) use, the recommended voltage range is 13.5V to 13.8V. For cycle use, the range is 14.4V to 15.0V.
