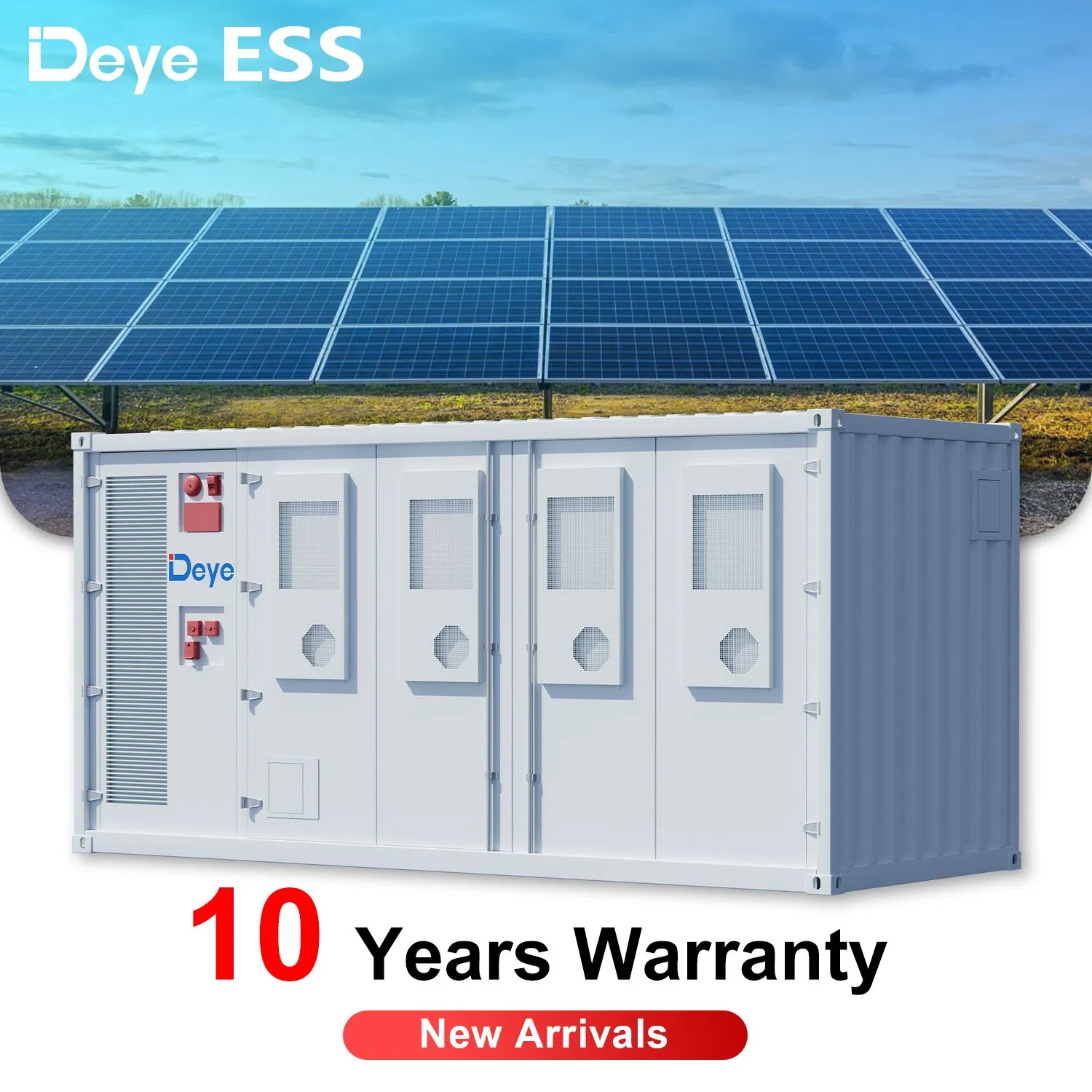

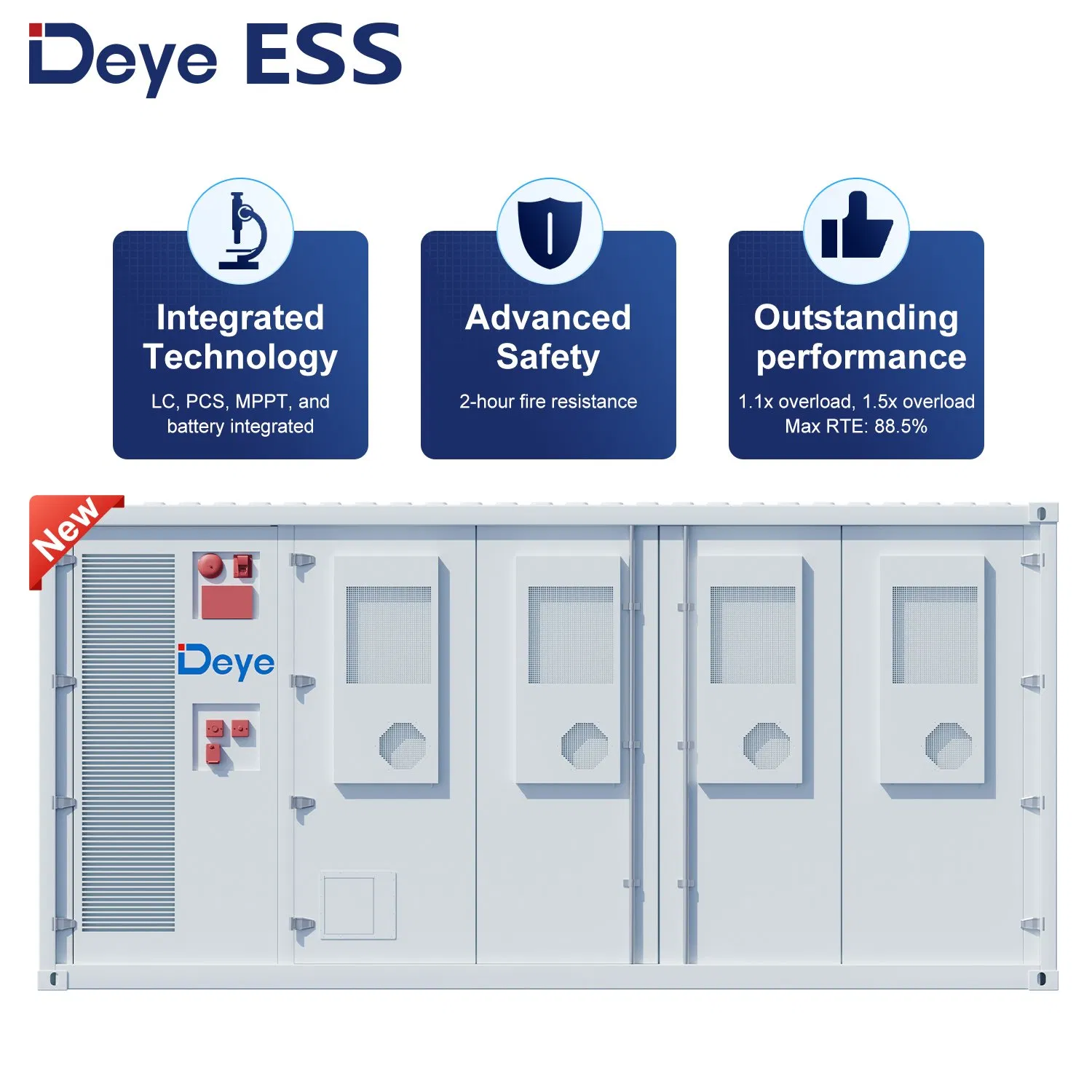

Deye Ess Ws-G2000-2h3 Safe Reliability IP54 Industrial Solar Energy Storage LiFePO4 Lithium Battery

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

Basic Specifications

Model
WS-G2000-2H3
Size
Large
Battery Energy
2057kwh
Operating Ambient
-20-50℃
IP Rating
IP54
Dimension
20FT(Hc)
Weight
25000kg
Installation
Floor-Mounted
Warranty
10 years
Capacity
2000PCS/Month

Product Description

Industrial Solar Energy Storage

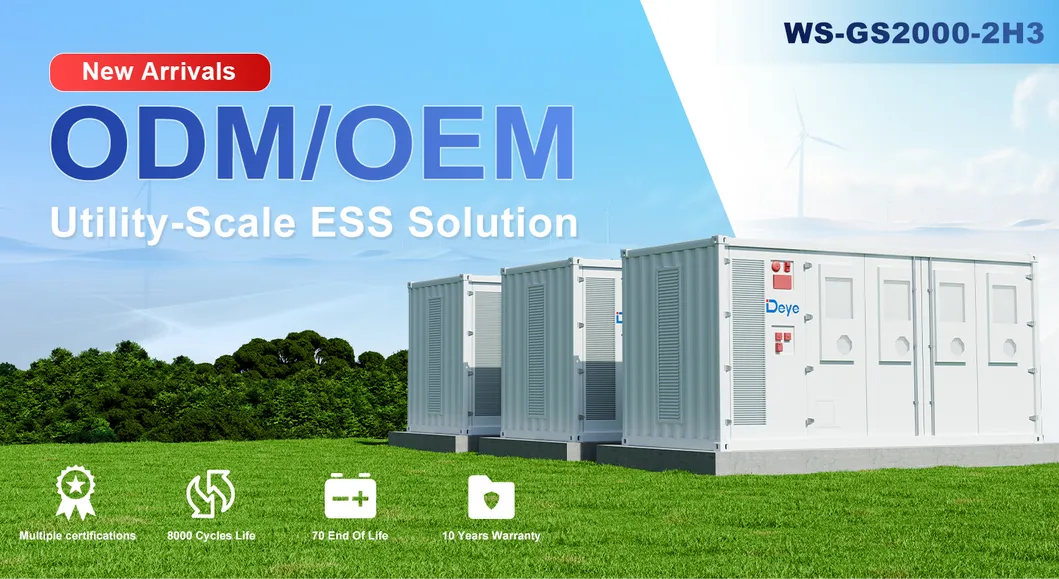

Energy Storage Detail 1
Energy Storage Detail 2
Battery Parameters
Cell typeLiFePO4
Battery configuration256S1P*8
Battery energy2057KWh
Battery voltage range691.2-921.6Vdc
Technical & Environmental
Fire protect systemGas fire protection + Water fire protection
Cooling typeSmart Air Cooling
Communication portRJ45
Communication protocolModbus TCP, IEC104, IEC61850
Operating ambient-20-50ºC
IP ratingIP54
Cycle Life25±2°ºC, 0.5P, EOL70% ≥ 8000

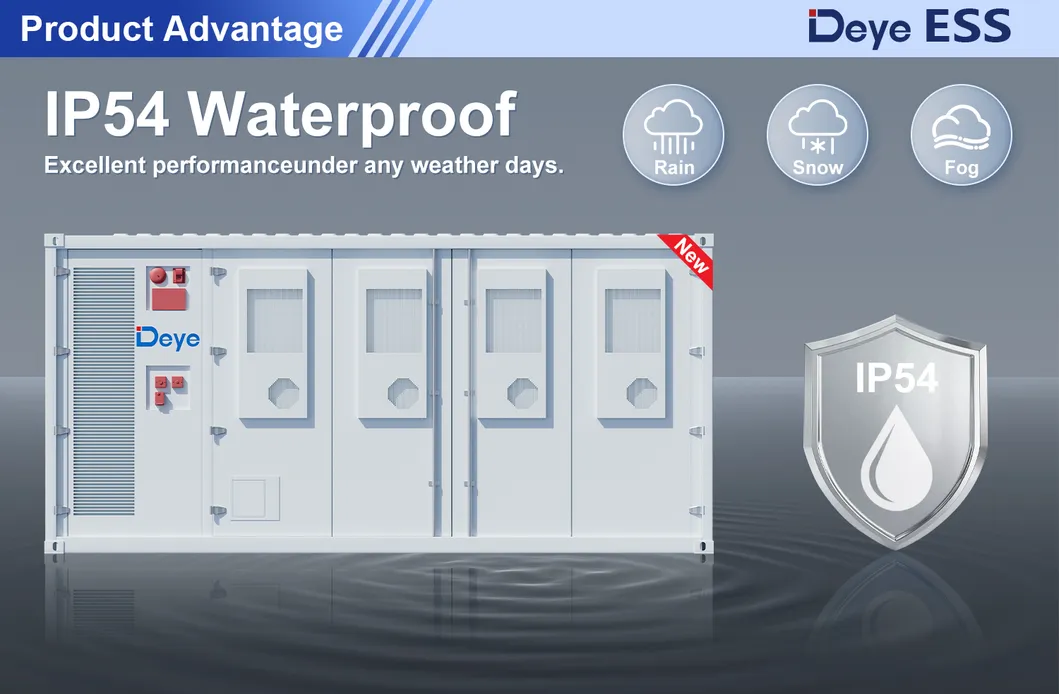

Technical Info 1

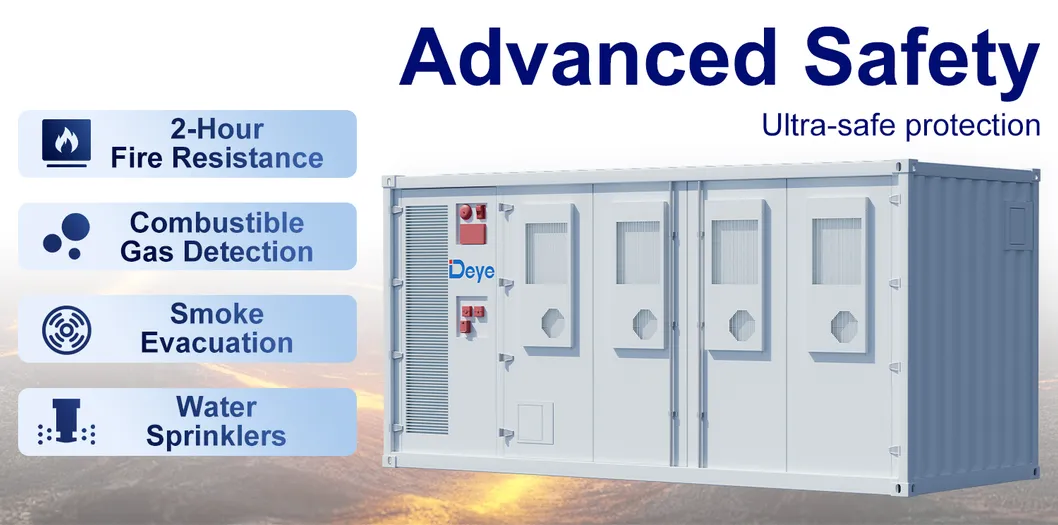

Technical Info 2

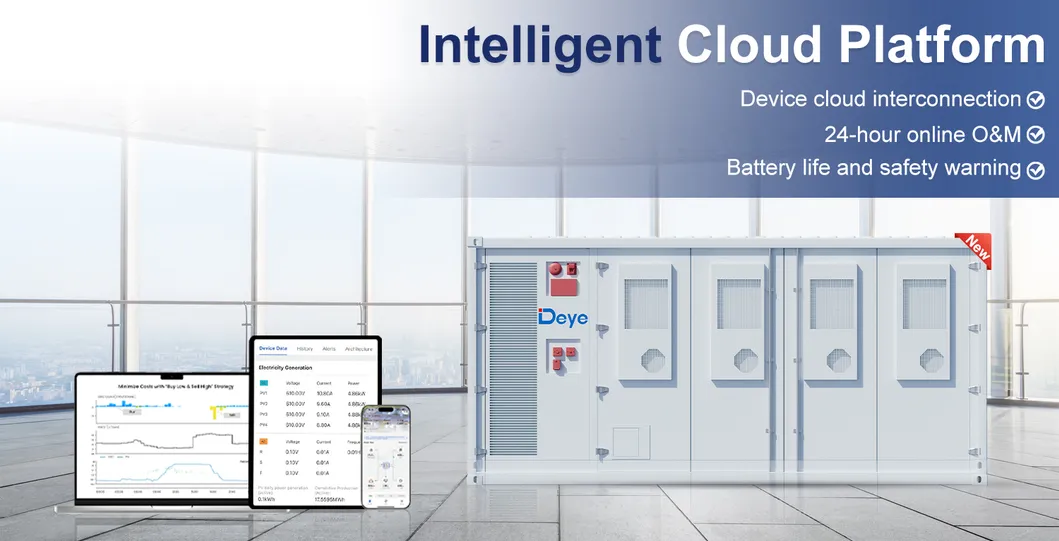

Technical Info 3

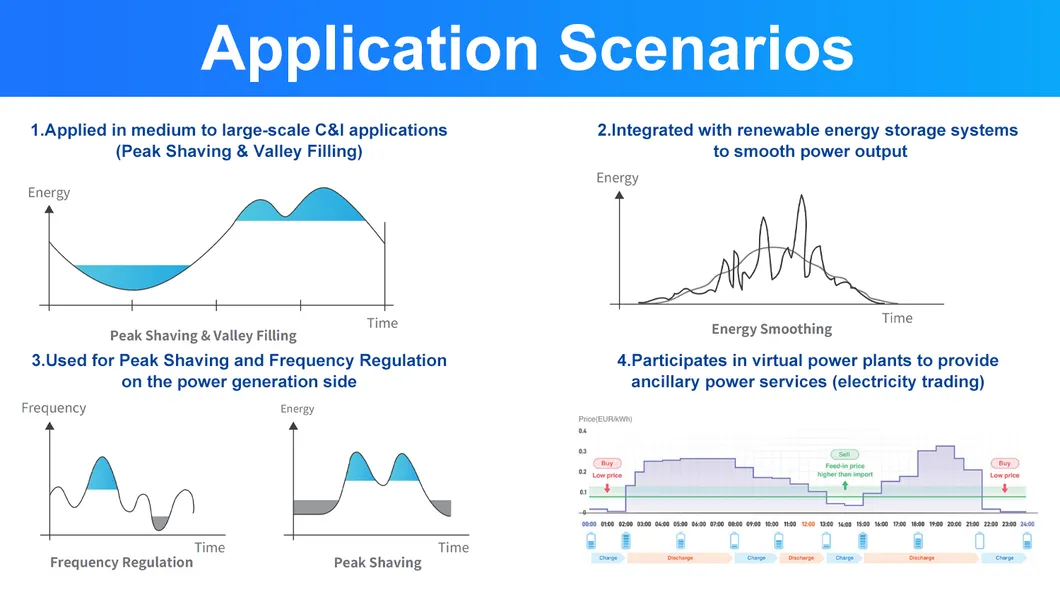

Technical Info 4
Technical Info 5

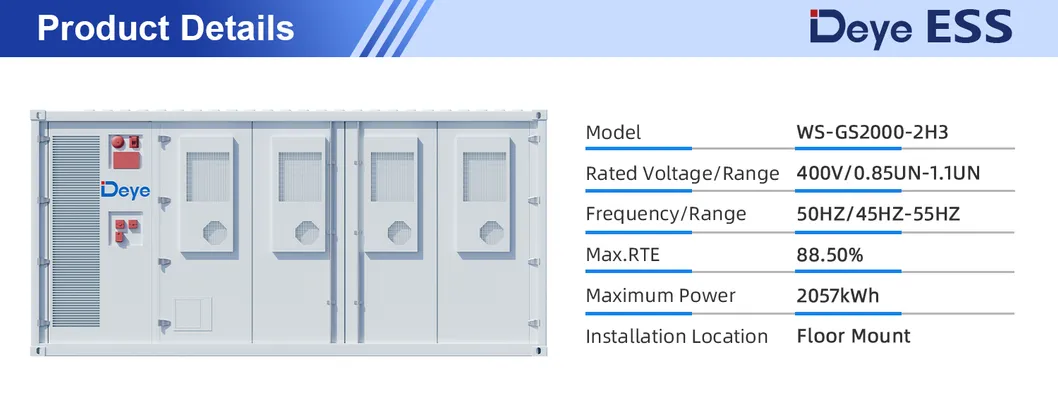

Technical Info 6

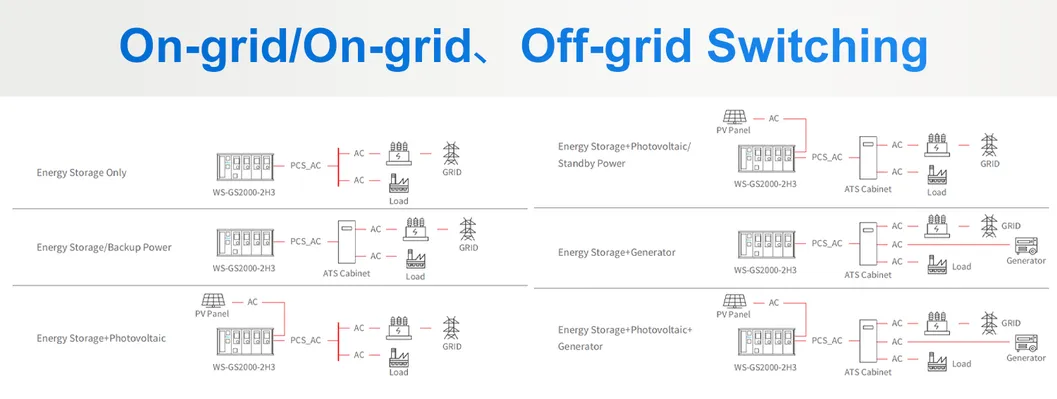

System Component 1

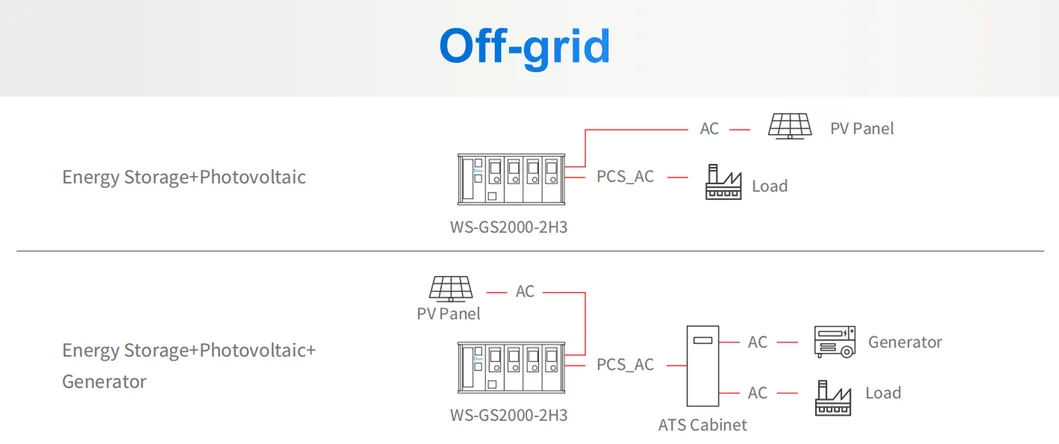

System Component 2

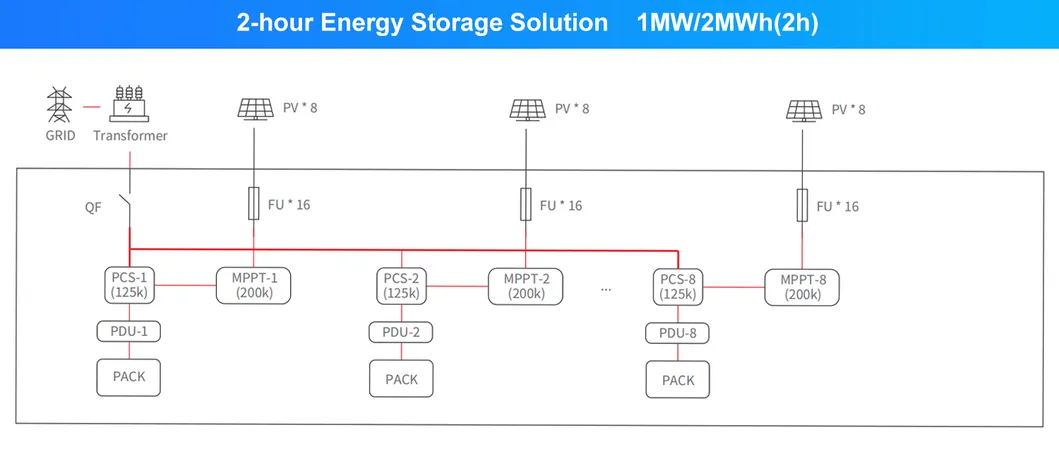

System Component 3

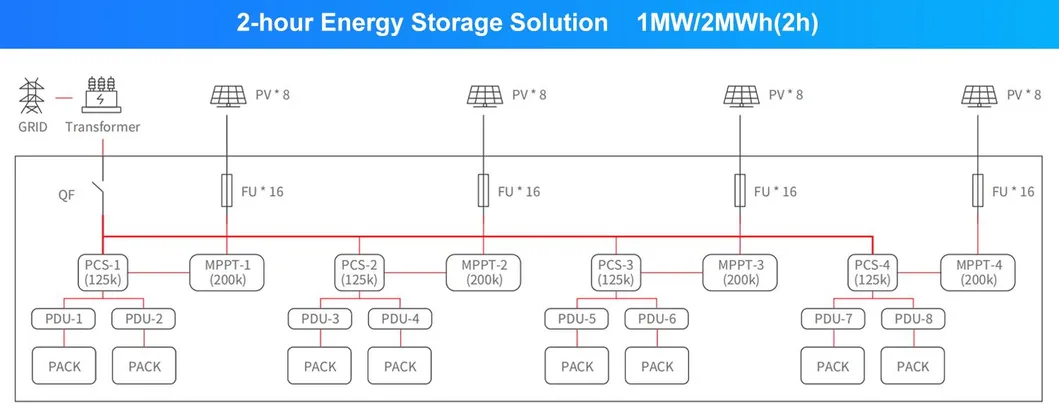

System Component 4

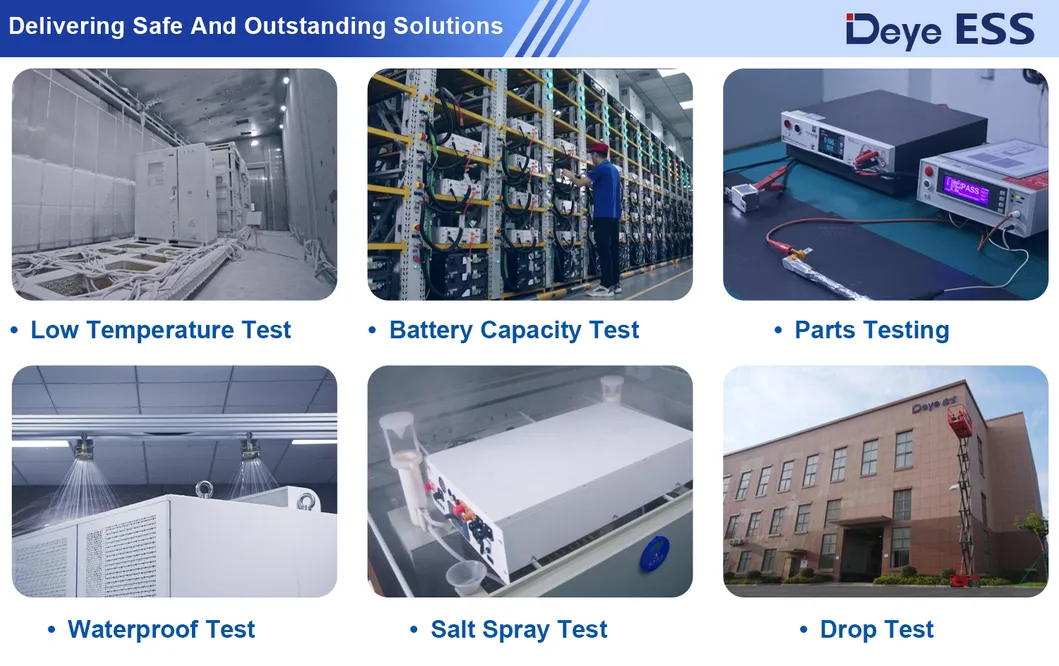

System Component 5

About Our Solutions

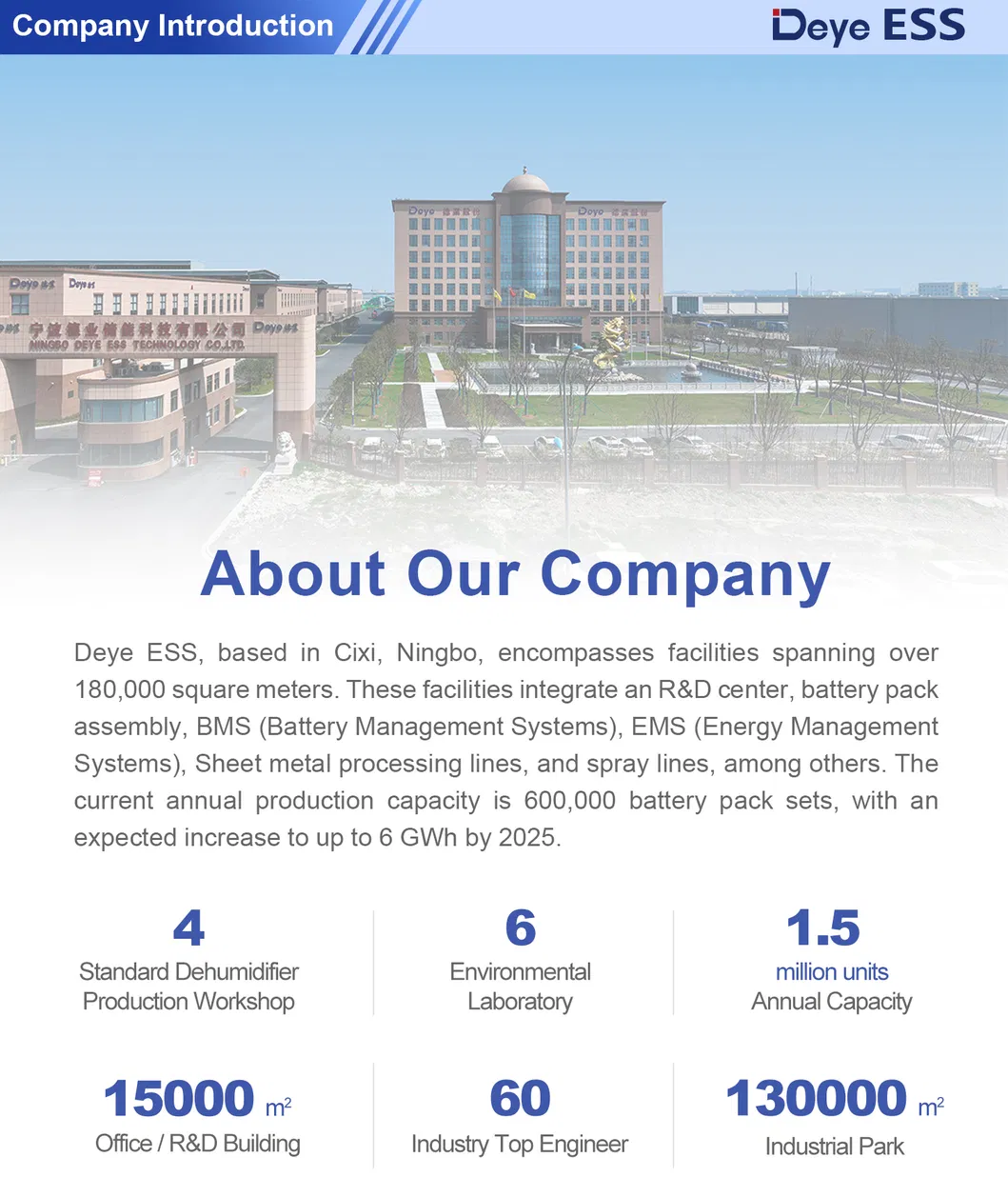

Manufacturing Center

Energy Storage Systems are designed with mastery in conversion technologies, providing high-quality energy storage solutions globally. As a large-scale Sci-Tech enterprise, we focus on a full range of inverter and energy storage products, integrating R&D, production, sales, and service.

Our engineering team develops safe, durable, and environmentally friendly products for renewable energy applications. Our intelligent manufacturing base produces world-class Battery Management Systems (BMS) and energy IOT services, focusing on sustainability and efficiency.

Our comprehensive coverage includes low-voltage household systems, high-voltage residential solutions, portable power products, and large-scale utility energy storage, providing a one-stop solution for all ESS applications.

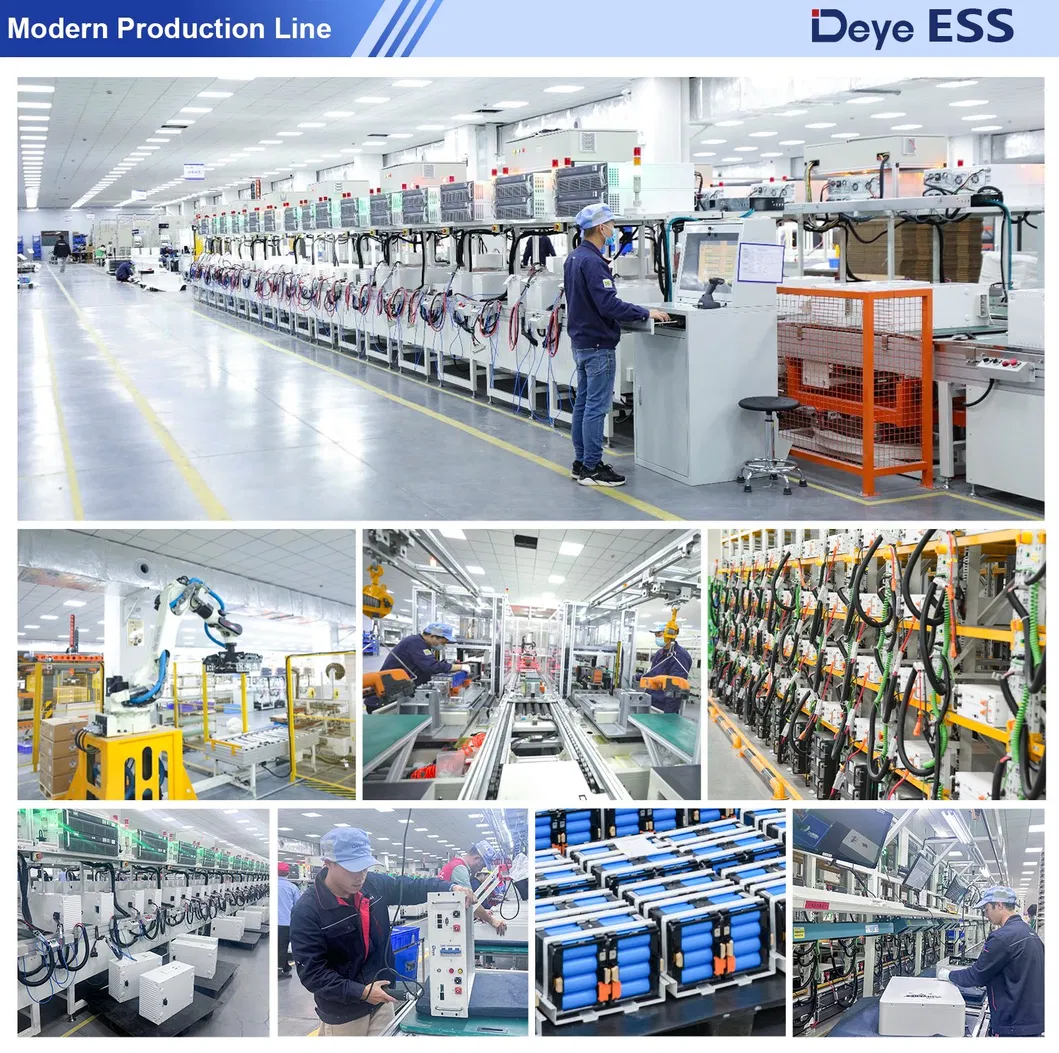

Production Line 1
Production Line 2
Production Line 3
Production Line 4
Production Line 5

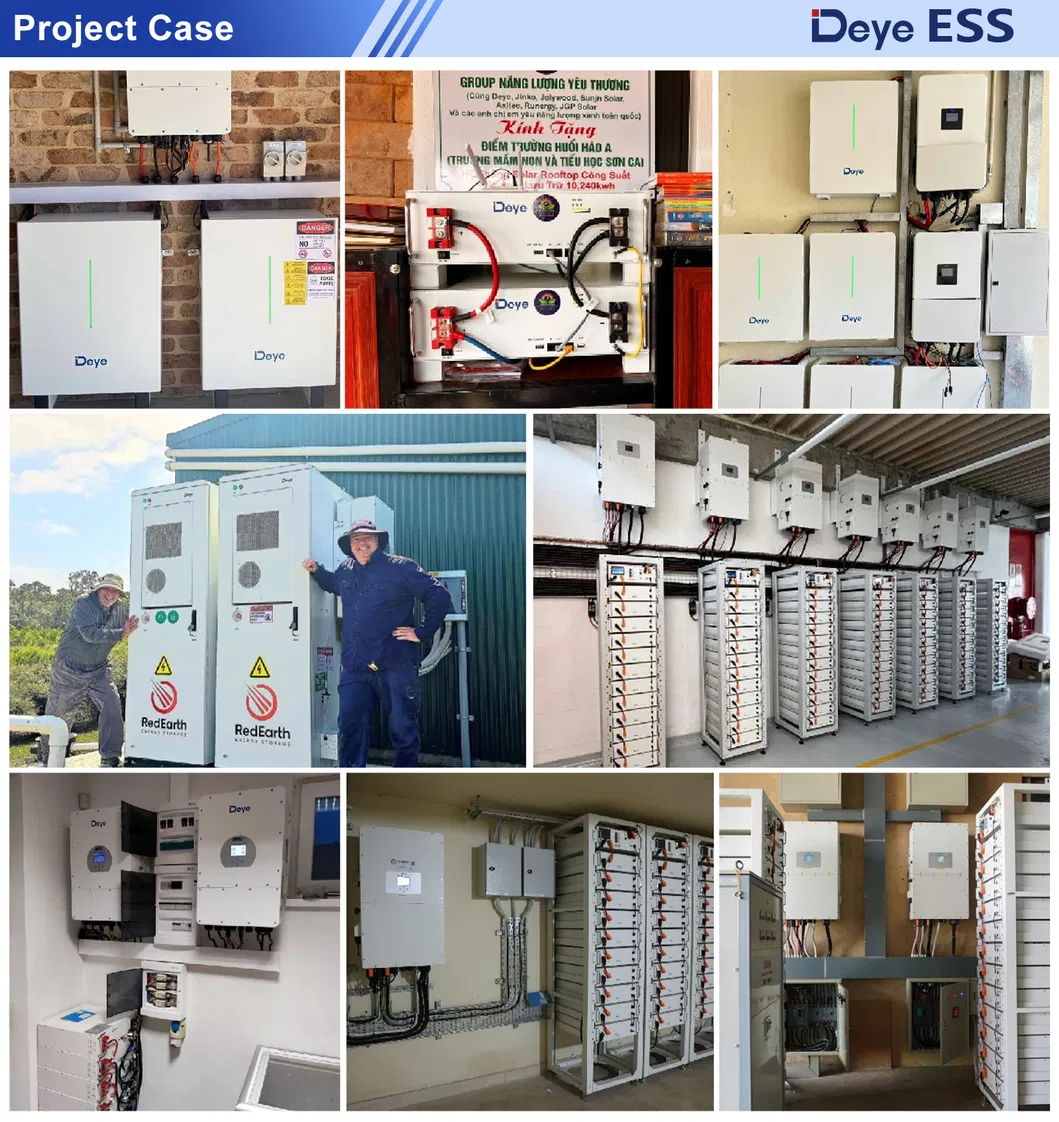

Production Line 6

Frequently Asked Questions

What is the battery capacity of the WS-G2000-2H3 model?
The WS-G2000-2H3 industrial energy storage system features a substantial battery energy capacity of 2057kWh.
What kind of safety systems are integrated into this unit?
The system is equipped with a dual fire protection strategy, including both gas fire protection and water fire protection systems.
Is the system suitable for harsh outdoor environments?
Yes, the unit features an IP54 enclosure rating and is designed to operate in ambient temperatures ranging from -20°C to 50°C.
How long is the expected cycle life and warranty?
The battery provides a cycle life of ≥8000 cycles (at 0.5P, EOL70%) and comes with a 10-year warranty period.
What cooling technology does the system use?
The system utilizes Smart Air Cooling technology to maintain optimal operating temperatures for the LiFePO4 cells.
Which communication protocols are supported?
It supports standard industrial protocols including Modbus TCP, IEC104, and IEC61850 through an RJ45 port.
