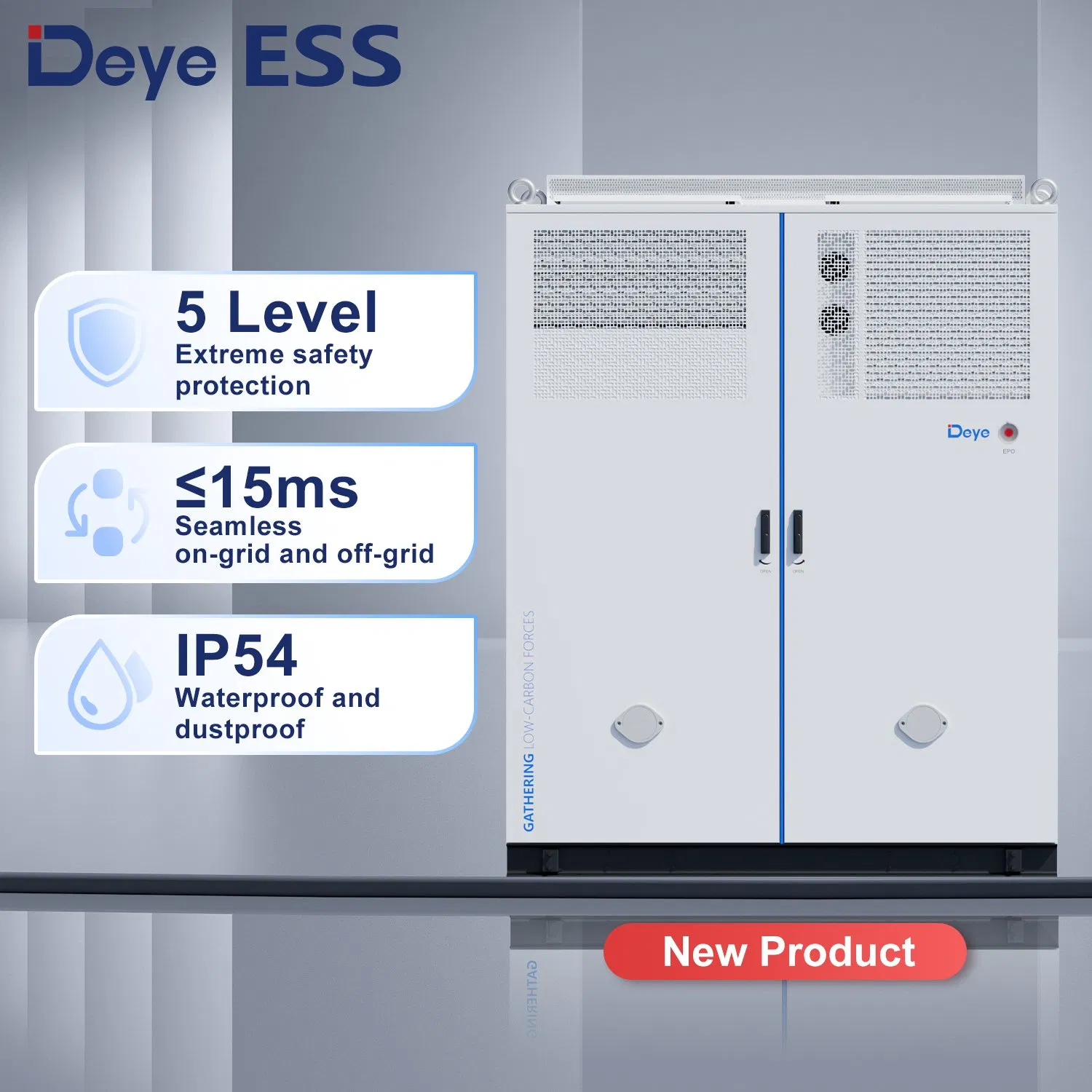

| System Parameters | |
|---|---|
| Operating Temperature | -25ºC to +55ºC |
| Storage Temperature | -30ºC to +60ºC |
| Humidity | 0-95% (No condensation) |
| Type of Cooling | Liquid cooling |

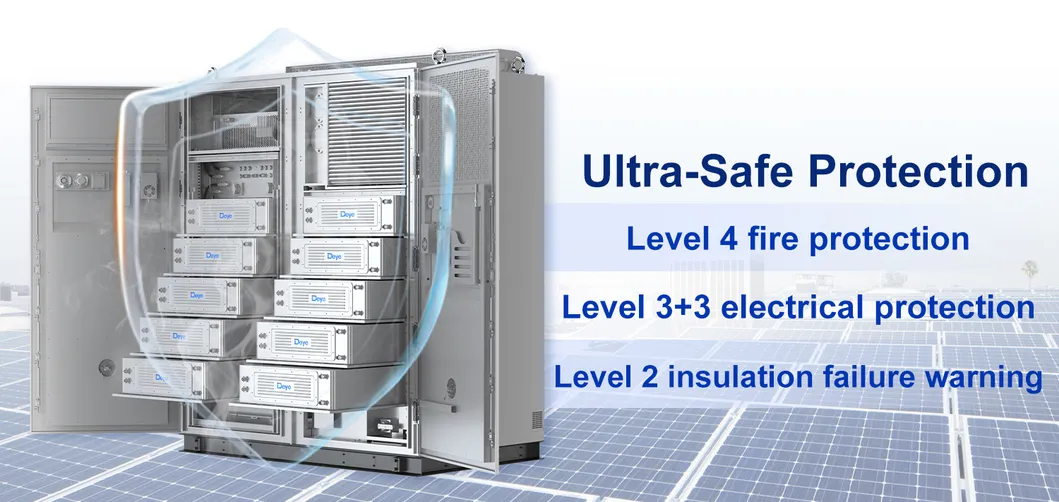

| Fire Suppression | Aerosol, Water |

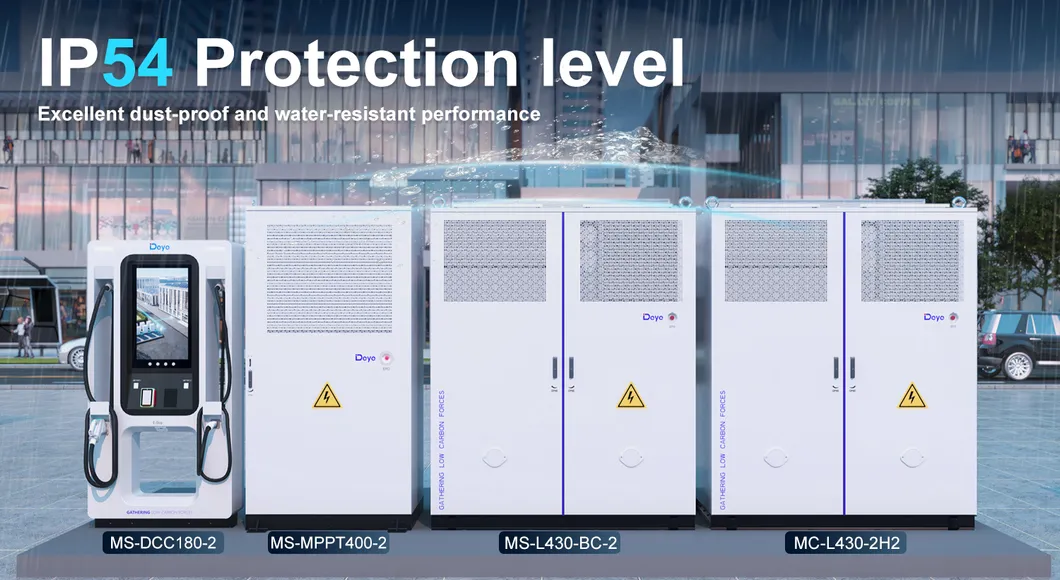

| Ingress Protection | IP54 |
| Anticorrosion Grade | ≥C4 |
| Communication | RS485, Modbus TCP, DIDO |

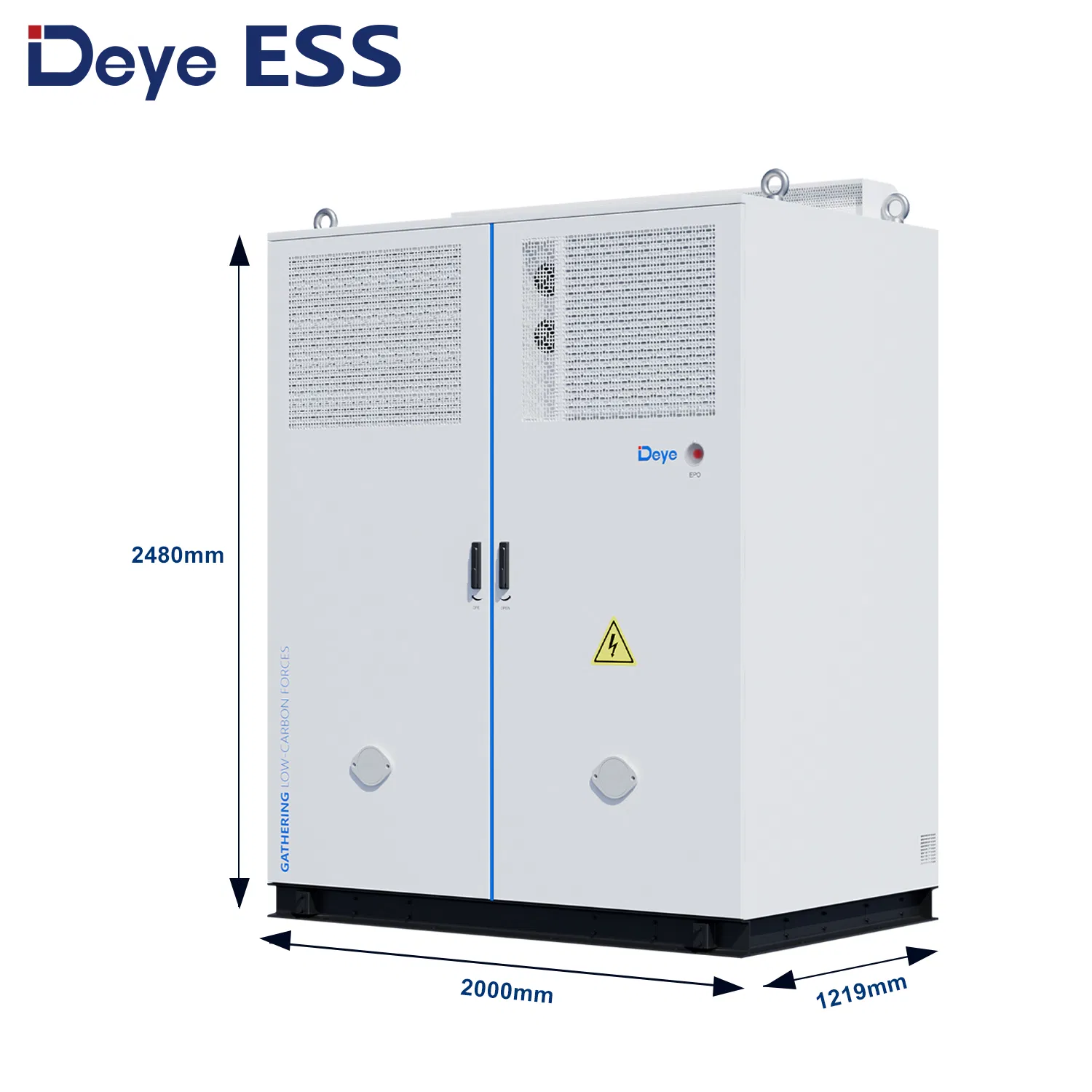

| Dimensions (W×D×H) | 2000×1300×2480mm |
| DC Data | |
| Battery Type | LiFePO4 |
| Nominal Capacity | 280Ah |
| Nominal Energy | 430.08kWh |
| Nominal DC Voltage | 768Vd.c. |
| DC Voltage Range | 636Vd.c - 876Vd.c. |

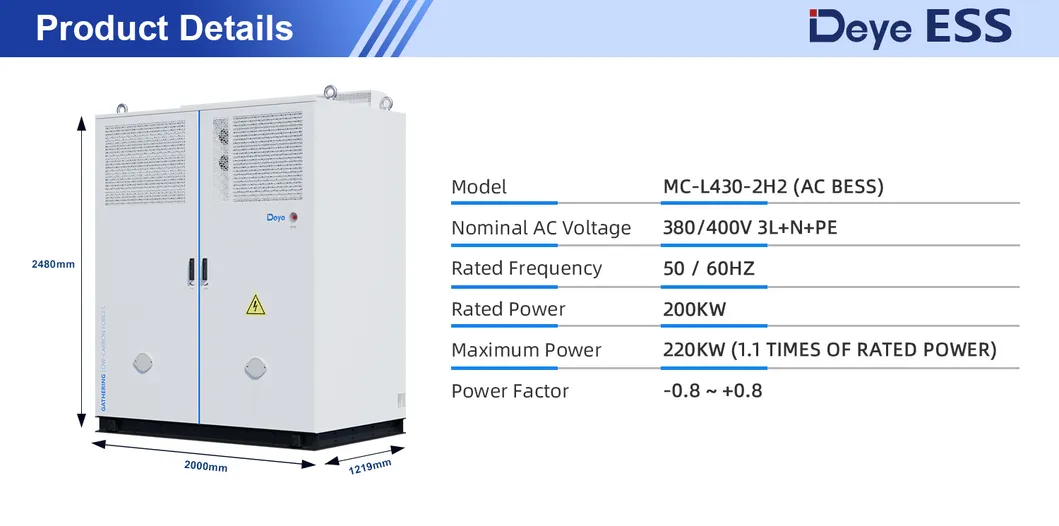

| AC Data | |
| Nominal AC Voltage | 380/400V 3L+N+PE |
| Rated Frequency | 50/60Hz |
| Rated Power | 200kW |
| Maximum Power | 220kW |
| Power Factor | -0.8 to +0.8 |
Innovation in Energy Storage
Energy Storage Systems bring high-quality energy storage solutions to the world through mastery of conversion technologies. As a large-scale Sci-Tech enterprise, the manufacturer possesses a full range of inverter and energy storage products, operating as an all-in-one entity integrating R&D, production, sales, and service.

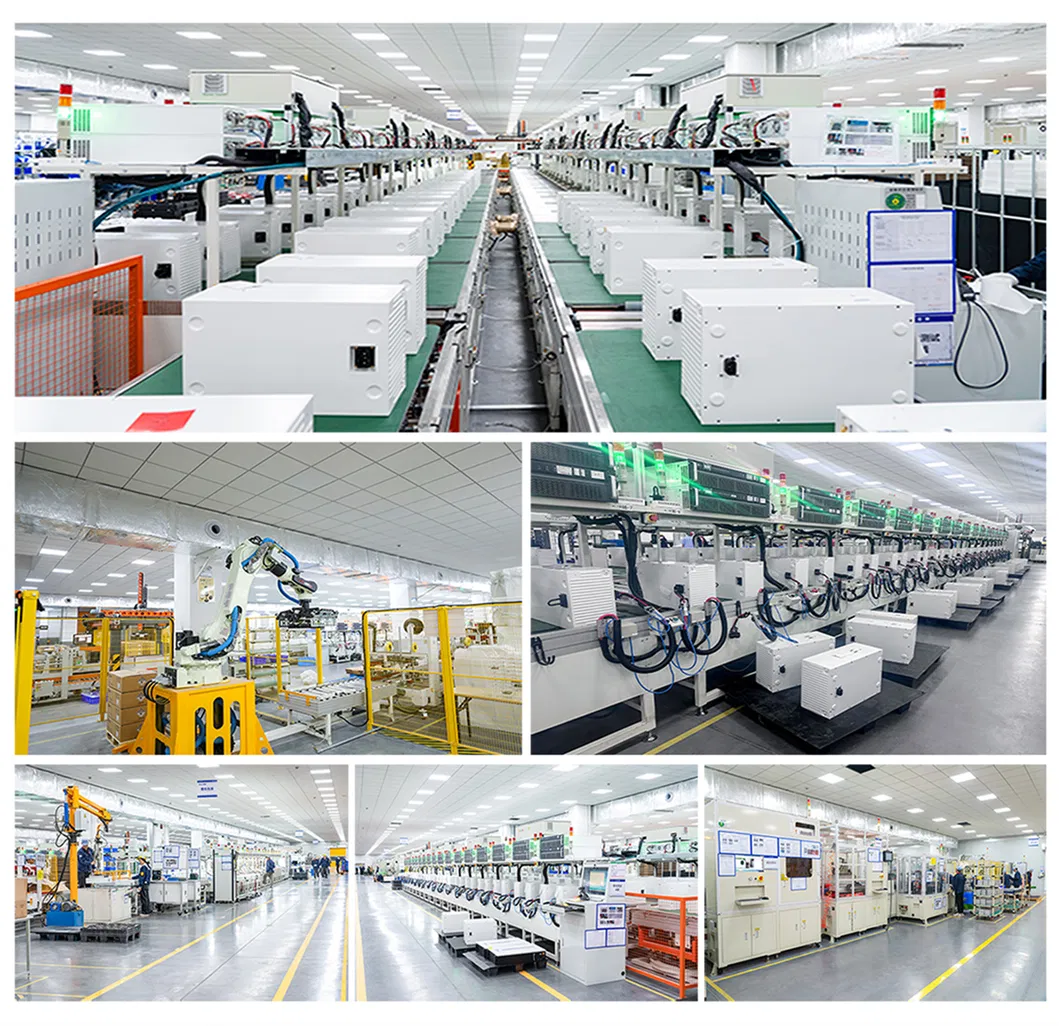

The world-class engineering team continues to develop safe, durable, and environmentally friendly energy storage products, as well as system solutions for renewable energy applications. The intelligent manufacturing base produces world-class energy storage systems, Battery Management Systems (BMS), and energy IOT services for global customers.
The product lines are categorized by seasons: SPRING Series for low-voltage household storage, SUMMER Series for high-voltage household storage, AUTUMN Series for portable power, and WINTER Series for utility-scale energy storage. This comprehensive coverage makes the entity a one-stop solution provider for all ESS applications.
