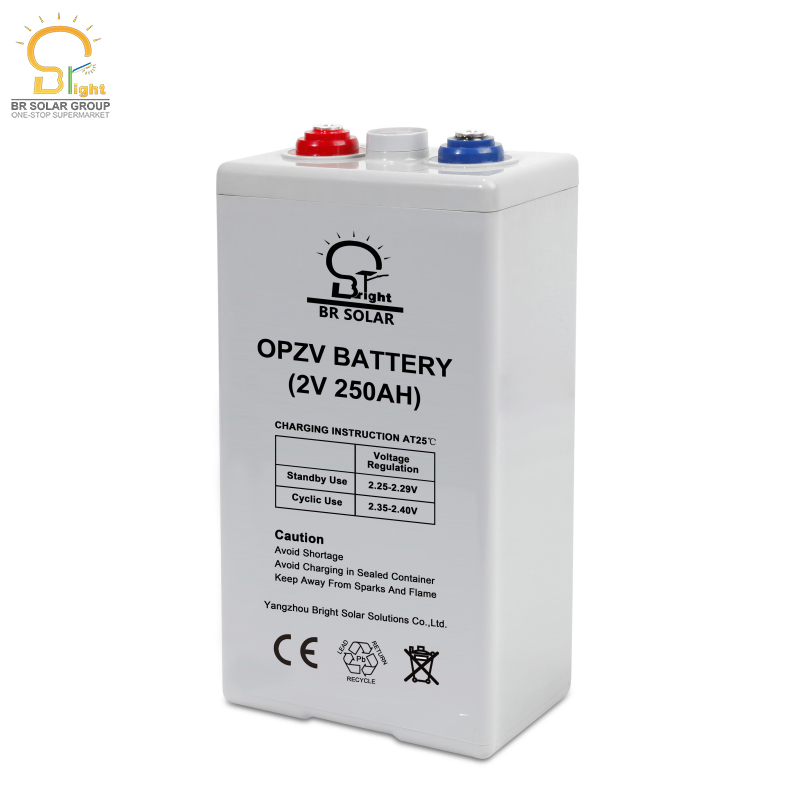

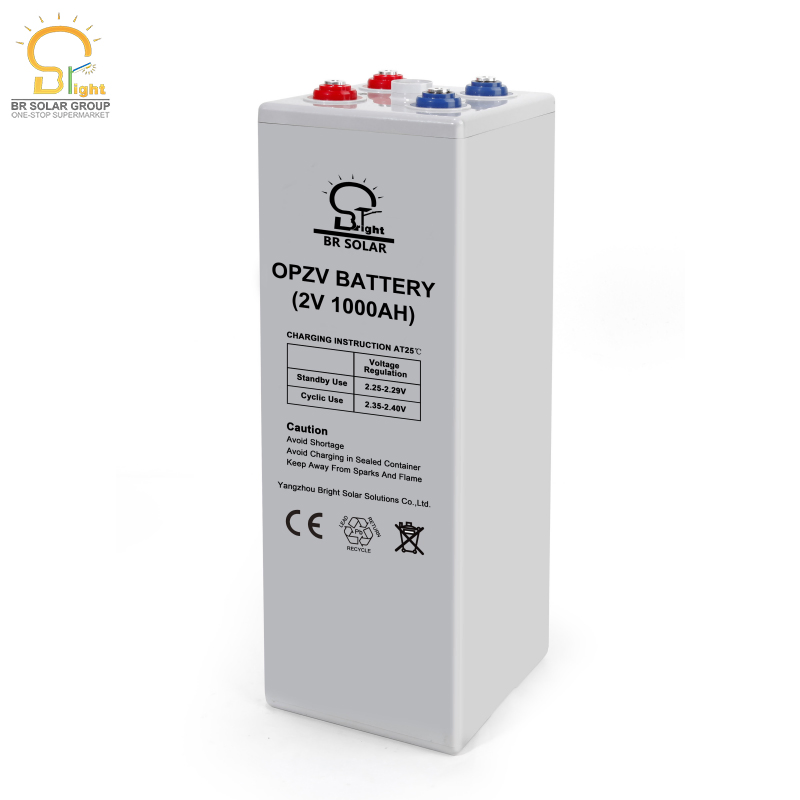

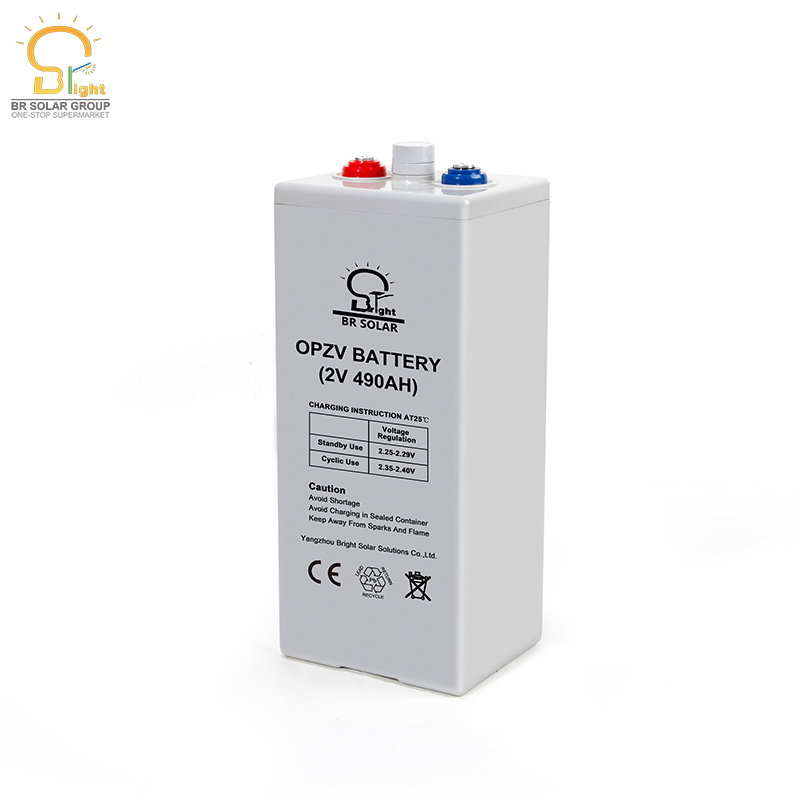

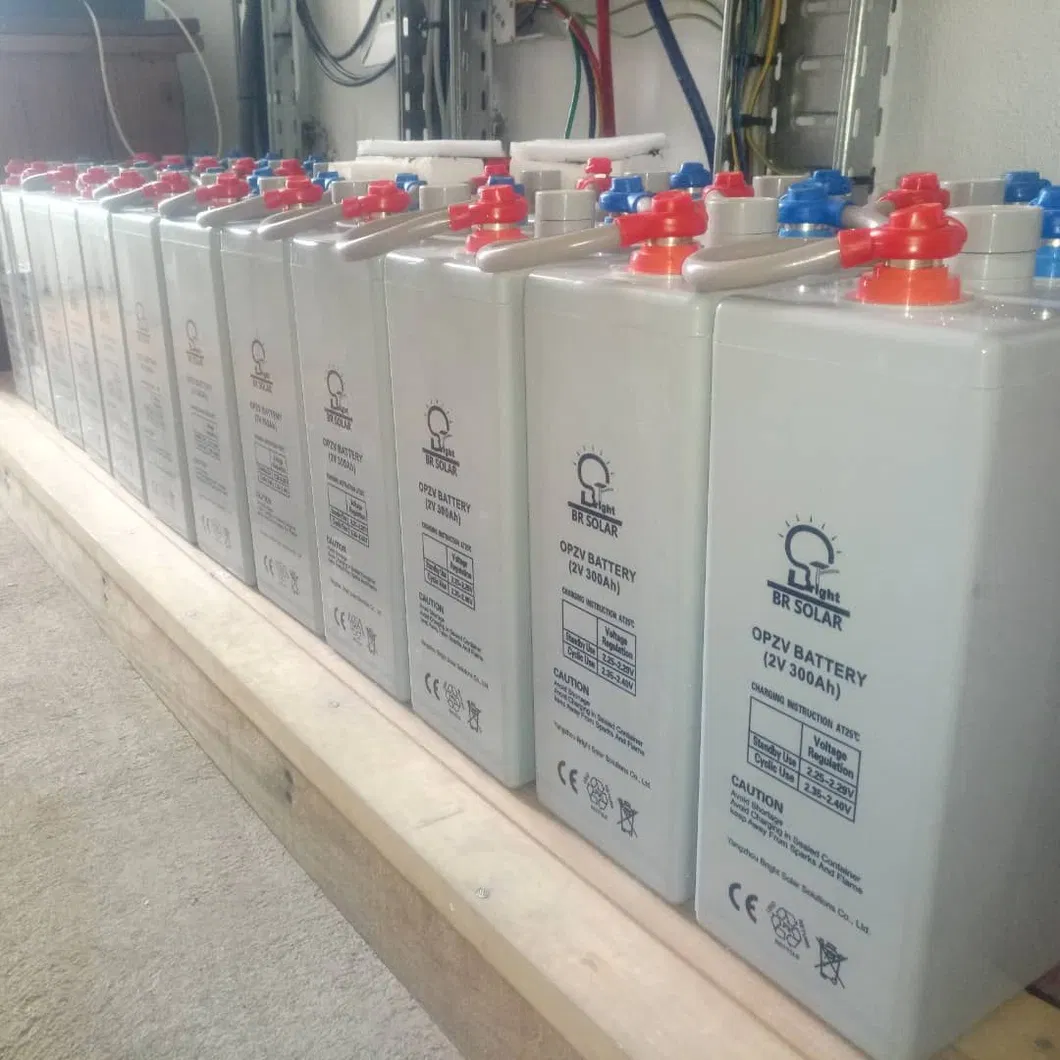

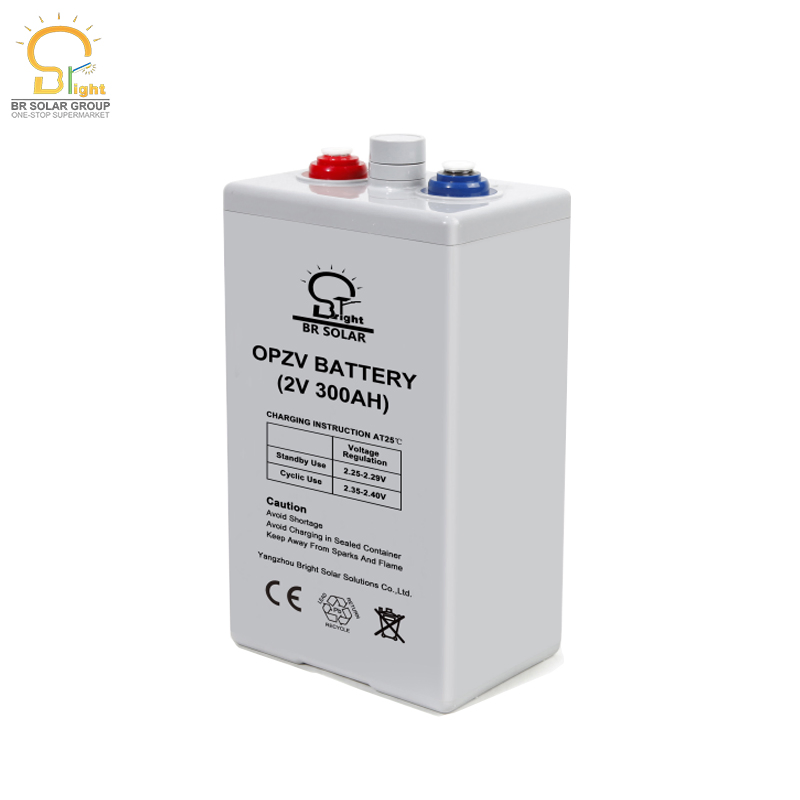

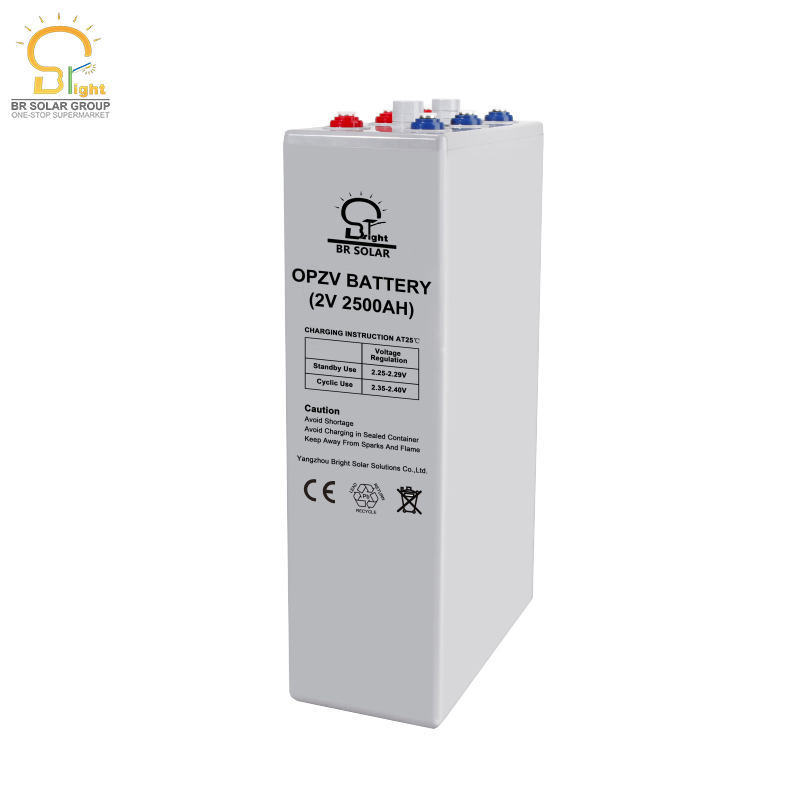

2V 300ah to 3000ah Br Solar; as Solar Deep Cycle Opzv Battery

1 / 5

2V 300ah to 3000ah Br Solar; as Solar Deep Cycle Opzv Battery

Customization:	Available
Type:	Gelled Battery
Usage:	UPS, Electric Power, Lighting, Boat

Send Inquiry

Product Description

Basic Information

Model NO.

2V OPzV

Nominal Voltage

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Gelled Battery

Installation

Packaged

Rechargeable

Chargeable

Solar Battery

Gel Battery

Battery Type

Opvz Battery

Warranty

5 years

Size Range

2V 300ah to 3000ah

Origin

China

HS Code

85072000

Production Capacity

12000PC/Month

Product Description

Opzv-2V3000ah Tubular Gel Battery Rechargeable Sealed Maintenance-Free Long Life span for Solar Power Stations and systems

1. Overview

2V 12V 30AH-3000AH Telecom Tubular Plate Deep Cycle Solar Pure Gelled Battery OPZV Power Battery

2. Product Specification

Nominal Voltage	2V (1 cells)	Operating Temp.Range	Maximum: -40~55°C (-40~131°F)
Nominal Capacity	1528AH (20hr, 1.80V/cell)	Recommended: -15~50°C (5~122°F)
	1500AH (10hr, 1.80V/cell)	Storage: -20~40°C (-4~104°F)
	1321.5AH (5hr, 1.75V/cell)	Nominal Operating Temp.	25 ± 5°C
	891AH (1hr, 1.60V/cell)	Cycle Use	2.35~2.40V Temp.Coeff -5mV/°C
Dimension	Length 275 ± 2mm	Cycle Use	Initial Charging Current < 250A
	Width 210 ± 2mm	Standby Use	2.25V Temp.Coeff -3mV/°C
	Container Height 795 ± 2mm	Standby Use	No limit on Initial Current
	Total Height 827 ± 2mm	Capacity vs Temp	40°C (104°F) 103%
Approx Weight	106.5Kg		25°C (77°F) 100%
Terminal	M8		0°C (32°F) 86%
Container Material	ABS	Self Discharge	Stored for up to 6 months max
Max. Discharge Current	7500A (5S)		At 25°C freshening charge required
Internal Resistance	Approx 0.38mΩ		Time interval shorter at higher temps

Key Advantages

Real Green Power: Special alloys and Nano-material Gell are used, excluding harmful materials like antimony and cadmium. Leak-proof design even if broken.

Low Internal Resistance: Imported clapboard and special craft ensure high efficiency discharge and excellent battery capacity.

Low Self-discharging Rate: Less than 3% per month, significantly better than the 15% standard for common lead-acid batteries.

Long-life Design: Greater than 2000 cycles at 25ºC. Typical service life of 5-8 years depending on usage and maintenance.

Wider Temperature Range: Operates efficiently from -30ºC to 55ºC across different charging conditions.

Excellent Recovery: Capable of recovering 90% of initial capacity even after discharging to near 0V and shorting for 24 hours.

Manufacturing & Logistics

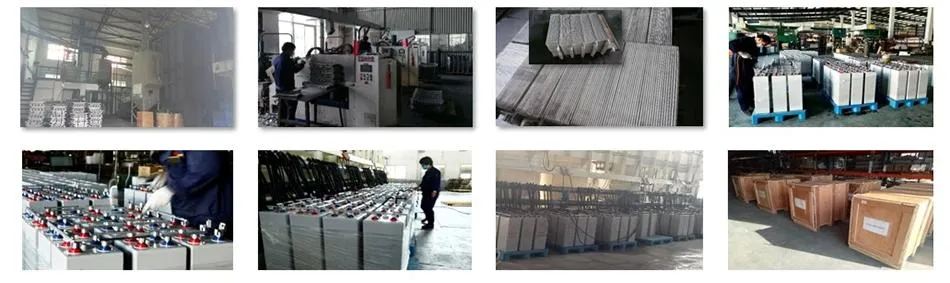

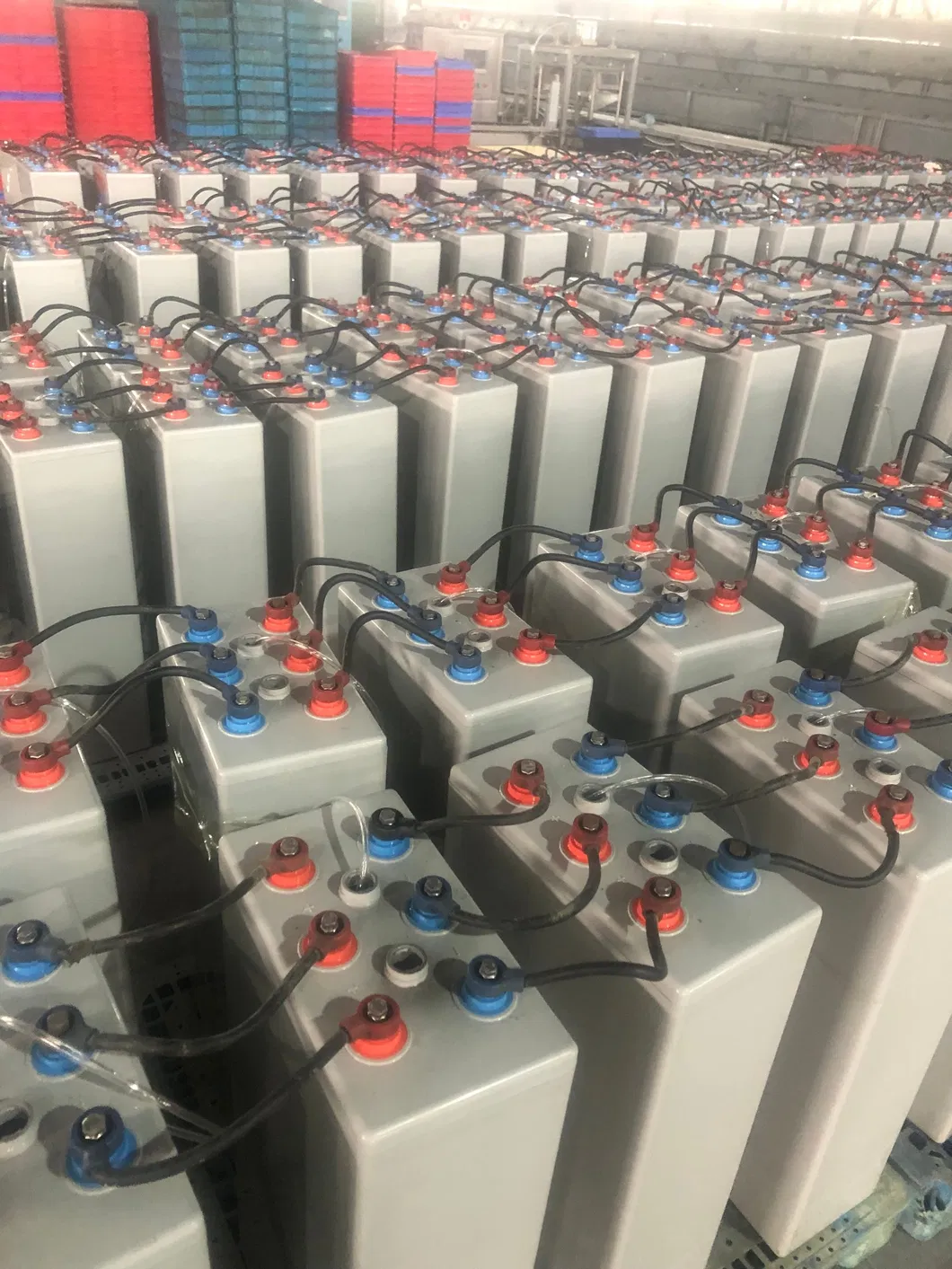

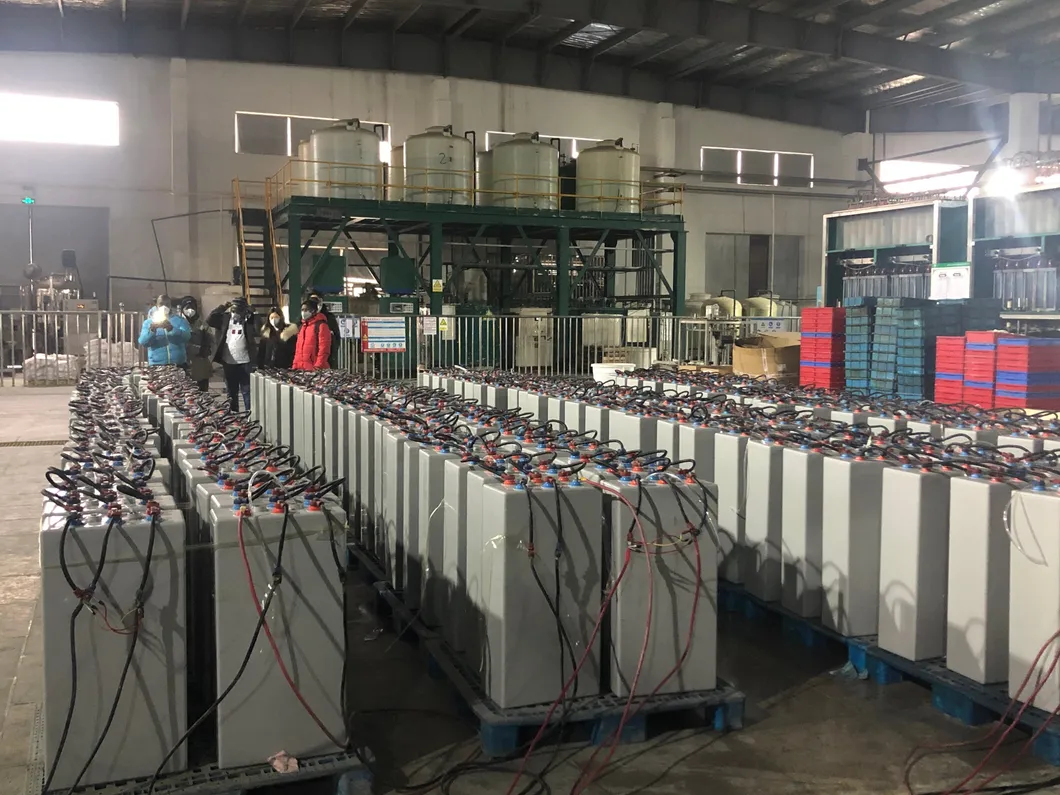

Production Steps:

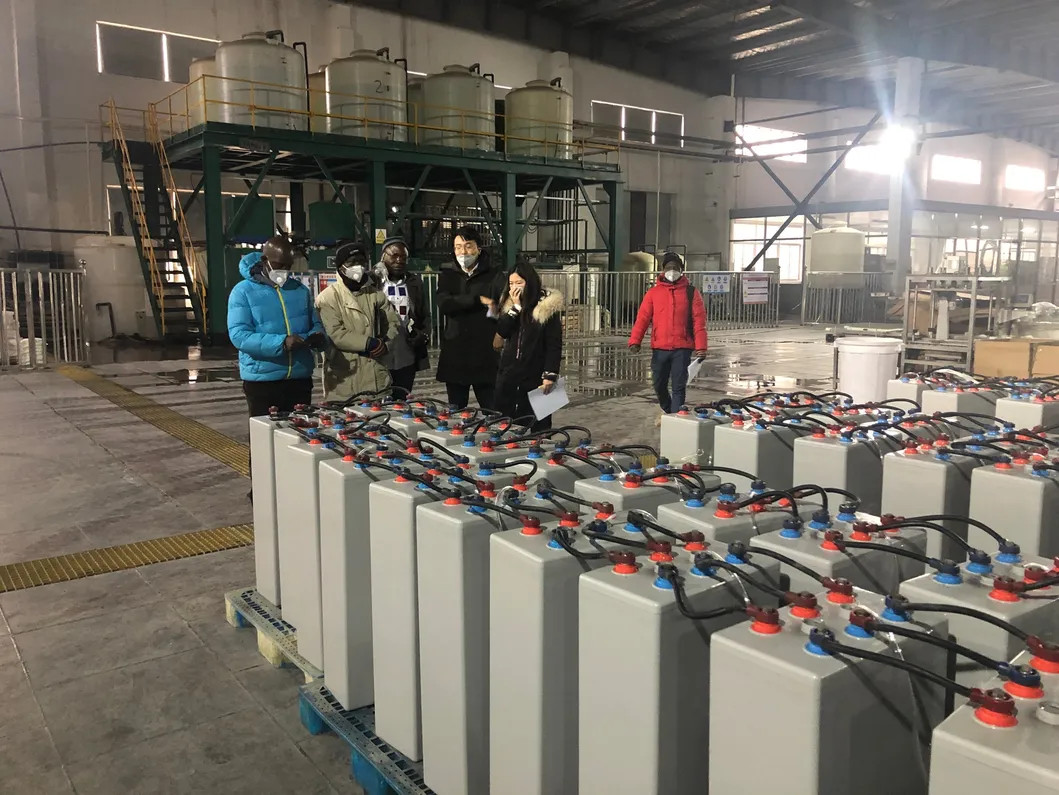

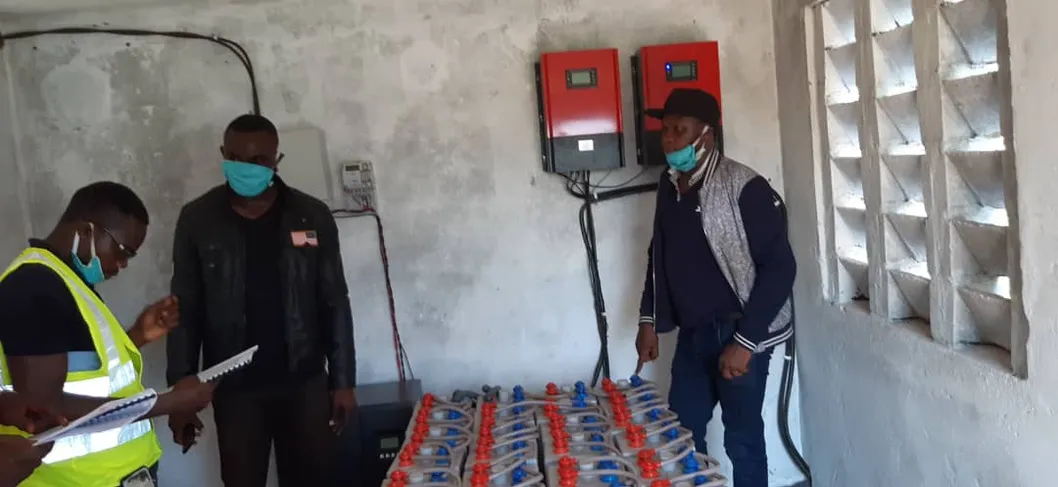

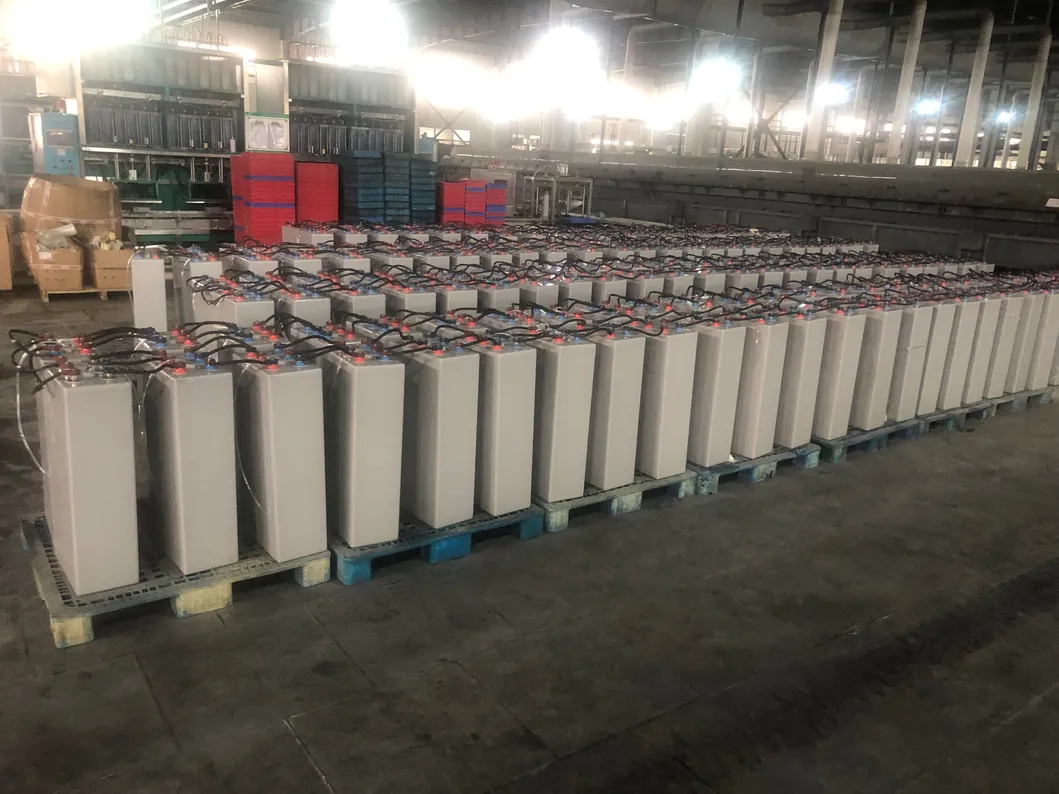

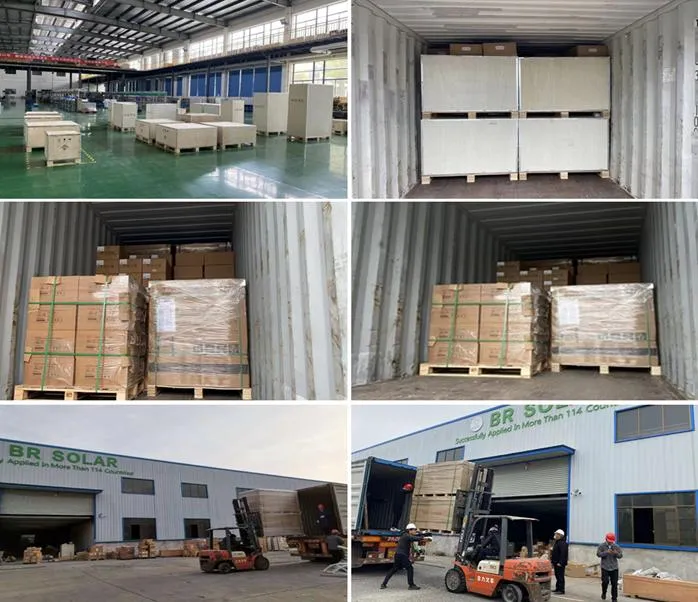

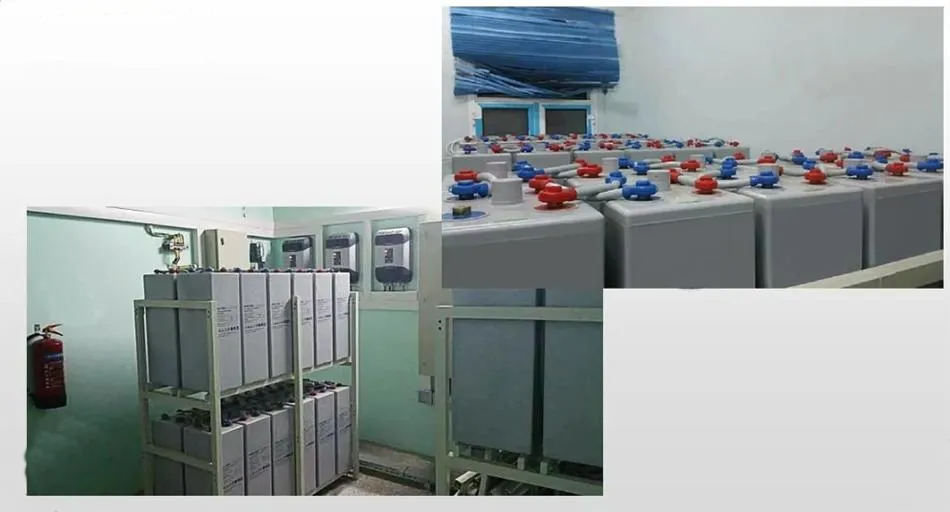

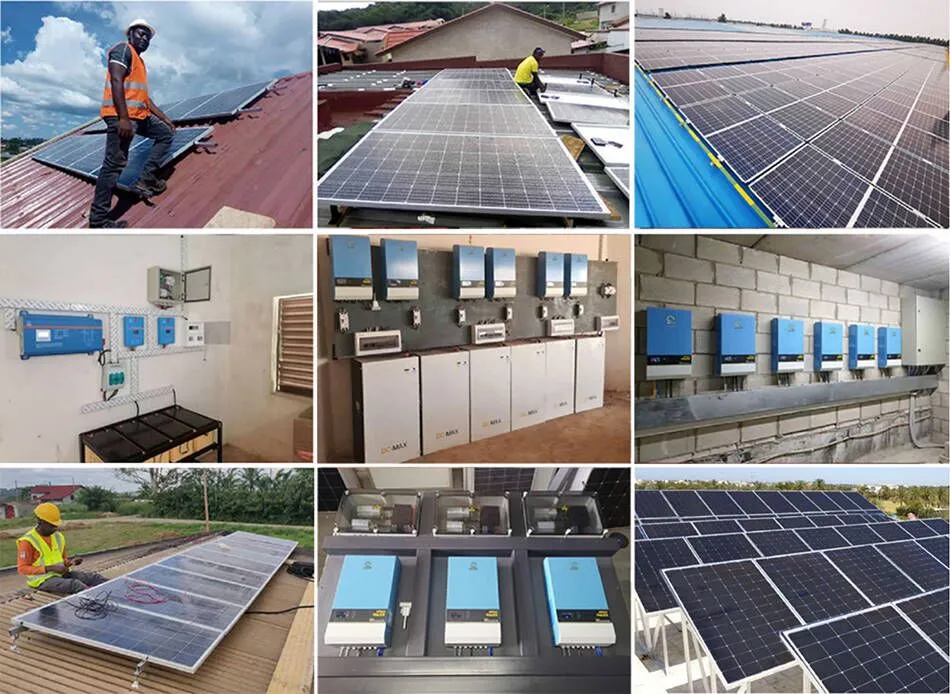

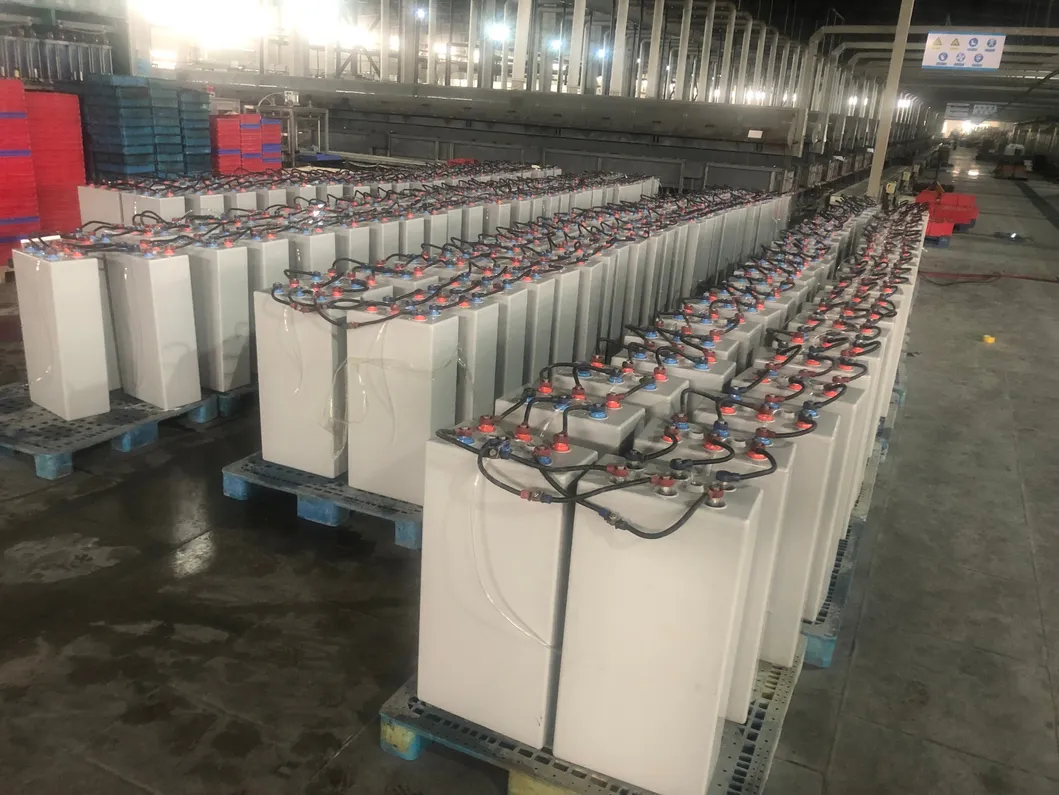

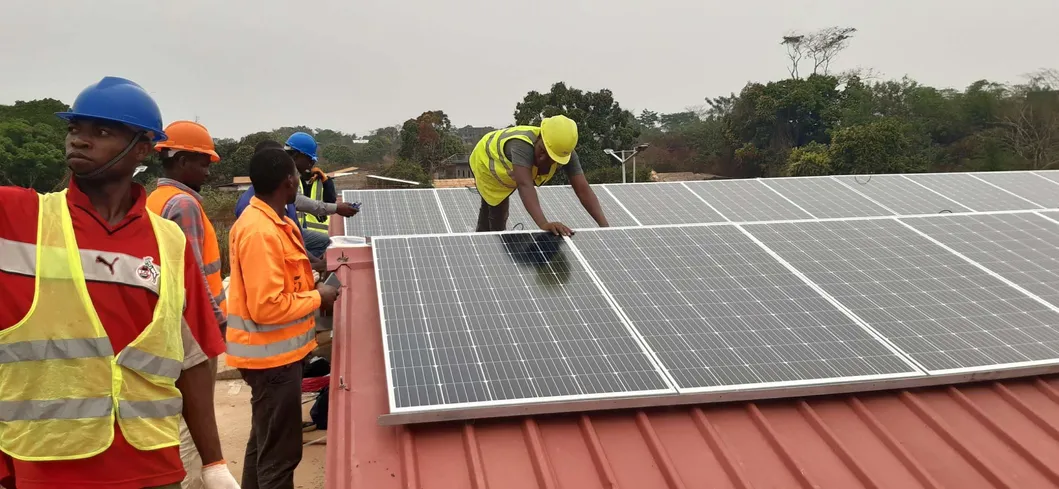

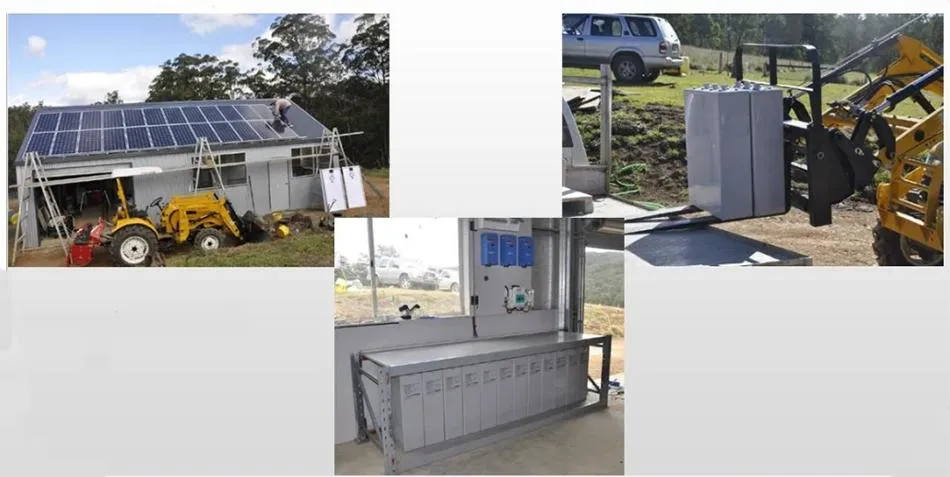

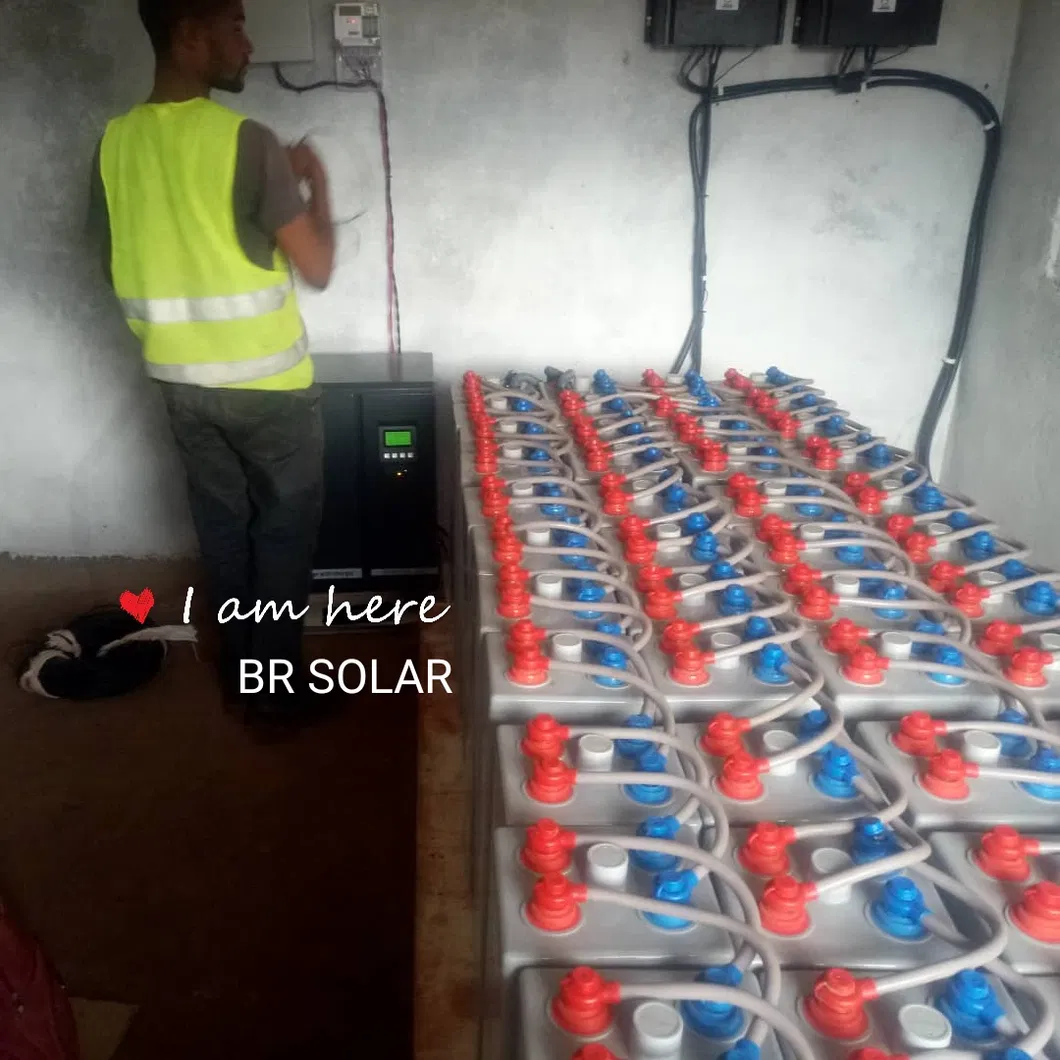

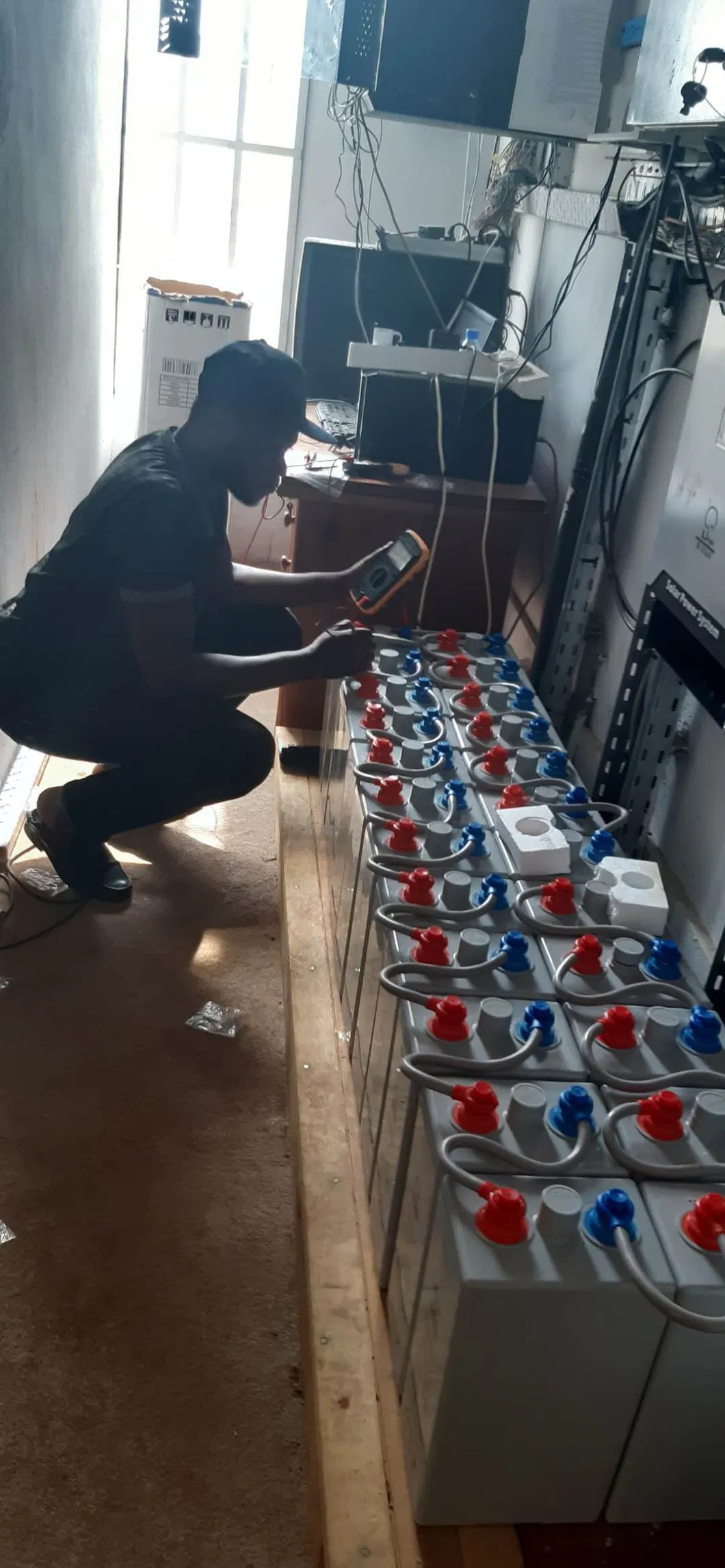

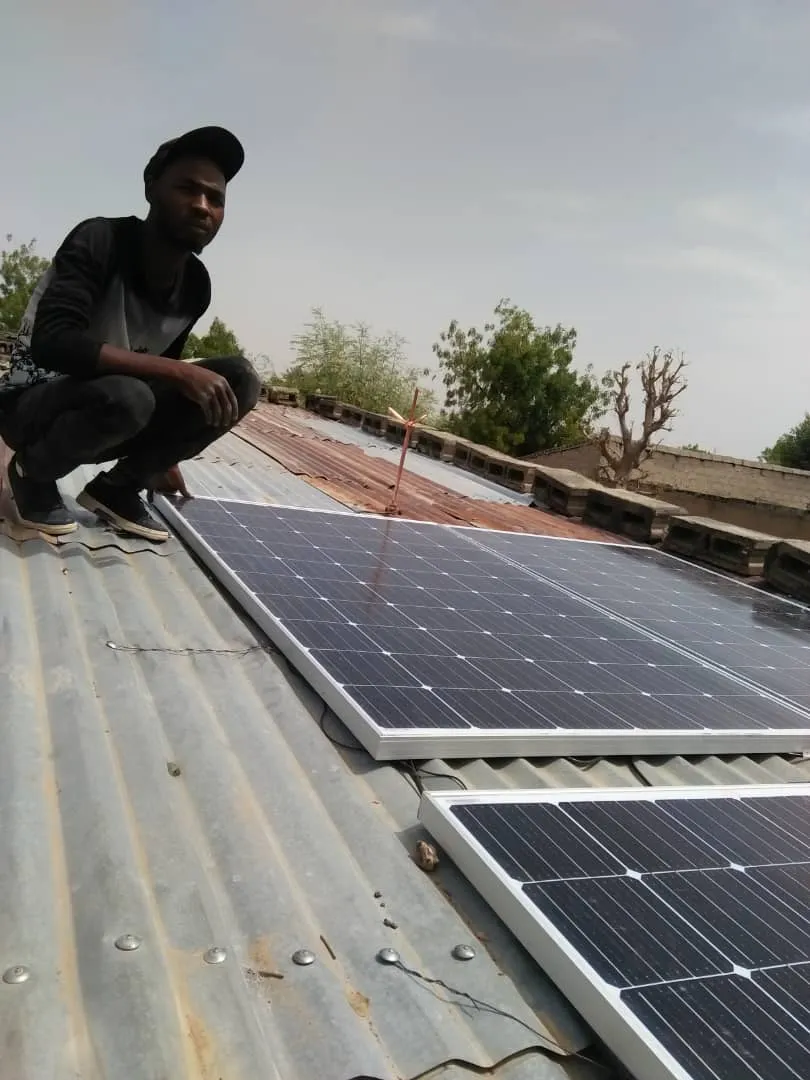

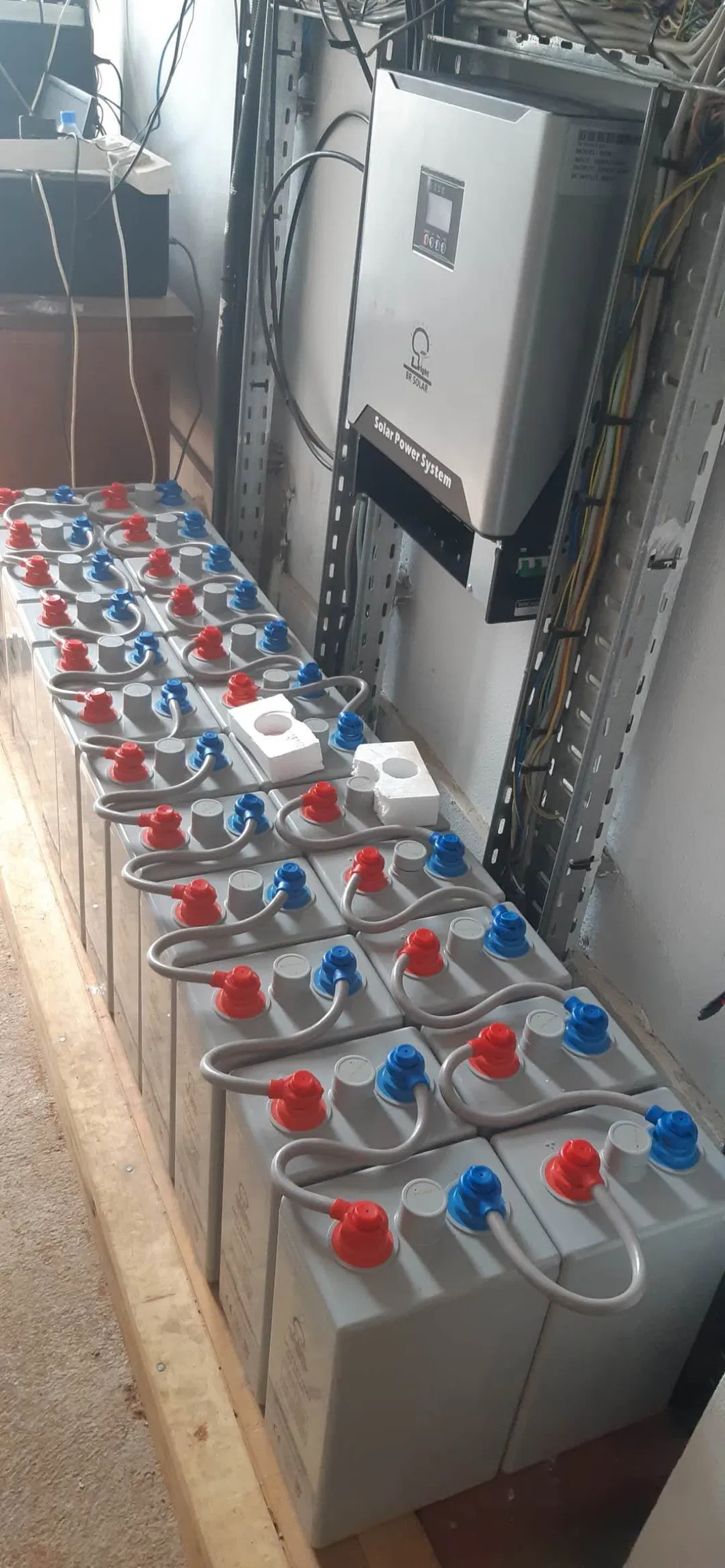

Packing & Site Pictures:

Welcome your inquiry for 2V 12V 30AH-3000AH Telecom Tubular Plate Deep Cycle Solar Pure Gelled Battery OPZV Power Battery.

Frequently Asked Questions

Q1: What is the main benefit of an OPzV tubular gel battery? A1: It offers a long life span (over 2000 cycles), is maintenance-free, and has a very low self-discharge rate compared to standard lead-acid batteries.

Q2: How long can these batteries be stored? A2: They can be stored for up to 6 months at 25°C before requiring a freshening charge.

Q3: Are these batteries environmentally friendly? A3: Yes, they are designed as Green Power, using special alloys without harmful materials like antimony or cadmium, and the gel electrolyte prevents acid spills.

Q4: What is the operating temperature range? A4: The batteries adapt well to various environments, with an operating range from -30ºC to 55ºC.

Q5: Can the battery recover from deep discharge? A5: Yes, it has extremely good recovery ability. Even after discharging to near 0V, it can recover up to 90% capacity after proper recharging.
