Basic Information
Main Features
- Using oxygen recombination technology: maintenance-free
- PbCaSn alloy for plate grids: less gassing, less self-discharging
- High quality AGM separator: extend cycle life and prevent micro short circuit
- ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
- High purity raw material: ensure low self discharge rate
- Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity
Specifications
| Battery Model No. | FBR12V55Ah |
| Nominal Voltage | 12V |
| Capacity (25ºC) | 20HR: 120Ah / 10HR: 105Ah / 1HR: 74Ah |
| Dimensions | 281x267x207mm (Total Height: 210mm) |
| Approx. Weight | 37.5kg±4% |
| Terminal Type | F13 |
| Internal Resistance | Approx 4mΩ (Fully charged, 25ºC) |

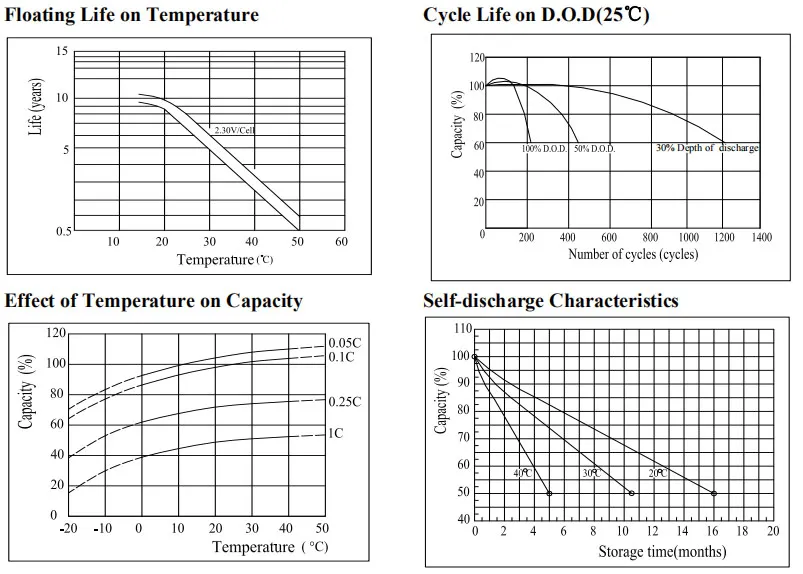

| Designed Floating Life | 10 Years (20ºC) |
Applications
- Solar and wind energy storage system
- EPS and UPS battery backup
- Signal system, emergency lighting system, security system
- Telecommunication Equipment
- Power source for portable devices or tools

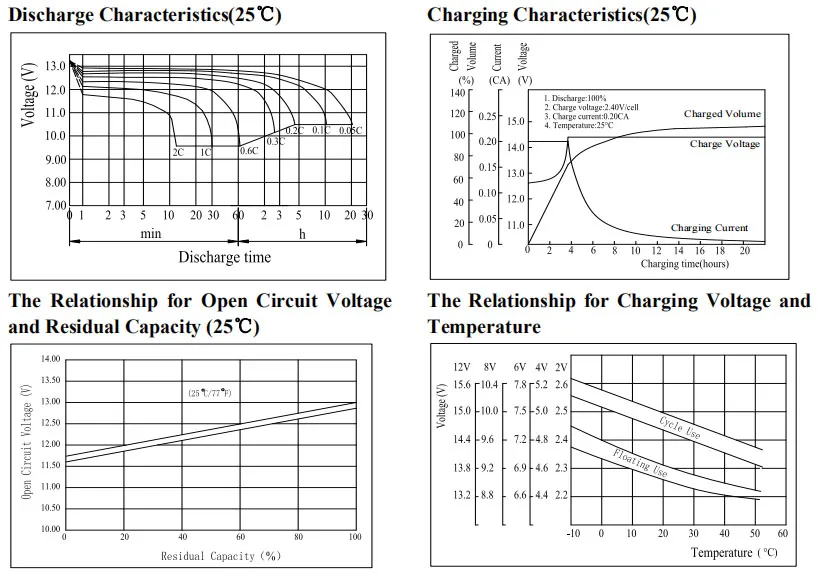

Discharge Characteristics
| F.V/Time | 10min | 30min | 60min | 3h | 10h | 20h |
| 9.60V (Amp) | 262 | 121 | 74.2 | 31.2 | 12.2 | 6.47 |
| 9.60V (Watt) | 2825 | 1353 | 845 | 367 | 146 | 77.7 |

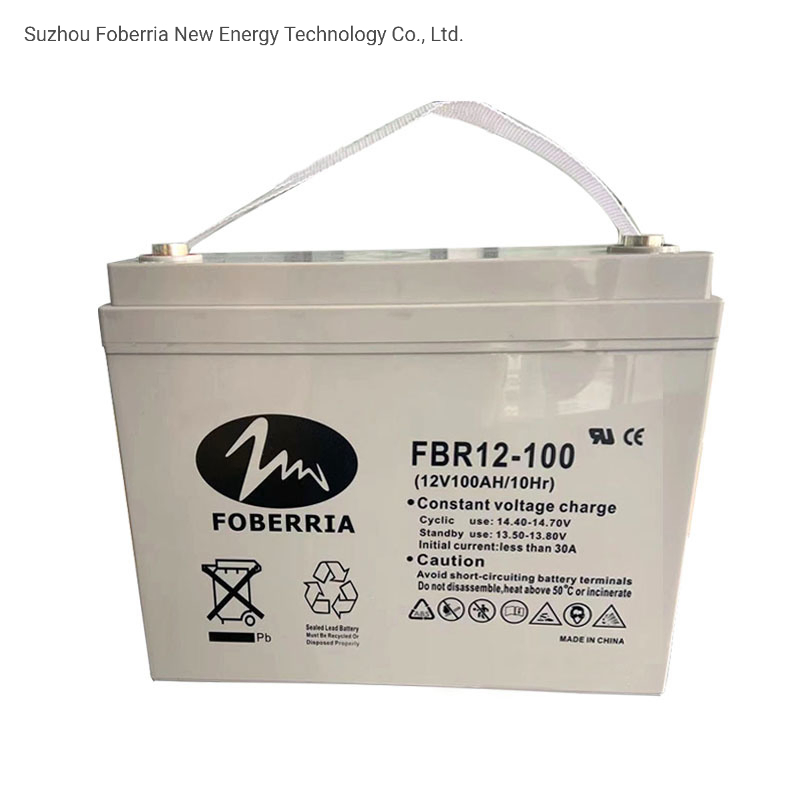

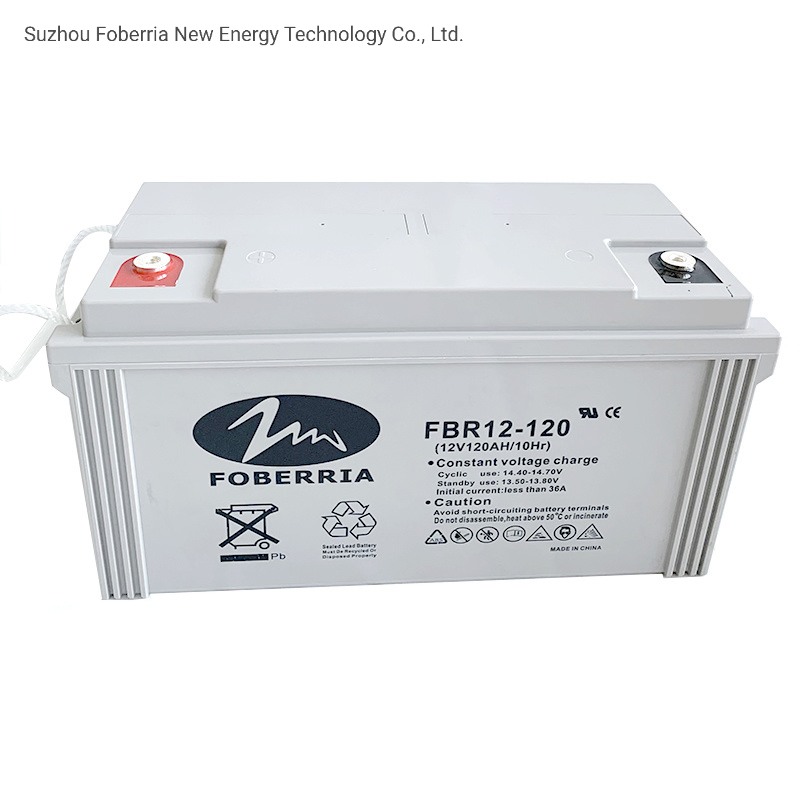

Product Gallery
Frequently Asked Questions
How to choose the right battery?
Please share your specific power demands and application with us, and our technical team will recommend the most suitable battery model for your requirements.
Do you have any MOQ limit?
Yes, we have MOQ requirements for mass production which vary by model (typically 50-500pcs). Sample orders are available for quality checking.
Is it possible to customize the battery with a logo?
Yes, we provide OEM services. Please inform us formally before production and confirm the design based on our initial samples.

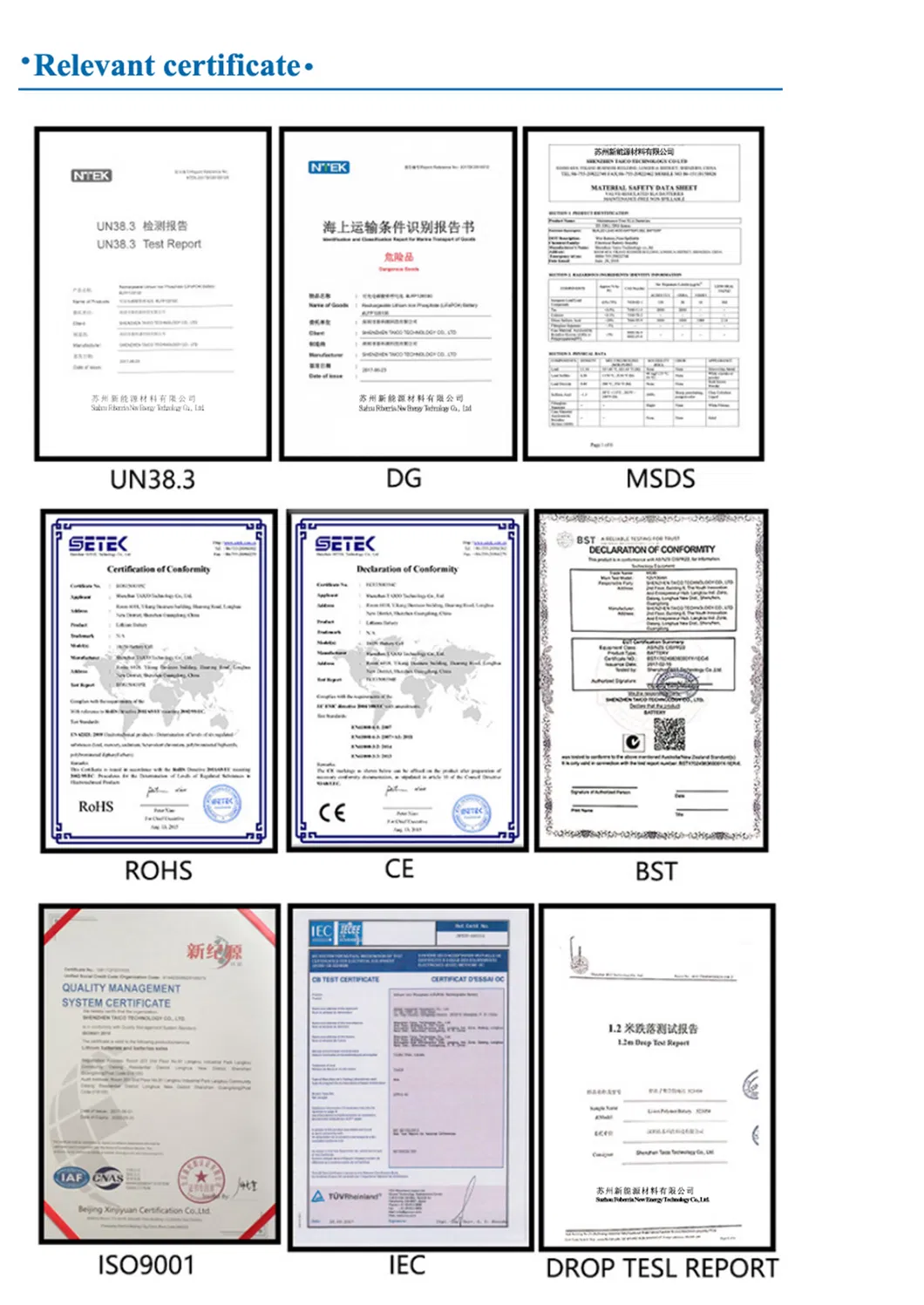

What certifications are held for these batteries?
Our manufacturing processes comply with ISO 9001, ISO 14001, and OHSAS 18001. Products are CE and UL certified with IEC 61427 test reports available.
What is the delivery time for orders?
Stock items typically ship within 7 days. For larger orders, it takes approximately 20 days for a half container and 30 days for a full 20ft container.
Why does capacity vary at different hour rates?
Battery capacity is dynamic and depends on discharge current. A lower discharge current (like a 20-hr rate) allows the battery to deliver more total Amp-hours than a high discharge current (like a 2-hr rate).
