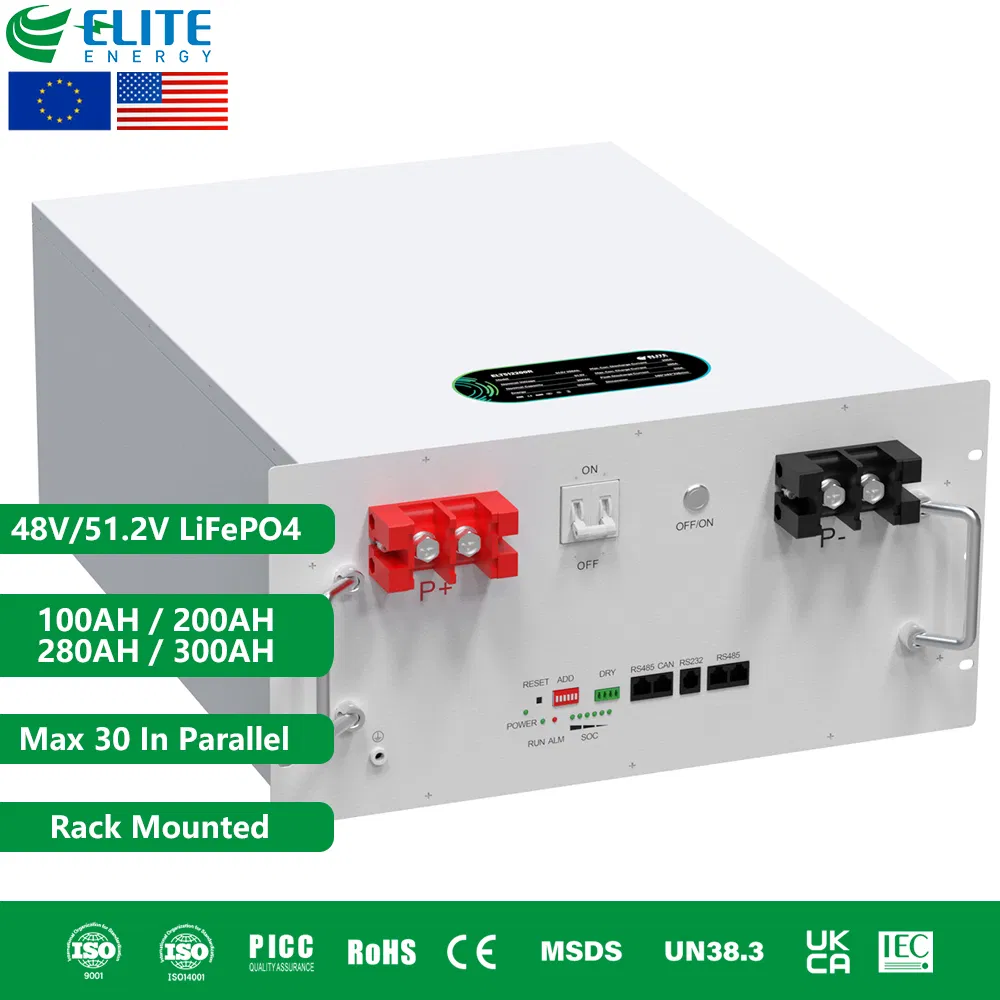

Rack Mounted Lithium Iron Phosphate Battery LiFePO4 Rechargeable 48V 100ah 200ah 280ah 300ah Battery for Home

1 / 5

Rack Mounted Lithium Iron Phosphate Battery LiFePO4 Rechargeable 48V 100ah 200ah 280ah 300ah Battery for Home

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

Basic Specifications

Model NO.

ELT512100R

Nominal Voltage

51.2V

Rated Capacity

100Ah, 200Ah, 280Ah, 300Ah

Energy Range

5120Wh to 15360Wh

Cycle Life

≥6000 Cycles

Communication

CAN / RS232 / RS485

Parallel Support

Max. 30 Units

Warranty

5 Years

Certificates

CE, RoHS, UN38.3, MSDS

Product Description

Professional Lithium Ion LiFePO4 Battery Pack manufacturer with 15+ years of experience in Energy Storage Systems (ESS). Specializing in high-performance Rack Mounted Lithium Batteries, including 48V/51.2V configurations for home solar systems and industrial backup power. Products are certified with ISO9001, ISO14001, and ISO45001, meeting international safety and performance standards.

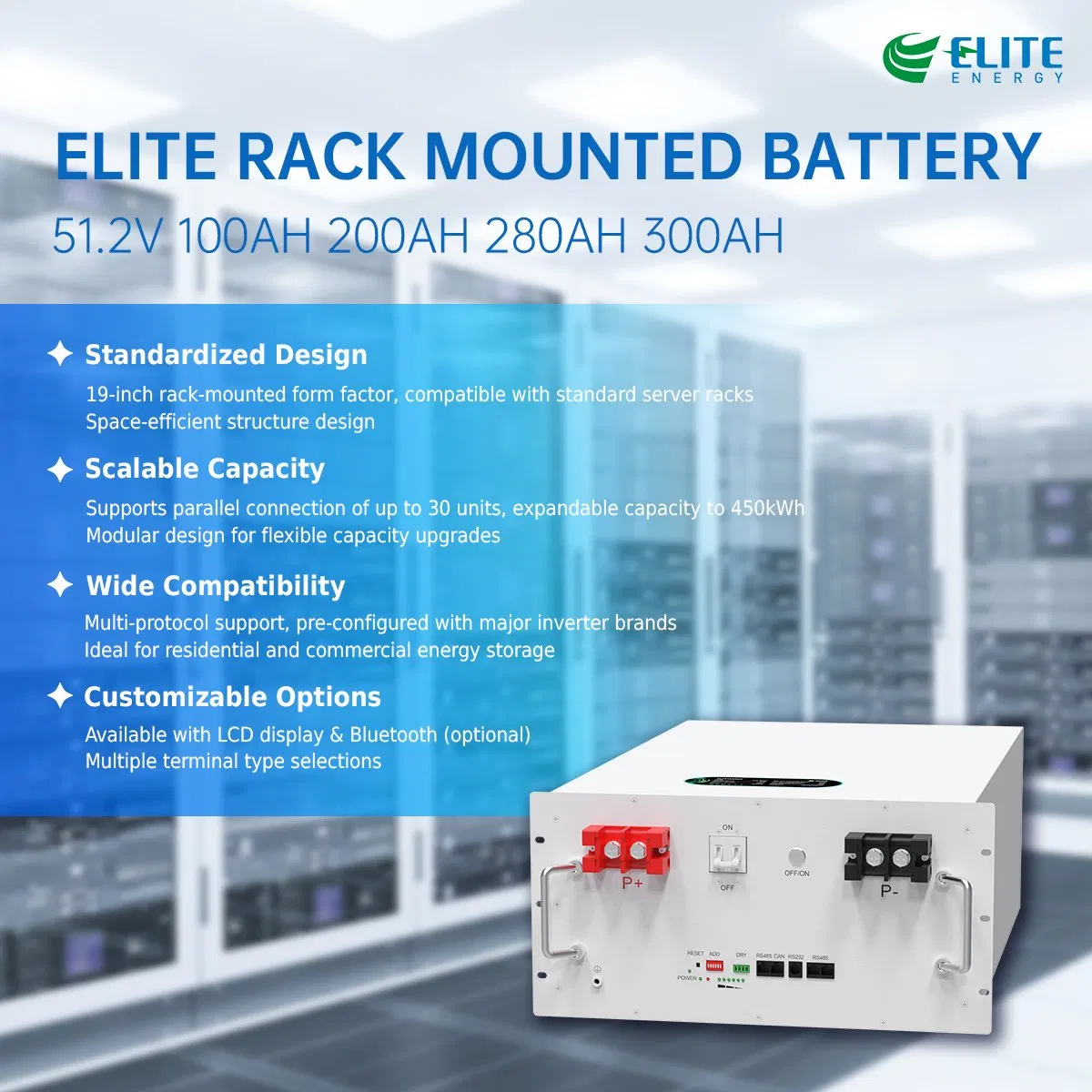

Standardized Design 19-inch rack-mounted form factor, compatible with standard server racks. Space-efficient and robust.

Scalable Capacity Supports parallel connection of up to 30 units, expanding total energy capacity to 450kWh.

Wide Compatibility Multi-protocol support, pre-configured with major inverter brands for seamless integration.

Customizable Options Available with LCD display, Bluetooth monitoring, and multiple terminal types.

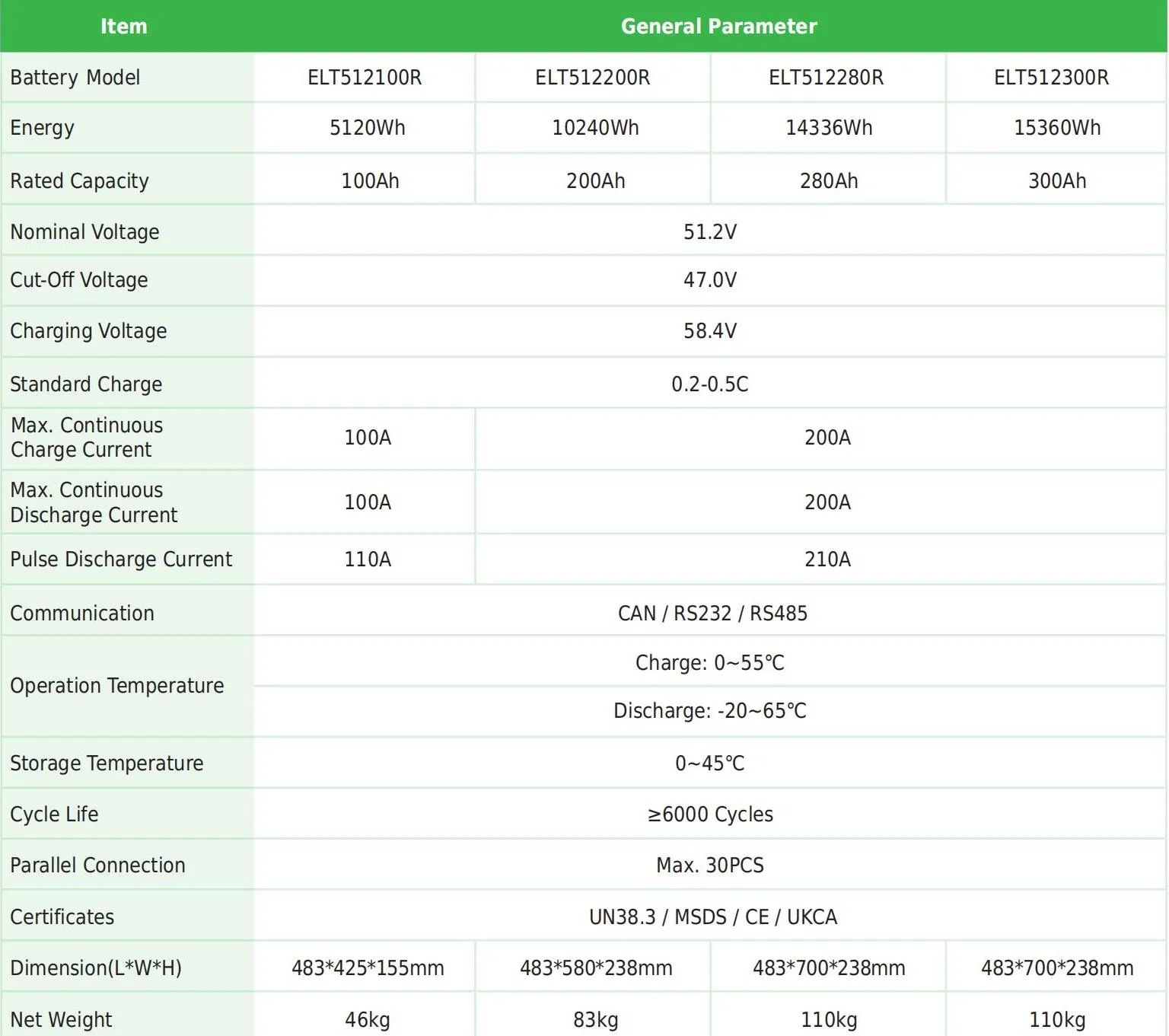

Technical Parameters

Battery Model	ELT512100R	ELT512200R	ELT512280R	ELT512300R
Energy	5120Wh	10240Wh	14336Wh	15360Wh
Rated Capacity	100Ah	200Ah	280Ah	300Ah
Nominal Voltage	51.2V	51.2V	51.2V	51.2V
Standard Charge	0.2-0.5C	0.2-0.5C	0.2-0.5C	0.2-0.5C
Max. Cont. Charge	100A	200A	200A	200A
Max. Cont. Discharge	100A	200A	200A	200A
Dimensions (WHD)	483425155mm	483580238mm	483700238mm	483700238mm
Net Weight	46kg	83kg	110kg	110kg

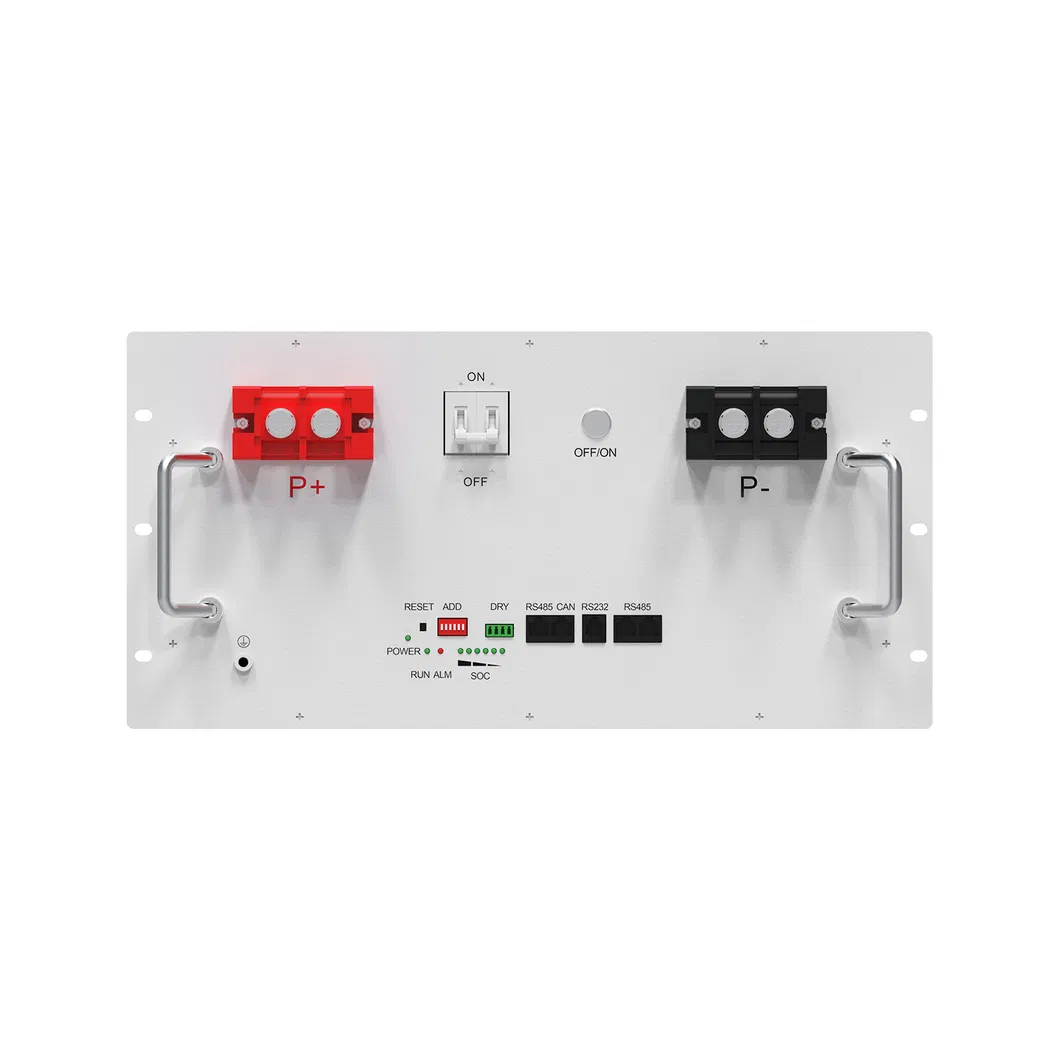

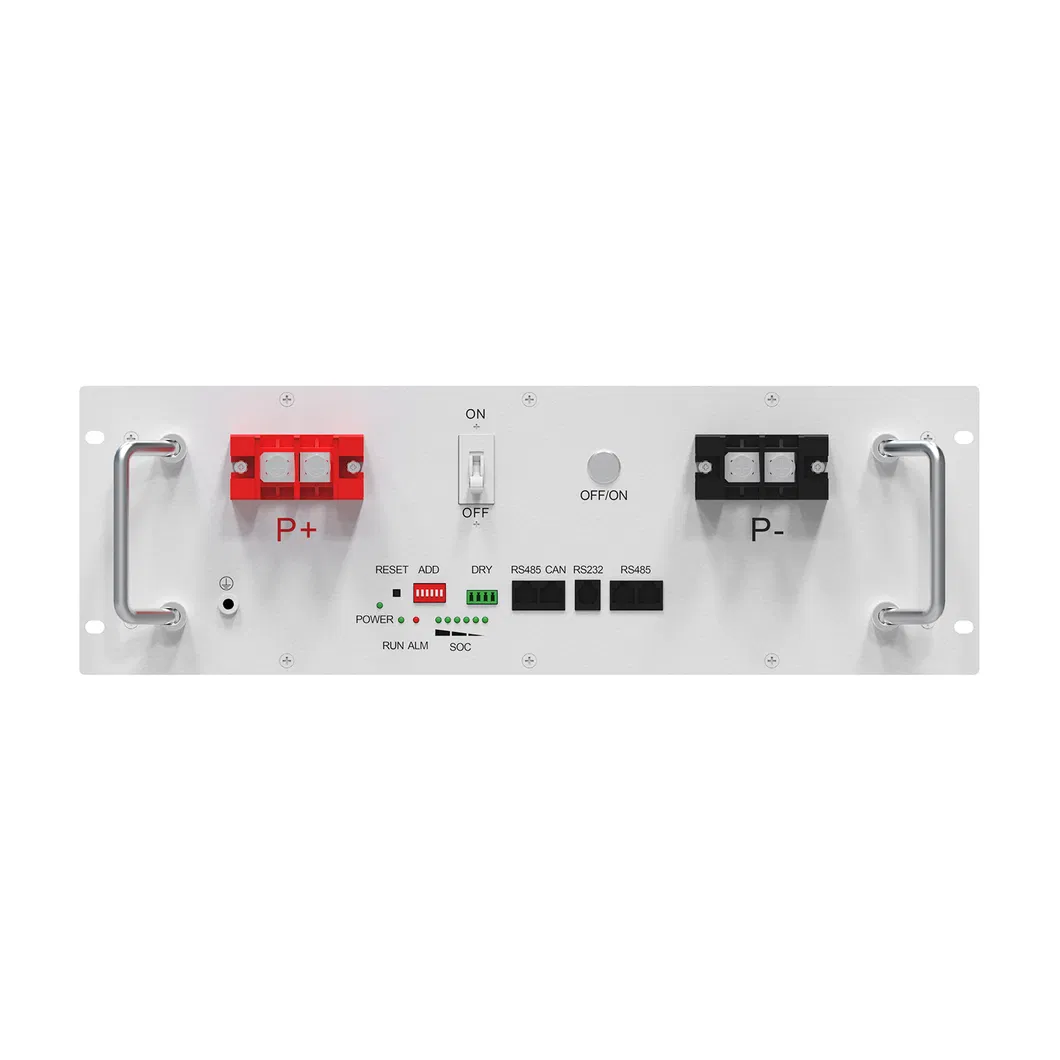

Visual Overview

Frequently Asked Questions

Do you have a Minimum Order Quantity (MOQ)?

No, there is no strict MOQ limit. Sample orders (1 piece) or small quantities are available to meet your initial testing requirements.

How long is the typical lead time?

Standard products take 3-5 days for samples and 3-4 weeks for bulk orders. Customized products generally require 3-4 weeks for both sample and production phases.

How long do LiFePO4 batteries last compared to Lead-Acid?

Our LiFePO4 batteries provide 4000+ to 6000+ cycles, which is 8 to 10 times longer than standard lead-acid batteries (which typically last 300-500 cycles).

What is a BMS and why is it important?

A Battery Management System (BMS) protects the lithium cells from unsafe conditions like over-voltage, low-voltage, extreme temperatures, and short circuits. It ensures cell balancing and extends the battery life.

Does the battery have low-temperature protection?

Yes. The BMS includes a low-temperature cut-off function (typically at 0°C for charging and -20°C for discharging) to protect the chemical structure from permanent damage.

Are these lithium batteries safe?

Absolutely. LiFePO4 is chemically stable and resistant to combustion or explosion even under extreme conditions like high heat, impact, or short circuits. Our batteries are CE certified and feature automotive-grade cells.
