Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
1 / 5
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs
Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs

Lithium Iron Phosphate Battery 12.8V 100ah LiFePO4 Battery Pack with Built-in BMS for Rvs

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, Electric Bicycle, Boat
Send Inquiry

Product Description

Product Overview

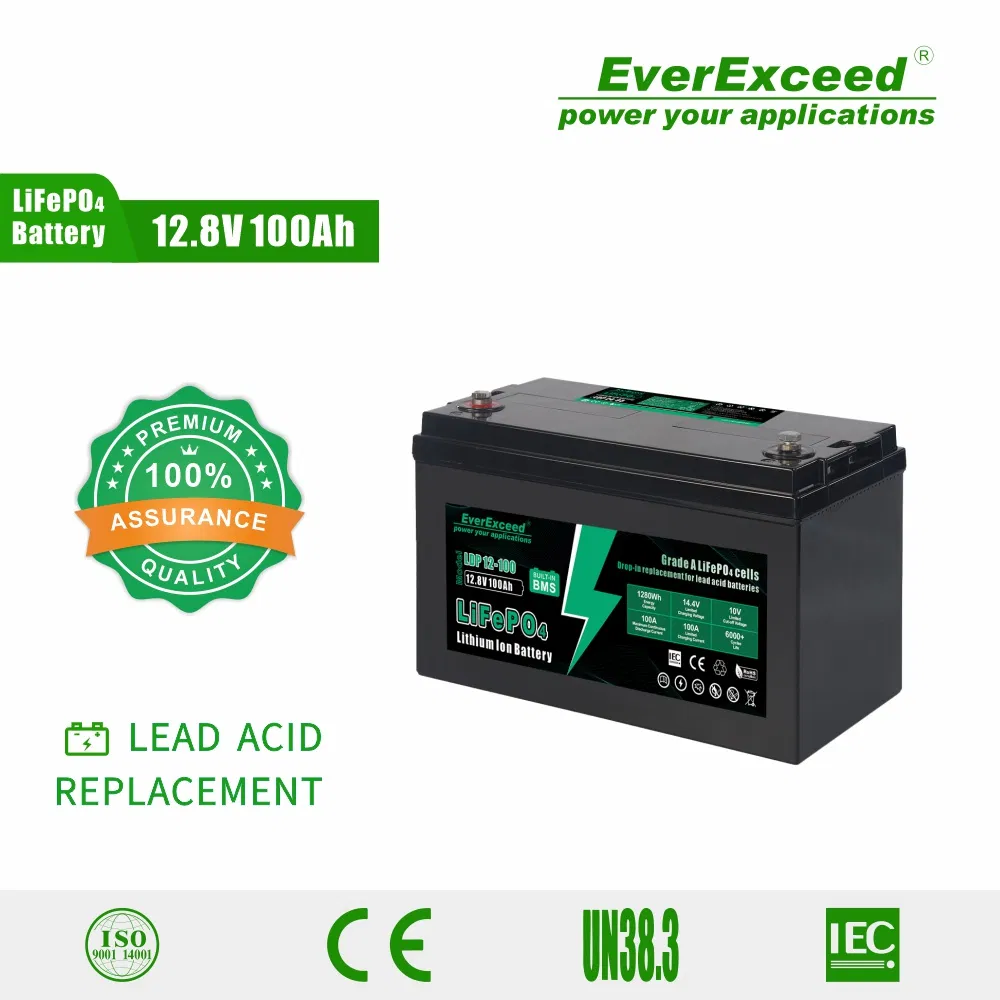

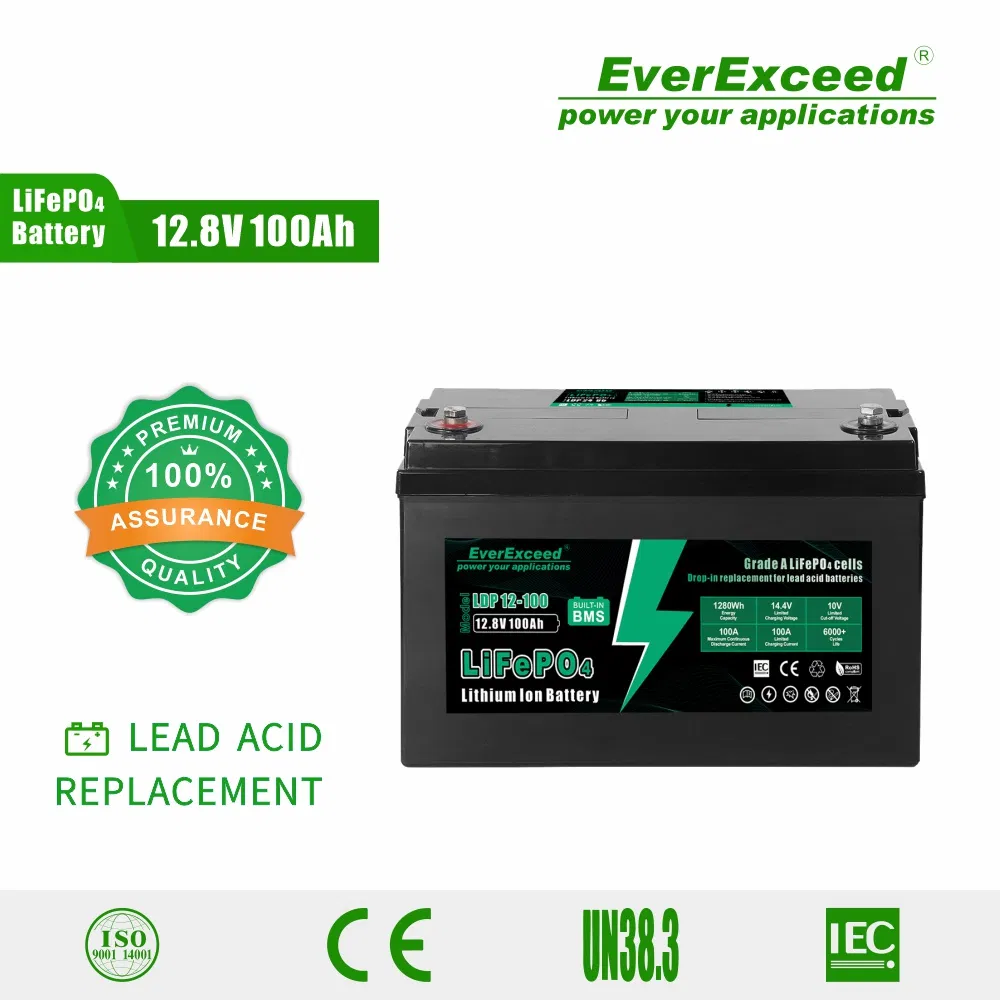

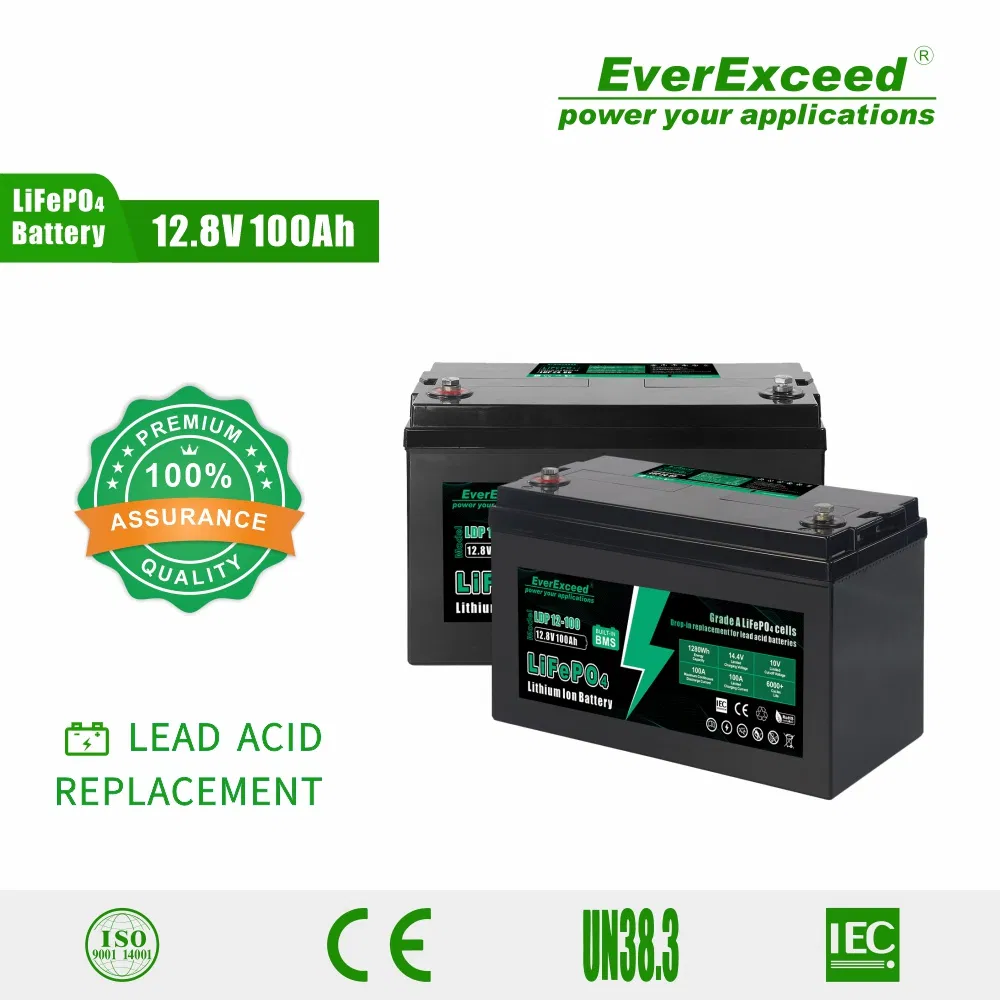

Lithium Iron Phosphate Battery 12.8V 100Ah LiFePO4 Battery Pack with Built-in BMS. Engineered to be lightweight and durable, providing enduring power for electronics and RV adventures.
Model NO.:LDP 12-100
Nominal Voltage:12.8V
Battery Type:LiFePO4
Cycle Life:Over 6000 Cycles
Weight:13kg
Certificates:ISO / CE/ Un38.3/IEC
Product Description
LDP Series Lithium Iron Phosphate (LiFePO4) batteries are perfect for RV applications, offering maintenance-free operation for a hassle-free experience. Inherently safe and lightweight, the batteries ensure consistent and reliable performance.
12.8V 100Ah LiFePO4 Battery Pack
Key Features
1 Smart BMS: Integrated Battery Management System improves safety, extends battery life, and provides reliable power management.
2 Fast Charging: Supports up to 1C continuous charging, allowing a full charge within 1-3 hours.
3 100% Depth of Discharge: Utilize 100% of the rated capacity regardless of the discharge rate.
4 Bluetooth Monitoring: Optional app support to check battery data and set parameters intelligently.

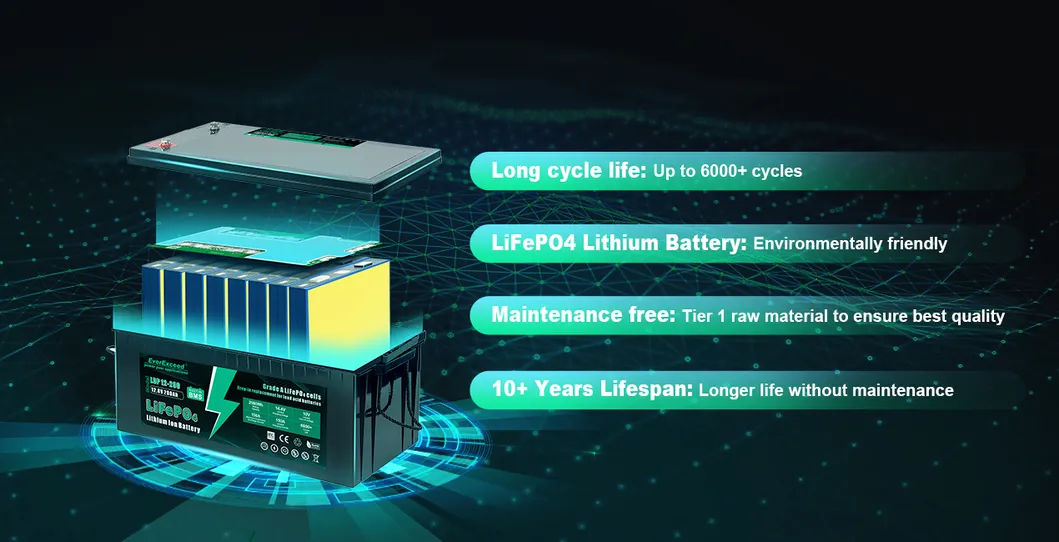

Battery Features
BMS Safety
App Monitoring

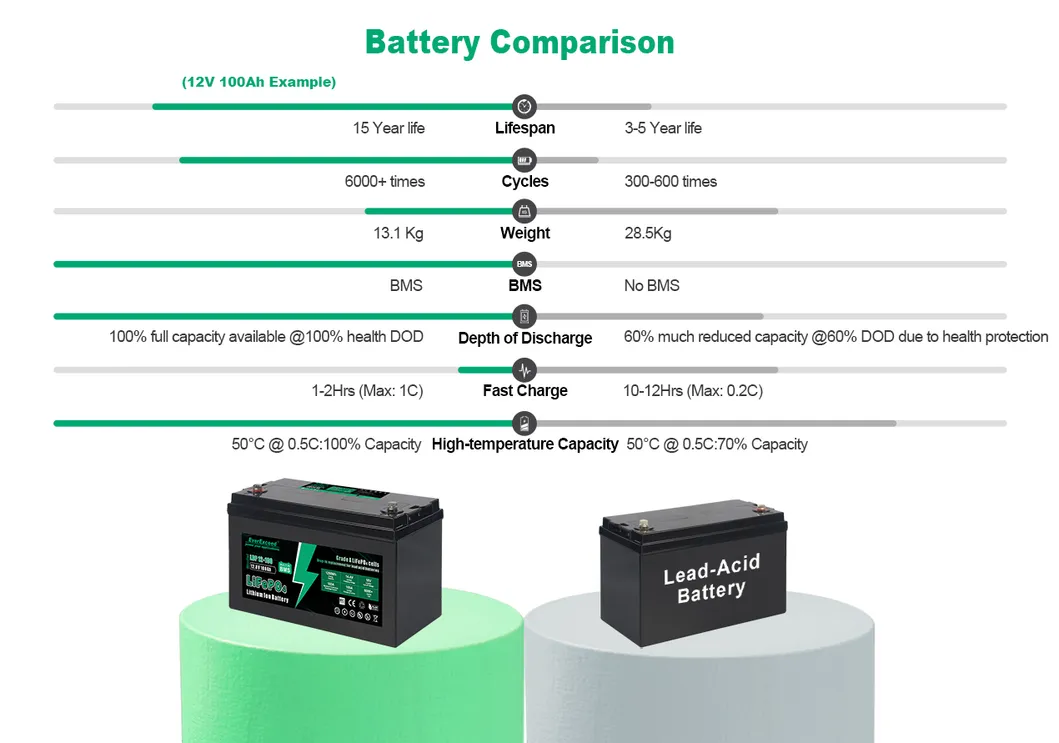

Internal Structure
Technical Parameters
Basic Parameter
Nominal Voltage12.8V
Nominal Capacity100Ah
Energy1280Wh
Cycle Life6000+ Cycles
Discharge Specifications
Max Continuous Discharge Current100A
Peak Discharge Current200A (5S)
Temperature Specifications
Charge Temperature0°C ~ 50°C
Discharge Temperature-20°C ~ 60°C
Mechanical Specifications
Dimensions (L x W x H)328 x 172 x 220mm
Enclosure ProtectionIP55 (IP68 Optional)

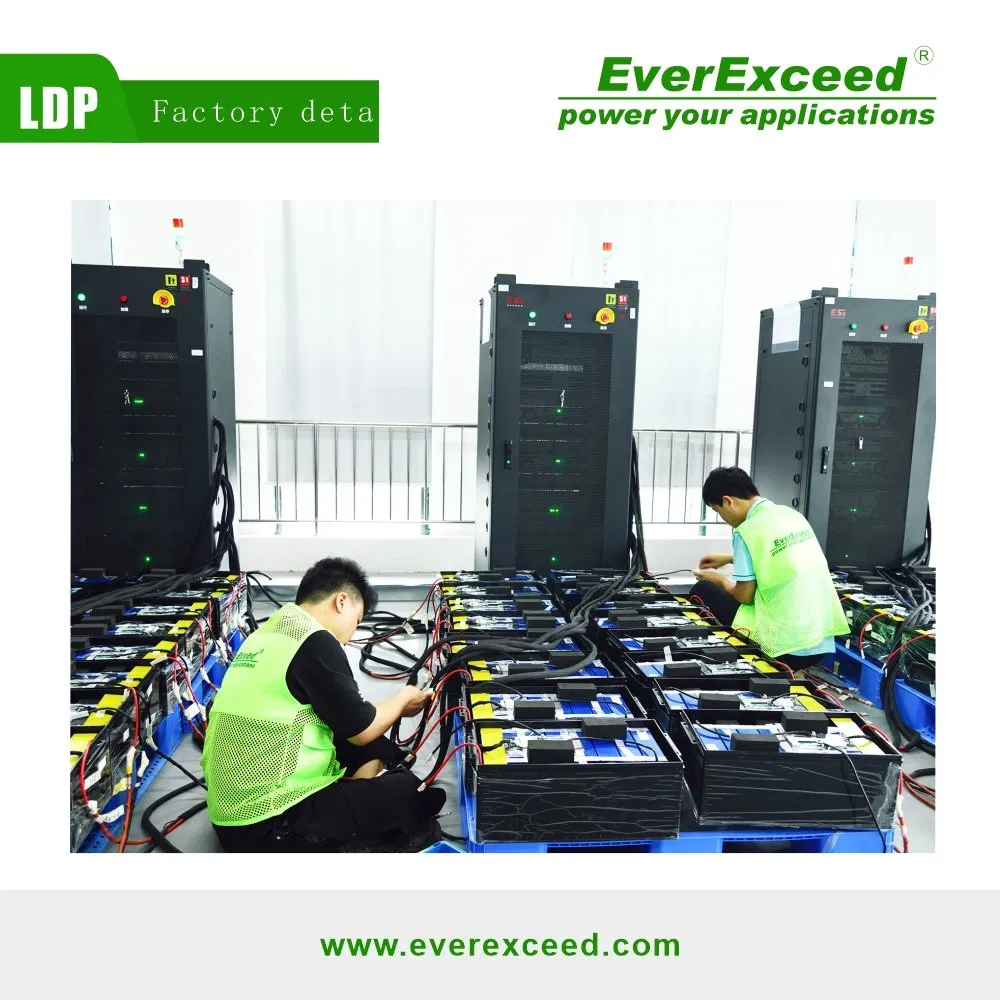

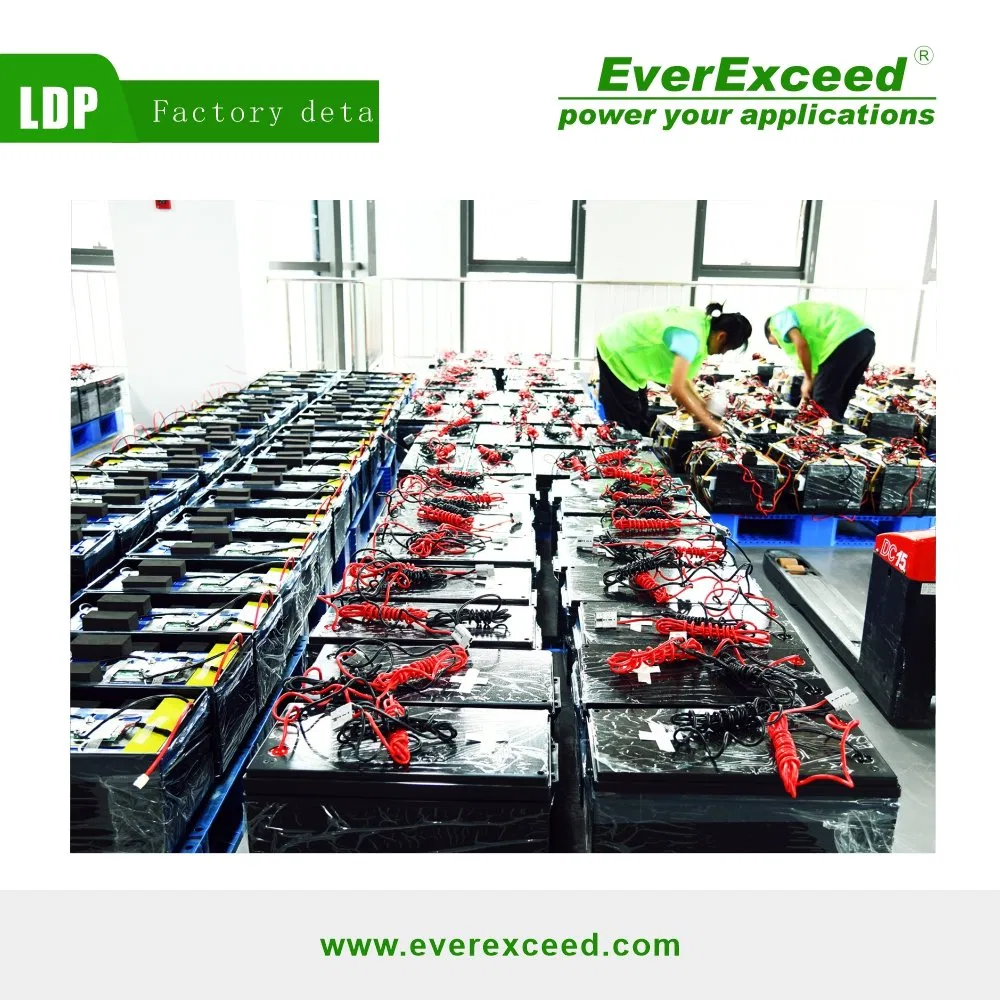

Quality & Reliability
Our power solutions are built using advanced production equipment and high-quality raw materials to ensure maximum reliability and performance.

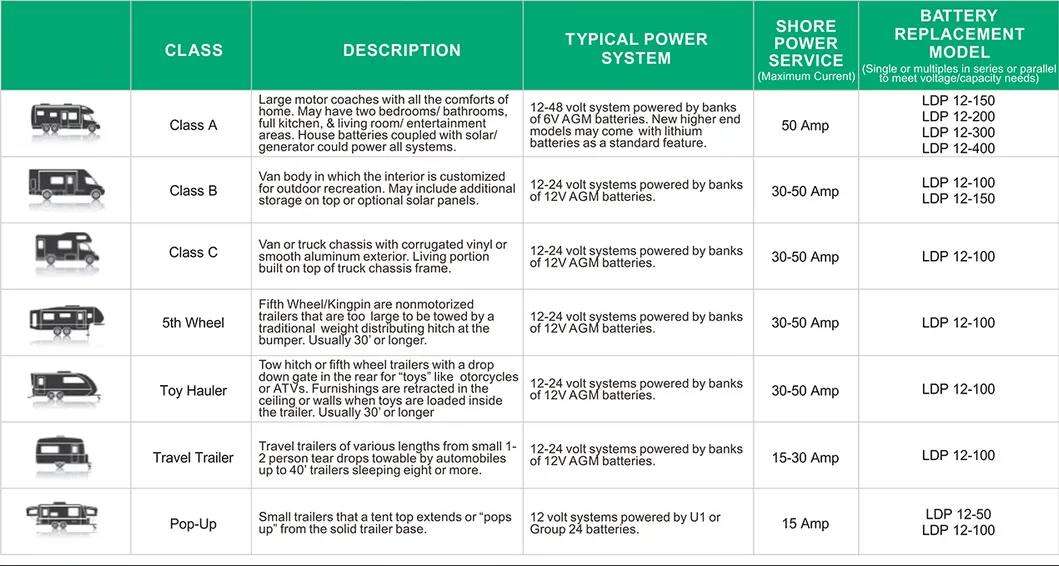

Selection Guide

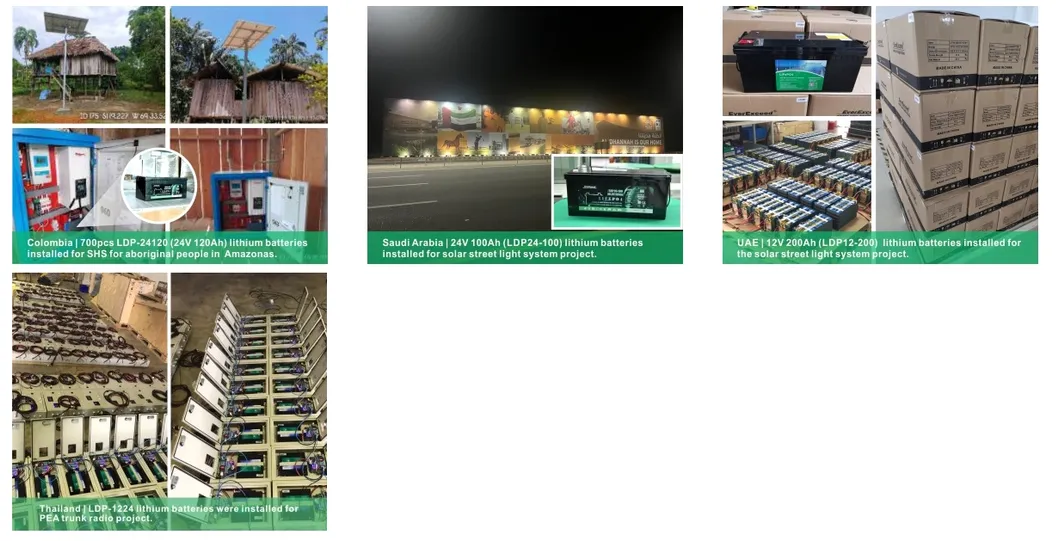

Cases
Frequently Asked Questions
What is the battery cell type used?
We use high-safety lithium iron phosphate (LiFePO4) square cells for large-capacity batteries (above 50Ah) to ensure consistency and reliability.
Does the battery include a BMS?
Yes, the battery has a built-in BMS with protection against overcharge, over-discharge, over-current, short circuits, and extreme temperatures.
What is the expected cycle life?
The battery is designed for a 15-year life span and can achieve over 6,000 cycles.
Can these batteries be connected in series or parallel?
Yes, you can connect up to 4 units in series (up to 51.2V) and up to 4 units in parallel.
How long does it take to fully charge?
With a 0.5C charging current, the battery can be fully charged in approximately 2 hours.
What is the waterproof rating?
The standard rating is IP55, which is suitable for most RV and outdoor applications. IP68 customization is available.
