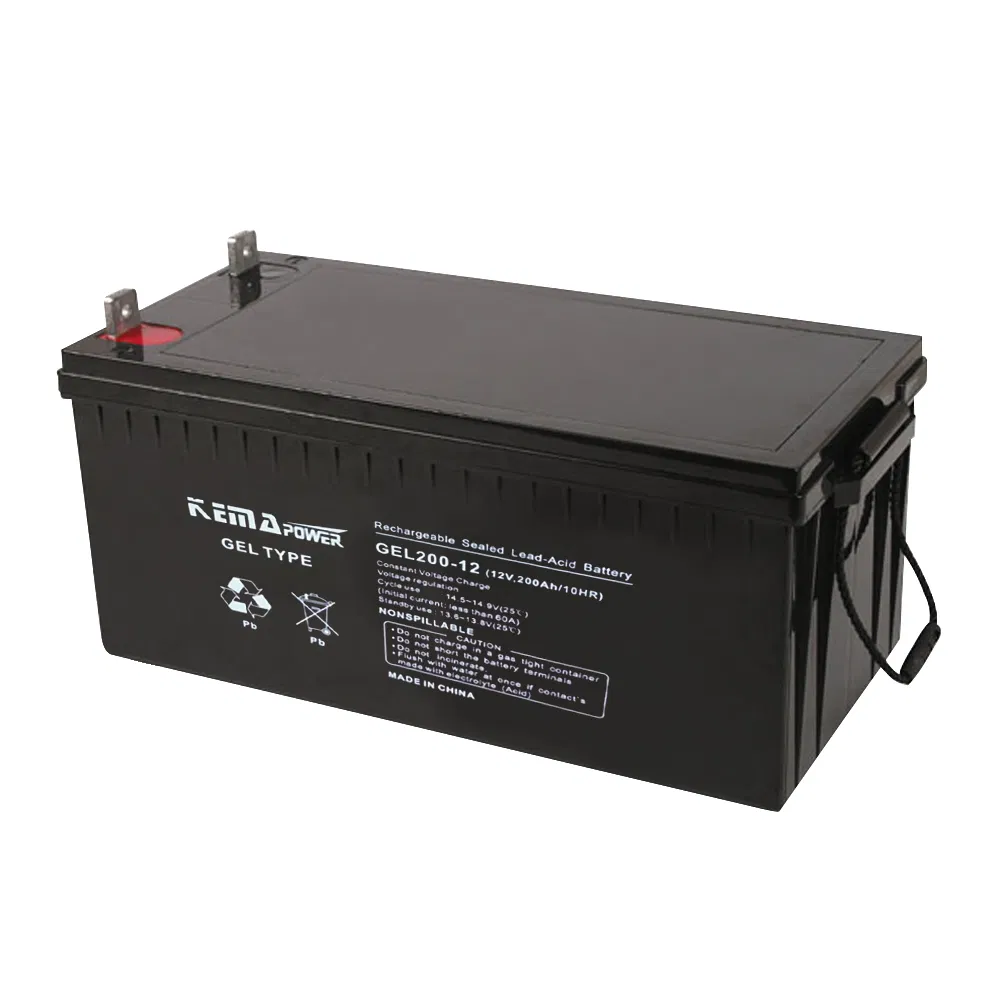

Lead Acid Solar Batteries 12 Volt 12V 24ah 26ah 38ah 40ah 55ah 65ah 100ah 120ah 150ah 200ah 230ah Opzs Flooded Tubular Gel Battery

1 / 5

Lead Acid Solar Batteries 12 Volt 12V 24ah 26ah 38ah 40ah 55ah 65ah 100ah 120ah 150ah 200ah 230ah Opzs Flooded Tubular Gel Battery

Customization:	Available
Type:	Lead-Acid Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Send Inquiry

Product Description

Basic Information

Model NO.:GEL

Nominal Voltage:12V

Discharge Rate:Low Discharge Rate

Shape:Square Battery

Electrolyte:Acid

Installation:Packaged

Rechargeable:Chargeable

Rate Capaticy:10 Rate Hour

Temp. Adaptability:-25 - 50℃

Cycle Life:Anti-Erosion Pb-Ca Alloy

HS Code:8507200000

Capacity:24-230AH

Packaging & Delivery

Package Size:260.00cm * 175.00cm * 200.00cm

Gross Weight:15.000kg

Key Features

Premium Materials: Primary material is gas silicon dioxide from import.
Fully Sealed Design: Double seal design to prevent leakage and protect against oxygen and dust.
Maintenance Free: High sealed reaction efficiency eliminates the need for water compensation.
Enhanced Safety: Reliable gas pressure venting and anti-explosion devices equipped.
Long Cycle Life: Anti-erosion pb-ca multi-alloy and ABS material ensure extended service life.
Extreme Temperature Range: Safely operational from -25ºC to 50ºC.
Convenient Transport: Nonhazardous material classification allows for easy sea and railway transport.
Economical Performance: High durability and lowest maintenance cost.

Technical Specifications

Model	Voltage	Ah	Max Amp	L (mm)	W (mm)	H (mm)	KG	Terminal
GEL24-12	12	24	6Amp	166	125	175	8.00	M6
GEL38-12	12	38	9.5Amp	197	165	170	12.00	M6
GEL65-12	12	65	16.25Amp	350	166	178	21.00	M6

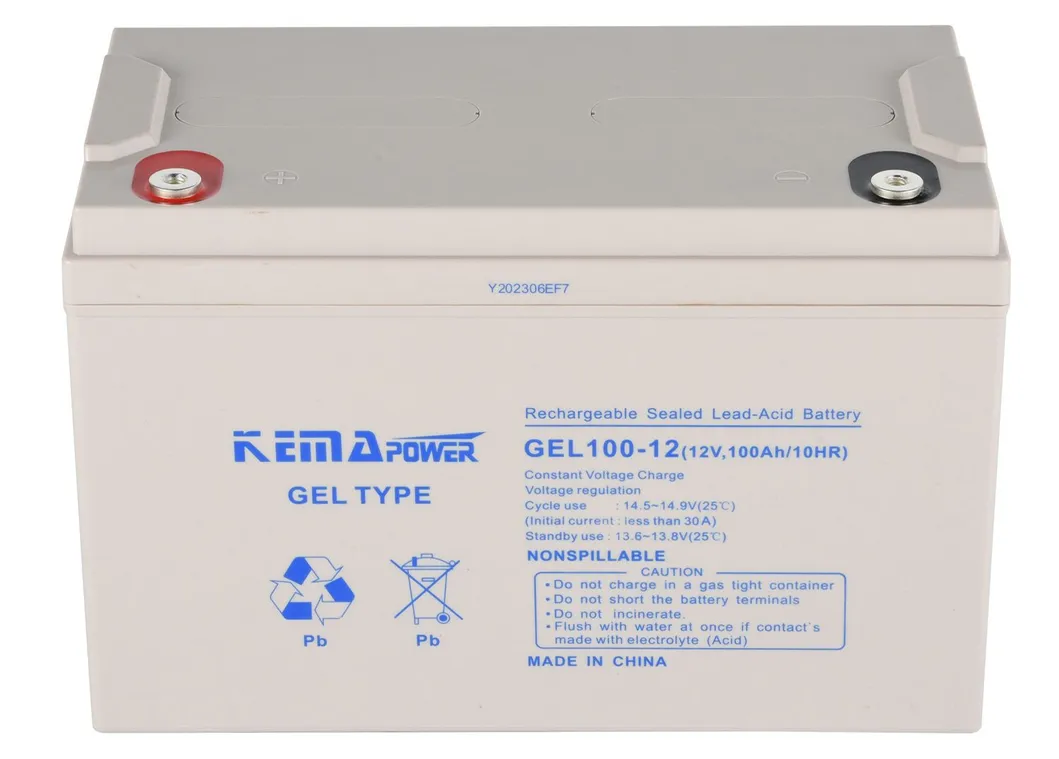

GEL100-12D	12	100	25Amp	330	173	220	28.50	M8
GEL150-12	12	150	35Amp	485	171	241	43.00	M8
GEL200-12	12	200	50Amp	520	240	224	63.00	M8
GEL230-12	12	230	55Amp	520	269	203	67.00	M8

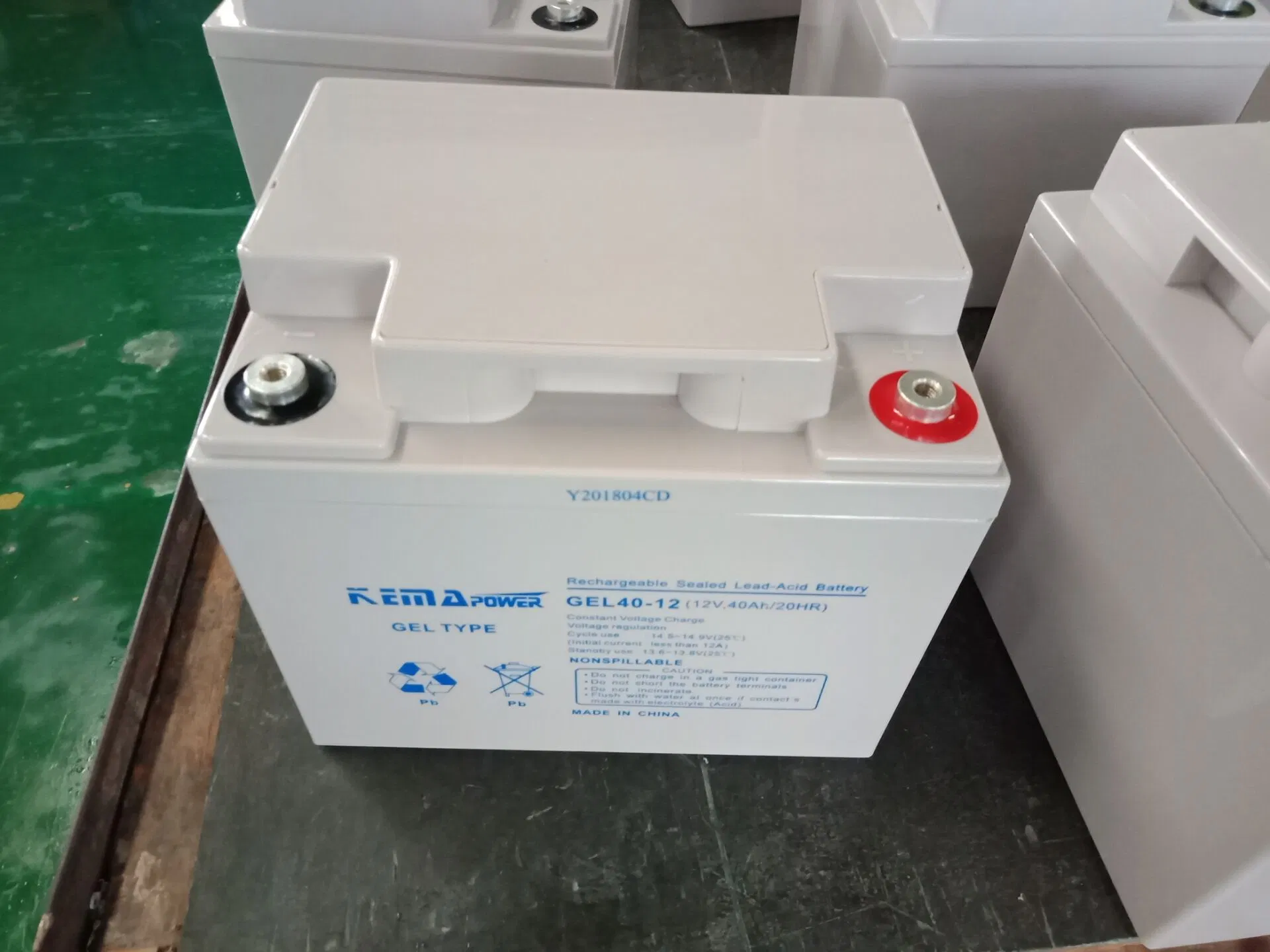

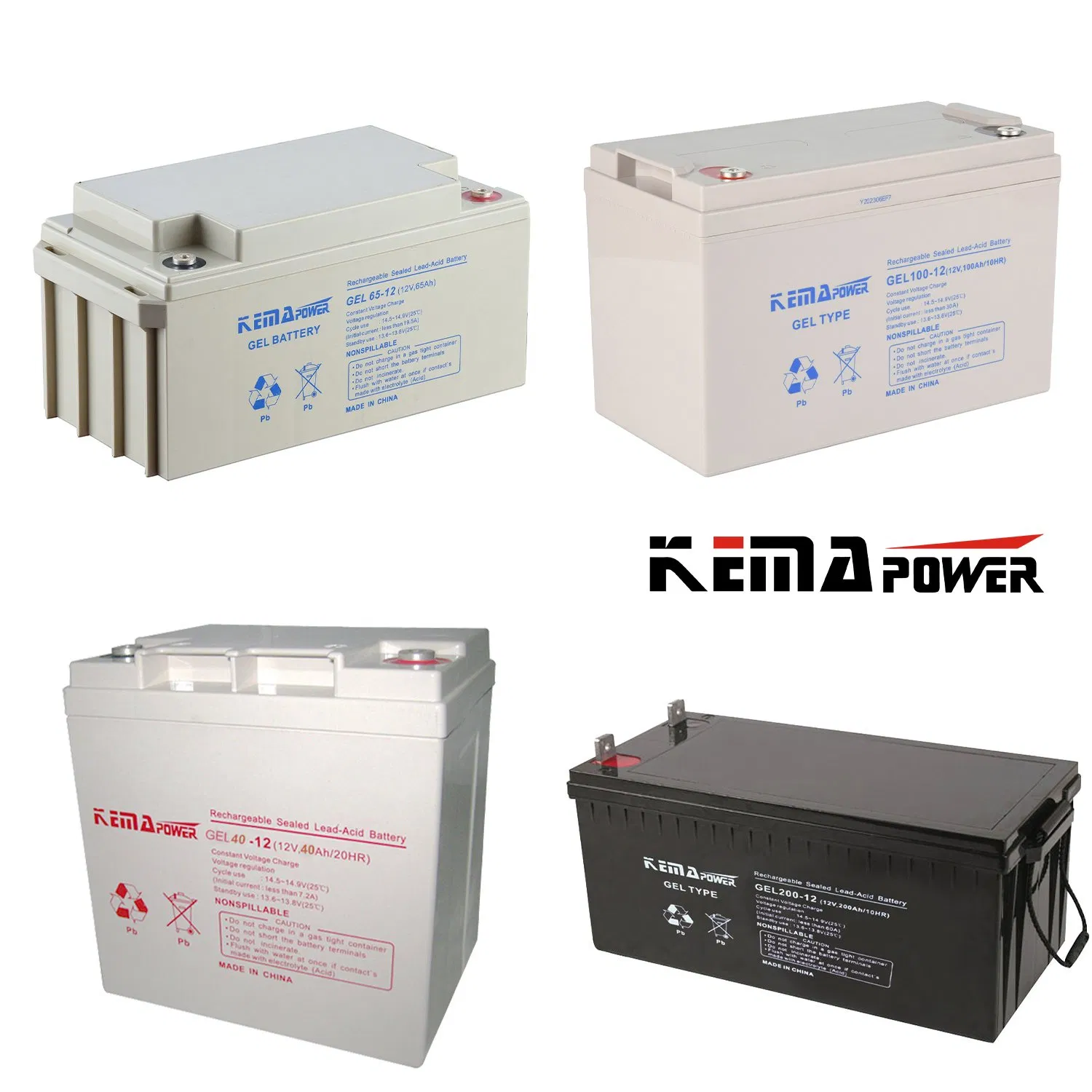

Product Display

Frequently Asked Questions

Q1: Can these GEL batteries be used in extreme temperatures? A: Yes, they are designed with high temperature adaptability and can operate safely within a range of -25ºC to 50ºC.

Q2: Do these batteries require regular maintenance? A: No, these are maintenance-free batteries featuring high sealed reaction efficiency, eliminating the need for water compensation during use.

Q3: What is the expected service life? A: These batteries offer a 10-year design service life, thanks to the anti-erosion Pb-Ca multi-alloy and durable ABS shell.

Q4: Are they safe for international shipping? A: Yes, they are classified as nonhazardous material and can be safely transported by sea and railway as they contain no free electrolysis.

Q5: What safety features are included? A: Each battery is equipped with a double seal design to prevent leakage, a reliable gas pressure venting system, and an anti-explosion device.

Q6: What does the "L" and "o" terminal notation mean? A: The "L" terminal denotes a quadrate (square) terminal, while the postfix "o" terminal denotes a cylindrical terminal.
