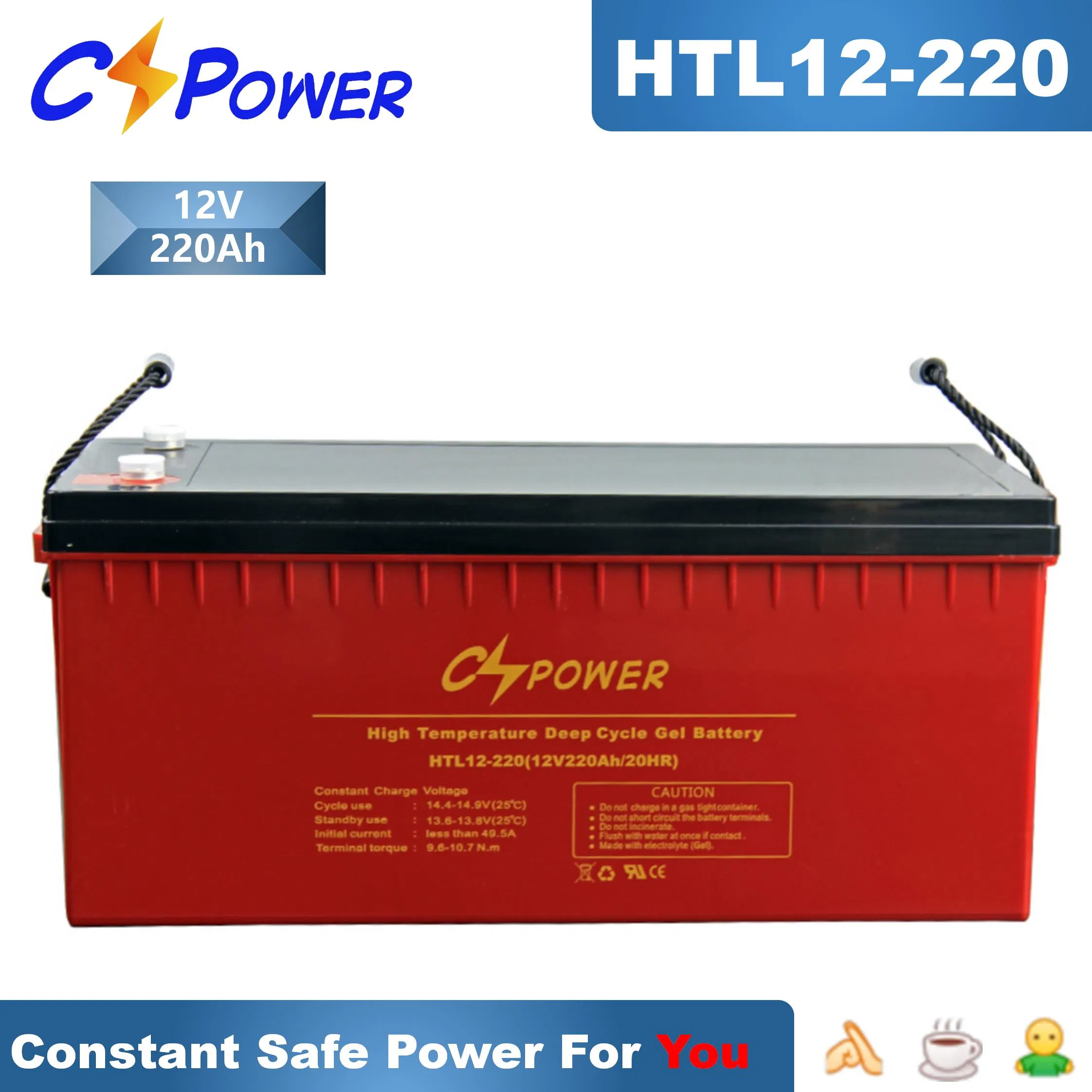

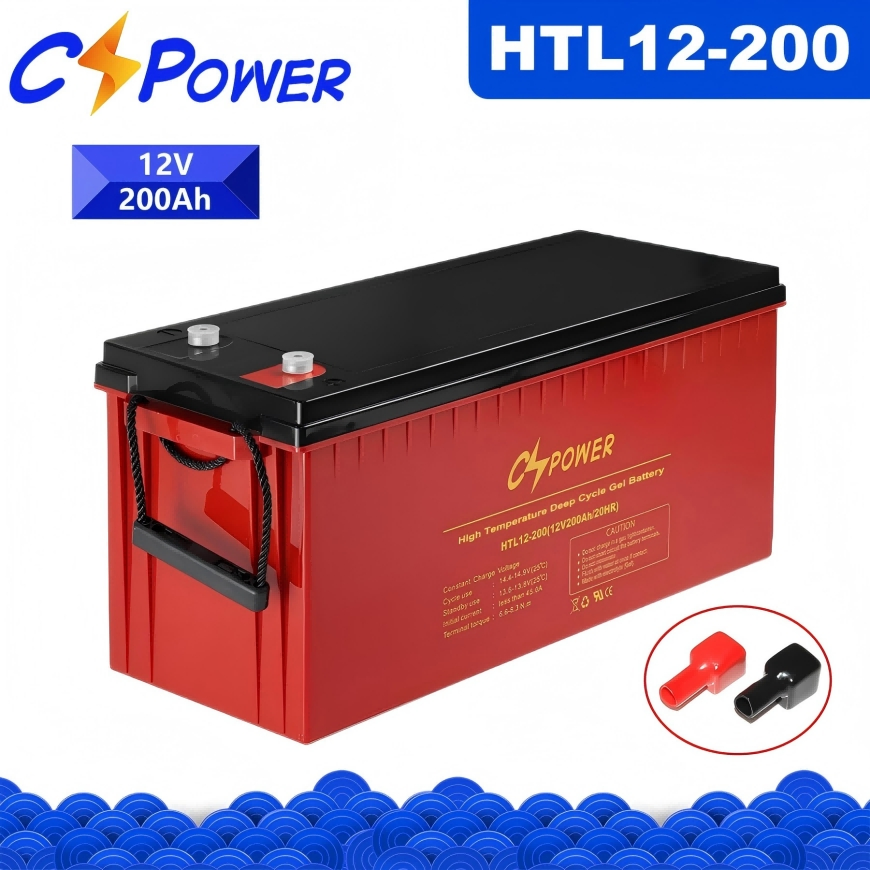

The series of 12V GEL deep cycle batteries are recognized as reliable and high-quality systems in the industry. Designed with advanced patented GEL technology, they offer a service life of 15-20 years, with 1500-1600 cycles at 50% DOD.
| Specification | Value | |
|---|---|---|
| Nominal Voltage | 12V (6 cells) | 12V |
| Design Floating Life | @ 25ºC | 20 Years |
| Nominal Capacity | 20 hour rate | 200Ah |
| Internal Resistance | Full Charged @ 25ºC | ≤3mΩ |
| Self-Discharge | Per Month @ 25ºC | 3% |
| Dimension | L*W*H (mm) | 532*206*215 |

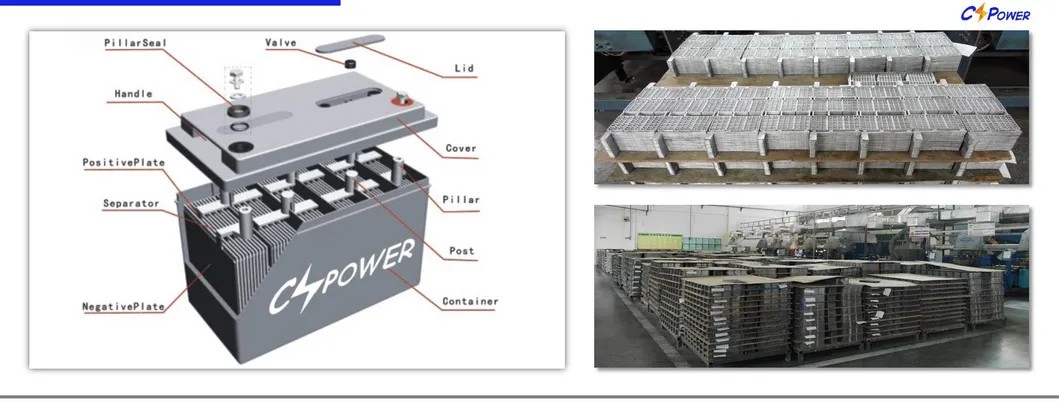

| Component | Positive Plate | Negative Plate | Separator | Electrolyte |
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | PVC / AGM separator | Silicon Gel |
Compliance with: IEC 60896-21/22, IEC 61427, ISO 9001/14001/18001, CE, UL, and Eurobat Guide.

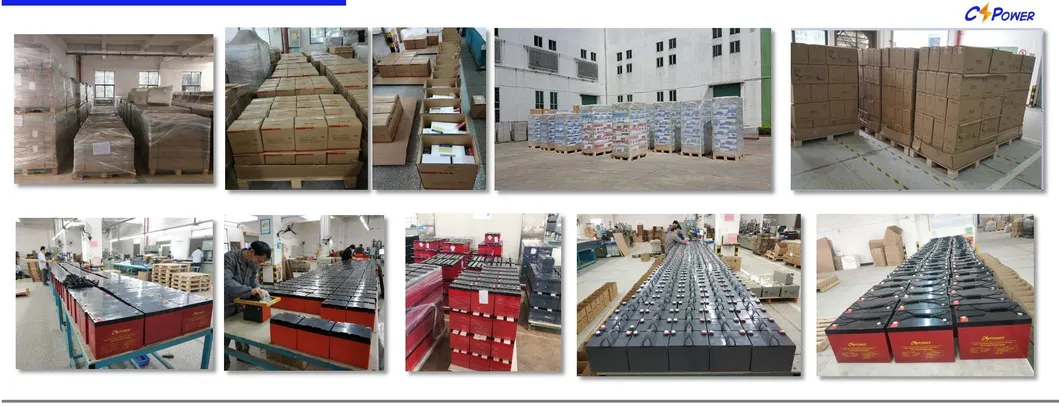

We are competent at ODM and OEM orders according to customer requests. Free gift included with standard packaging.
