📊 Overview & Basic Info
Max. Discharge Current
2000A(5s)
Specification
522*240*218mm

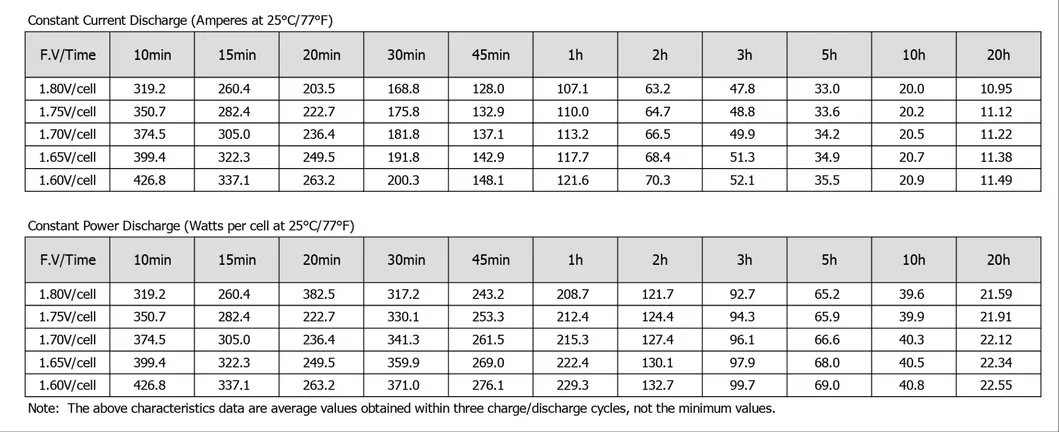

📝 Product Description

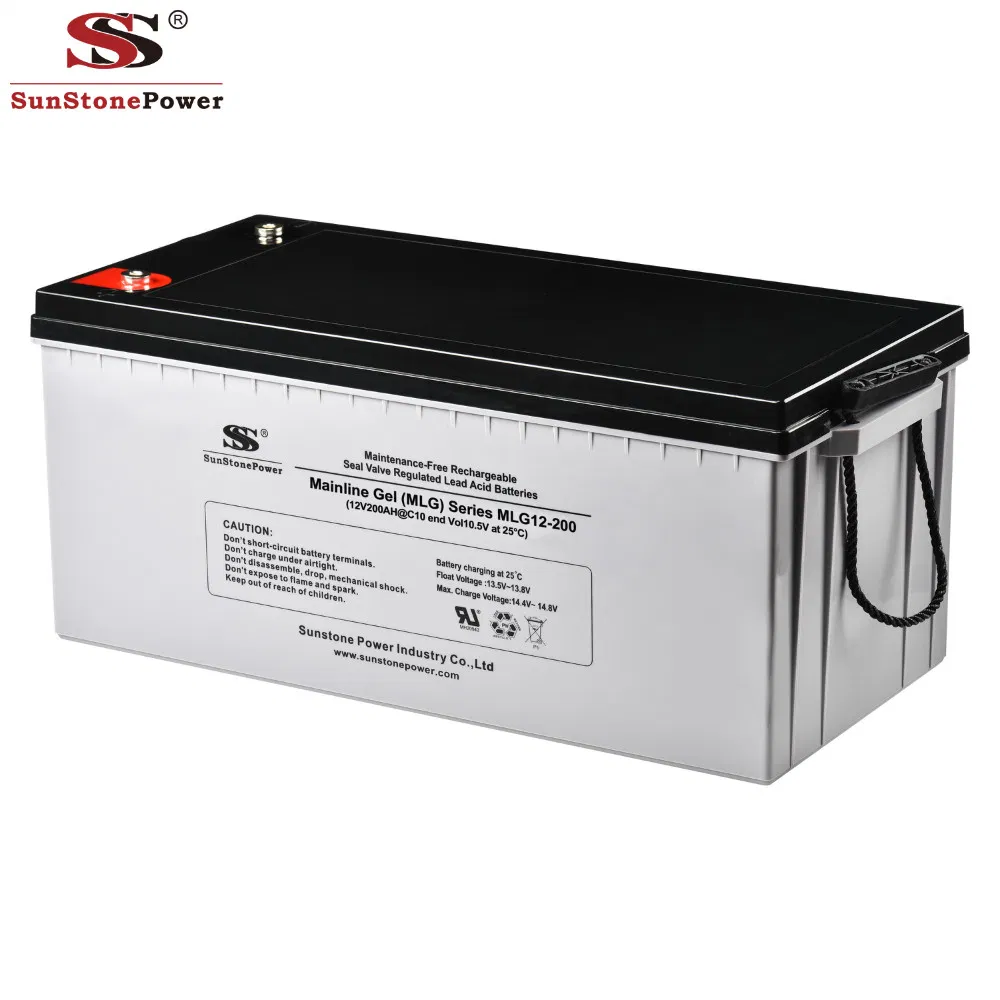

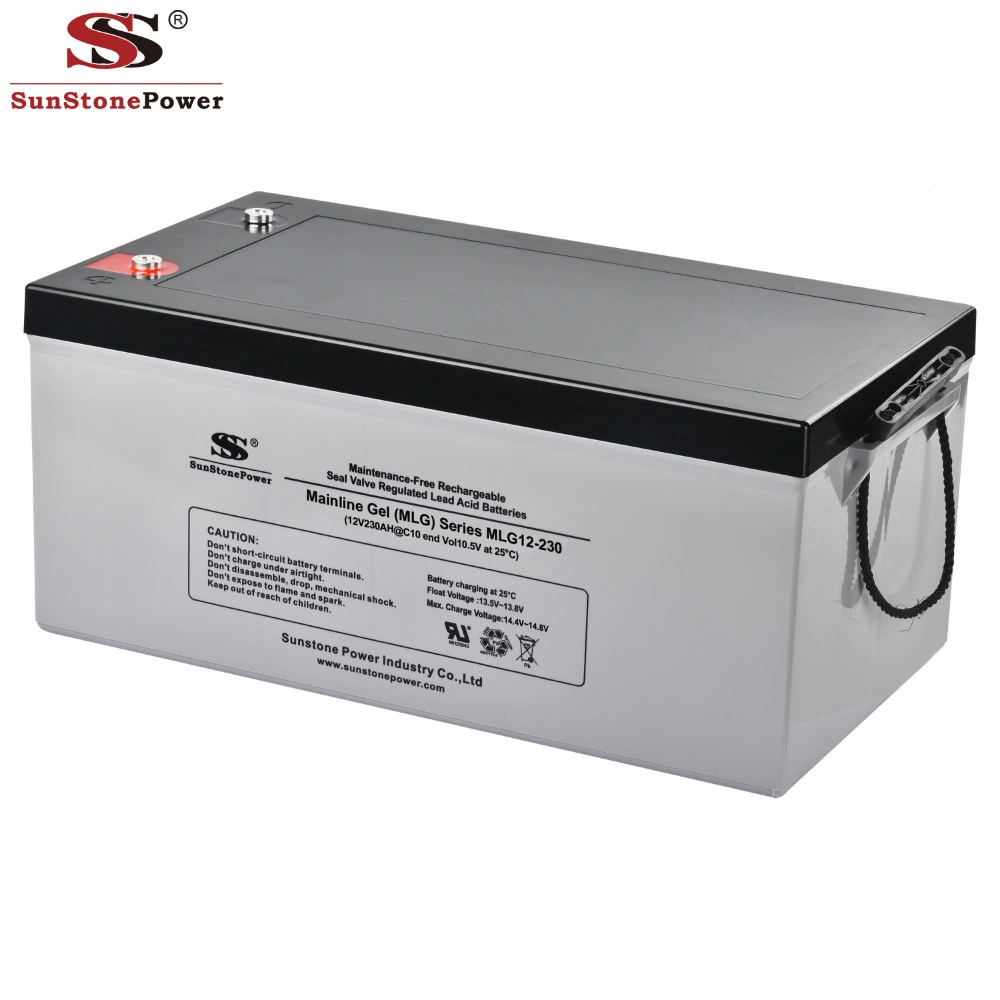

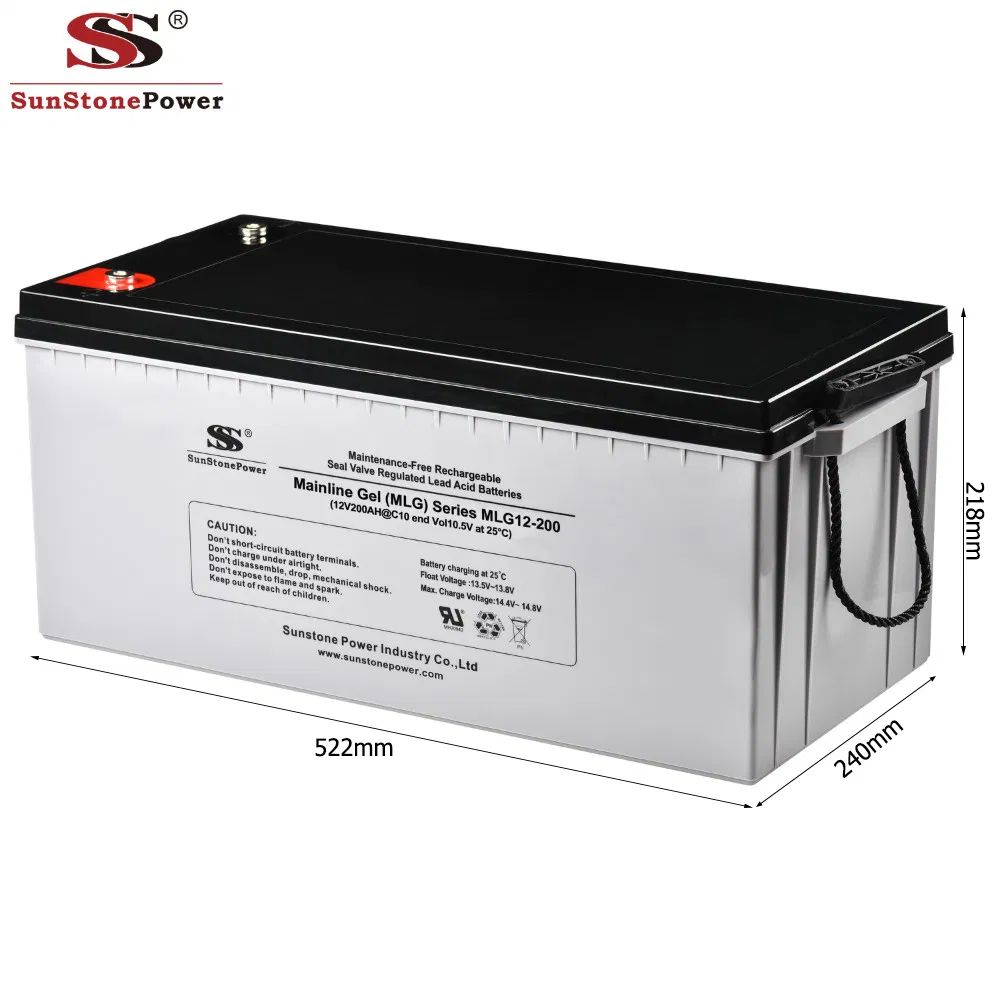

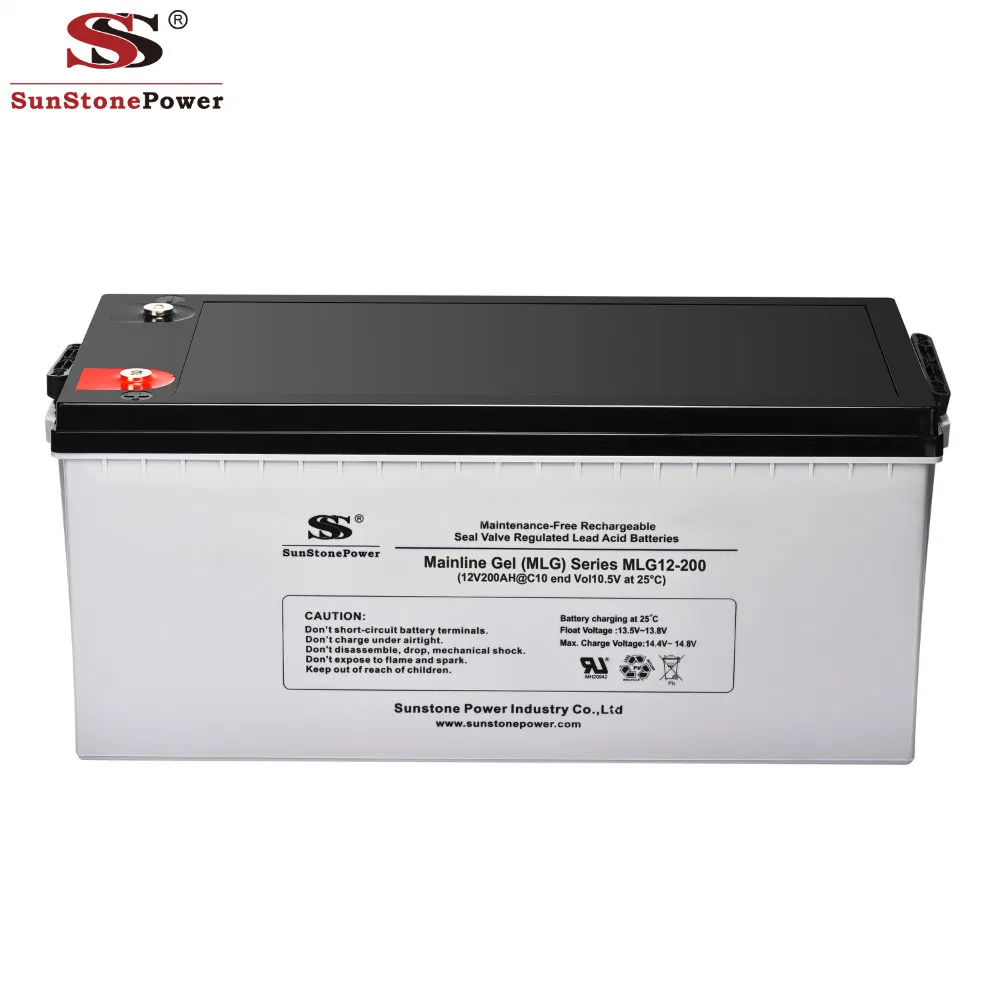

12V 200ah Gel Battery Deep Cycle Solar Gel Battery Rechargeable Maintenance Free
| Nominal Voltage |
12V (6 cells) |
Operating Temp. Range |
Discharge: -15 to 50°C |
| Nominal Capacity |
200AH (10hr, 1.80V/cell) |

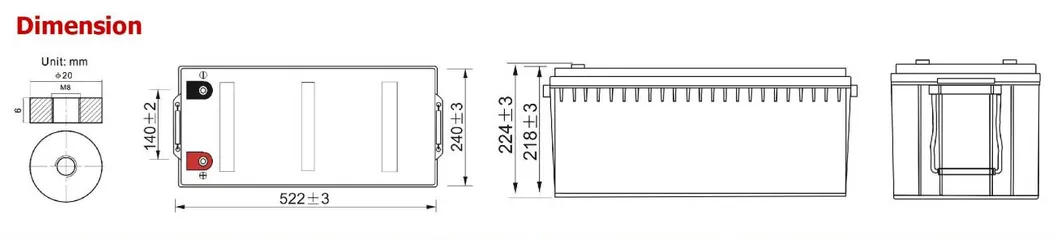

Dimension |
522 ± 2mm (Length) |
⚡ Key Features
Maintenance-free operation
GEL technology for deep cycle performance
ABS case (Flame Retardant V0 available)
Stable quality and high reliability
12 years long design life (at 25°C)
📸 Detailed Photos

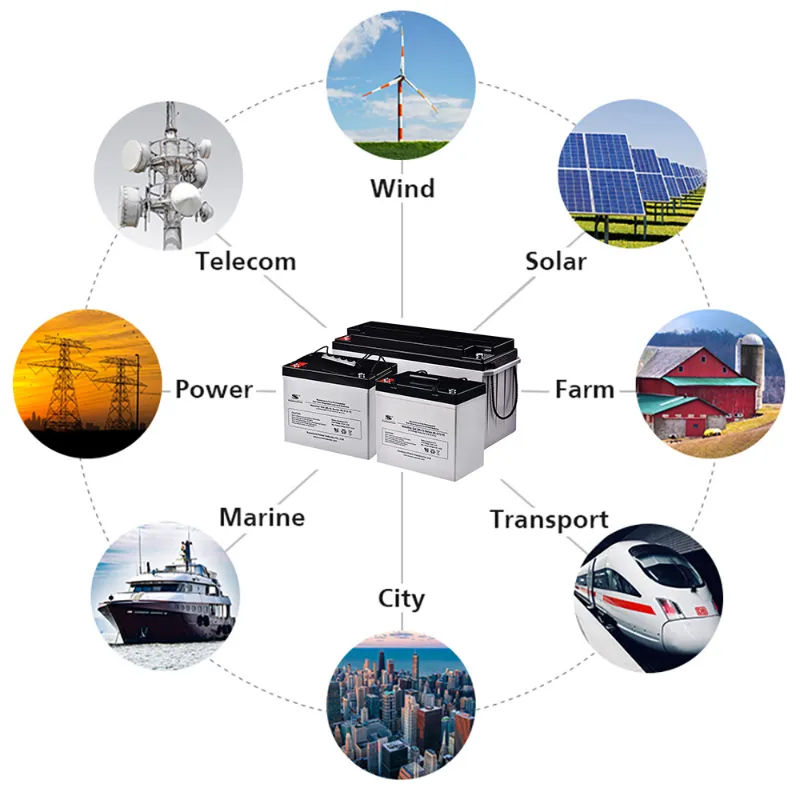

🏭 Application Fields
Telecommunication Systems
Alarm and Security Systems
Backup Power / UPS / Emergency Lighting
Auto Control Systems
🔗 Related Products

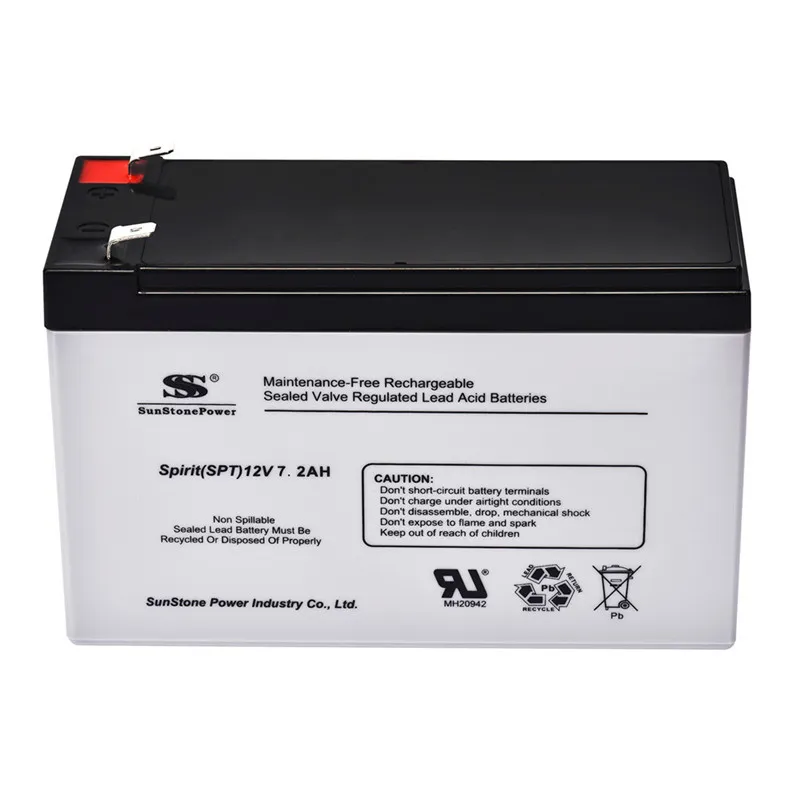

SPT12-7.2 (12V 7.2AH)

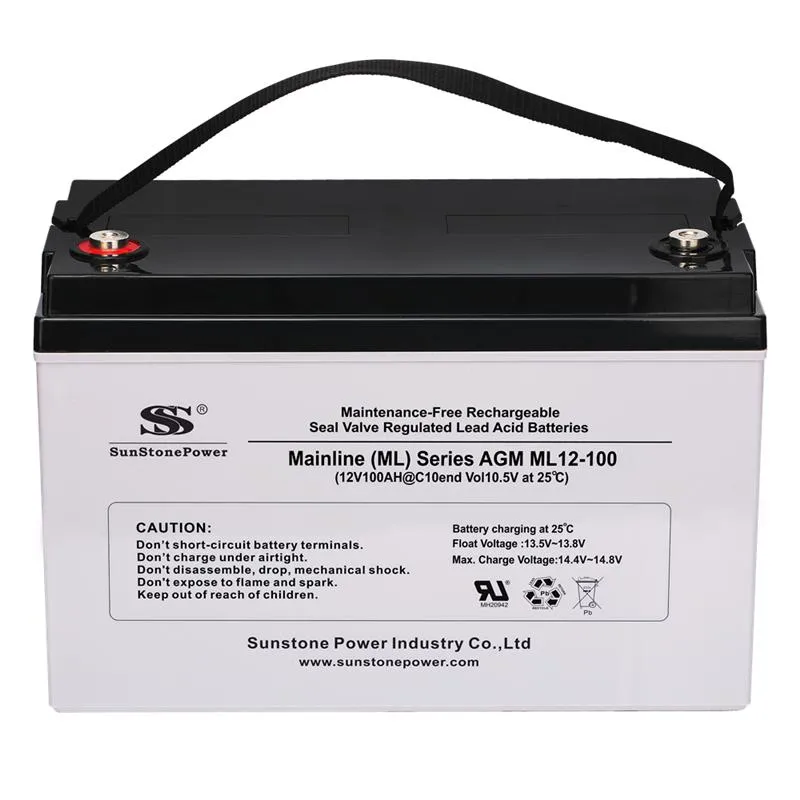

ML12-100 (12V 100AH)

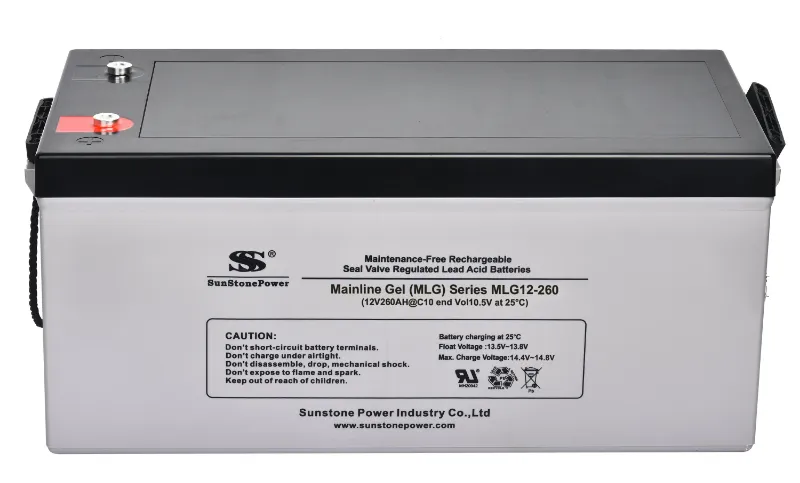

MLG12-260 (12V 260AH)

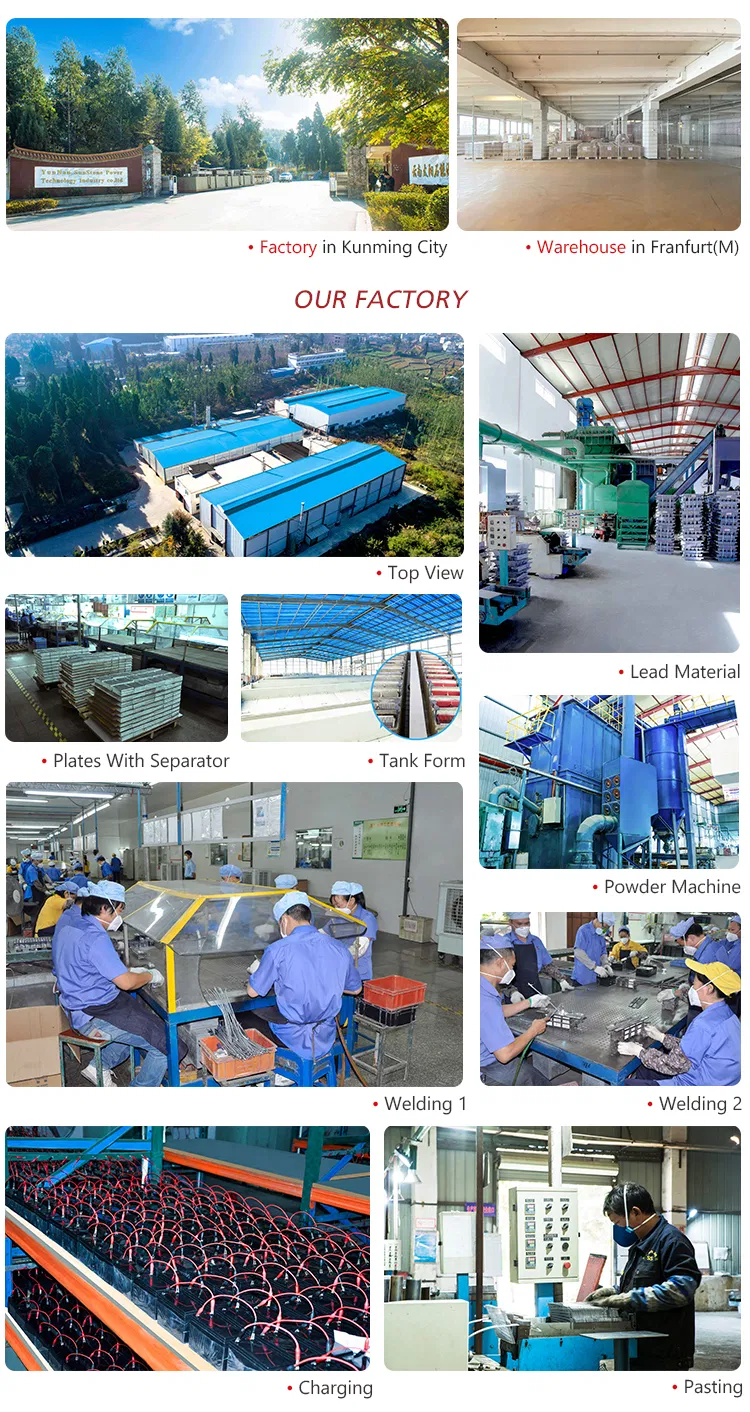

🛡️ Manufacturing & Quality
❓ Frequently Asked Questions
What are the main applications for this 200ah Gel battery?
This battery is ideal for telecommunication systems, UPS backup power, solar energy storage, and emergency lighting systems due to its deep cycle GEL technology.
How long is the design life of the MLG12-200?
The battery features a professional design life of 12 years when maintained at a standard temperature of 25°C.
Does this battery require regular water refilling?
No, it is a maintenance-free sealed lead-acid battery using GEL technology, meaning you do not need to add water or electrolyte during its lifespan.
What is the self-discharge rate of these batteries?
MLG series batteries can be stored for up to 6 months at 25°C before a freshening charge is required. For higher temperatures, the interval will be shorter.
Is the battery case fire-resistant?
The standard case is made of high-quality ABS. Additionally, Flame Retardant V0 material is available upon request for enhanced safety.
