Product Description

Overview

Model NO.
WIN-K series
Condition
New
Certification
ISO, CE, RoHS, FCC, ISO14001
Application
Solar System Controller, Charger Controller, Voltage Controller
Rated Voltage
12V/24V
Max Tracking Efficiency
99.9%
Max Charge Conversion
98%
Max Charging Current
15A/20A/40A
Battery Voltage
12V/24V
Max PV Power Input
200/400W/260W/520W/1040W
Max Voltage on PV(-20℃)
75V/70V/100V
Battery Type
Liquid, Gel, AGM, Lithium
Protection Degree
IP54
Grounding
Common Negative
Specification
MPPT

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
2.000kg
Lead Time
31 days (1 - 2000 Pieces)

Product Description

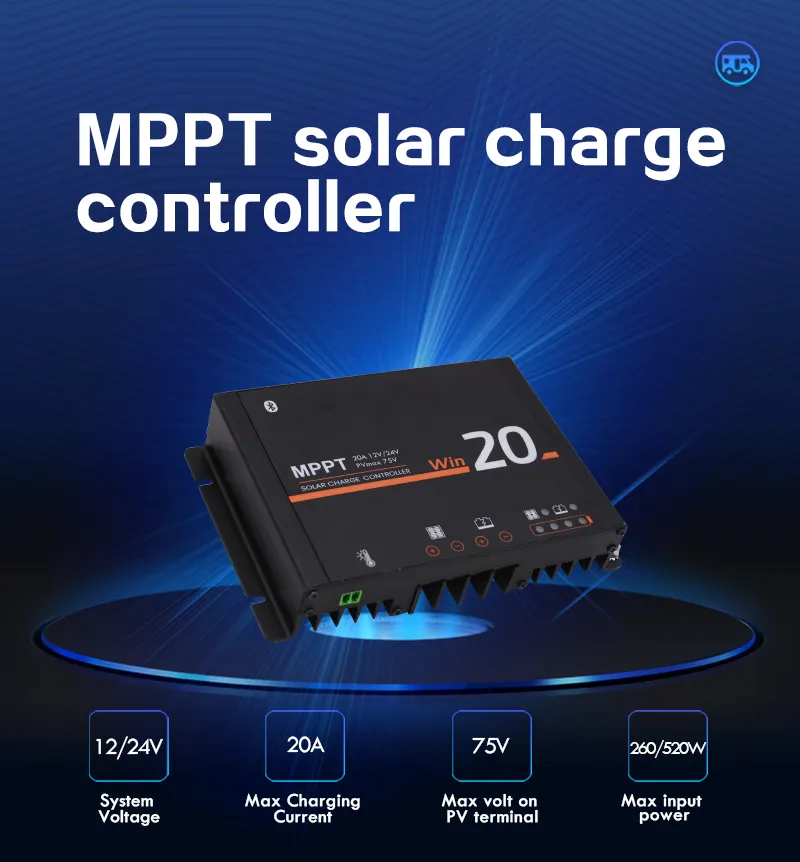

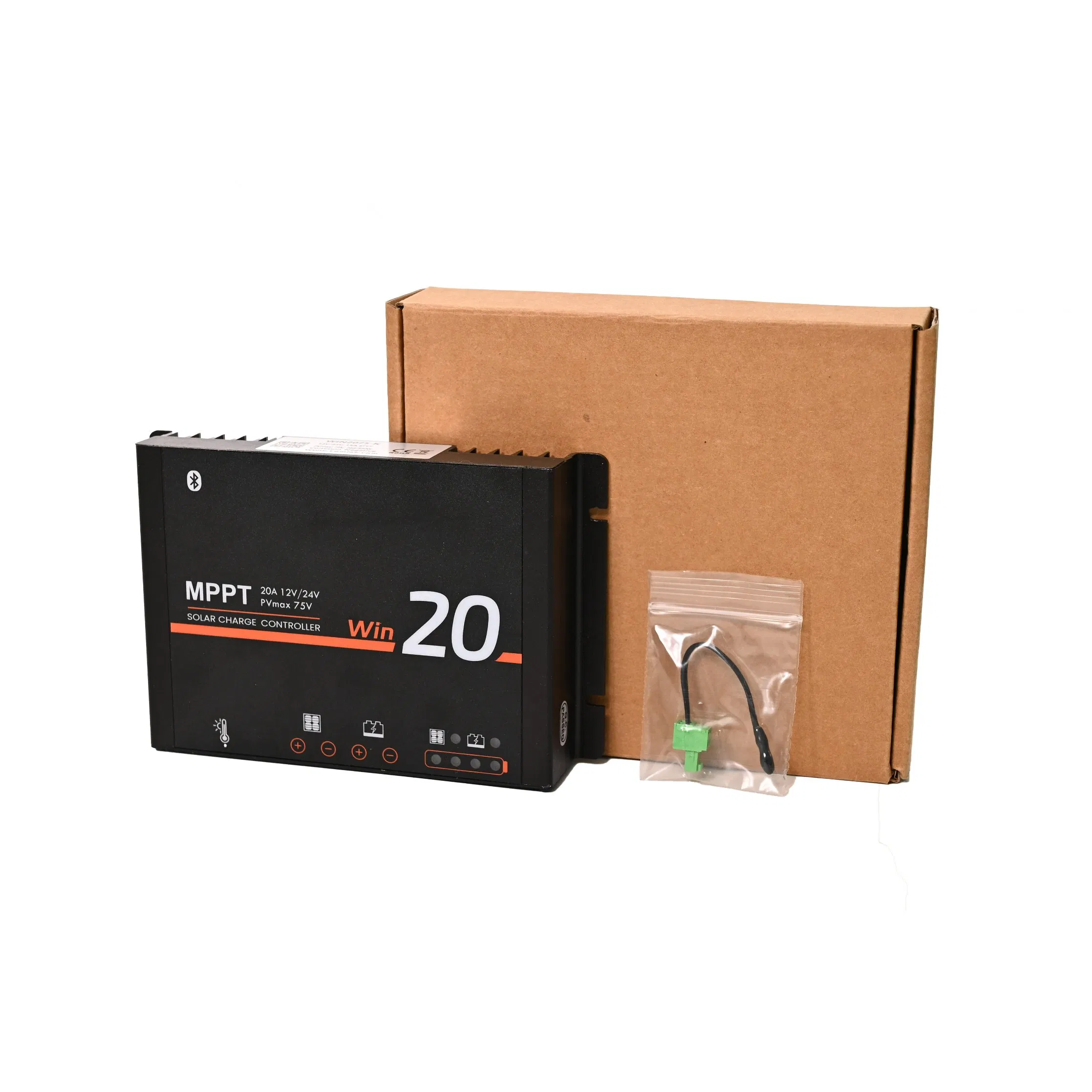

12V 24V 20A MPPT solar battery charger regulator for RV Camping

Solar Charger Regulator
MPPT Charger
Item Win1575-K Win2075-K
Battery typeGel, AGM, Liquid, Lithium (default: Gel)
System voltage12/24V auto recognition12/24V auto recognition
Max charging current15A20A
Boost voltage14.0~14.8V/28.0~29.6V
Equalization voltage14.0~15.0V/28.0~30.0V
Float voltage13.0~14.5V/26.0~29.0V
Low voltage disconnect10.8~11.8V/21.6~23.6V
Max input power200/400W260/520W
Max tracking efficiency>99.9%

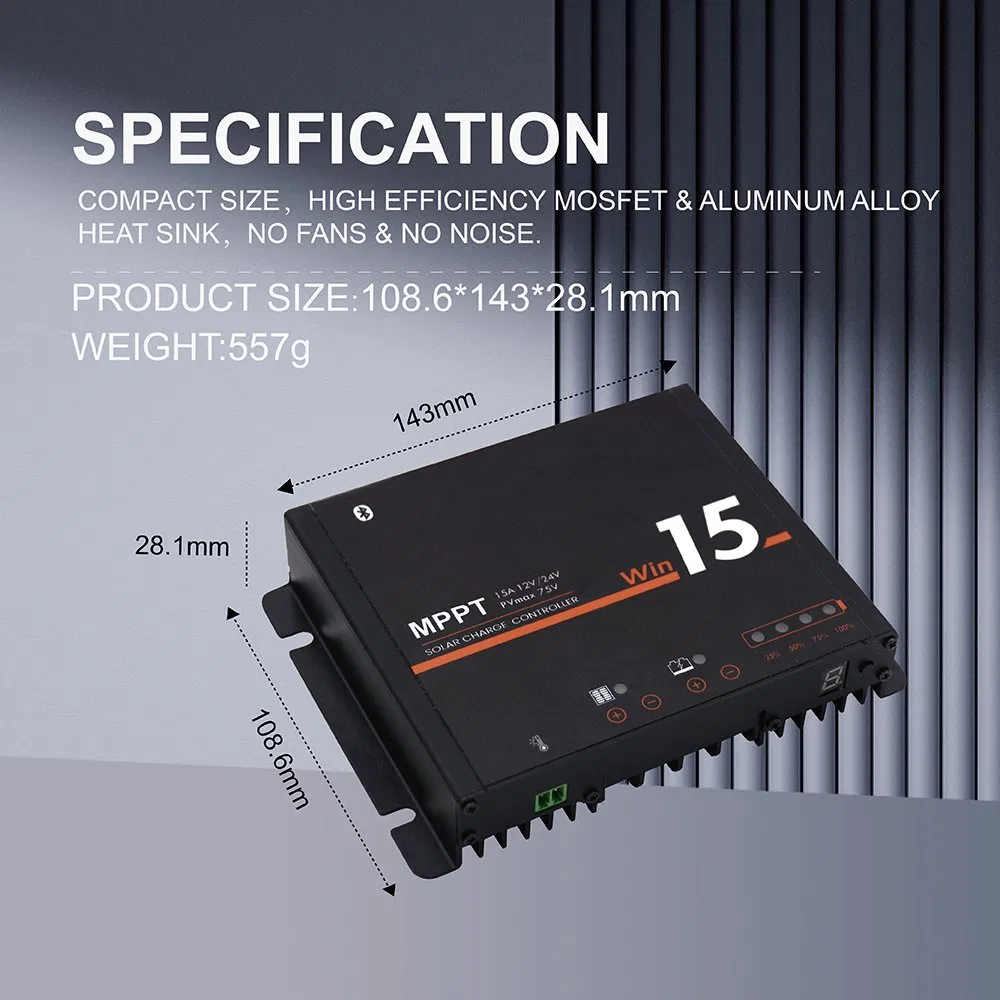

Dimensions108.6*143*28.1mm108.6*164.2*31.5mm
Protection degreeIP54

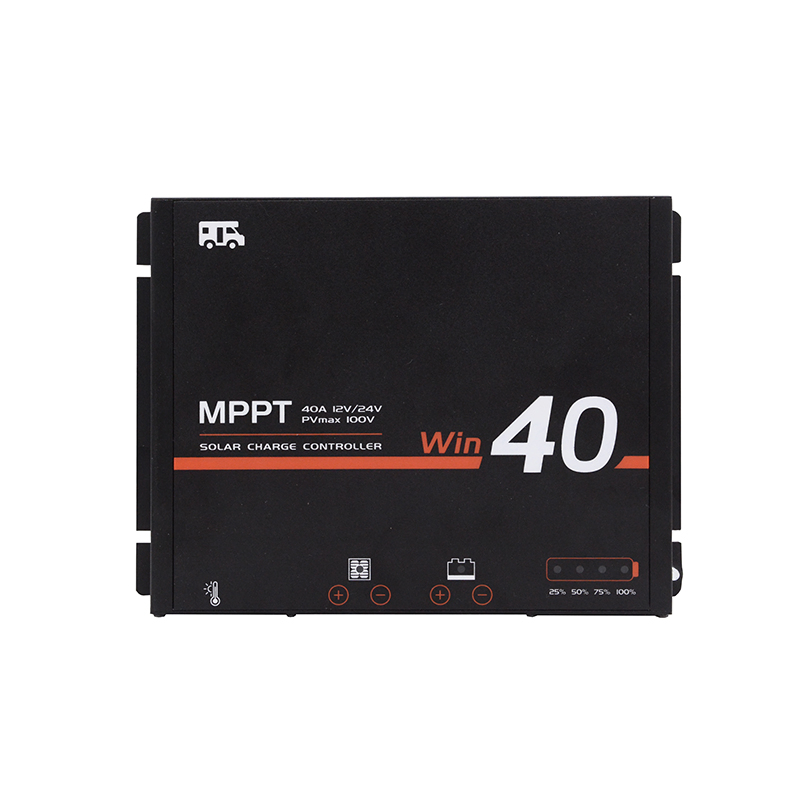

Item Win30100-K Win40100-K
Battery typeGel, AGM, Liquid, Lithium (default: Gel)
Max charging current30A40A
Max voltage on PV(-20ºC)100V
Max input power400W/800W520W/1040W
Max conversion efficiency97%
Dimensions133.6*184.5*39.5mm
Weight1330g
CommunicationBLE (Selectable)

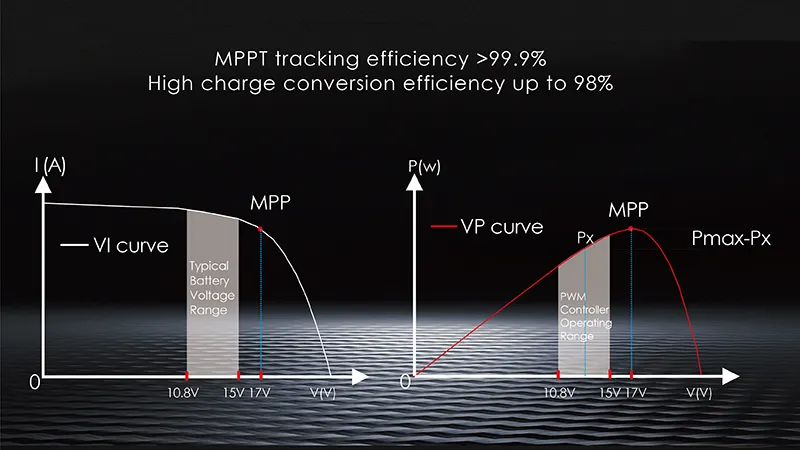

Solar Panel Controller

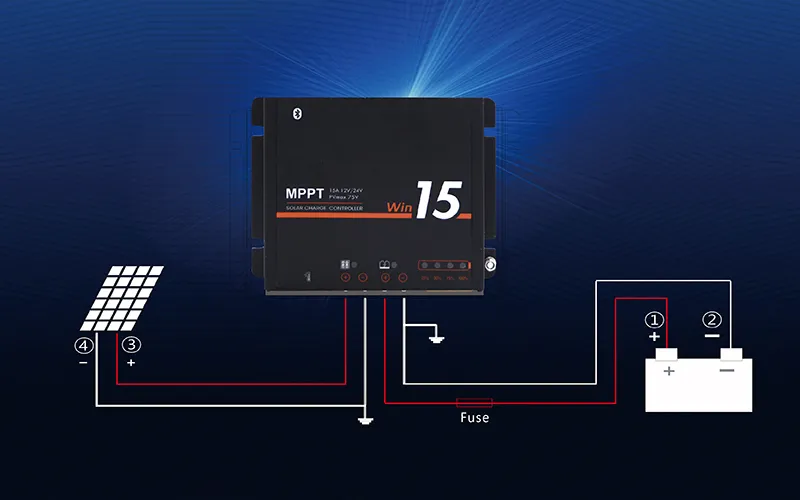

Regulator Interface
Mounting Display

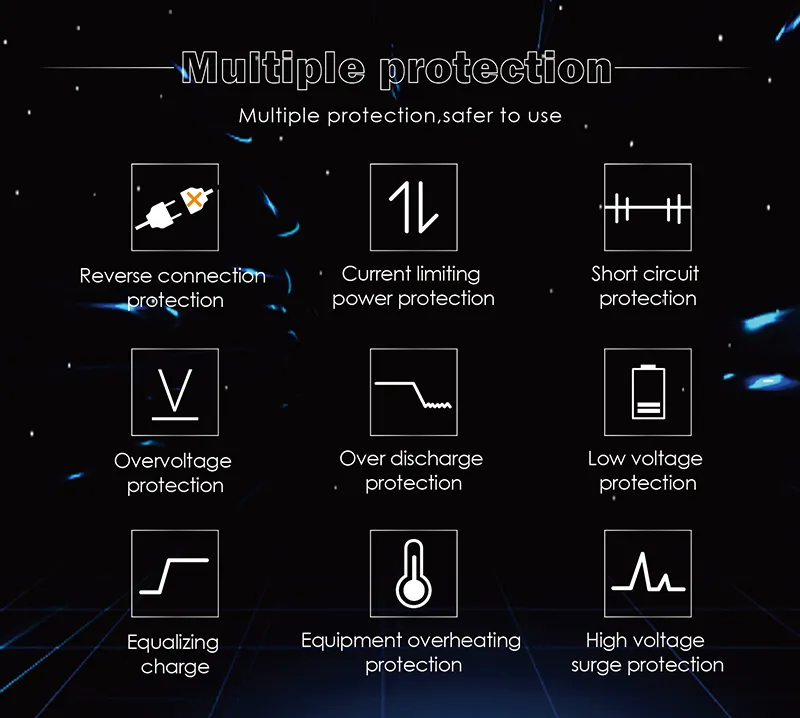

Product Features
Internal Structure

Professional Manufacturing

Factory Overview

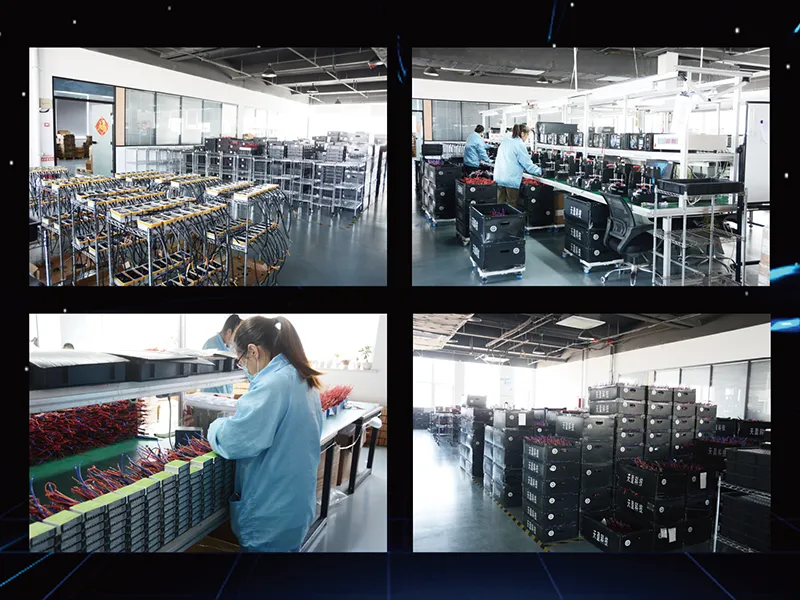

Production Line
Quality Control
Certifications
Testing Facility
Workshop
Manufacturing Process
Storage

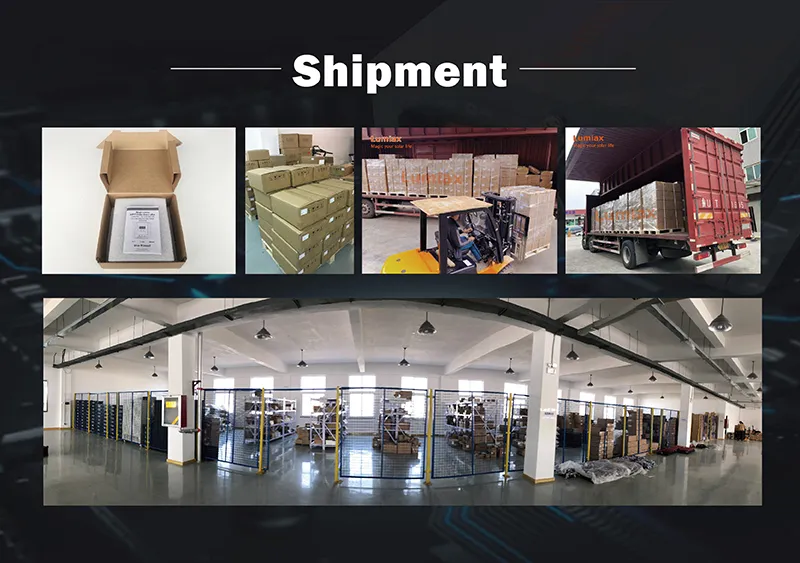

Logistics

Frequently Asked Questions

What battery types are compatible with this MPPT controller?
The WIN-K series supports Liquid, Gel, AGM, and Lithium batteries. The default setting is for Gel batteries, but it can be adjusted.
Does the controller automatically detect the system voltage?
Yes, the device features 12V/24V automatic system voltage recognition for easier setup and integration.
What is the maximum tracking efficiency of the MPPT?
The controller boasts a maximum tracking efficiency of over 99.9%, ensuring minimal energy loss from your solar panels.
Is the solar controller suitable for outdoor or marine use?
The controller has an IP54 protection degree, making it suitable for environments like RVs, caravans, and marine applications.

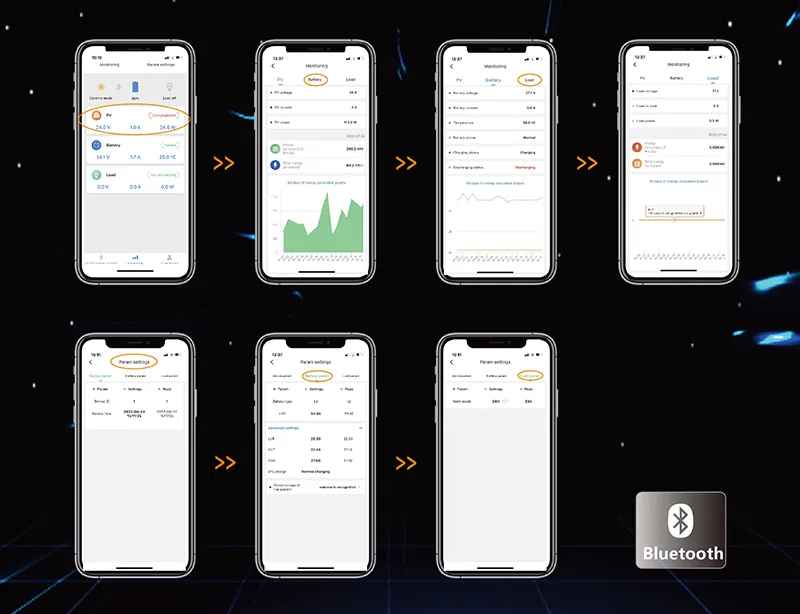

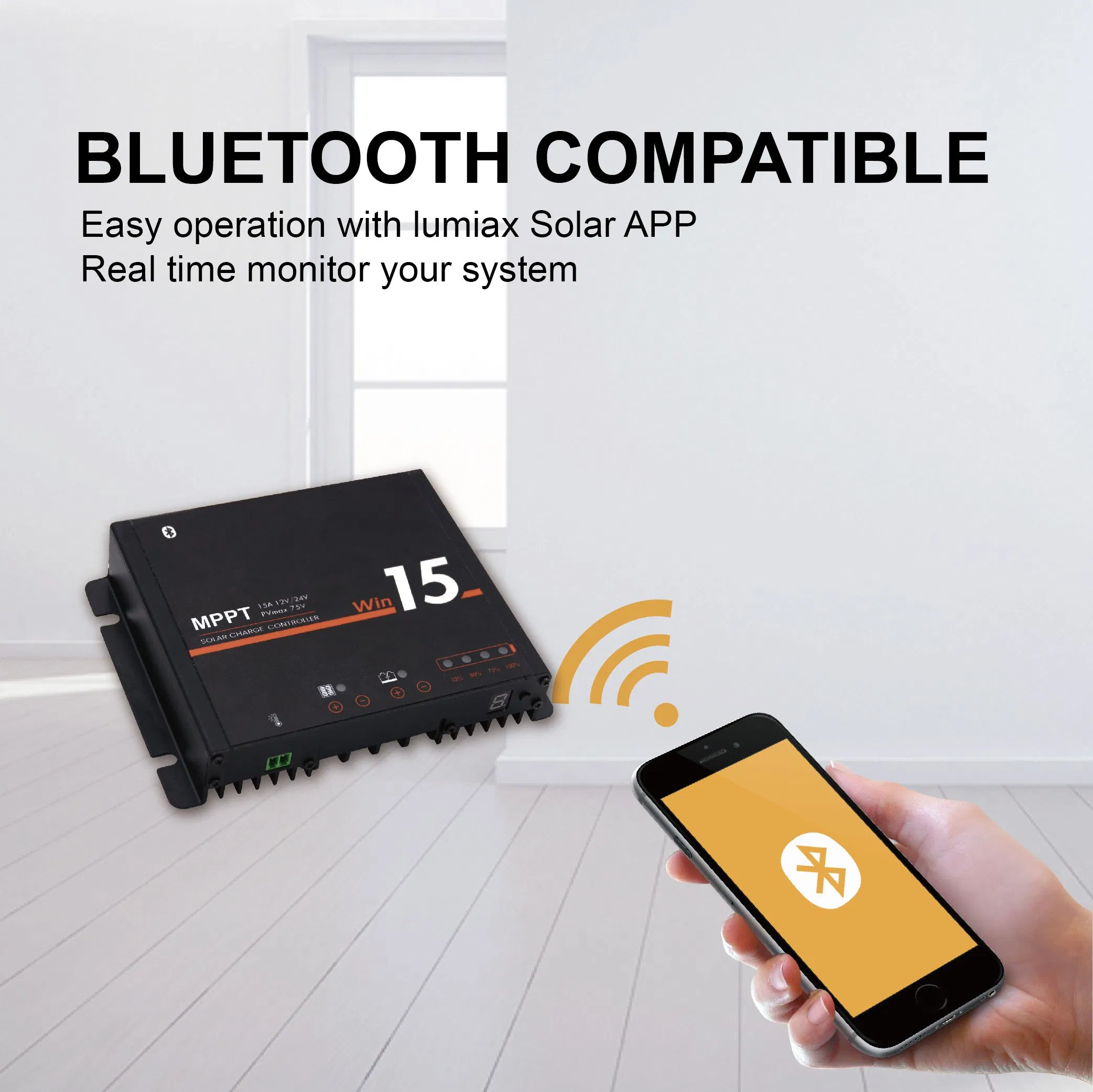

What kind of communication does the WIN-K series support?
The series supports BLE (Bluetooth Low Energy) communication as a selectable option for wireless monitoring and configuration.
Does the controller have temperature compensation?
Yes, it includes temperature compensation for Boost, Equalization, and Float charging stages to protect battery health across varying temperatures.
