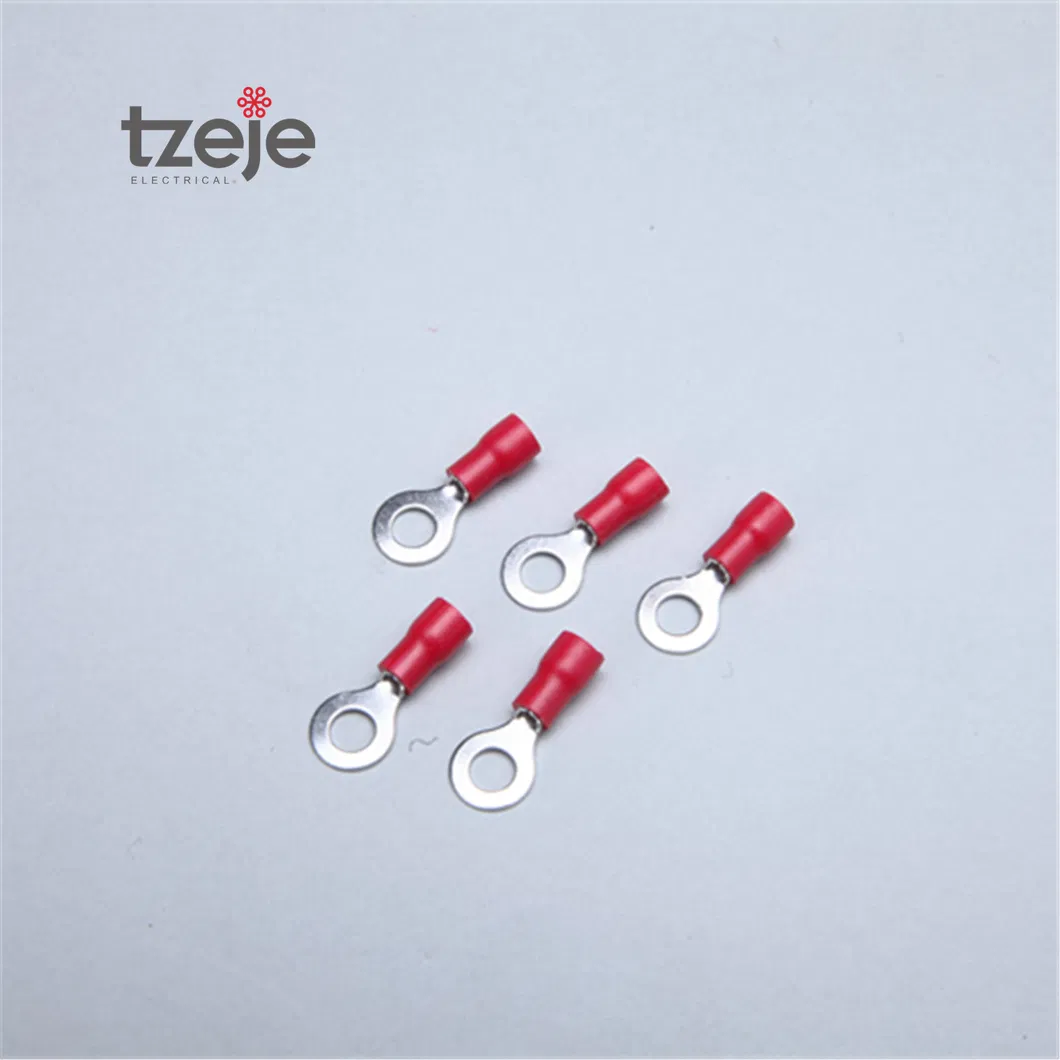

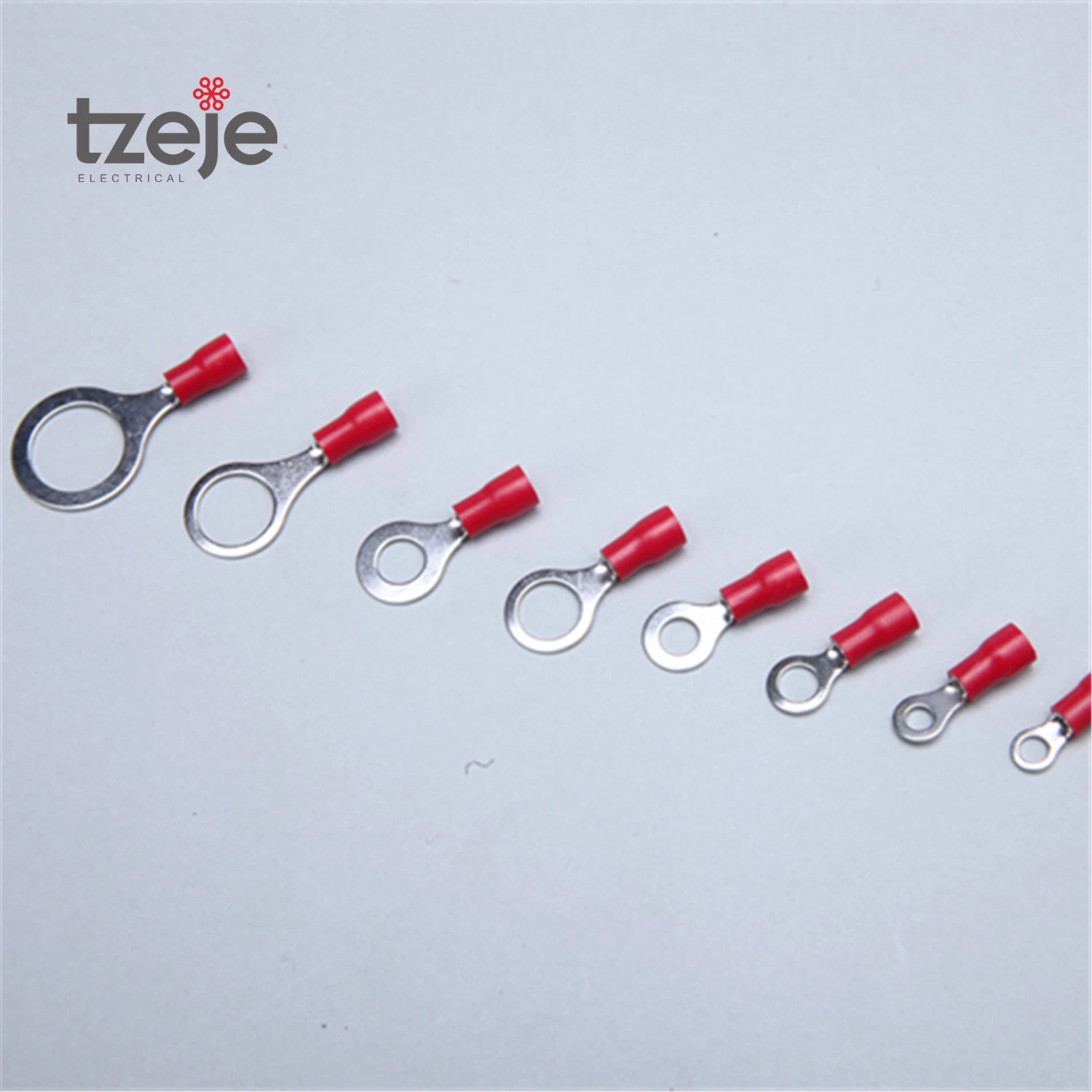

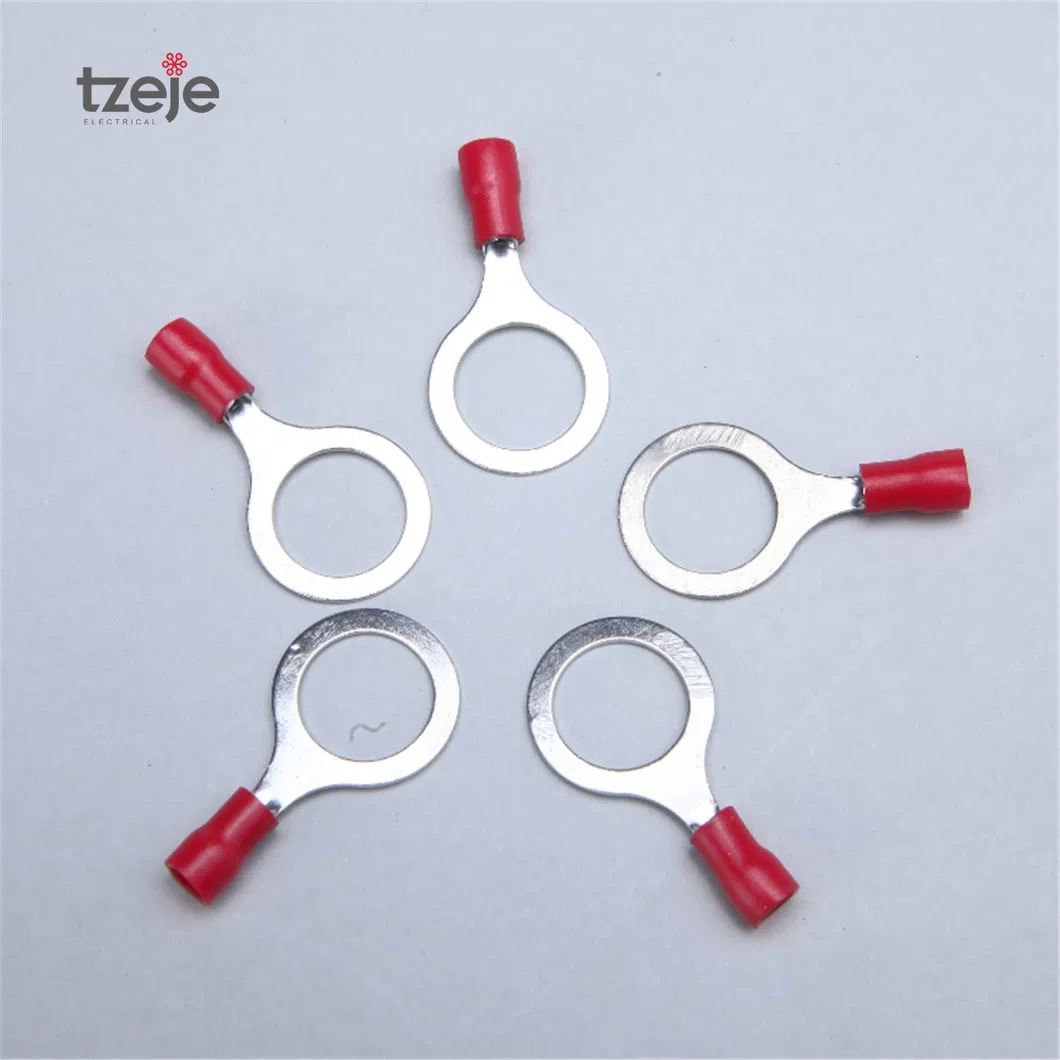

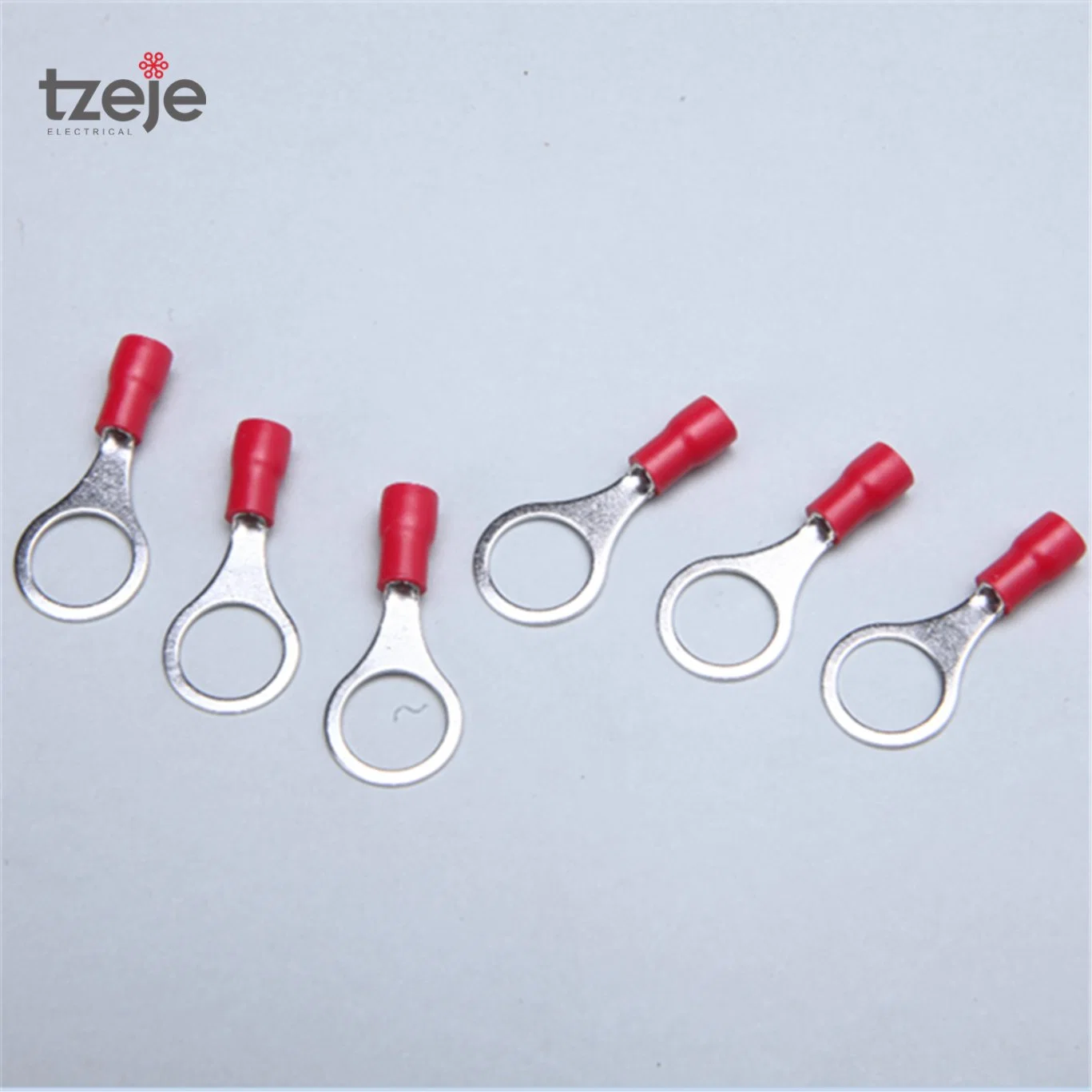

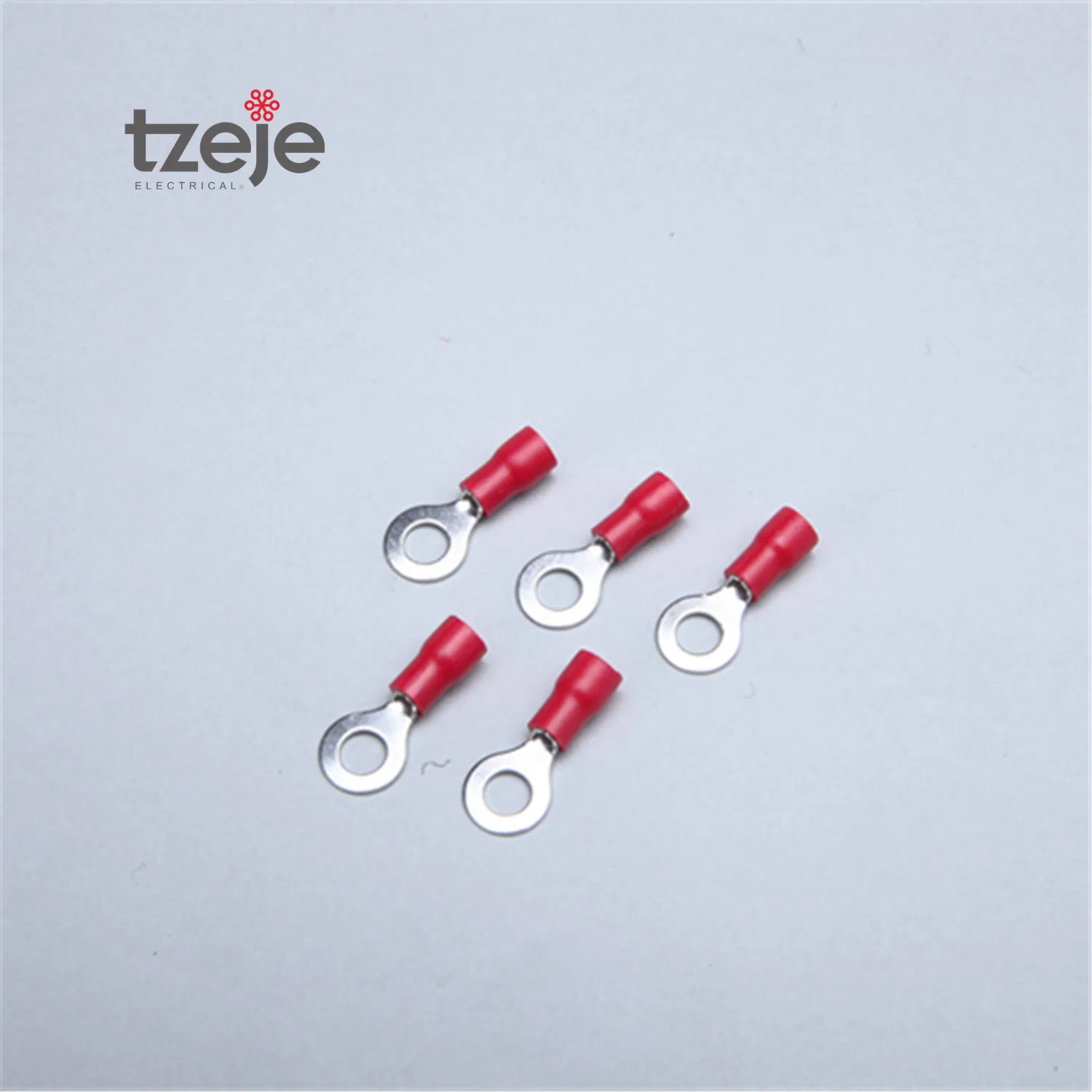

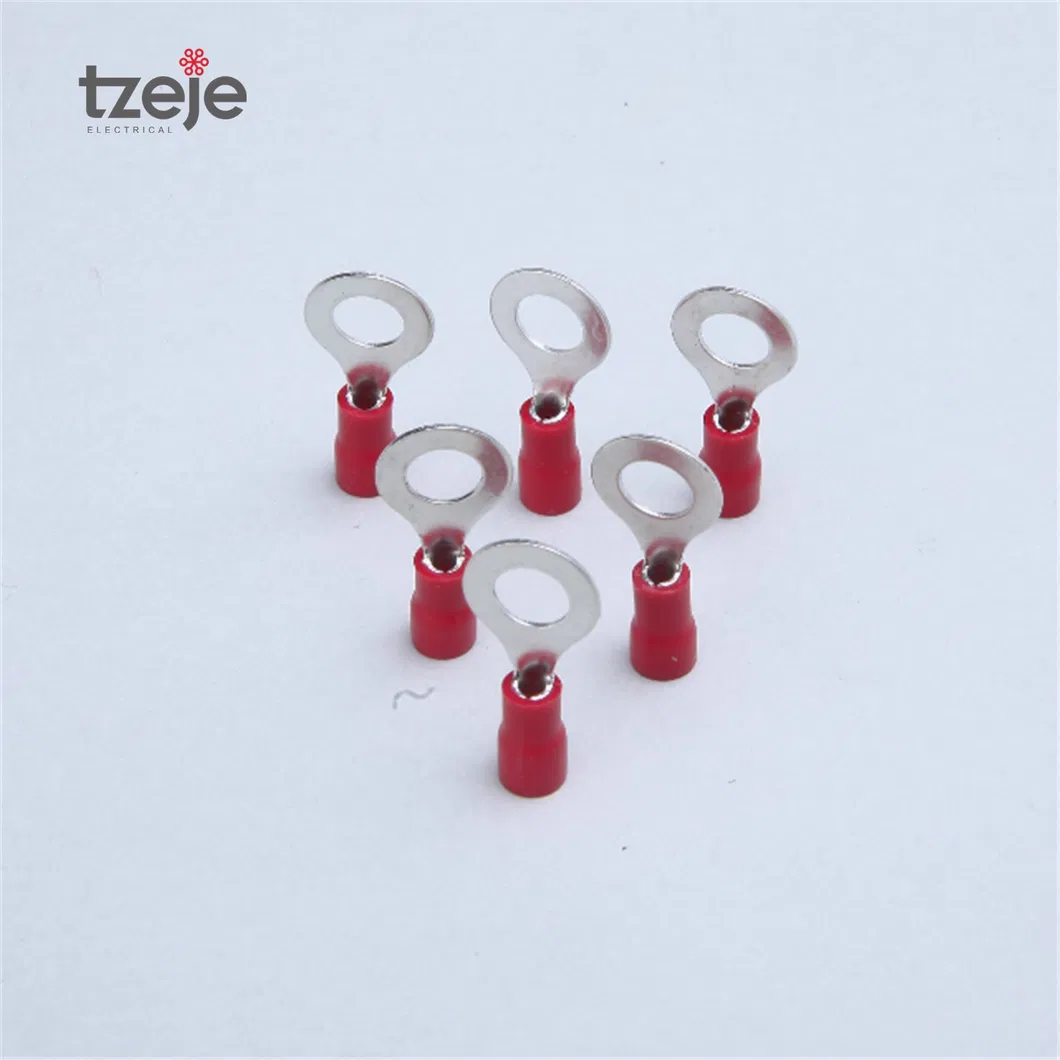

1. Products Name: Insulated Ring Terminal
2. Material: Brass or Copper
3. Insulating Tube: PVC/NYLON

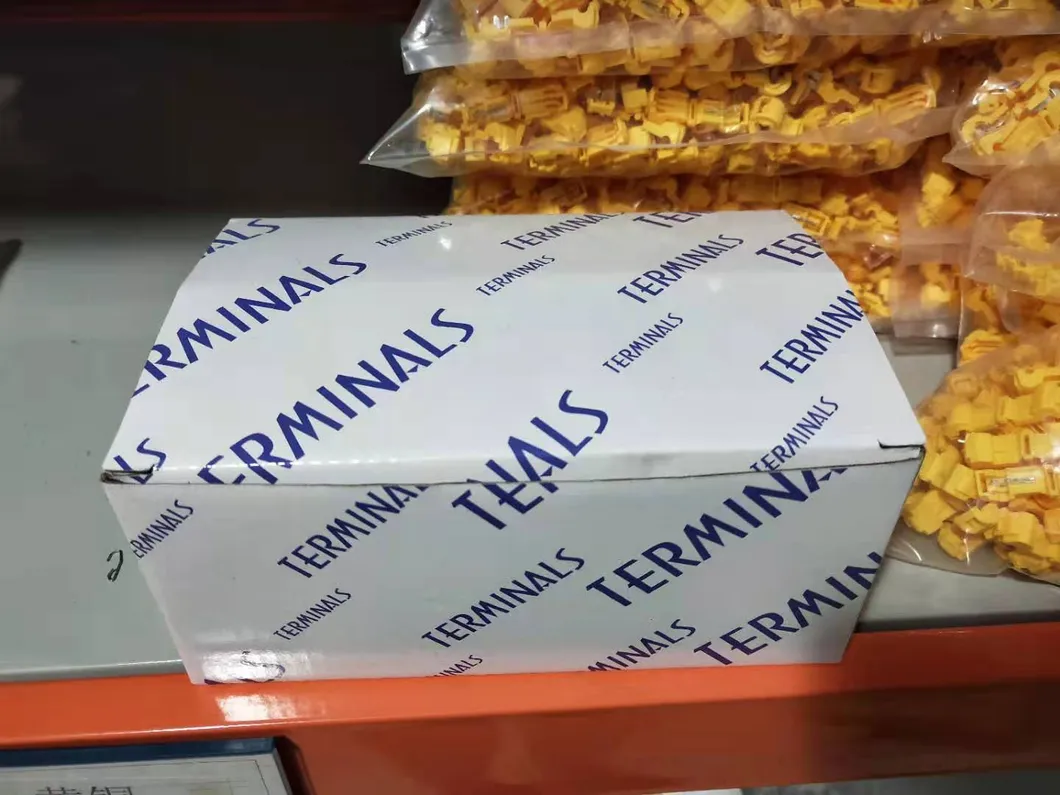

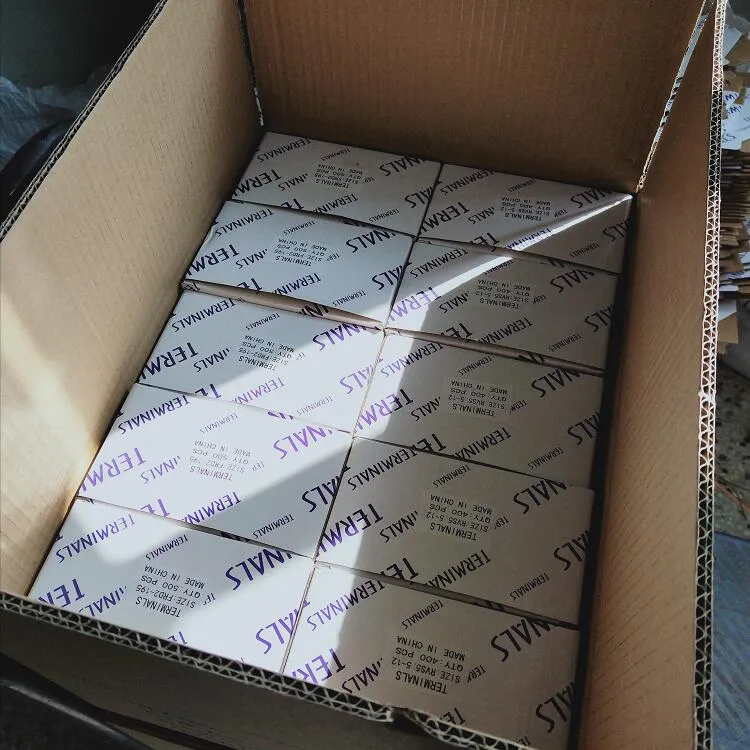

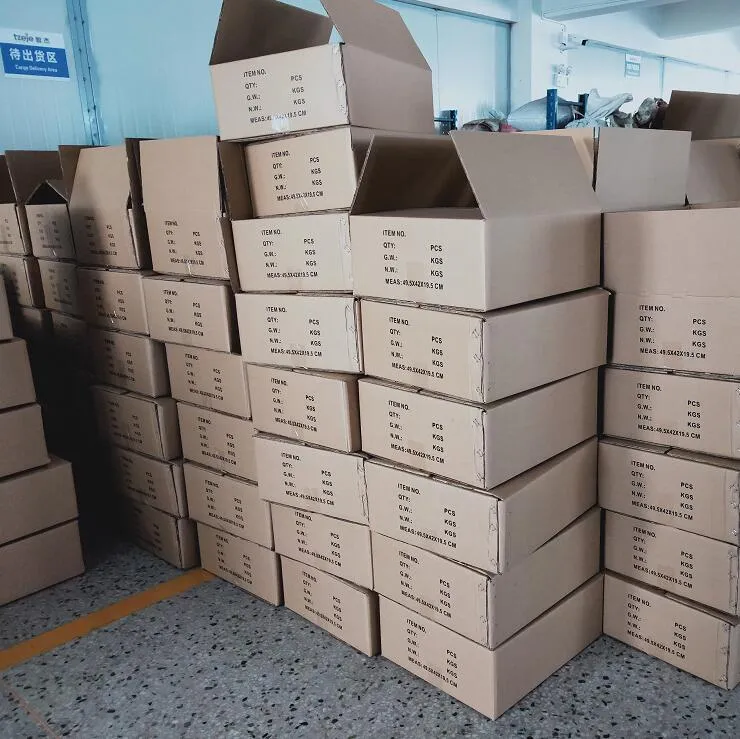

4. Packing: 100pcs/bag, inner box and export carton
5. Color: Red/Blue/Black/Yellow (Customizable)

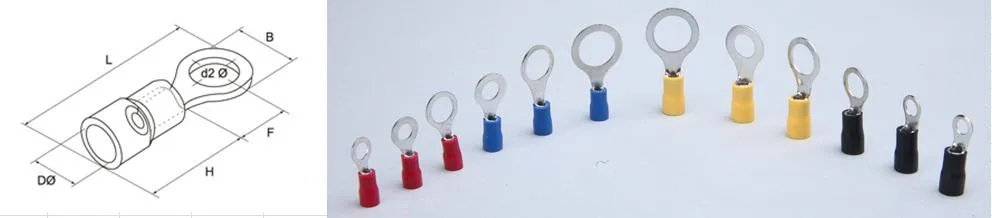

| Item No | USA Bolt No. | Bolt dia d2(mm) | B | F | L | Color | Description |
|---|---|---|---|---|---|---|---|
| RV1.25 Series | #4 to 1/2 | 3.2 - 13.0 | 5.7 - 19.2 | 4.95 - 16.0 | 17.8 - 35.6 | RED | 0.5~1.5mm² / 22~16 AWG |
| RV2 Series | #4 to 1/2 | 3.2 - 13.0 | 6.6 - 19.2 | 4.8 - 16.0 | 17.8 - 35.6 | BLUE | 1.5~2.5mm² / 16~14 AWG |
| RV3.5 Series | #8 to 3/8 | 4.3 - 10.5 | 8.0 - 15.0 | 8.0 - 13.5 | 25.0 - 34.0 | BLACK | 2.5~4mm² / 14~12 AWG |
| RV5.5 Series | #6 to 1/2 | 3.7 - 13.0 | 7.2 - 19.2 | 6.1 - 16.0 | 22.7 - 39.4 | YELLOW | 4~6mm² / 12~10 AWG |

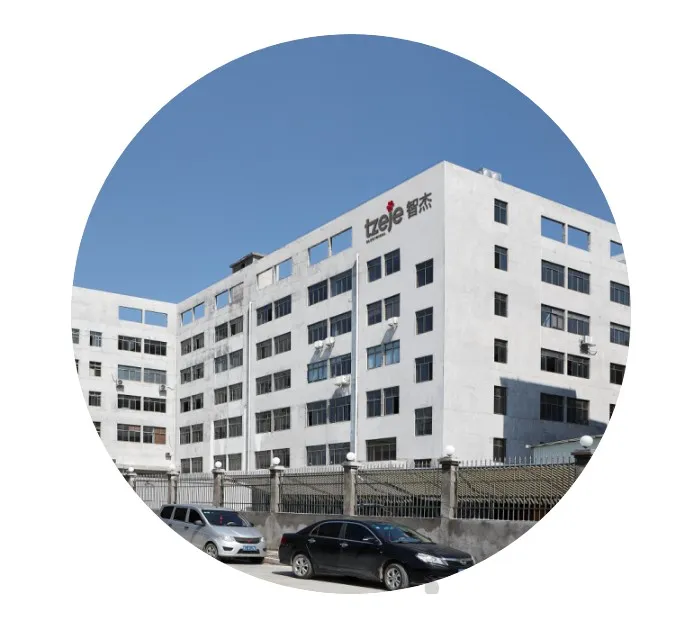

We are a professional manufacturer specialized in the design, development, production, and marketing of various terminal studs, cold press terminals, connectors, and cable accessories. Our production processes adhere to European and American technical requirements. Our products have successfully passed ISO9001:2008, CE, ROHS, and SGS certifications.

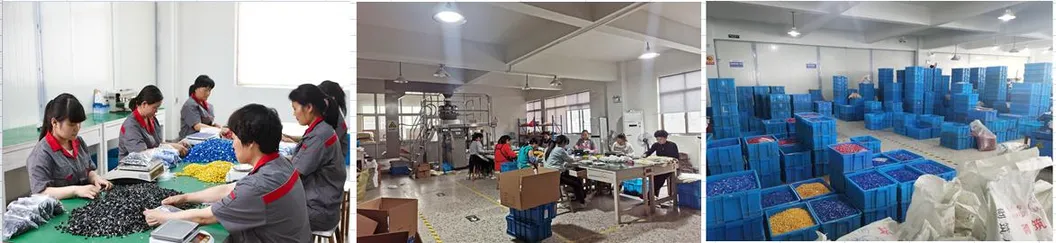

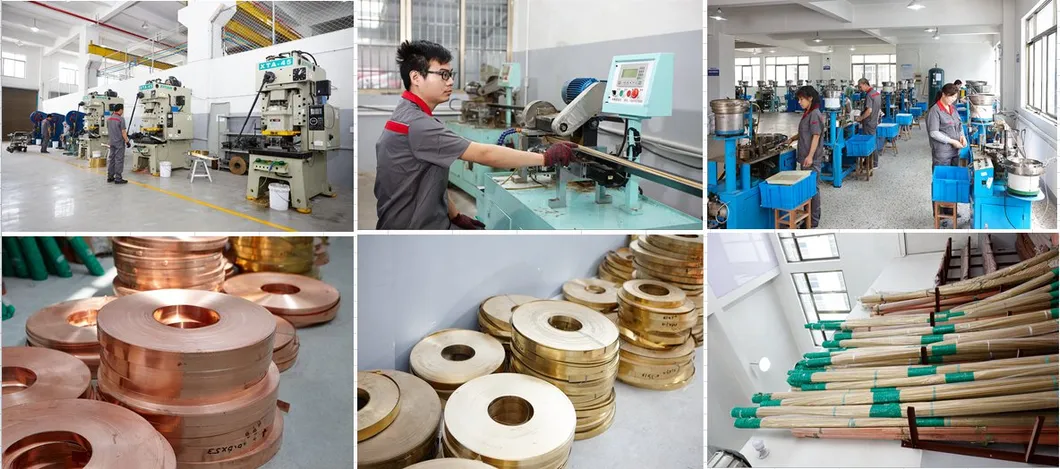

Equipped with advanced automation and high-quality testing sets, our management team ensures the highest standards. We abide by a strict quality policy: promoting production with quality, seeking development with technology, and winning trust with credit standing.
