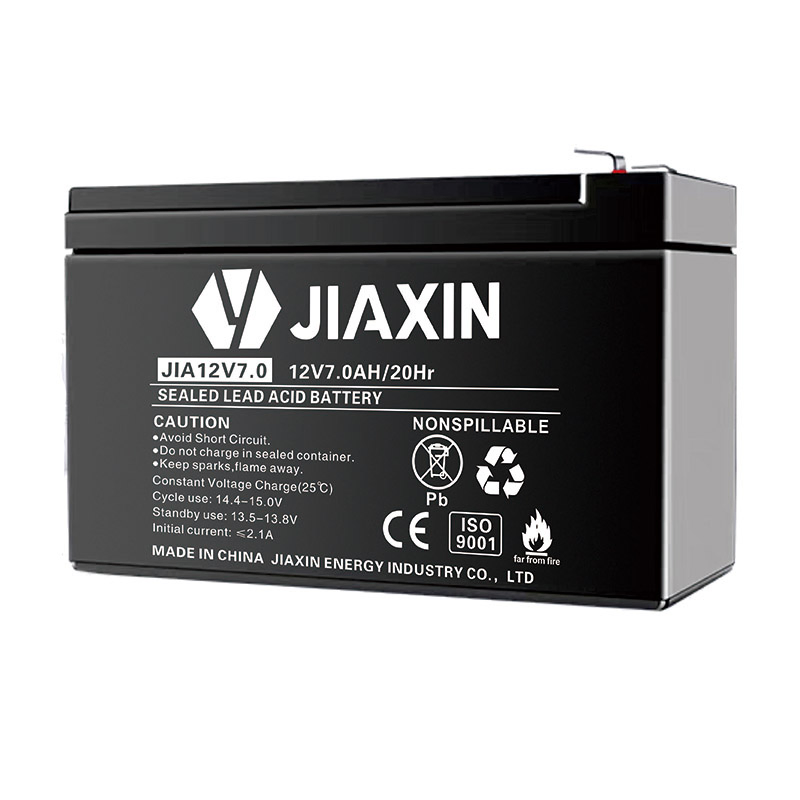

AGM High Capacity UPS Battery 12V7ah SLA VRLA Sealed Lead Acid Battery for Solar Storage, Electronics, Kid's Car, Electronic Scales, UPS, Emergency Power

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
JIA-12V7.0
Nominal Voltage
12V
Nominal Capacity
7.0ah
Discharge Rate
High Discharge Rate
Electrolyte
Acid
Cycle Use Voltage
14.4-15.0V
Standby Use
13.5-13.8V
Weight
About 2.1kgs
Dimensions
151x65x94mm (LxHxW)
Storage Temp
10~35ºC
UPS Battery Key Features
Superior high rate discharge performance and cycle character.
More and faster starting power over conventional batteries.
Low Self-discharge with large capacity stability.
High quality material with lead purity of 0.99996.
Lead-Calcium six alloy sheet grating for long life.
Small internal Resistance & corrosion resistance multiple alloy bus bars.
Advanced AGM septum: Absorbs electrolytic without dissociated liquid.
Firm and weather resistant ABS Engineering plastics shell.
Copper Plating Silver terminals for low contact resistance.
Maintenance-free: no need to add distilled water.
AGM Battery 12V7ah View 1

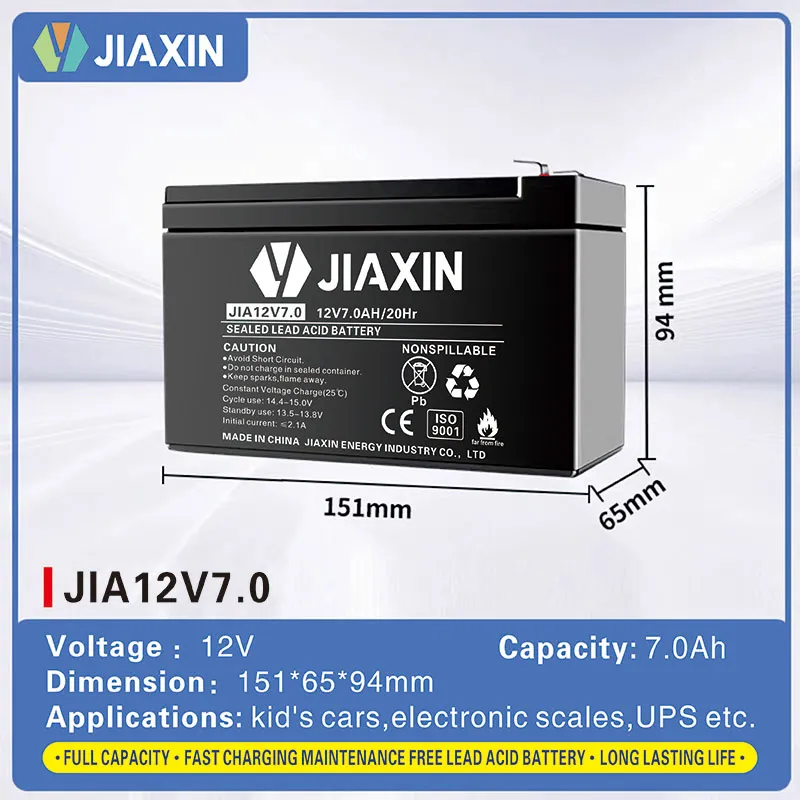

AGM Battery 12V7ah View 2
Product Description

This 12V7.0Ah UPS battery is specifically designed for Fire Safety Applications, Surveillance Systems, access control systems, and rolling shutter doors. Featuring a fireproof design, it ensures safety and reliability in both residential and commercial settings. Utilizing premium battery cells with a dense internal structure, it provides uniform electrochemical reactions during high-current discharge.

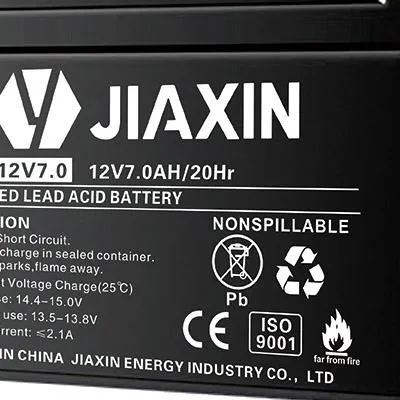

Capacity Detail

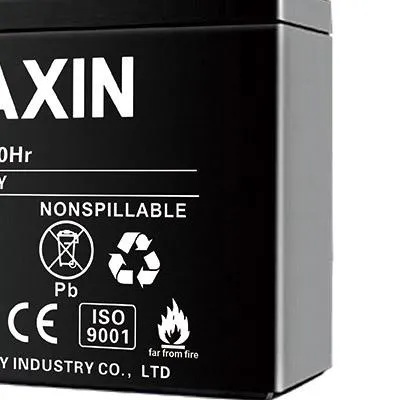

ABS Casing Detail
Terminal Detail
Charging & Discharge Characteristics

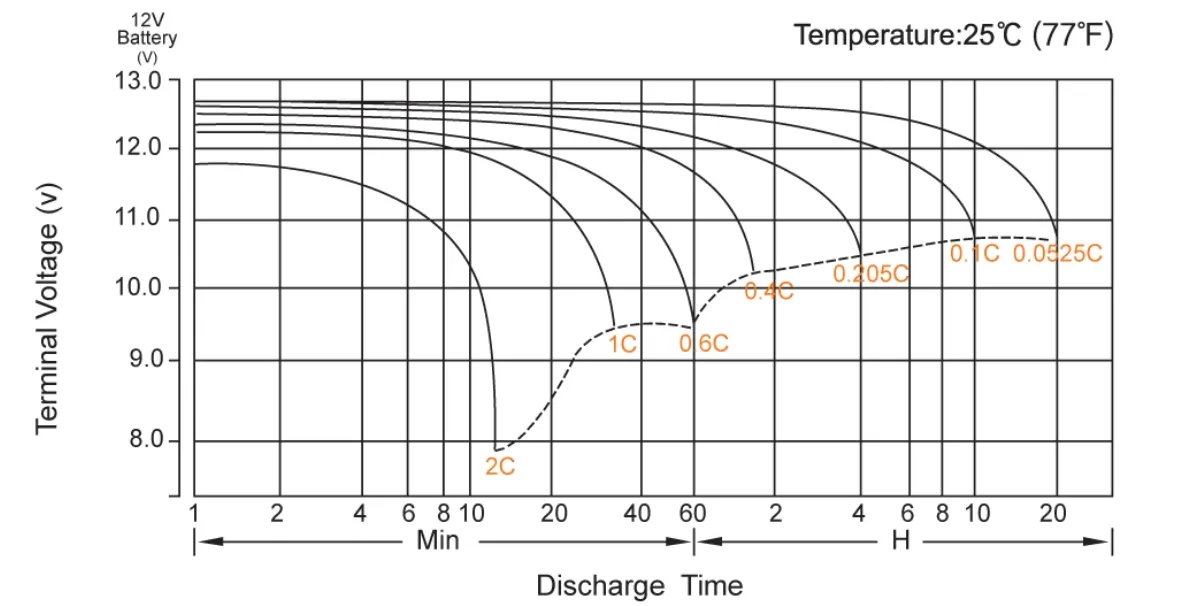

Discharge Characteristics Chart

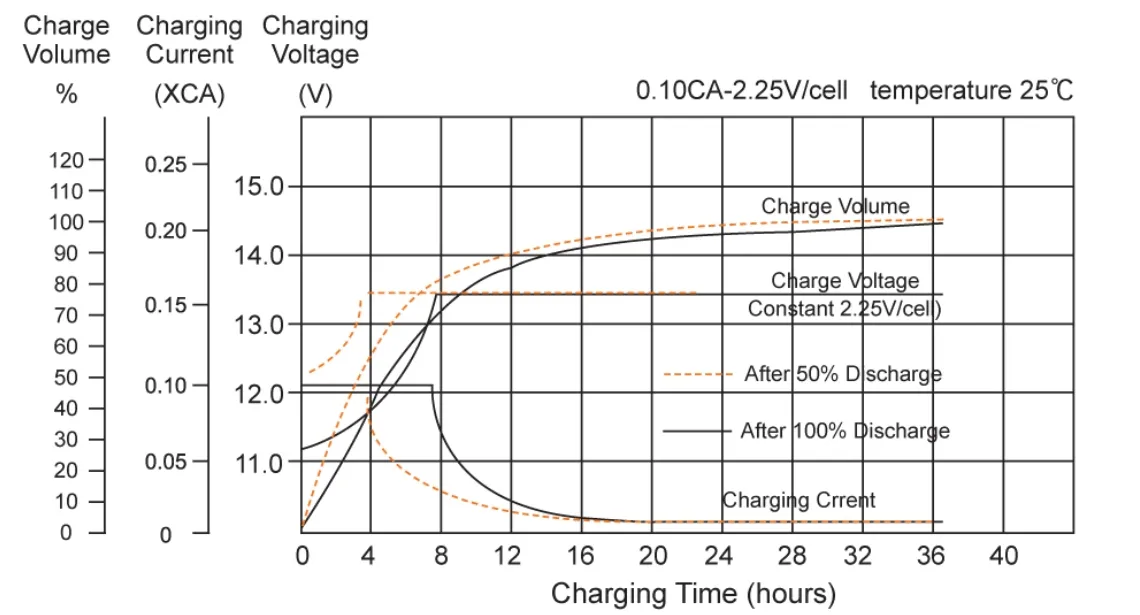

Float Charging Characteristics Chart

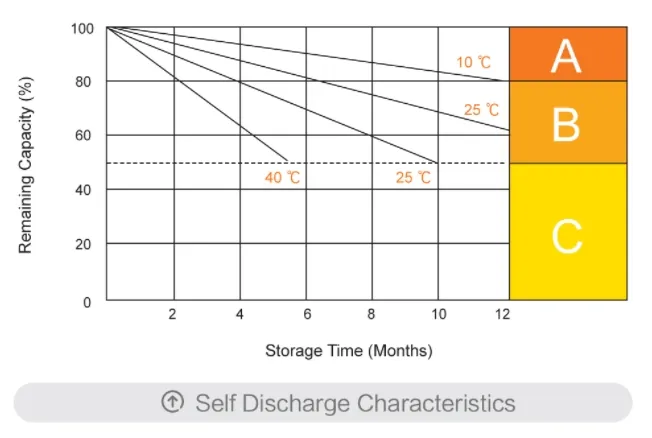

Self Discharge Characteristics

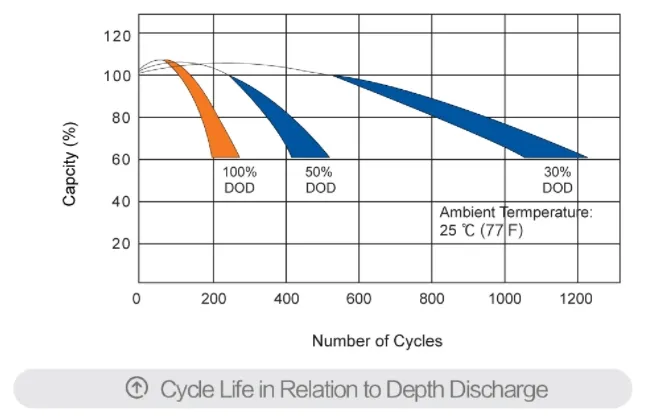

Cycle Life Characteristics
Main Applications

Versatile Power: SLA Battery supplies the power for UPS, Power backup supplies, Emergency lighting, Electric tools, Power stations, Kids' cars, Electronic scales, Transportation, and Security/Network communication systems.

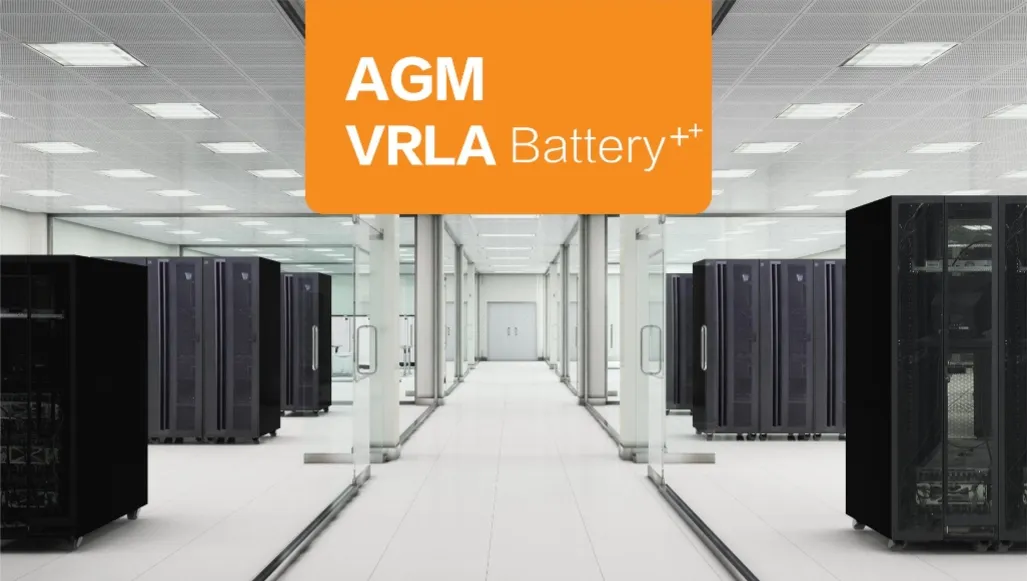

Application Scenario 1

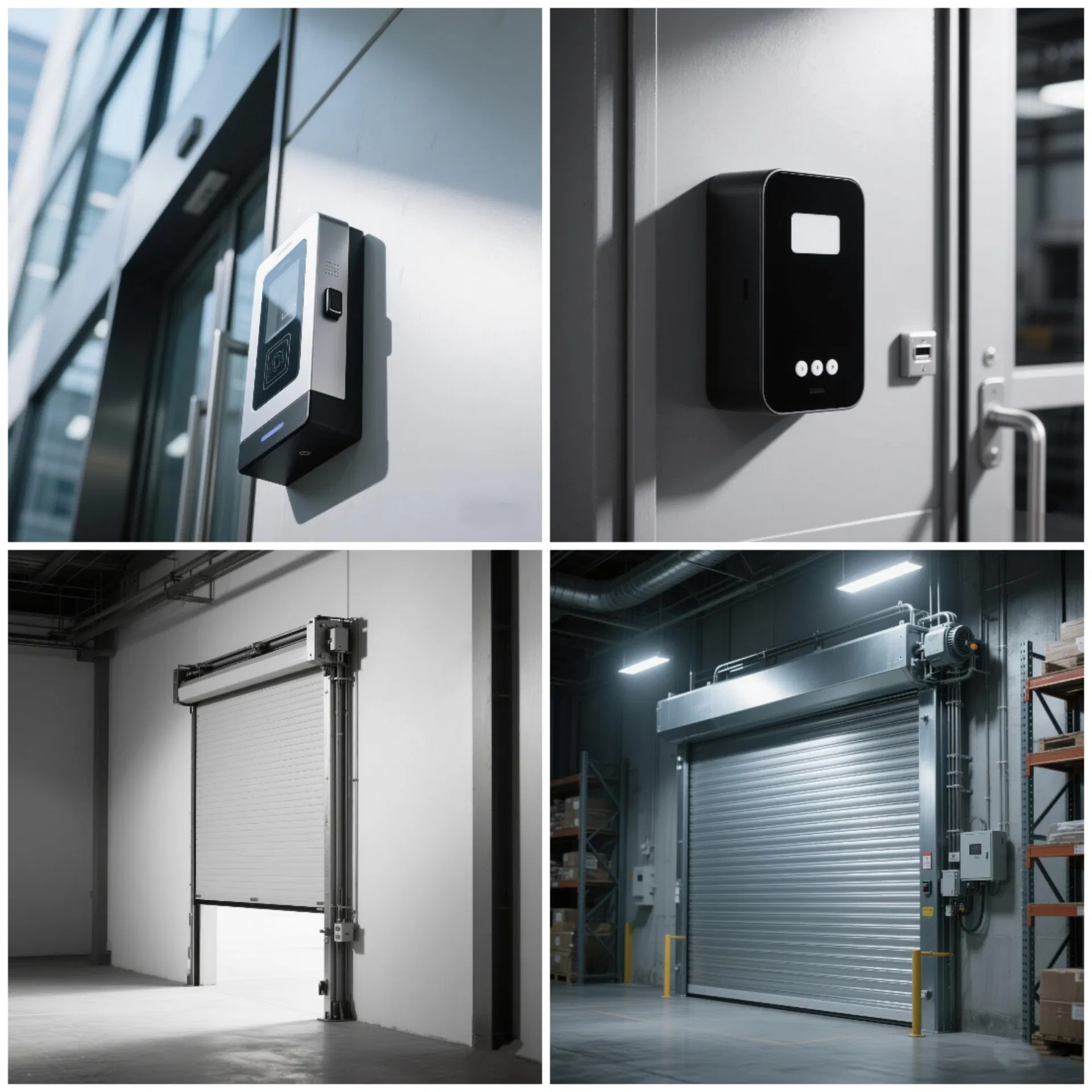

Application Scenario 2
Manufacturing & Quality Control

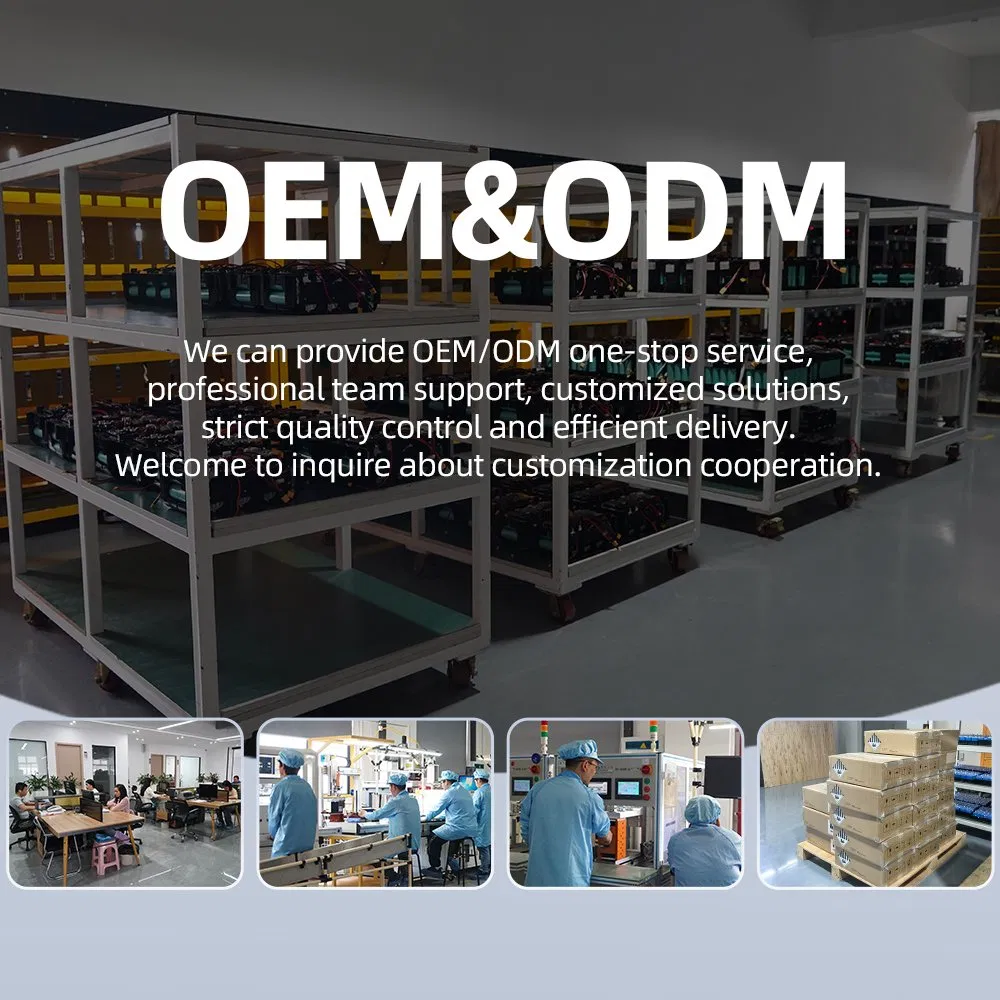

OEM ODM Capability
Product Certifications
Factory Overview

Covering an area of 19,980 square meters, our facility holds more than 30 patents in the power and battery industry. We specialize in Lithium batteries, power stations, and lead-acid batteries, providing strong support for global applications across 90 countries.

Factory Workshop 1

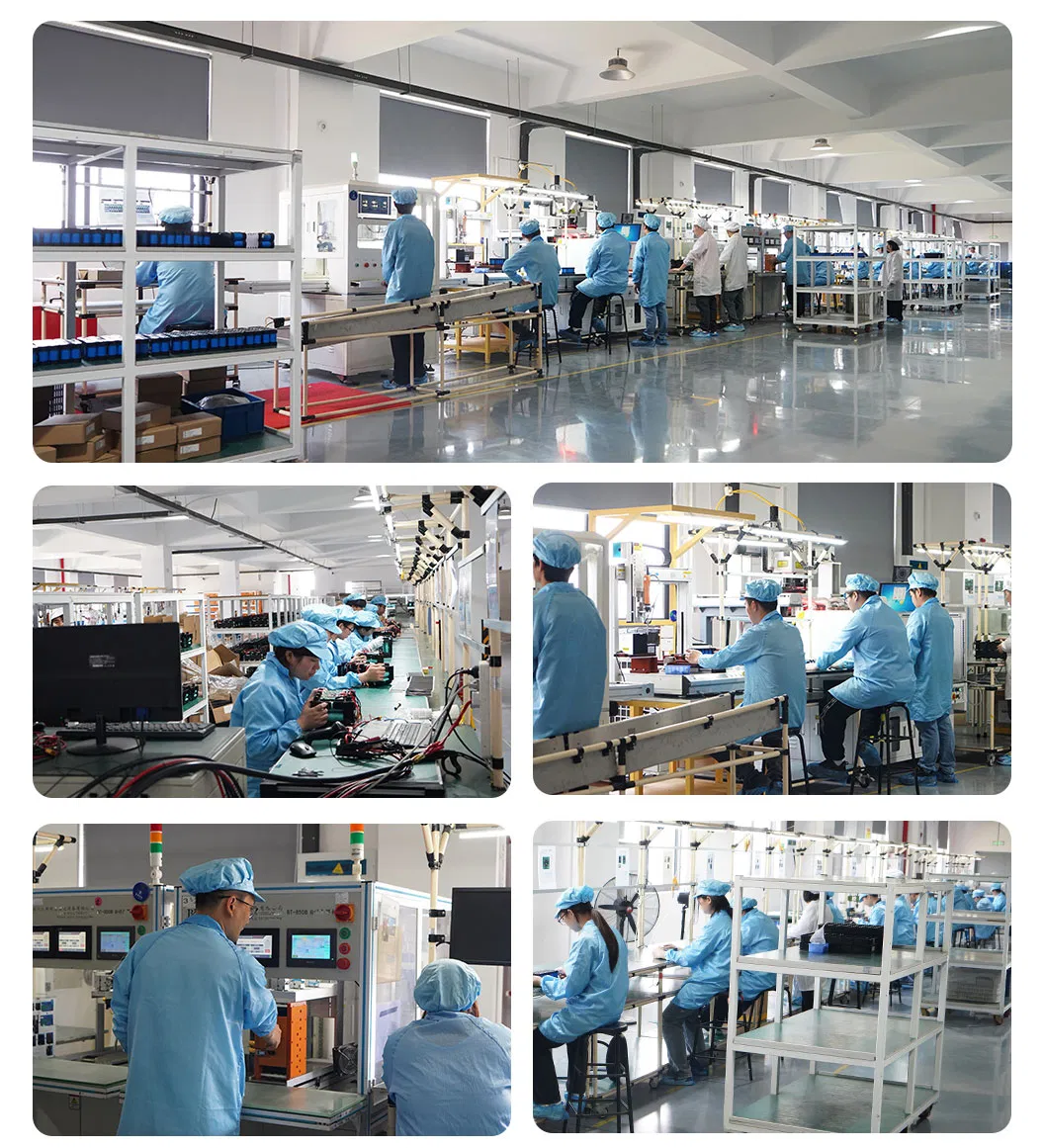

Factory Workshop 2

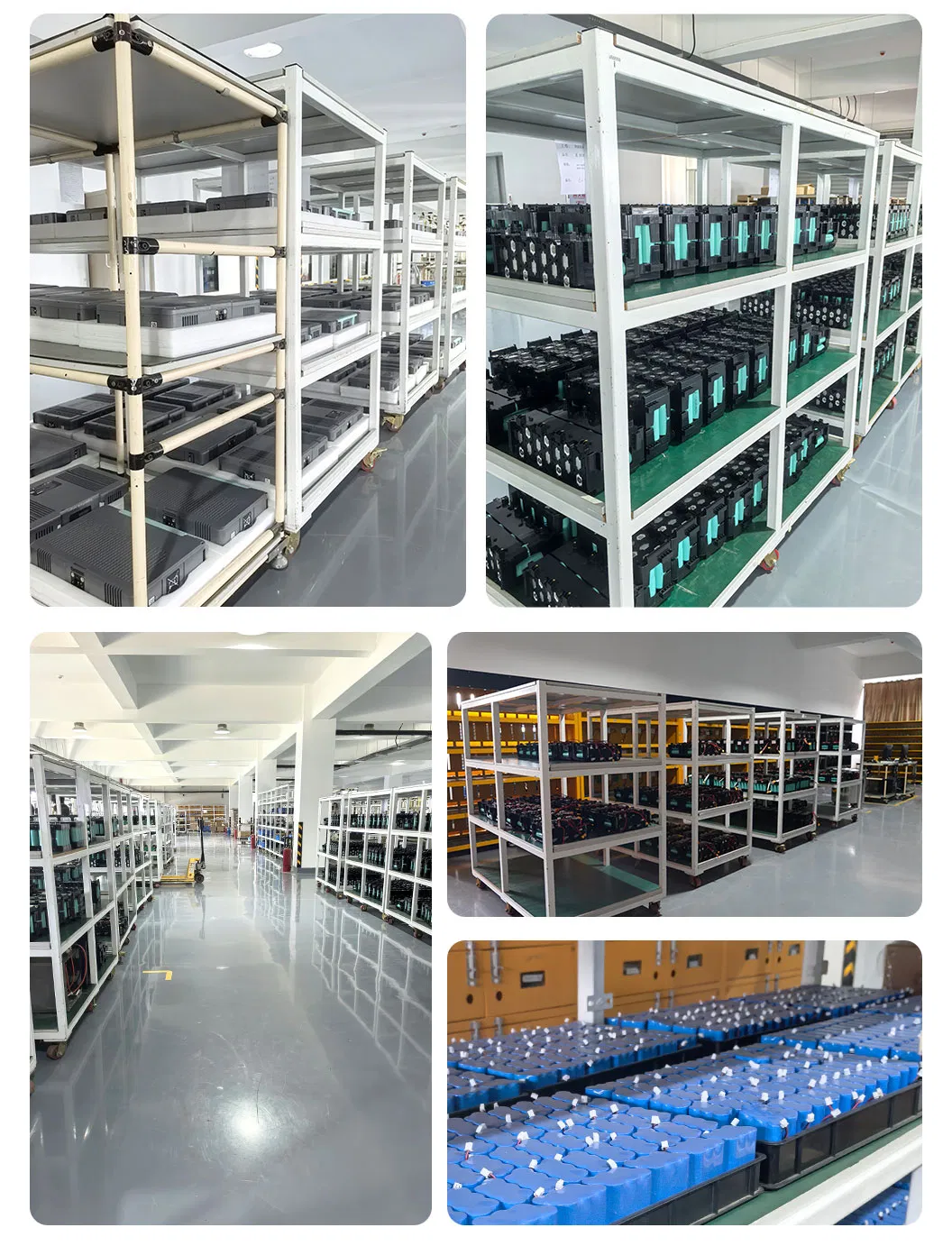

Packaging Process
Frequently Asked Questions
Is this 12V 7Ah battery maintenance-free?
Yes, it is a sealed lead-acid (VRLA) battery using AGM technology, which means it is maintenance-free and doesn't require distilled water.
Can the battery be used in any orientation?
Thanks to the advanced AGM septum that absorbs the electrolyte, the battery is non-spillable and can be placed in any position.
How often should I recharge the battery if it's not in use?
When in an unused state, the battery should be recharged at least every 6 months to maintain its capacity and health.
What material is used for the battery casing?
The casing is made of high-quality ABS engineering plastics, which are firm, weather-resistant, and flame-retardant.
What are the main applications for this 12V 7.0Ah battery?
Common applications include UPS systems, emergency lighting, fire safety systems, electronic scales, and kids' electric toy cars.
What is the purity of the lead used in construction?
We use high-quality lead with a purity level of 0.99996 to ensure optimal performance and long life.
