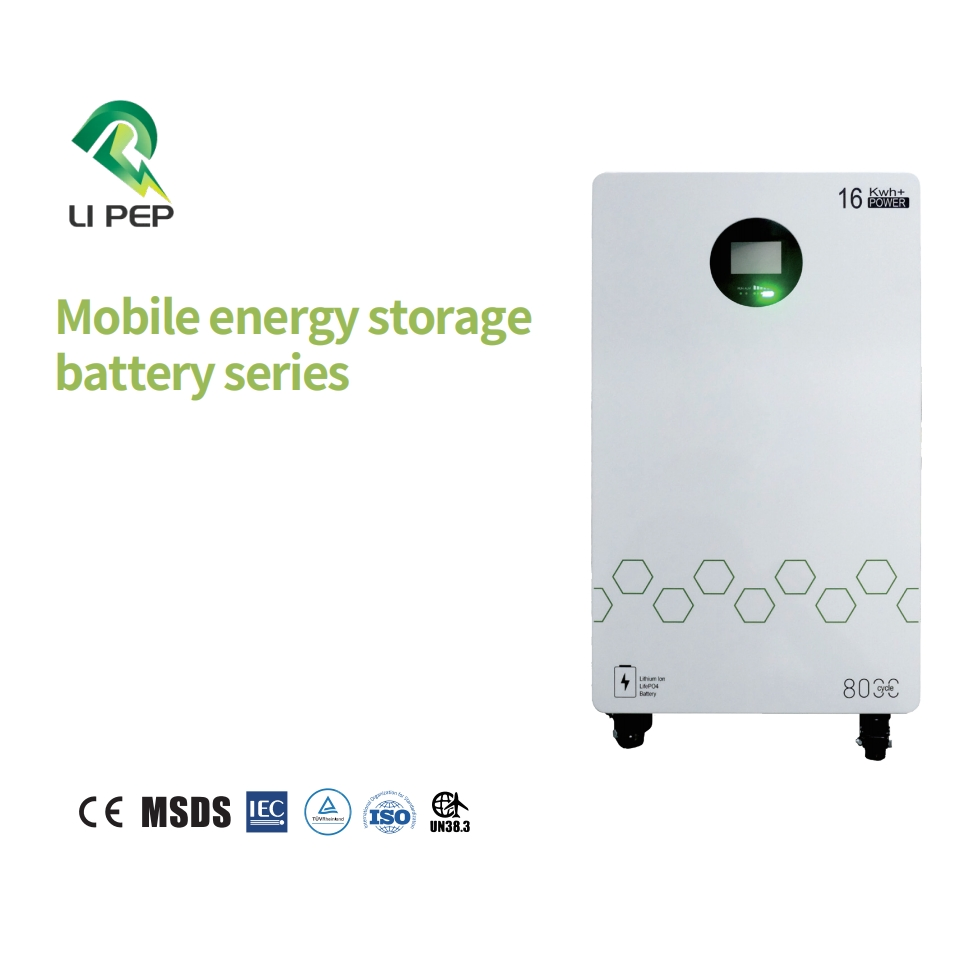

51.2V 314ah Smart Solar Energy Power off Grid Generator System LiFePO4 Lithium Ion Cell Battery Pack Wheeled Portable Removable Solar Storage Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
48V/51.2V 280Ah/314Ah
Cycle Life
6000 Cycles
Nominal Capacity
314ah
Rate Voltage(VDC)
51.2V
Cell Combination
16s1p
Rate Energy (Kwh)
14.3/16.07
Max. Charge Current
200A
Max. Discharge Current
200A
IP Class
IP65
Communication
RS485/RS232/CAN
🔋 Product Description

51.2V 314ah Home Solar Generator System LiFePO4 Lithium Ion Cell Wheeled Removable Solar Storage Battery

Wheeled Removable Energy Storage Battery adopts wheel design, beautiful shape, and convenient movement; including the mainstream market inverter protocol, directly communicates; adopts a comprehensive and multi-level battery protection strategy and fault isolation measures to ensure the safe operation of the system. Widely used in small commercial and family energy storage.

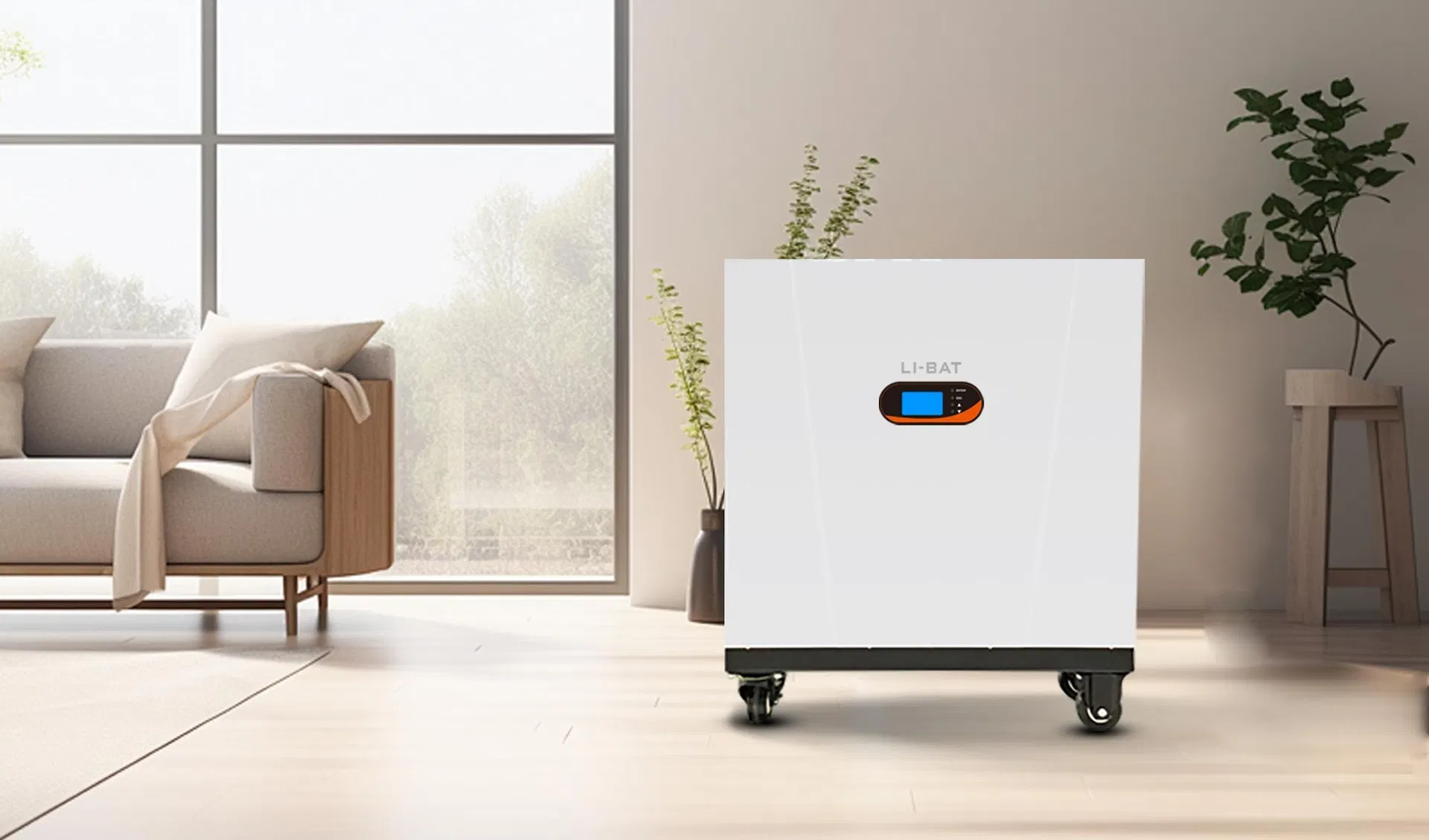

Solar Storage Battery
🌟 Product Features
  • Safety and Reliability: Equipped with BMS and two-stage overcurrent protection via circuit breakers.
  • Quick and Easy Installation: Features a plug-and-play battery interface for hassle-free setup.
  • Rapid Charging & Discharging: Boasts a high charge/discharge rate, supporting safe 200A fast charging and 200A discharging.
  • Flexible Scalability: Modular design enables parallel operation of up to 15 units.
  • High Compatibility: Works seamlessly with most inverter brands available in the market.
⚙️ Product Parameters
MODELLIPEP-H5I3I4
Rate voltage(Vdc)51.2V
Rate energy (KWh)14.3/16.07KWh
Cycle life25±2℃, 0.5C/0.5C, EOL70% ≥6000
Charge temperature0℃~55℃
Material systemLiFePO4
Product dimension1065*460*271 mm
Net weight123kg
CertificatesUN38.3, MSDS
🔍 Product Details
Detail 1 Detail 2 Detail 3
📦 Packaging & Shipping
Product Packaging

For standard shipments, we adopt high-quality corrugated cartons as our primary packaging option. These cartons are selected for their durability, shock resistance, and cost-effectiveness. Beyond standard packaging, we offer flexible customization services: wooden crates, bubble wrap, moisture-proof bags, custom-sized containers, and branding printing.

🏭 Production Line

A modern production centre and battery laboratory with advanced equipment such as automatic battery sorting and welding equipment, and battery performance testing equipment. The laboratory is equipped with programmable constant temperature and humidity testers, high and low temperature testers, and drop testers.

Production 1 Production 2 Production 3
Frequently Asked Questions
Q1: What is your MOQ?
A: No matter which models you choose, our MOQ of batteries is for one unit.
Q2: What grade of battery cell do you use?
A: We predominantly choose A+/A grade batteries for each model. We can also customize models based on specific price and performance needs.
Q3: Do you have All-in-One machines?
A: Yes, we have wheeled and stacked All-in-One systems. The most popular is the 20KWH capacity with a 5.5KW hybrid inverter, reaching up to 30-50KWH.
Q4: What info is needed for a customized battery model?
A: Please provide: (1) Shape/size needed, (2) Capacity and voltage, (3) Cable/connector types, (4) Max discharge current, (5) Casing requirements, and (6) Protection circuits.
Q5: What are the requirements for OEM/ODM service?
A: Usually, OEM/ODM service requires a minimum order of one 20ft container. However, parameters can be adjusted according to your technical requirements.
Q6: Are the batteries certified for international shipping?
A: Yes, our products have received relevant certificates including UN38.3 and MSDS to ensure safe global transportation.
