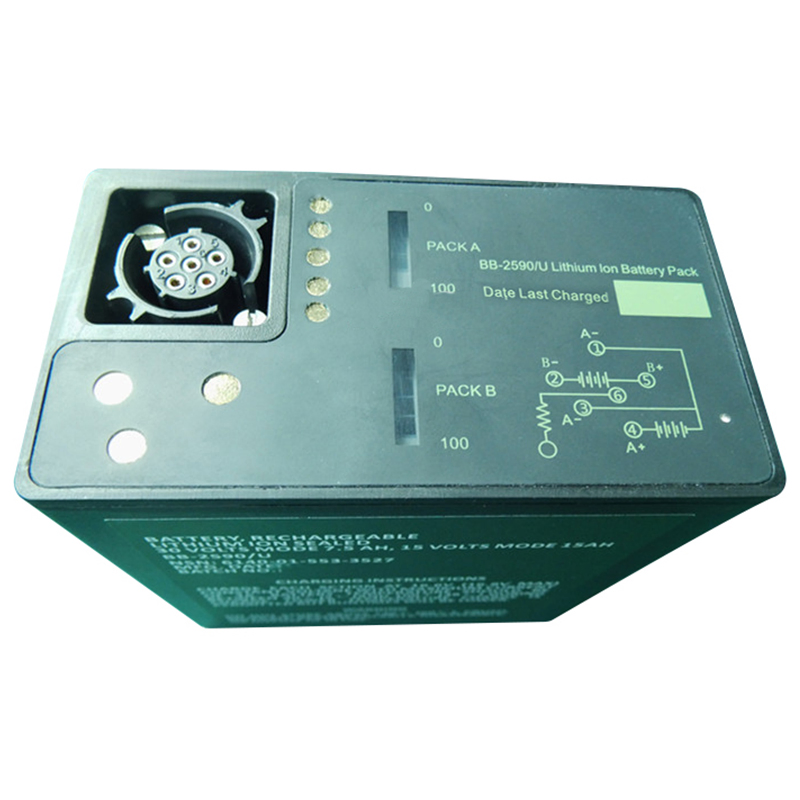

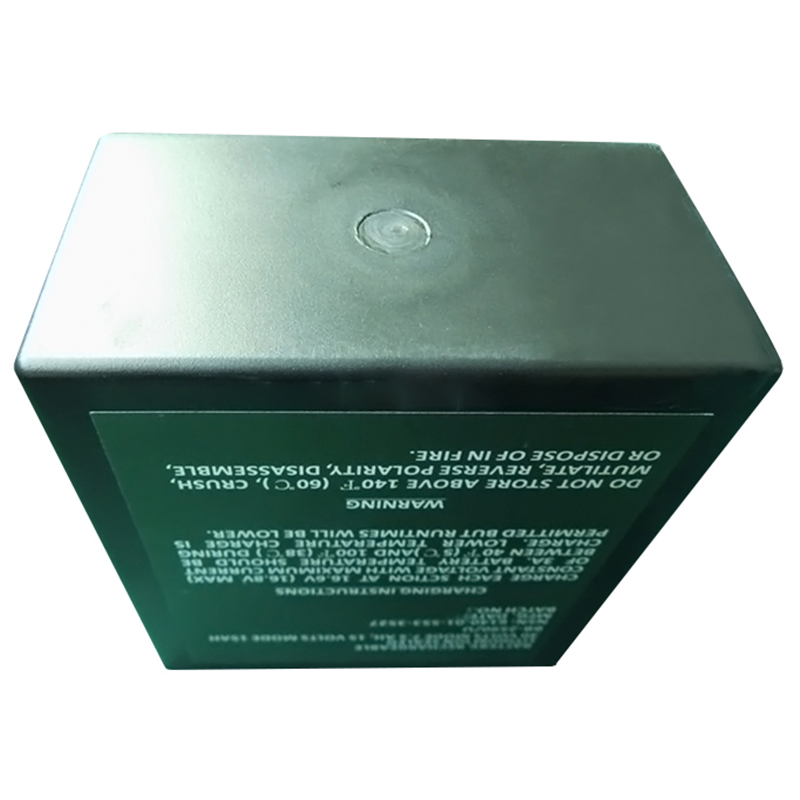

Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
1 / 5
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)
Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)

Low Temperature Bb-2590/U Battery, 9.3ah/18.6ah with Overcharge Protection (-40°C Operation)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📦 Basic Information
Model NO.
BB-2590/U
Nominal Voltage
14.4V/28.8V
Nominal Capacity
9.3Ah/18.6Ah
Rechargeable
Chargeable
Operating Temp
-40ºC to +60ºC
Weight
1500g
Size
127*112*63mm
Housing
Hard Plastic Case

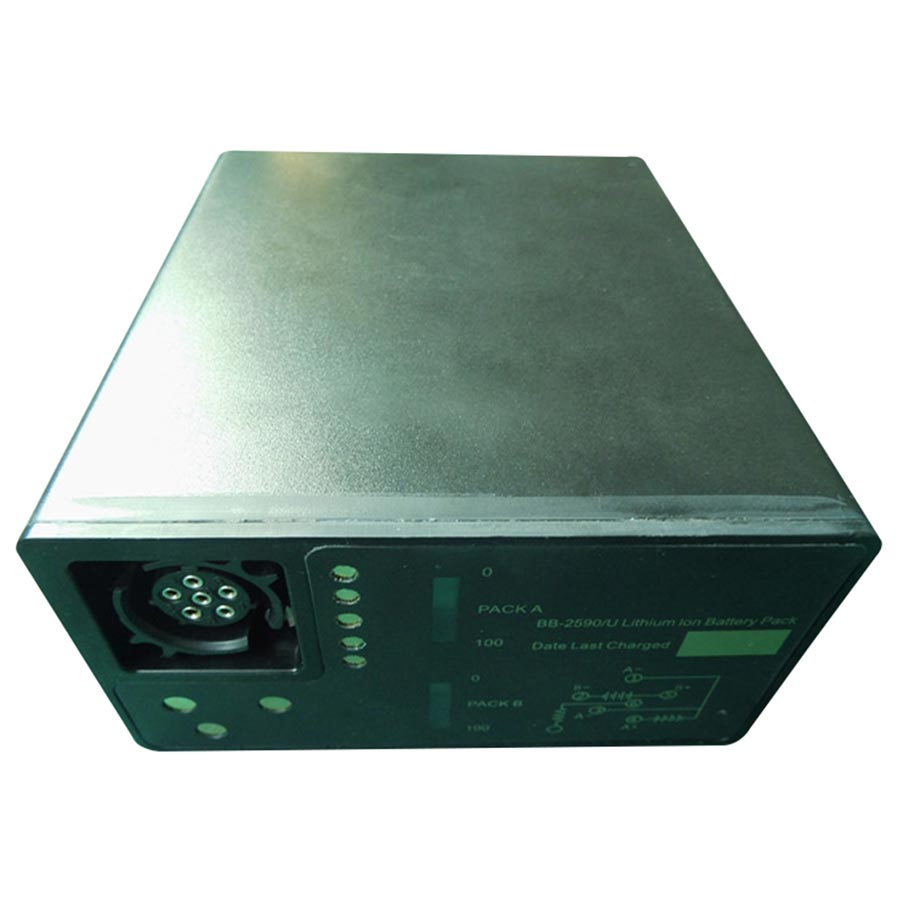

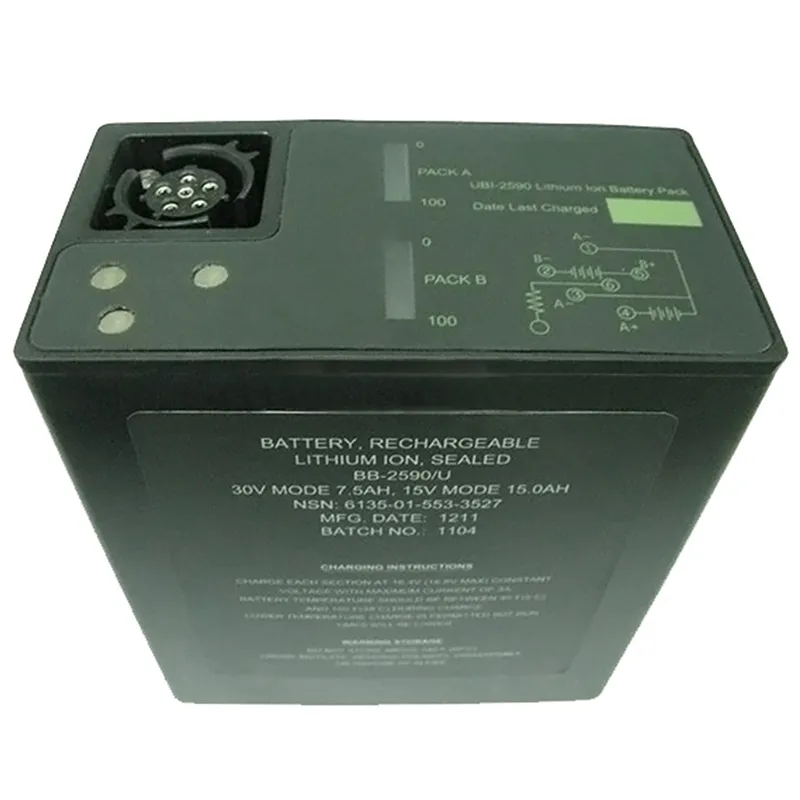

BB-2590/U Battery

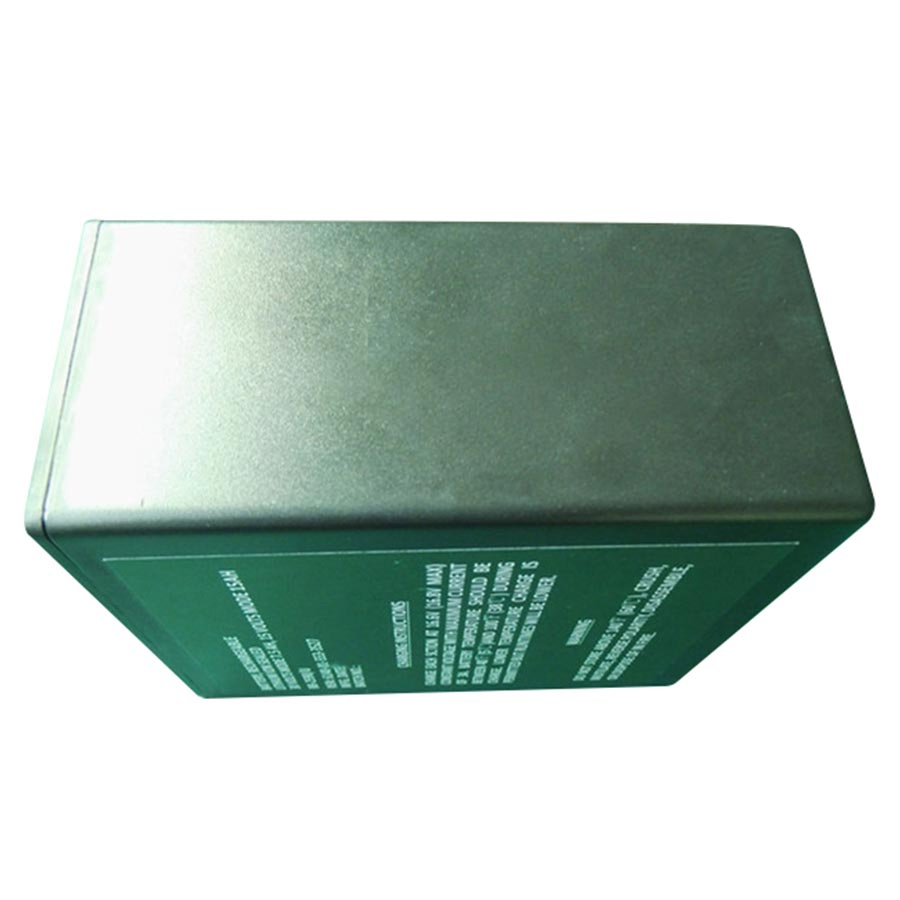

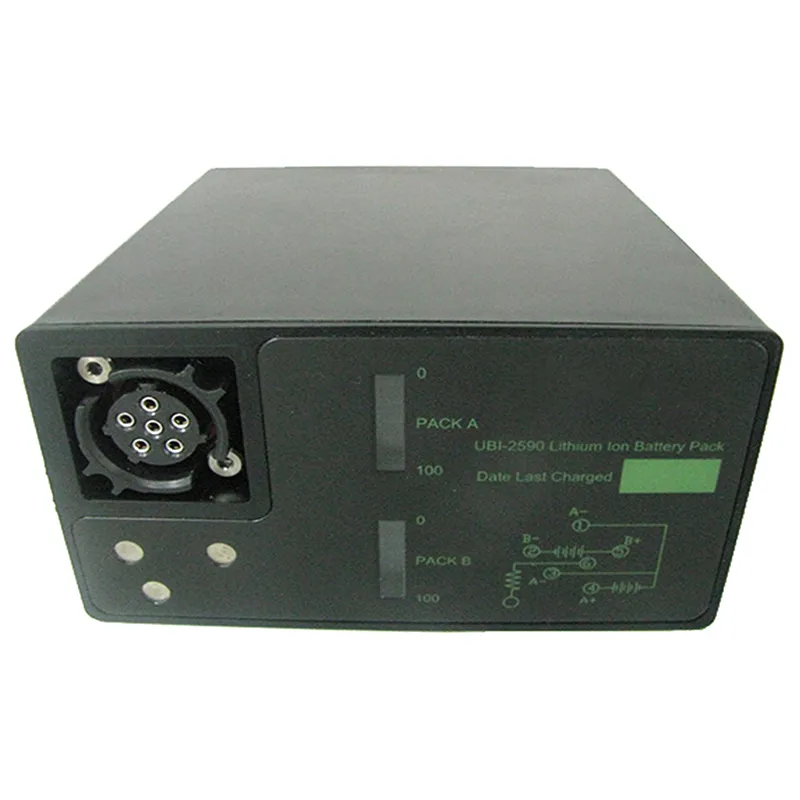

BB-2590/U Battery side view
📊 Specification Details
Item Specification
Average VoltageTypical: 14.4V or 28.8V | Final: 12.0V or 24.0V
Nominal Capacity14.4V Mode: 18.6Ah | 28.8V Mode: 9.3Ah
Max Discharge6.0 A (28.8V) / 12.0 A (14.4V)
Pulse CapabilityUp to 18A (28.8V) / 36A (14.4V)
Storage Temp-20℃ to +45℃
Terminals/Connector6 pin polarized socket
🚀 Features & Highlights

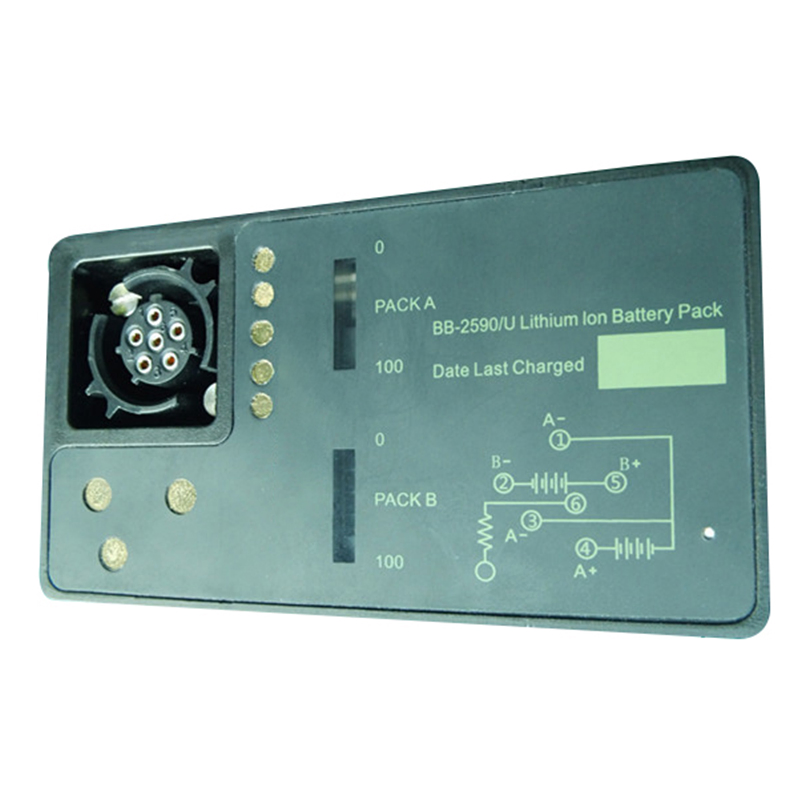

Battery Detail
Battery Display
⭐ Advantages
  • Meets MIL-PRF-32383 Standards
  • Instantaneous start up Lithium Ion battery
  • Dual state of charge "gas gauge" LCD displays
  • Durable high impact plastic housing
  • Protection against short circuit and improper charge
  • 100% final testing
🛠️ Features
  • Dual modes: 15V or 30V
  • High energy density & Light weight
  • 5-year shelf life
  • SMBUS data communication
  • Safe: non-pressurized system

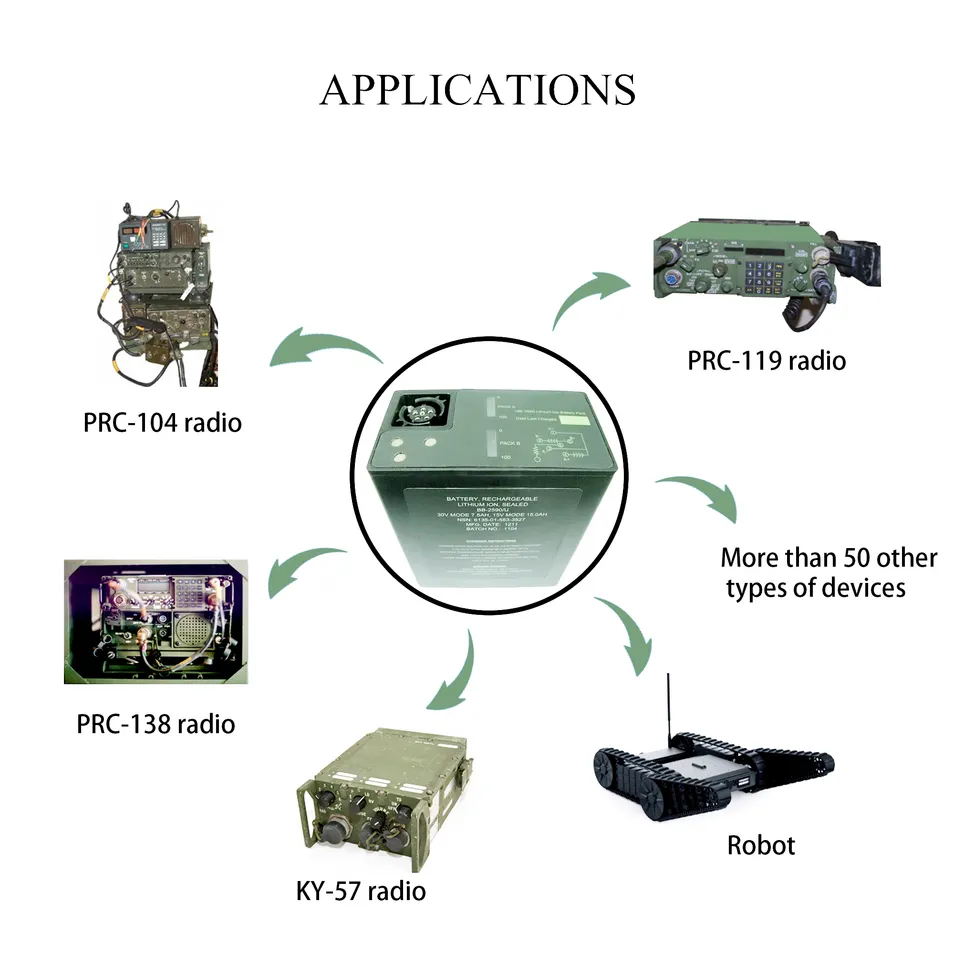

🔌 Applications
  • PRC-104, PRC-119
  • PRC-138, KY-57
  • Robot and other professional equipment
🏢 Production & Quality
Production Line

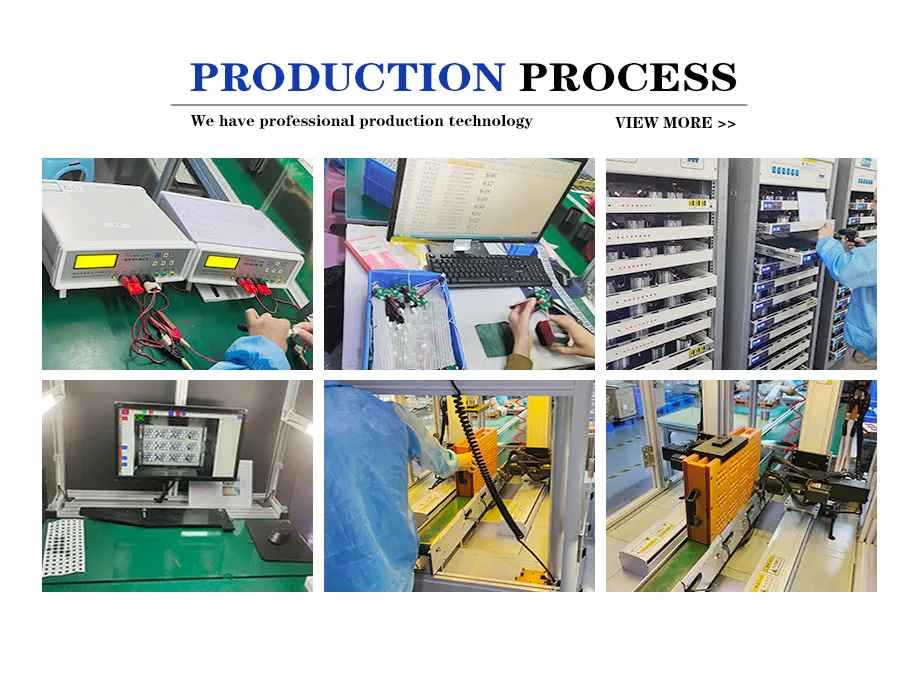

Quality Control

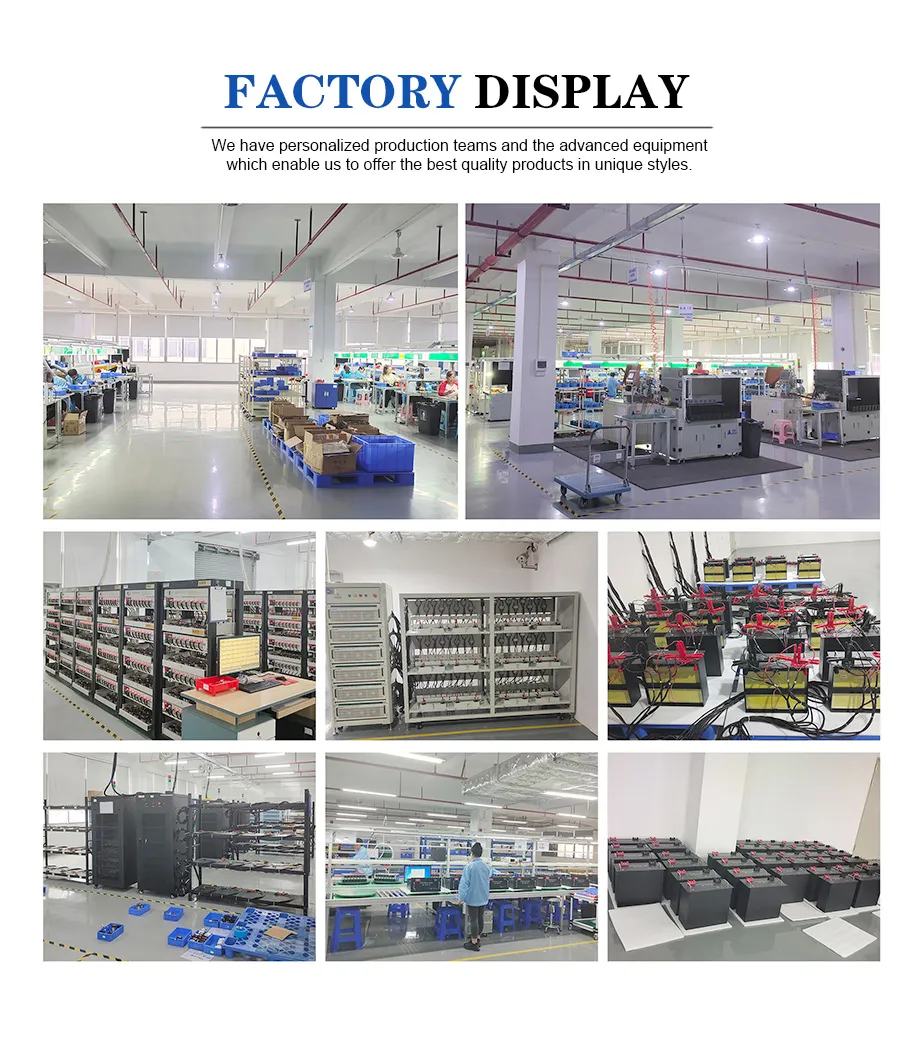

Testing Lab
📜 Certifications

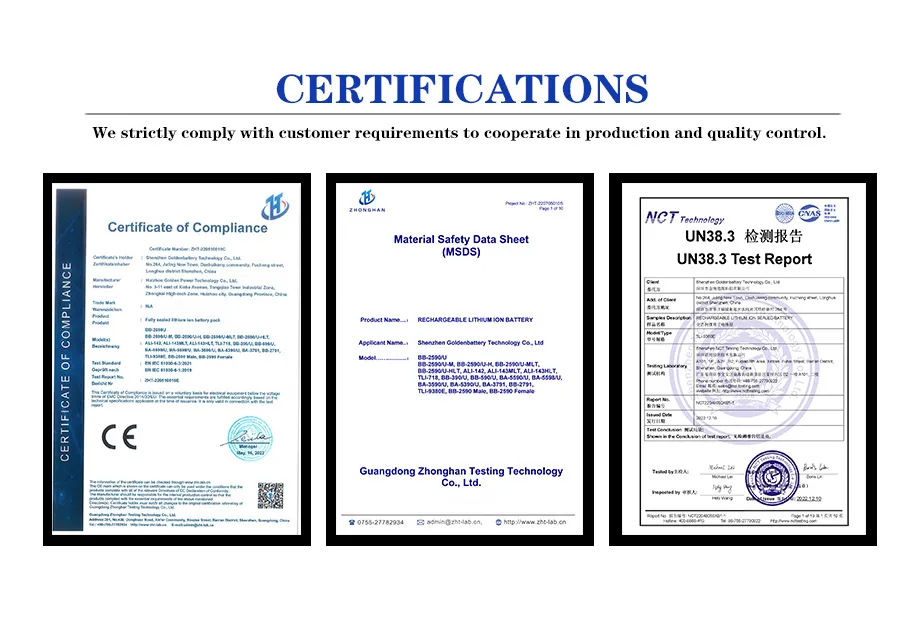

Certification UN38.3
❓ Frequently Asked Questions
Q: Will it work with my equipment?
A: Yes. We can apply it to PRC-104, PRC-119, PRC-138, KY-57, and Robot.
Q: What certifications do you have?
A: We have certified UN38.3 for safe transport and usage.
Q: Can I get a customized consultation for my product needs?
A: Yes, we offer free product consultation for specific project requirements.
Q: What is the operating temperature range?
A: It is designed for low temperature operations, functioning from -40ºC to +60ºC.
Q: Does the battery show the remaining power?
A: Yes, it features dual state of charge "gas gauge" LCD displays for real-time monitoring.
Q: What is the shelf life of the BB-2590/U?
A: This battery has a durable construction with a 5-year shelf life.
