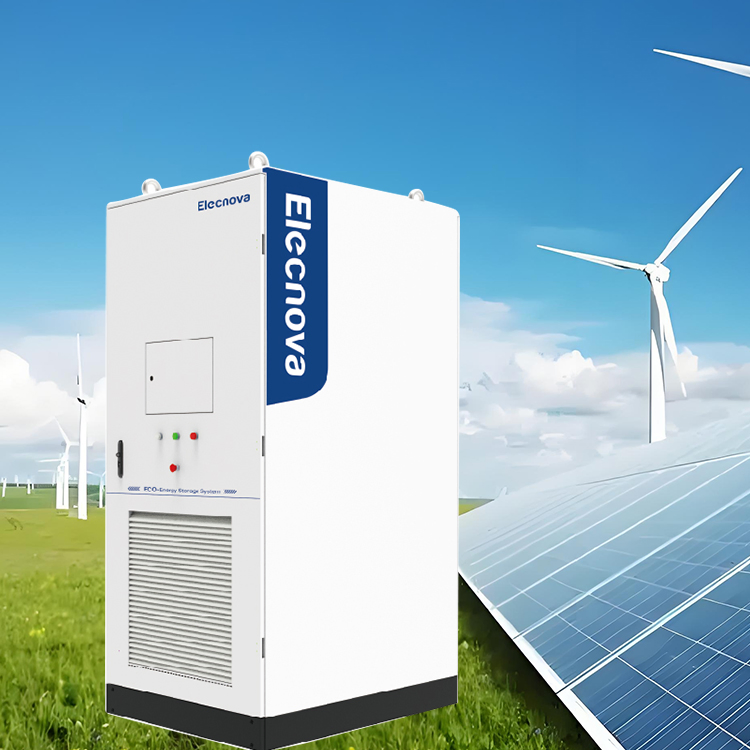

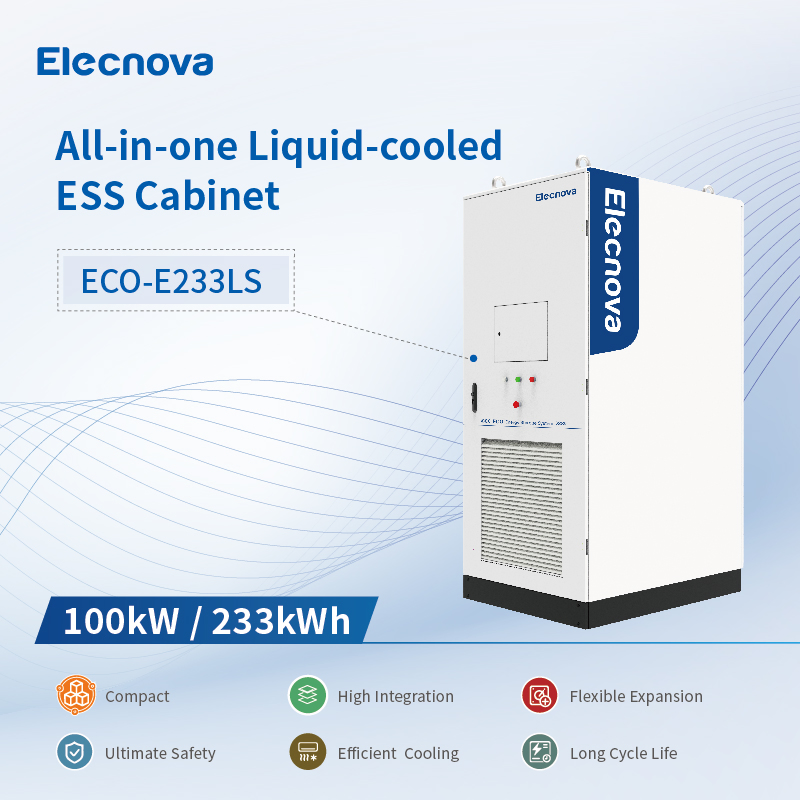

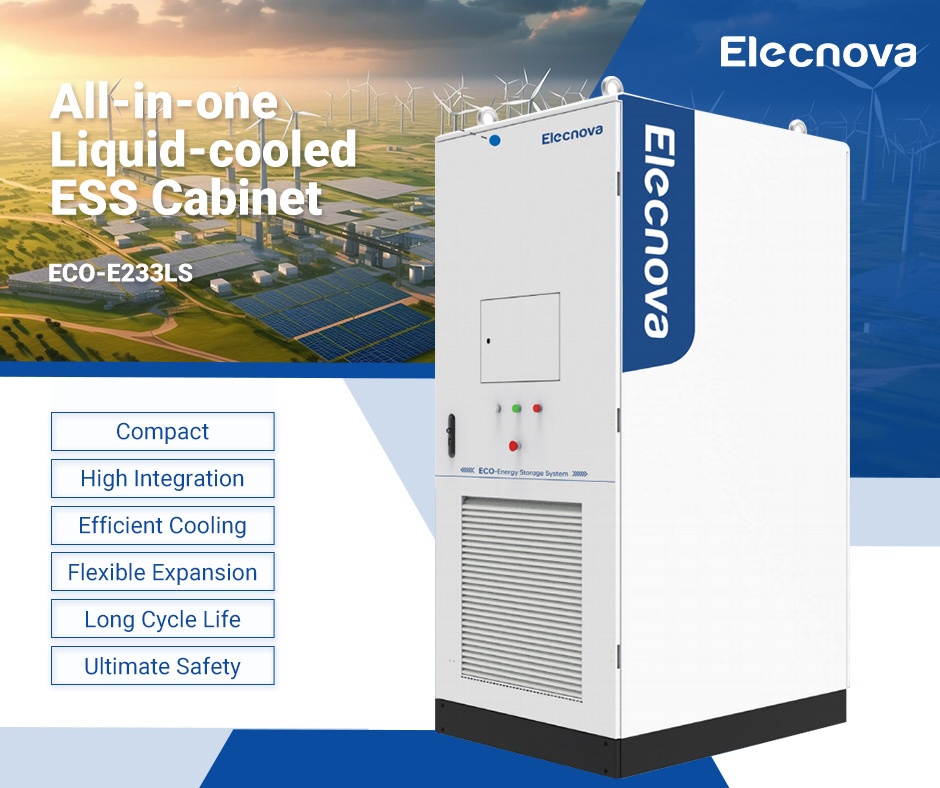

Long Cycle Life 100kw Battery Cabinet with Un38.3

Customization: Available
Nominal Voltage: 728~936V DC
Warranty: 2 Years

Product Description

📋 Basic Info.
Model NO.
ECO-E233LS
Nominal Capacity
100kw
Cycle Life
≥8,000 Times
Battery Type
LFP 3.2V/280ah
System Config
232kwh/1p260s
Voltage Range
728~936V DC
Protection
IP65
AC Rated Power
116kw
Grid Voltage
400V AC
Origin
China
🚀 Product Description

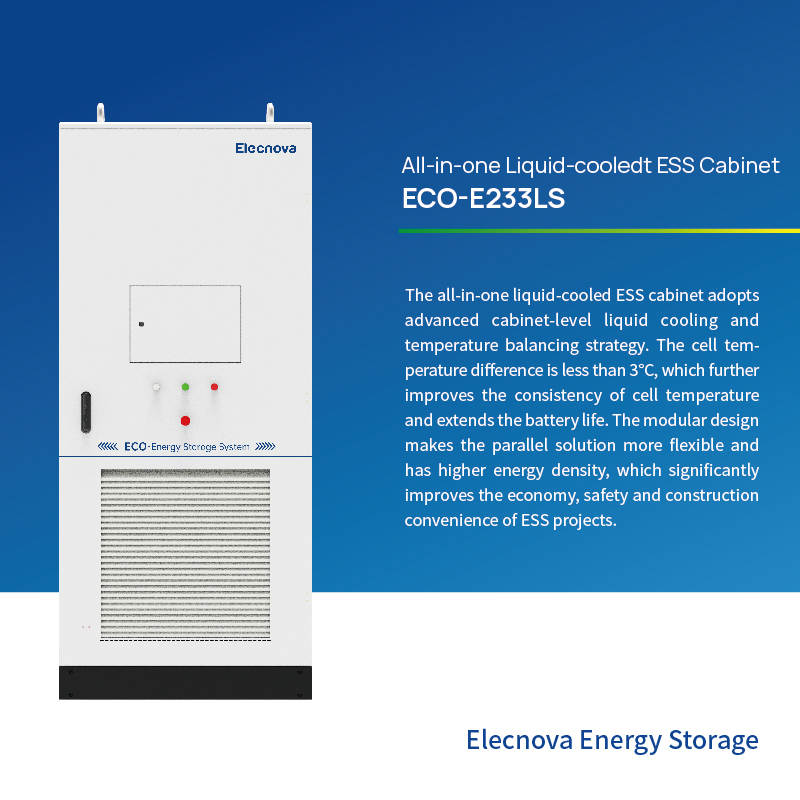

Battery Cabinet Overview
The all-in-one liquid-cooled ESS cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density.

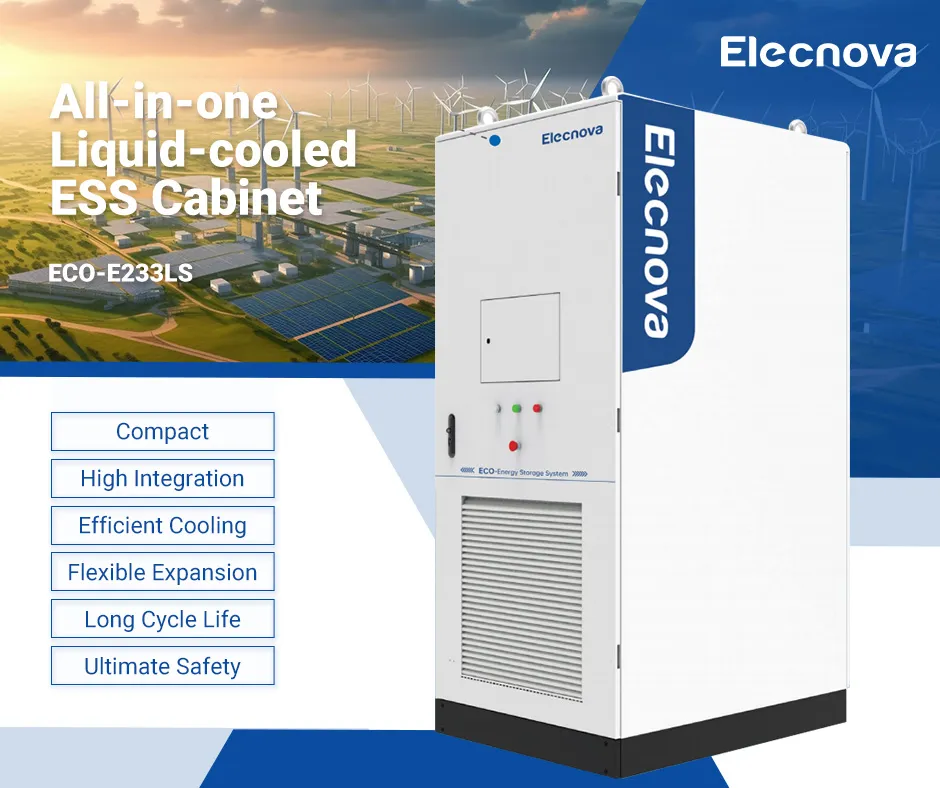

Energy Storage System

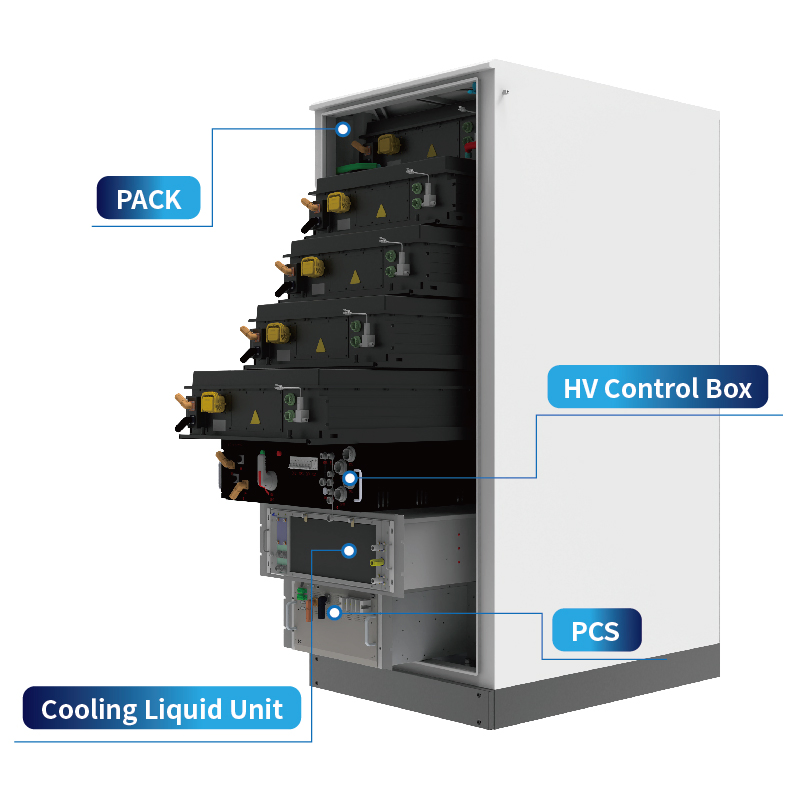

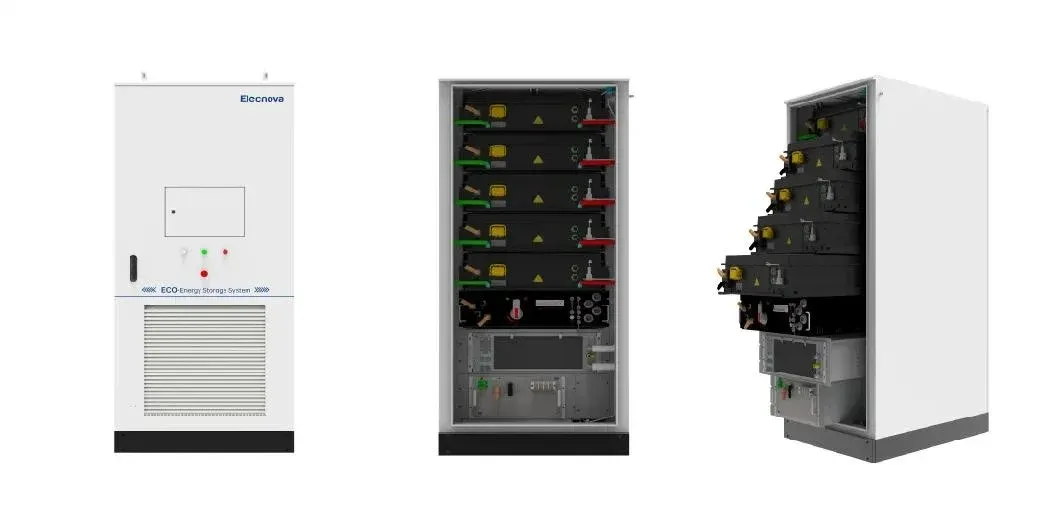

Internal Structure
📸 Detailed Photos

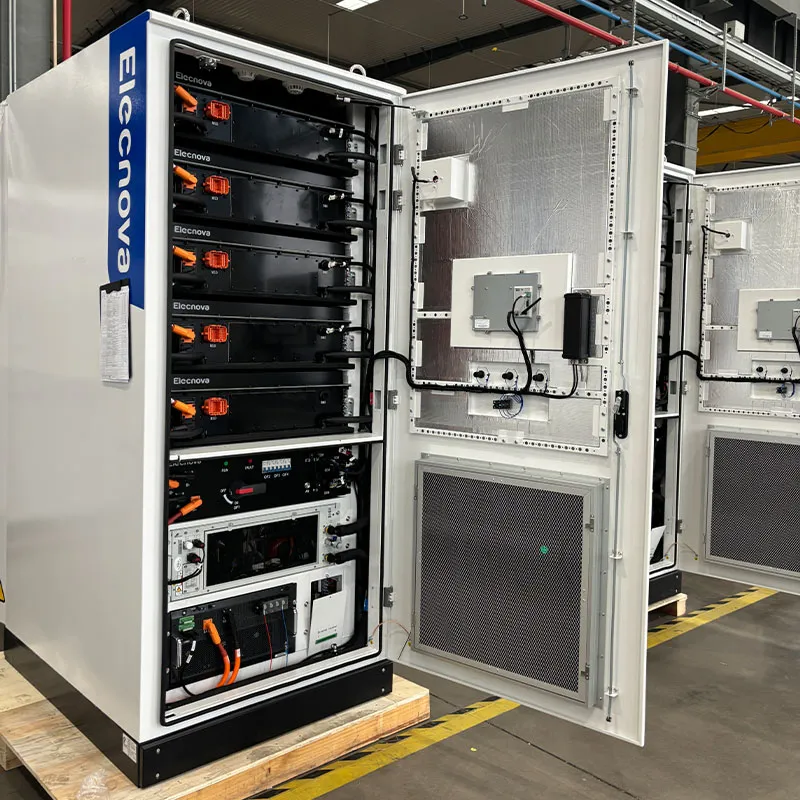

Detail 1
Detail 2

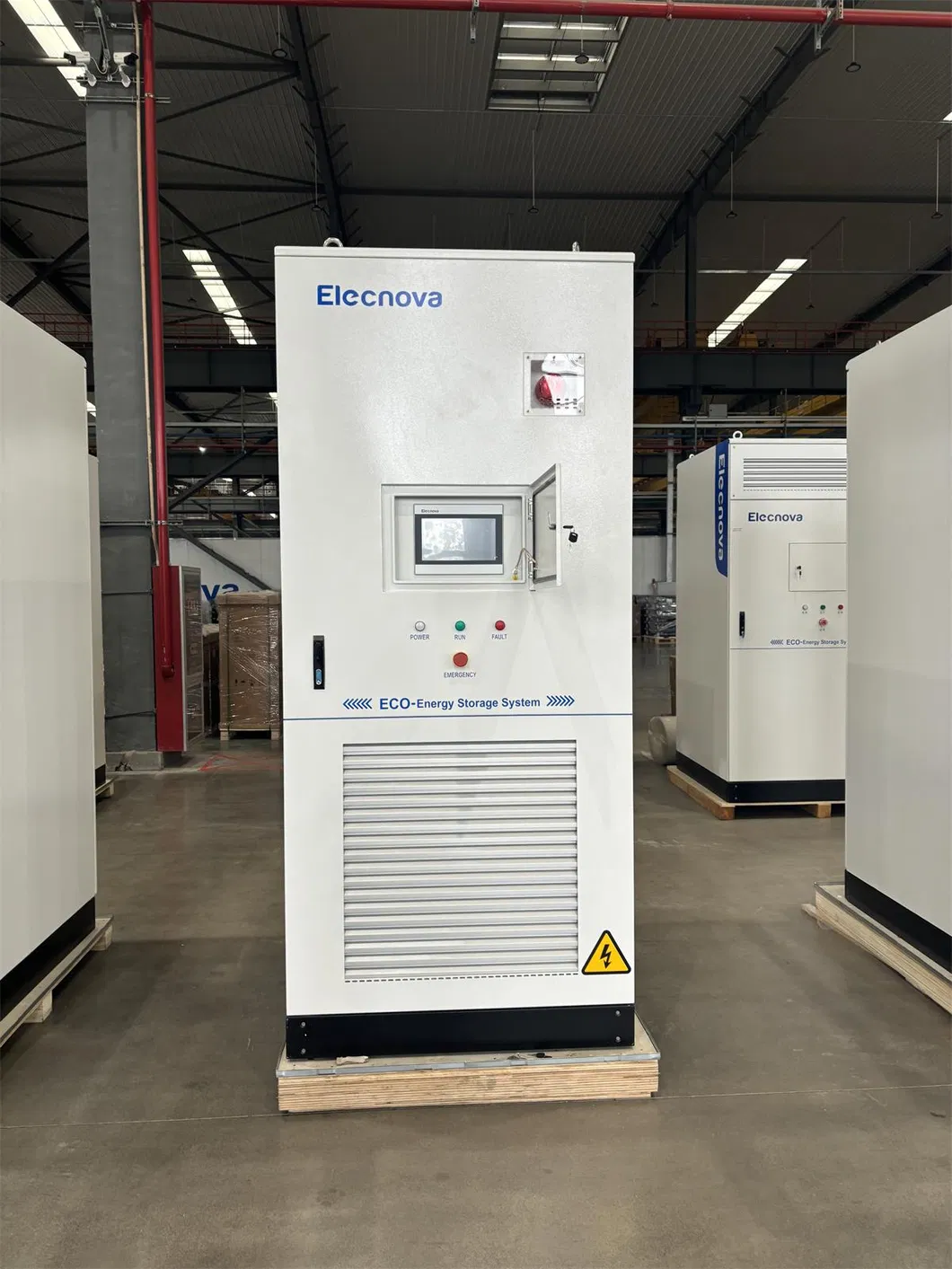

Detail 3

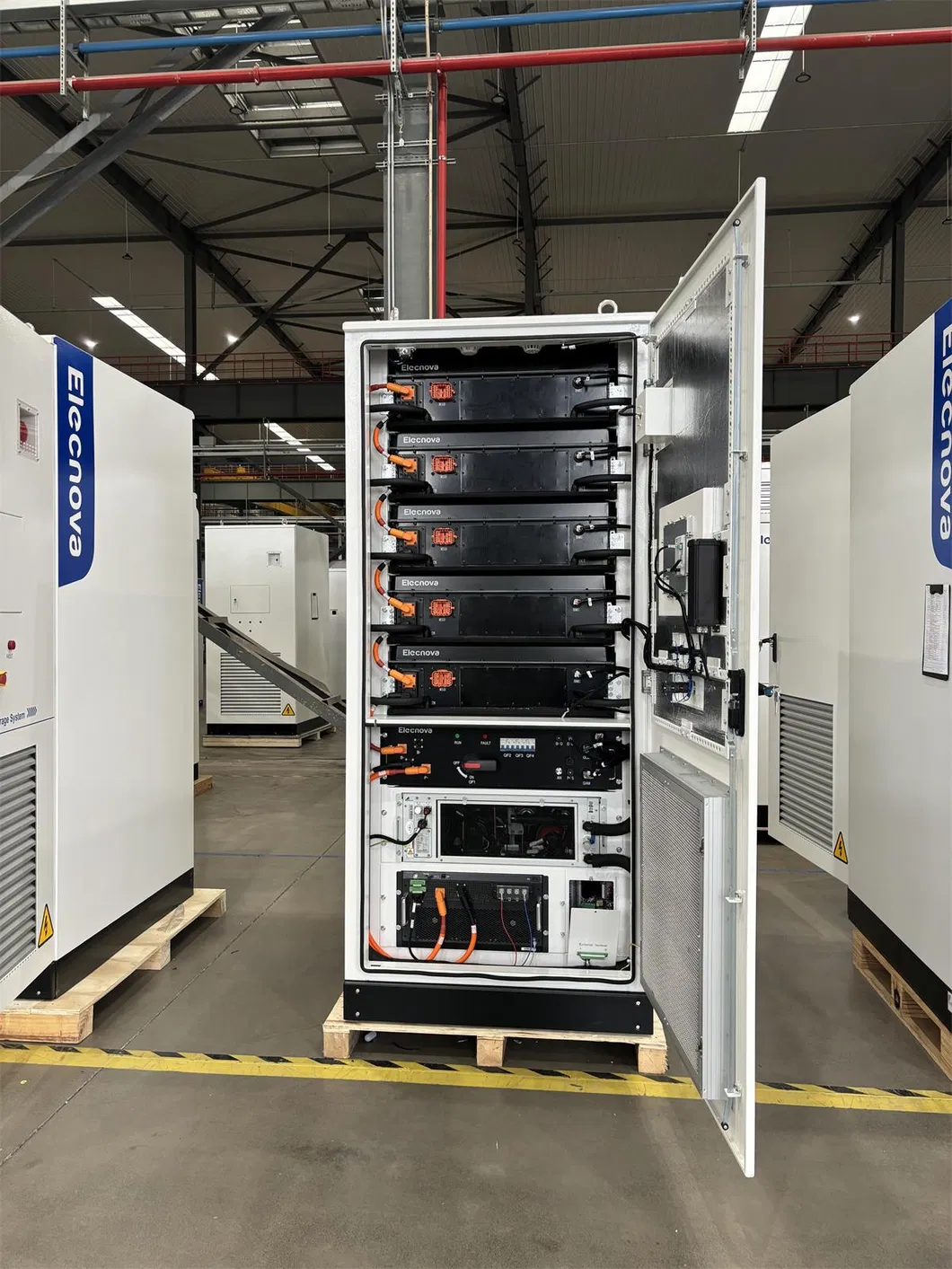

Detail 4

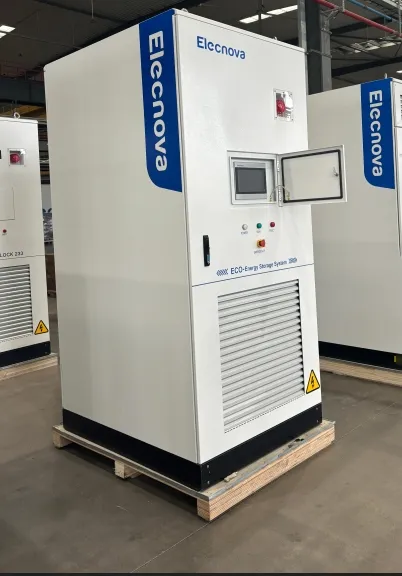

Detail 5

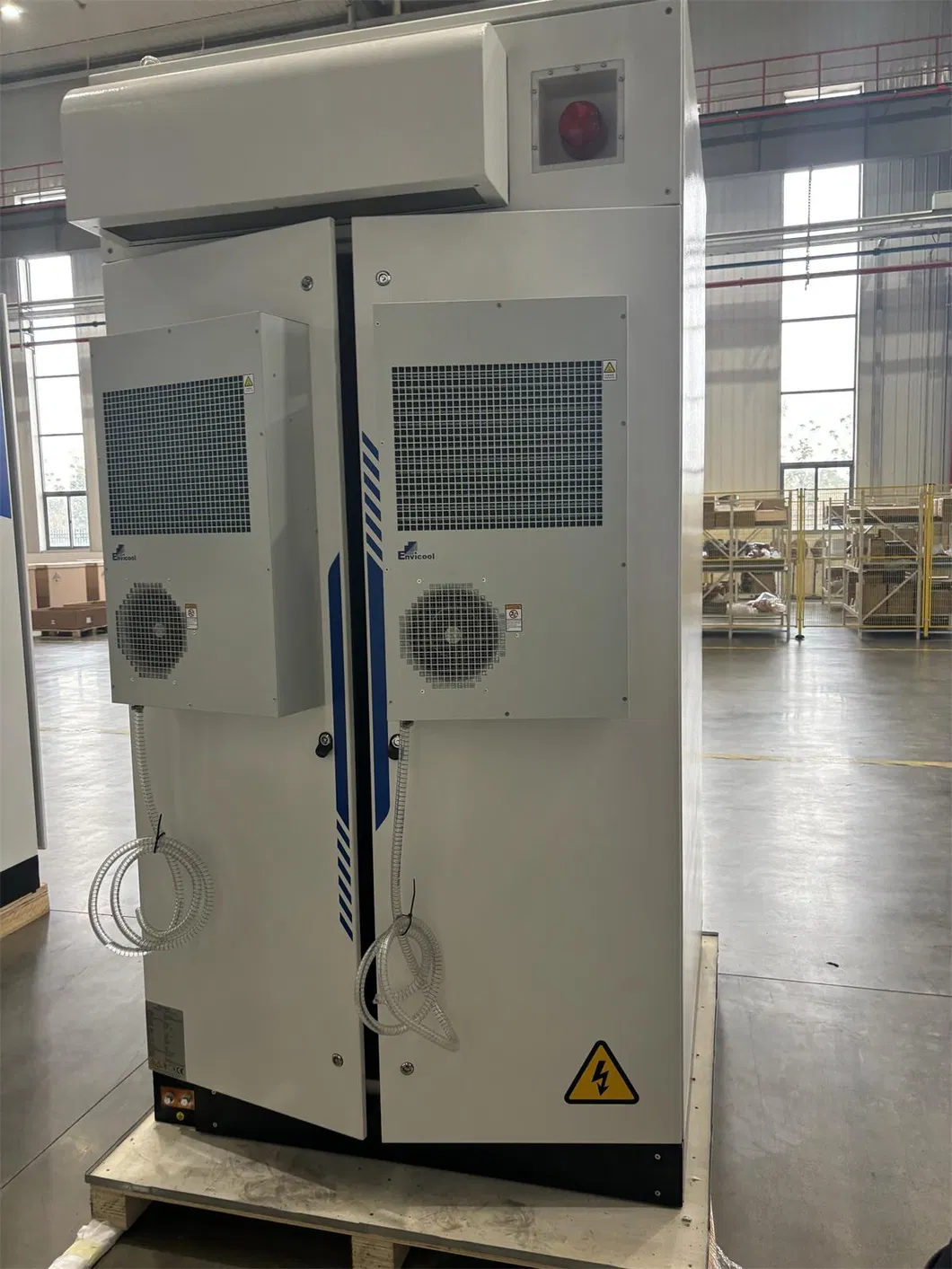

Detail 6

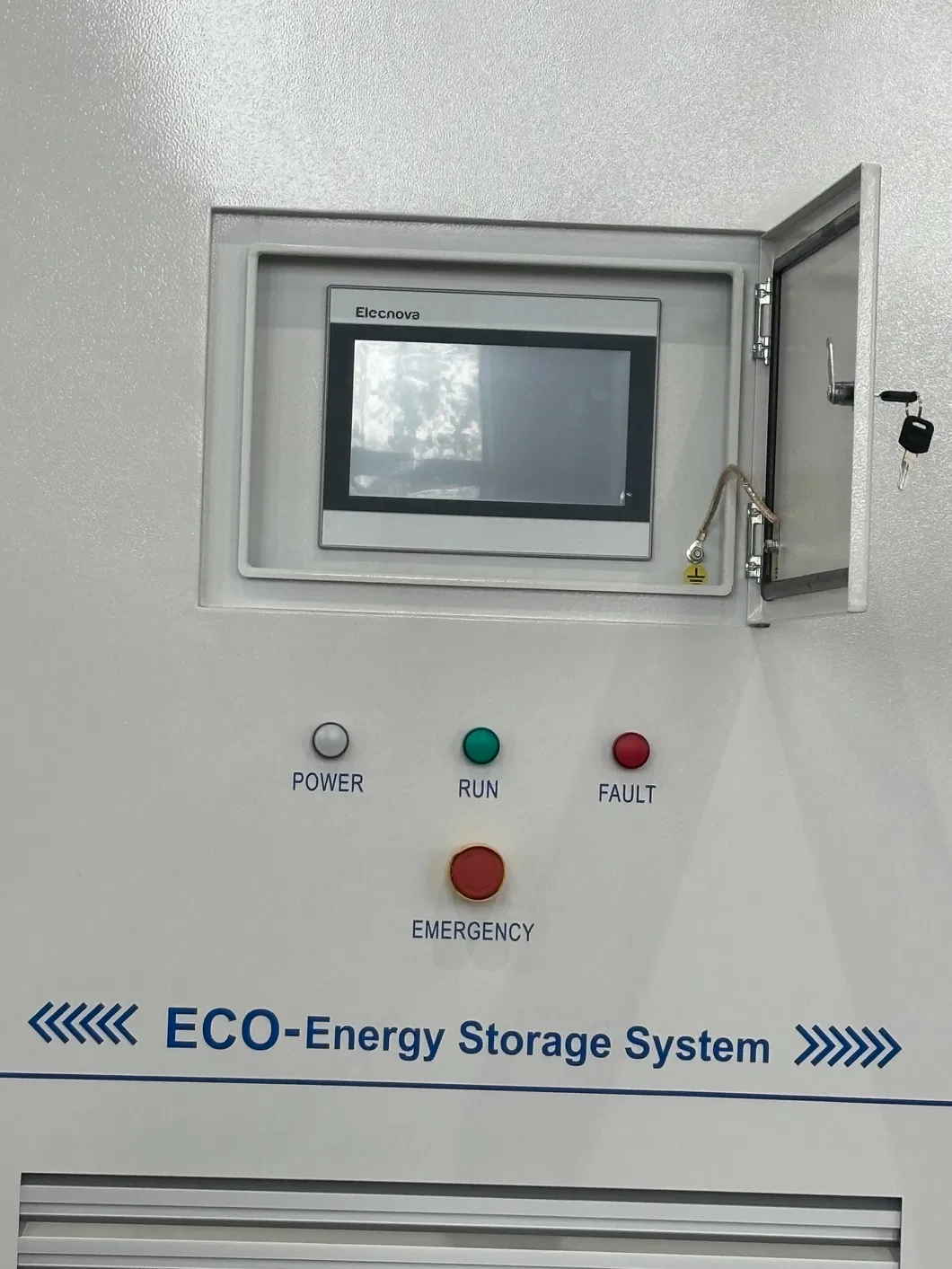

Detail 7
⚙️ Technical Parameters
Parameter ECO-E215WS ECO-E233LS ECO-E101WX
Cell TypeLFP 280AhLFP 120Ah
Battery System215kWh232.96kWh101kWh
AC Rated Power100kW
Efficiency≥90%≥89%
Cycle Life≥8,000 times≥5500 cycles
CoolingForced airActive liquidForced air
🏢 Company Profile & Support
The company integrates R&D, manufacturing, sales and service, providing a complete product ecosystem from smart terminal components to energy storage systems. With over 122 invention patents and 3 R&D centers, we deliver intelligent and digital energy management solutions globally.

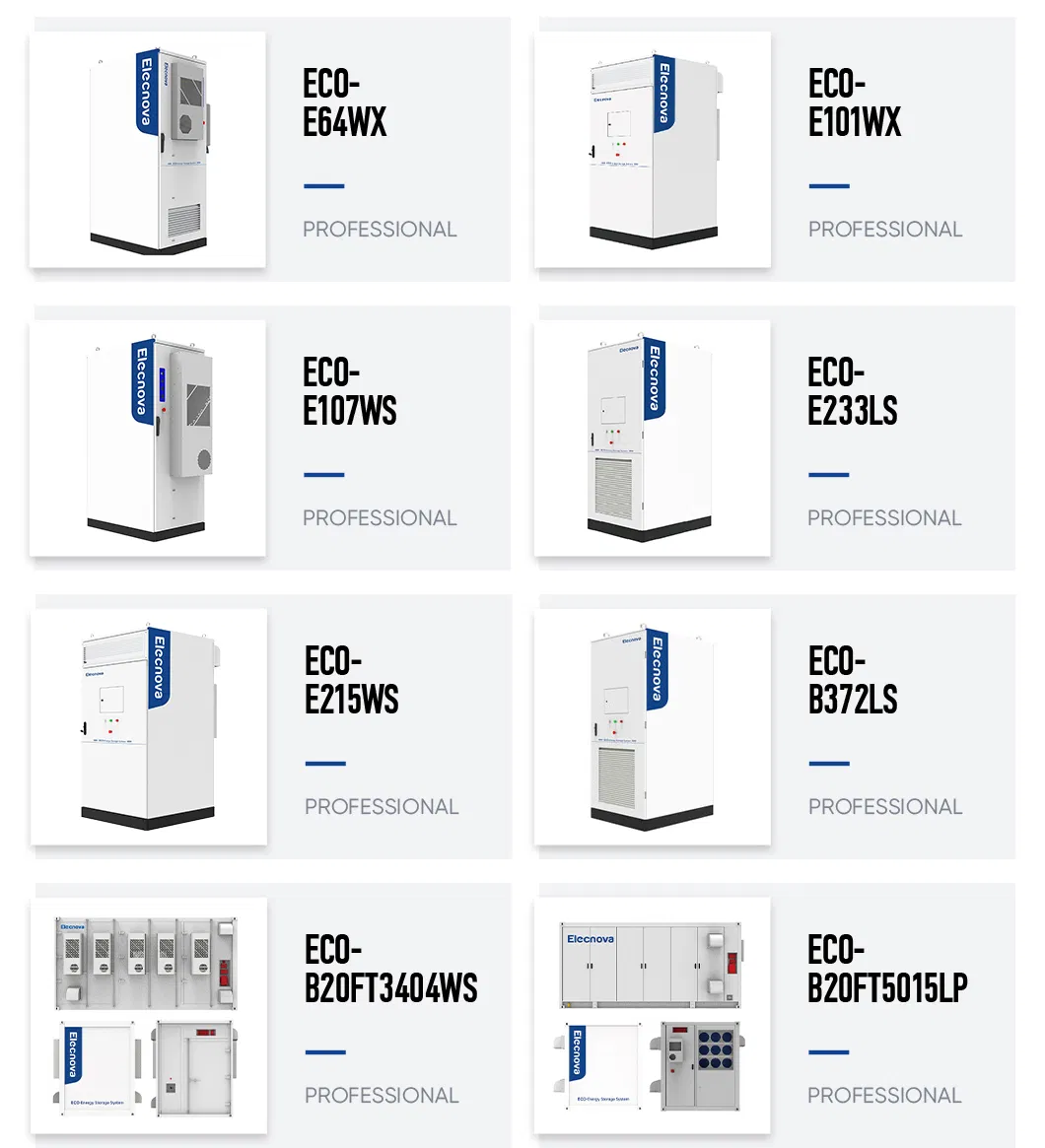

Main product
Facility
📜 Certifications & Exhibition
Certifications
Exhibition
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a manufacturer with a manufacturing center located in Jiangsu, China, featuring 600+ employees and 3 R&D centers.
Do you provide OEM & ODM services?
Yes, we welcome long-term strategic partners for OEM and ODM project implementation.
Are the battery products certified for international shipping?
Yes, our products have obtained UN38.3 certification, ensuring they are available for international sea shipment.
What is the warranty period for your products?
We offer flexible warranty periods of 3, 5, or 10 years depending on the specific product and conditions.
How do you manage after-sales service globally?
We have overseas affiliates and business partners worldwide to provide professional on-site maintenance and support.
Can I request a product sample?
Yes, please provide your contact details and our sales manager will contact you to arrange a sample.
