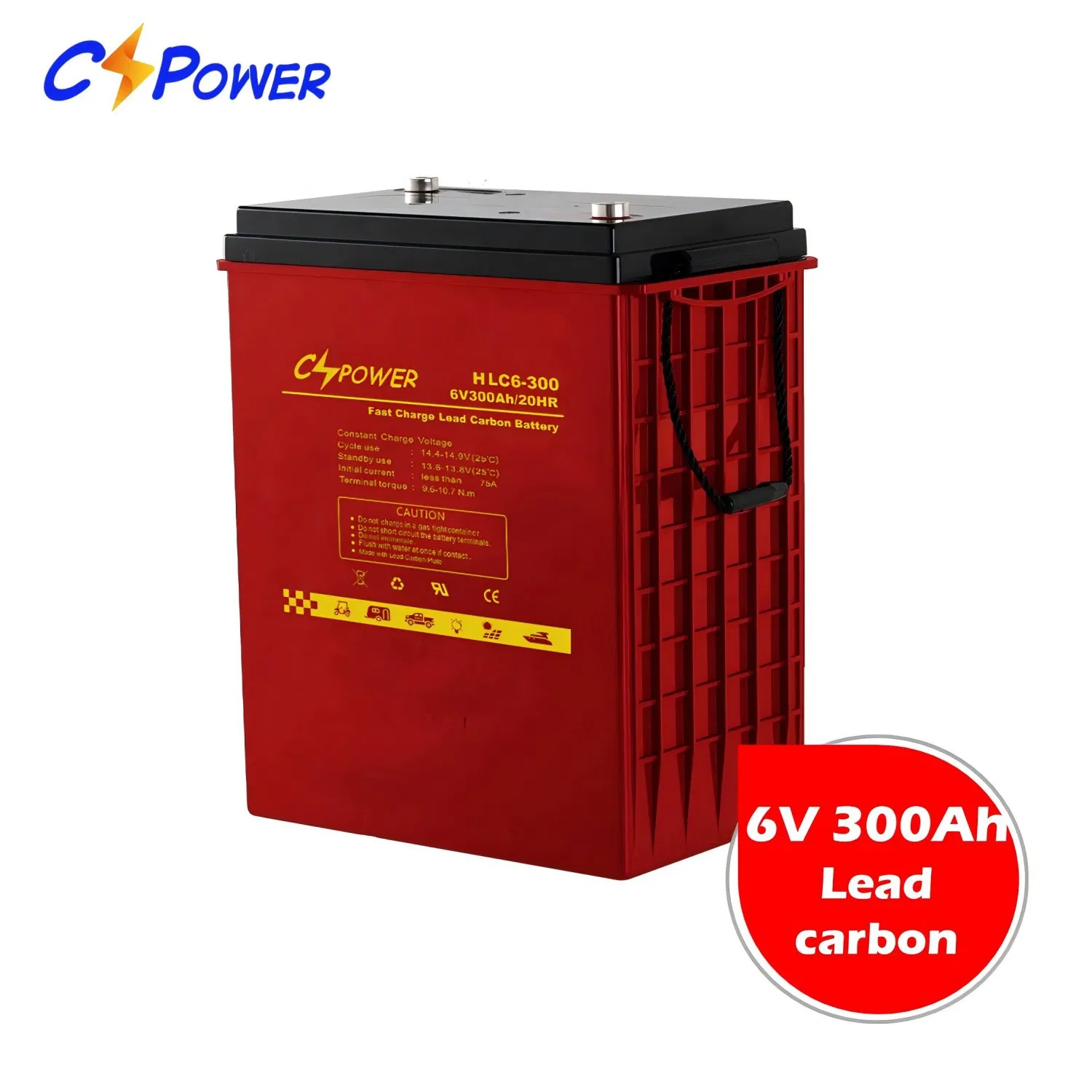

Cspower 6V 300ah Storage Solar Deep Cycle Lead Carbon Long Life Maintenace Free Rechargeable AGM Gel VRLA 6V 12V Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
HLC6-300
Nominal Voltage
6V
Capacity
300Ah
Discharge Rate
High Discharge Rate
Electrolyte
Carbon / Nano Gel
80% DOD Cycle Life
Over 2000 cycles
Design Life
18-20 Years
Weight
46.5kg
Warranty
3 Years Free Replacement
Case Material
ABS (Fire resistance optional)
Long Life Lead Carbon Battery

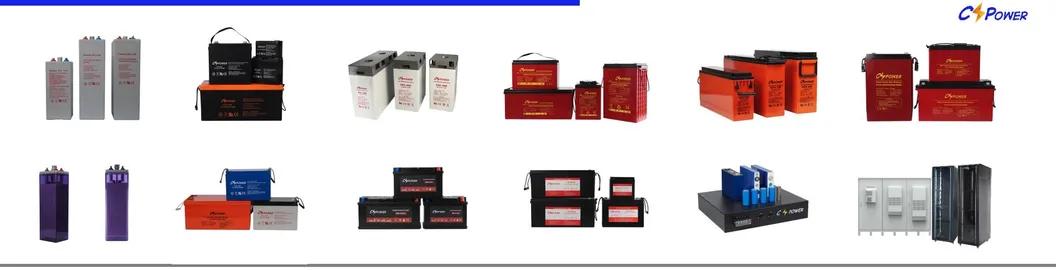

Lead Carbon Battery

HLC series fast charge long life lead carbon batteries are recognized as a reliable and high-quality system in the industry. Designed with advanced patented AGM technology, these batteries offer a service life of 18-20 years and 2000 cycles at 80% DOD, complying with international standards like IEC60896-21/22 and BS6290-4.

⭐ Key Features & Benefits
  • Environmentally friendly
  • Completely Maintenance-Free
  • Non-Spillable construction
  • Wide Operating Temp (-20°C~+60°C)
  • Explosion Proof Design
  • Low Self Discharge
  • High Discharge Rate Capability
  • Deep discharge recovery capability
Detailed Product Parameters
Parameter Item Specification (HLC6-300)
Nominal Voltage6V (3 cells)Design Floating Life20 Years
Capacity (20hr)300AhInternal Resistance≤2.8mΩ
10 Hour Rate278.5Ah5 Hour Rate258.0Ah
Max Discharge Current2250A (5s)Self-Discharge3% per Month
Operating Temp-30ºC to 60ºC
Dimensions295 x 178 x 346 mm (Total Height 350mm)

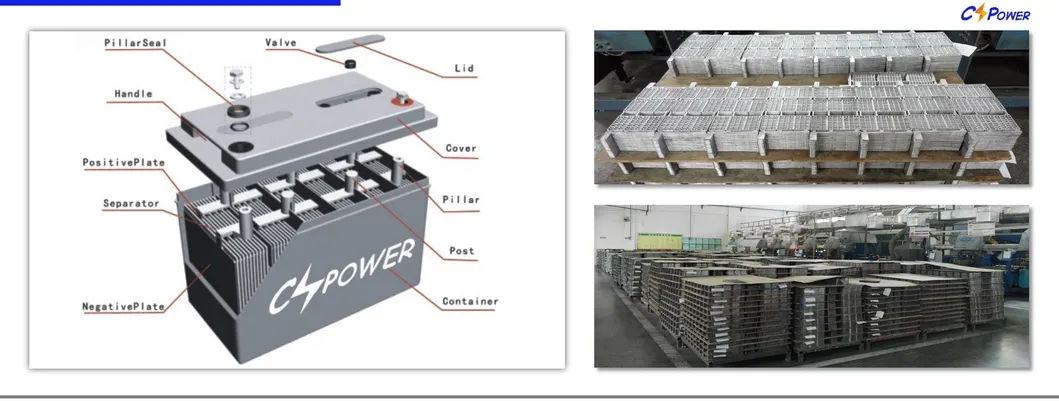

Product Structure & Components
Product Structure
ComponentPositive PlateNegative PlateSeparatorElectrolyte
Features Thick high Sn low Ca 3D plate Balanced Pb-Ca grid with Super-C additives Imported PVC/AGM separator Nano GEL electrolyte
Manufacturing & Projects

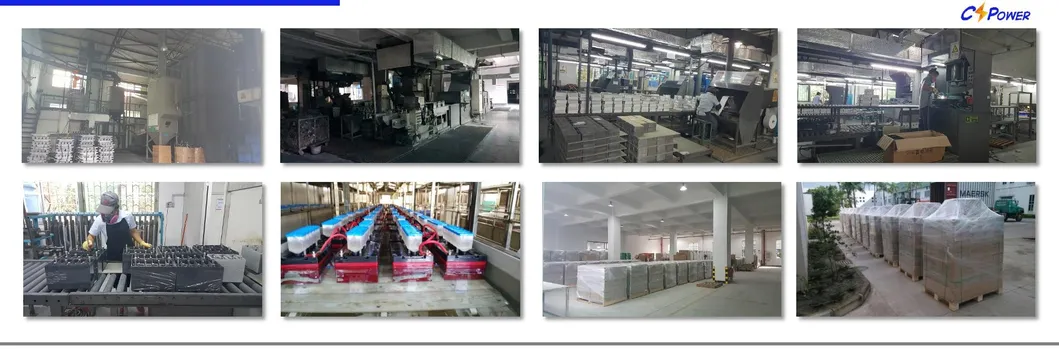

Assembling

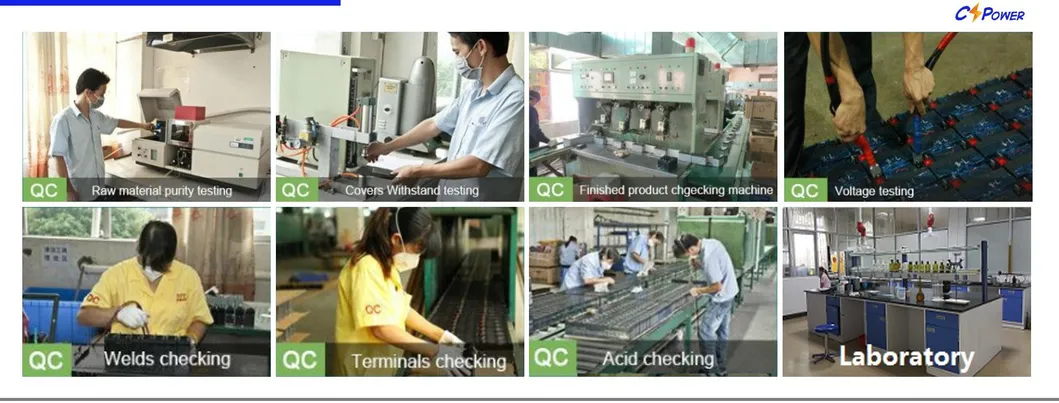

Quality Control

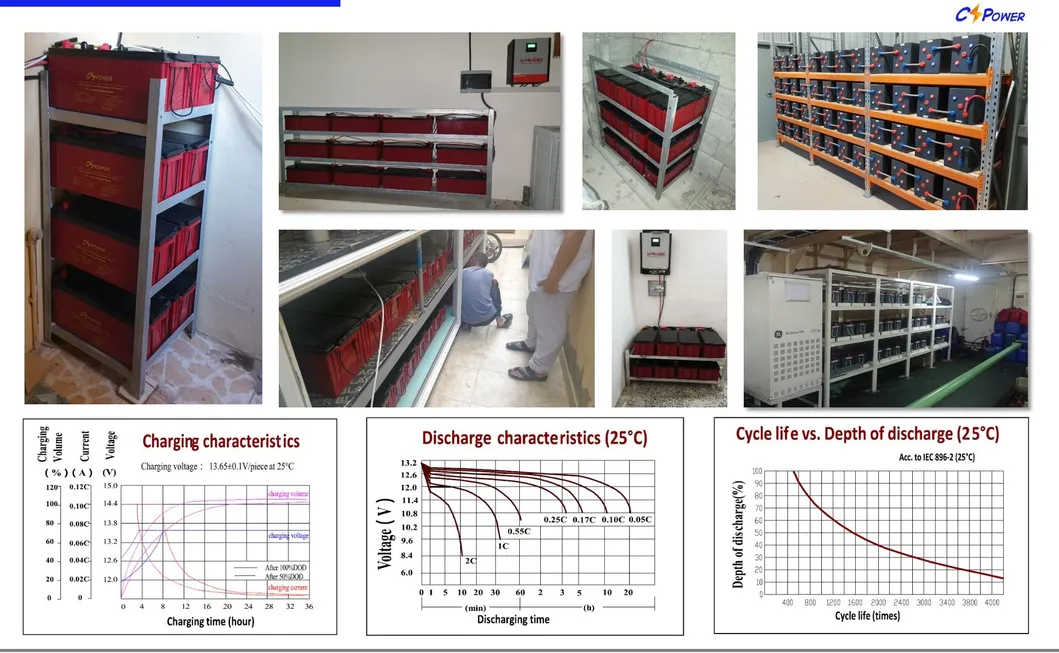

Projects
Certifications
Applications

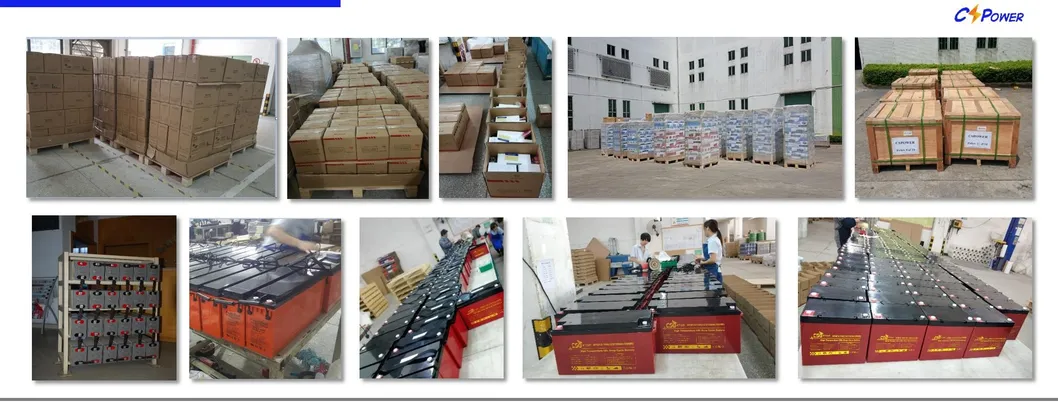

Packing

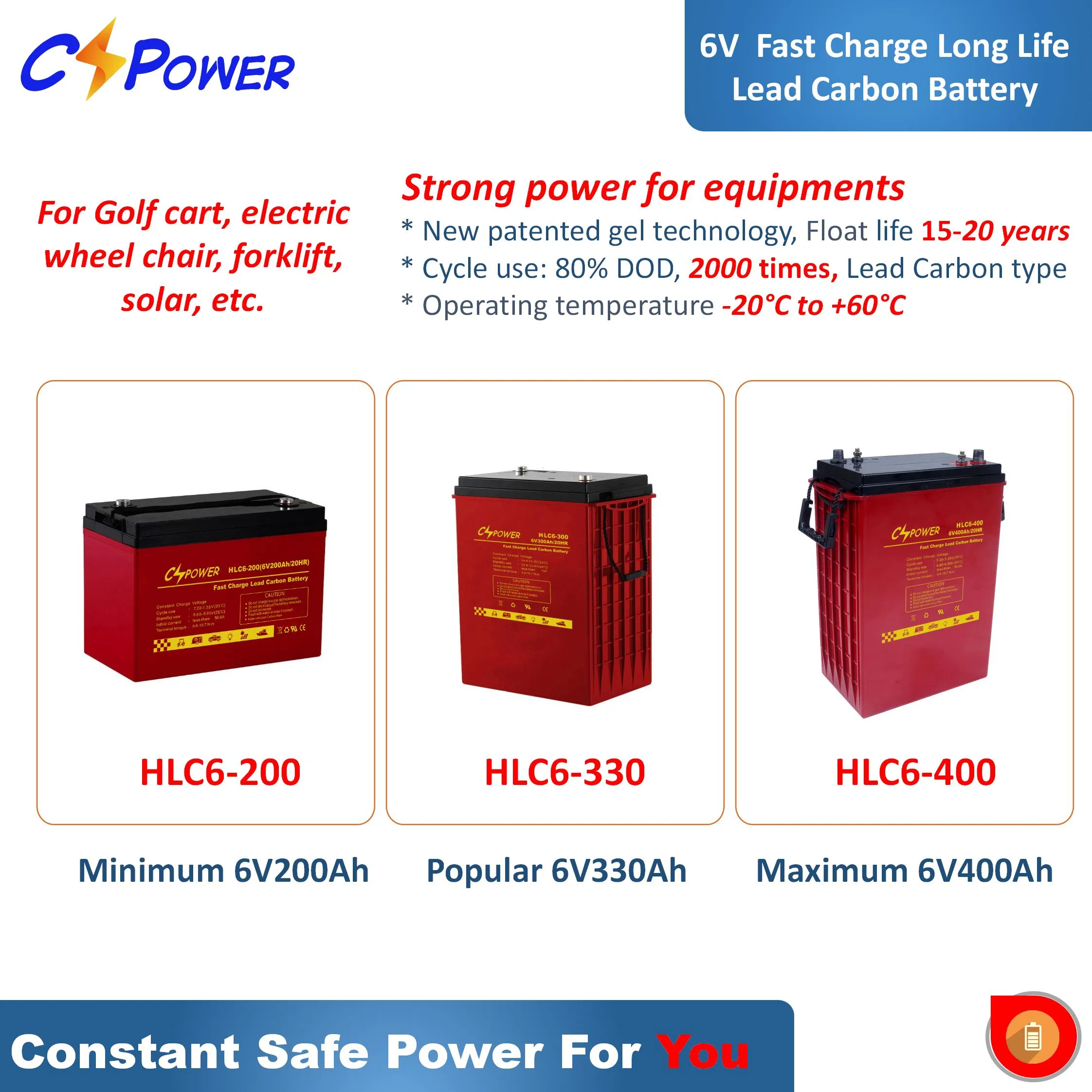

6V Lead Carbon Model List
Model Voltage (V) Capacity (Ah) Size (L*W*H) Weight (kg) Terminal

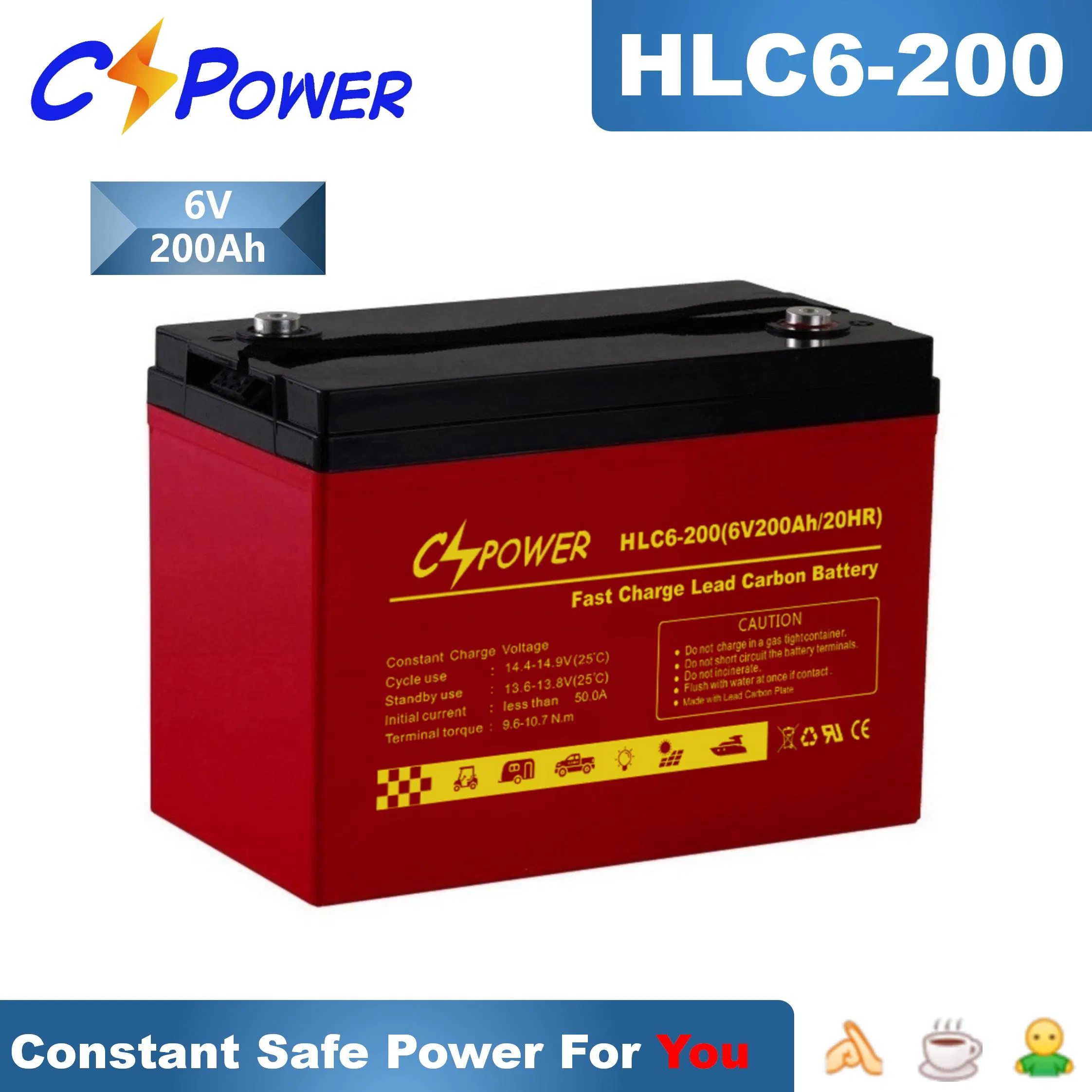

HLC6-2006200306*168*22631.0M8
HLC6-2306230260*180*27234.2M8

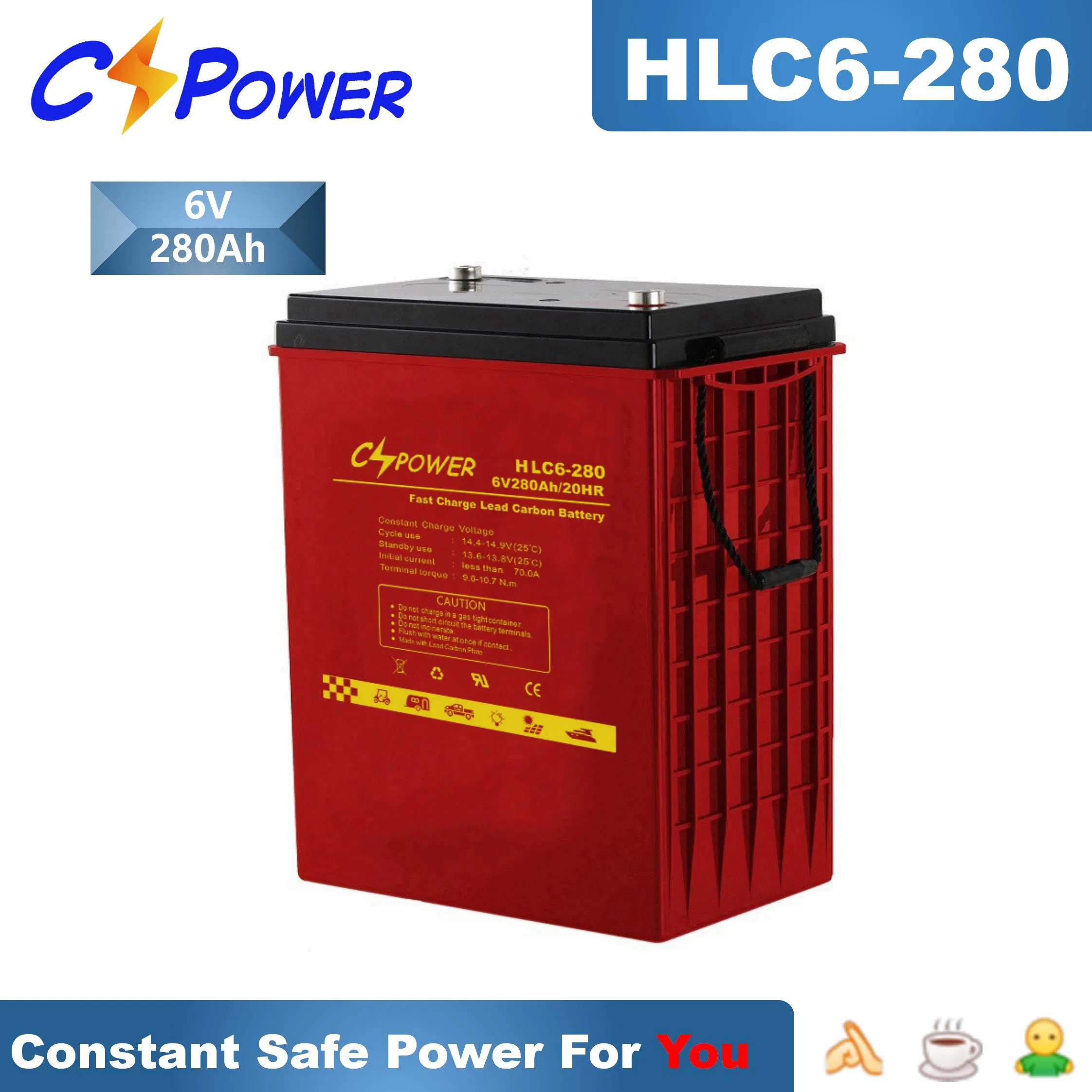

HLC6-2806280295*178*35045.8M8
HLC6-3006300295*178*35046.5M8

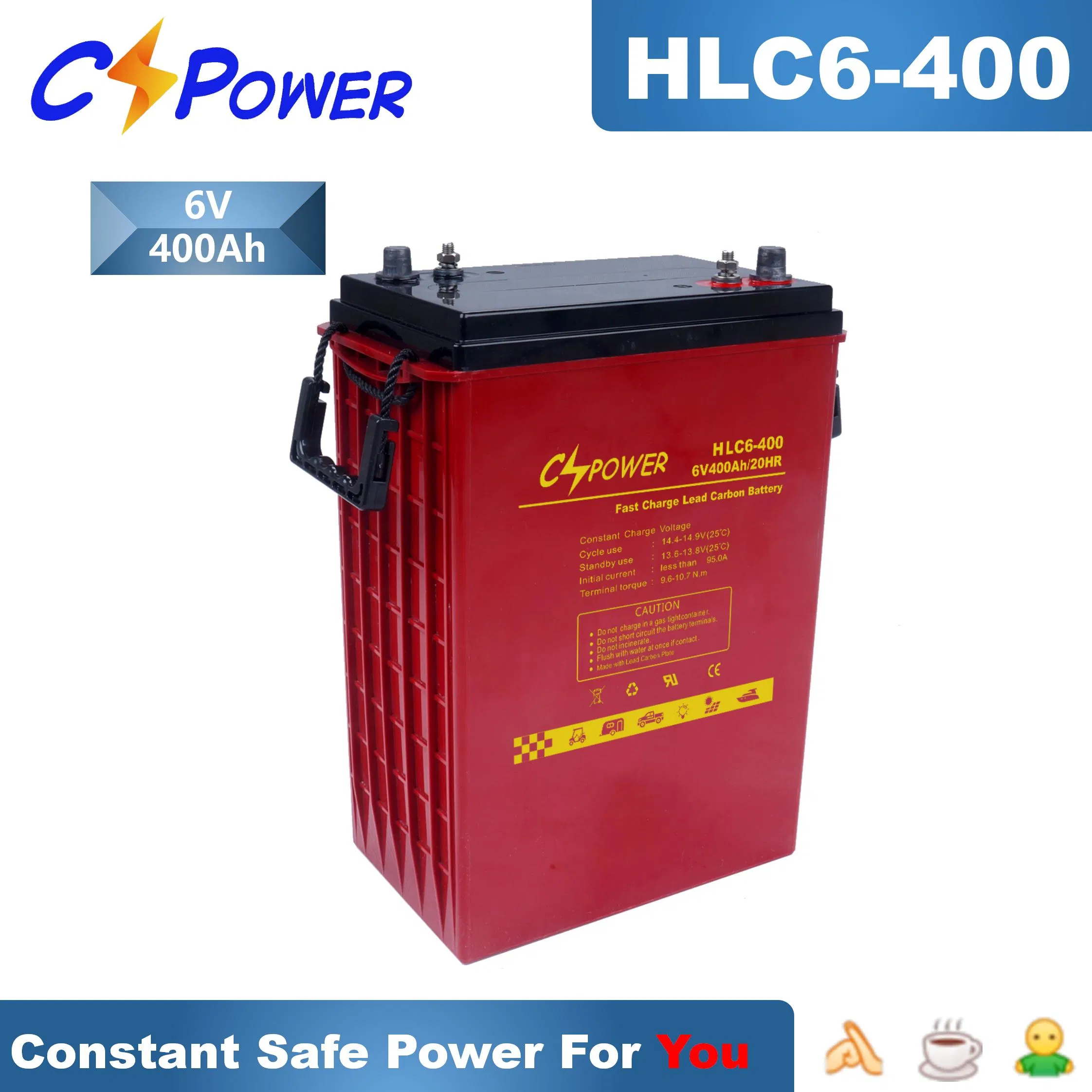

HLC6-4006400295*178*40857.2M8
Free Gift and Solar Solutions
Frequently Asked Questions
Can the battery be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We have MSDS and test reports for safe transport as non-dangerous products.
Is fast charging recommended for these batteries?
Fast charging is generally not recommended as it can be harmful to the battery's long-term health and service life.
What is the shelf life of a VRLA lead carbon battery?
VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without recharging. In hot climates, recharge every 3 months.
Why does the battery have different capacities at different hour rates?
Capacity is dynamic and depends on the discharge current. A lower discharge current (e.g., 20-hr rate) allows the battery to deliver more total Amp-hours than a high discharge current.
What is the operating temperature range?
The battery is designed to operate efficiently within a wide temperature range of -20°C to +60°C, making it suitable for hot areas and solar markets.
How do you ensure the quality of the batteries?
We adopt a strict quality system including Incoming Quality Control (IQC), In-process Quality Control (PQC), and Outgoing Quality Control (OQC) to ensure zero defects.
