6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
1 / 5
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries
6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries

6000 Cycles Long Life 48V 200ah 300ah 10kwh 15kwh LiFePO4 Lithium Batteries

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
KMELT5000H
Size
Large
Cycle Life
More Than 6000 Times
Battery Cell
3.2V 50ah Prismatic Cell
Color
Grey, Black, Red, Green, White etc
Application
Home Energy Storage Ess,Solar & Wind System
Warranty
10 Years
HS Code
8507600090
48V 200ah Lithium Battery
LiFePO4 Lithium Batteries
🔋 Product Description

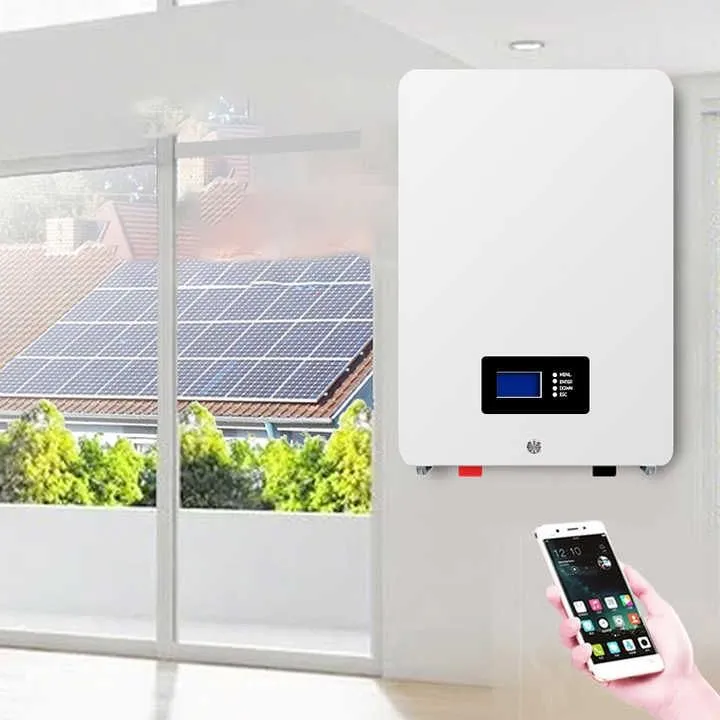

48V/200AH Wall Mounted Lithium Battery

High-performance energy storage solution designed for modern home and industrial renewable energy systems.

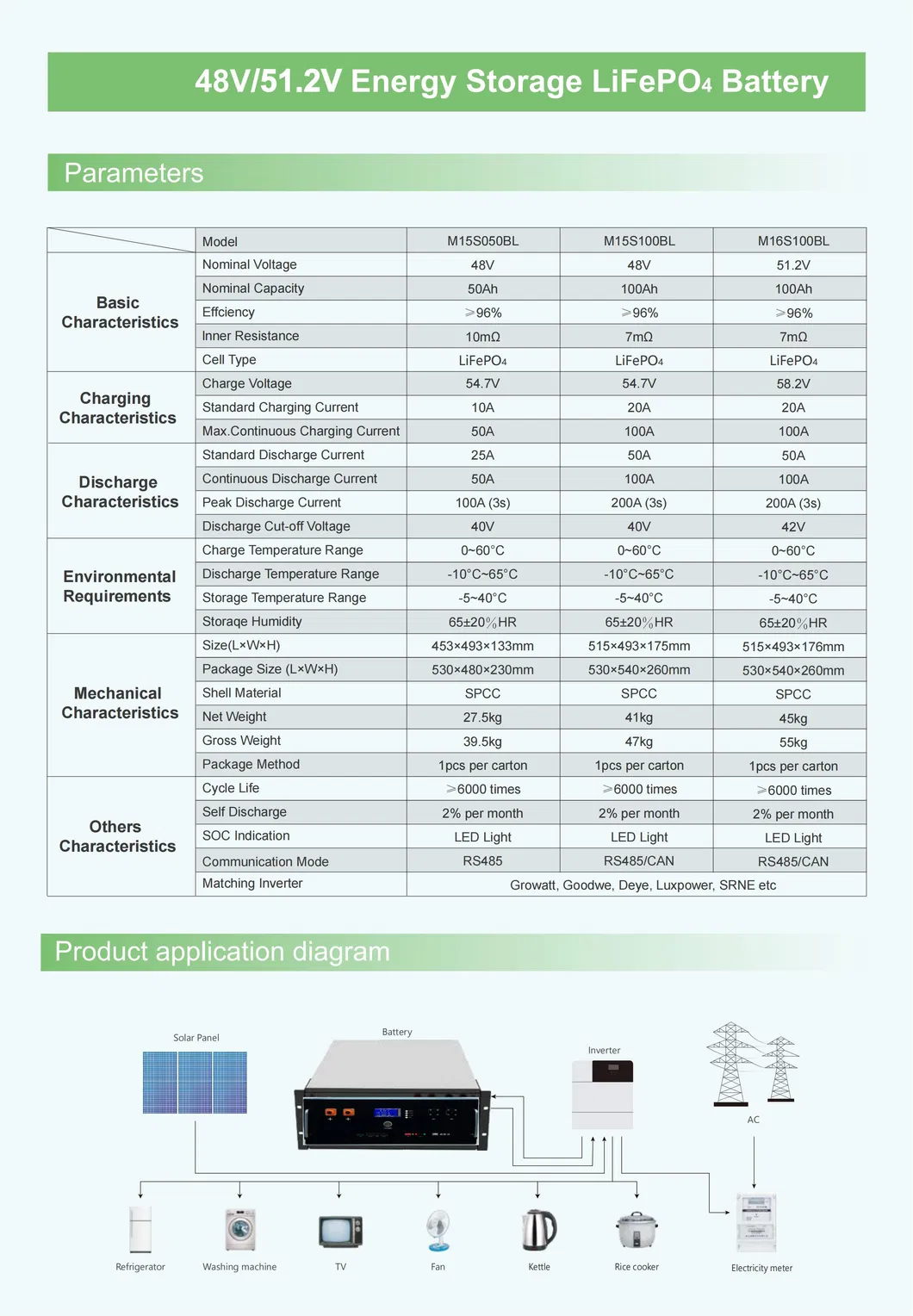

Wall Mounted Lithium Battery Details

Key Advantages

  • Significant saving on electricity costs.
  • Equipped with RS485 communication protocol.
  • Reliable backup electricity, reducing power grid dependence.
  • Stores energy from solar, wind, and water; eco-friendly green energy.

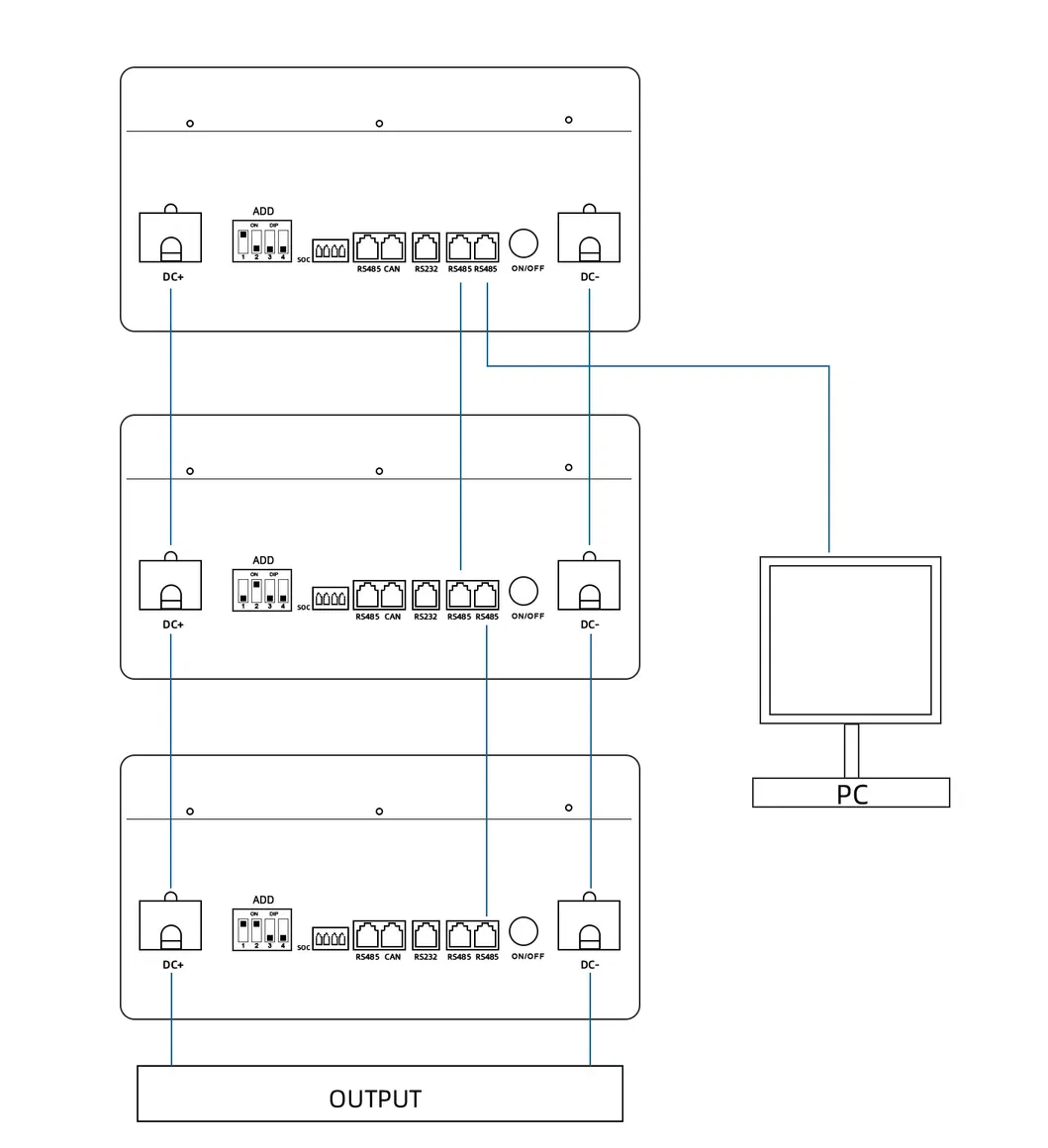

Detailed Photos 1
Detailed Photos 2
Detailed Photos 3
📋 Technical Specifications
Parameter KM48V200 (15S) KM48V200 (16S)
Nominal Energy9.6KWH10.24KWH
Nominal Voltage48V51.2V
DC Discharge Voltage Range37.5-54.75V40-58.4V
Recommend Charge Current50A50A
Max. Discharge Current100A100A (120A optional)
Communication MethodRS485, RS232, CANRS485, RS232, CAN
Weight84kg86kg
Operation Temperature0~50ºC (Charge); -20~60ºC (Discharge)
Waterproof RateIP54
Warranty / Design Life10 Years / 15 Years
🛡️ Intelligent BMS Protection

The built-in Battery Management System (BMS) automatically protects internal cells and ensures safety through:

• Over/Under Voltage Protection
• Over Current Protection
• Temperature Protection
• Short Circuit Protection
• Reverse Polarity Protection
• Cell Balancing

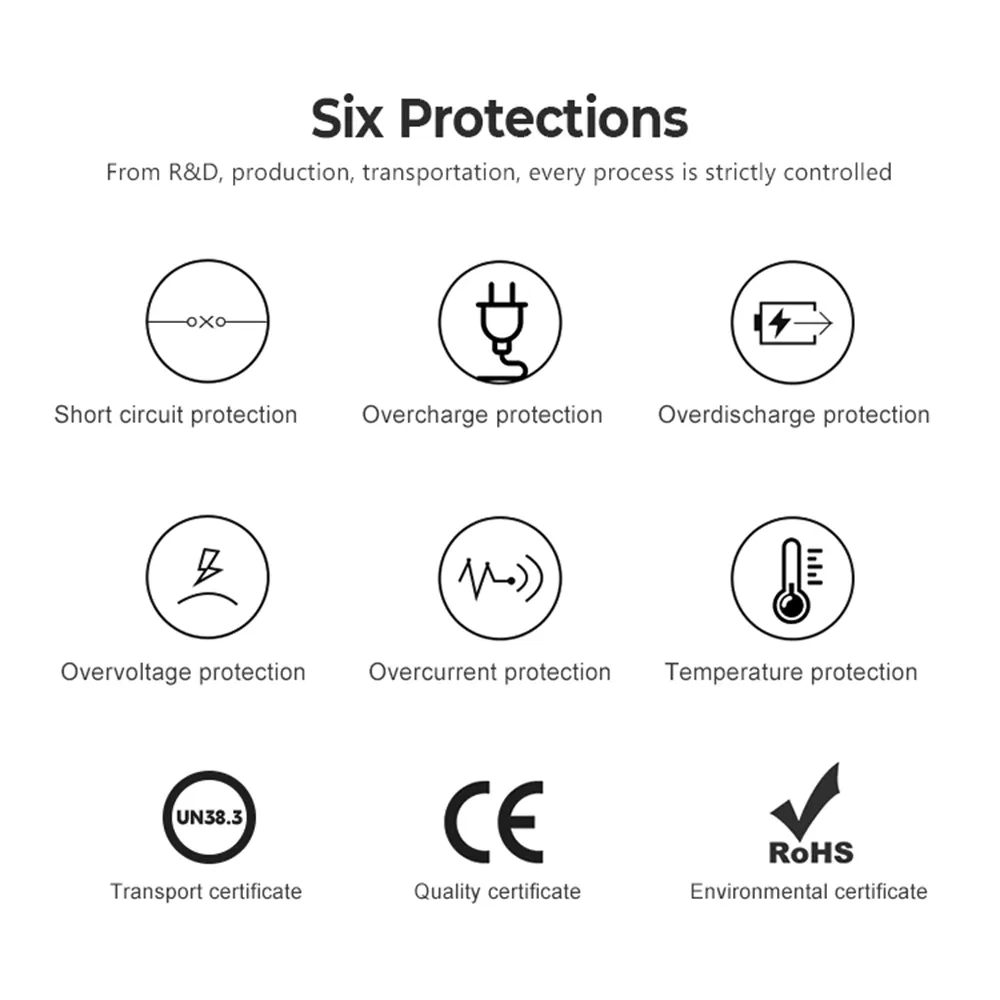

BMS Protection System
🔌 Compatible Inverter List
Compatible Inverters

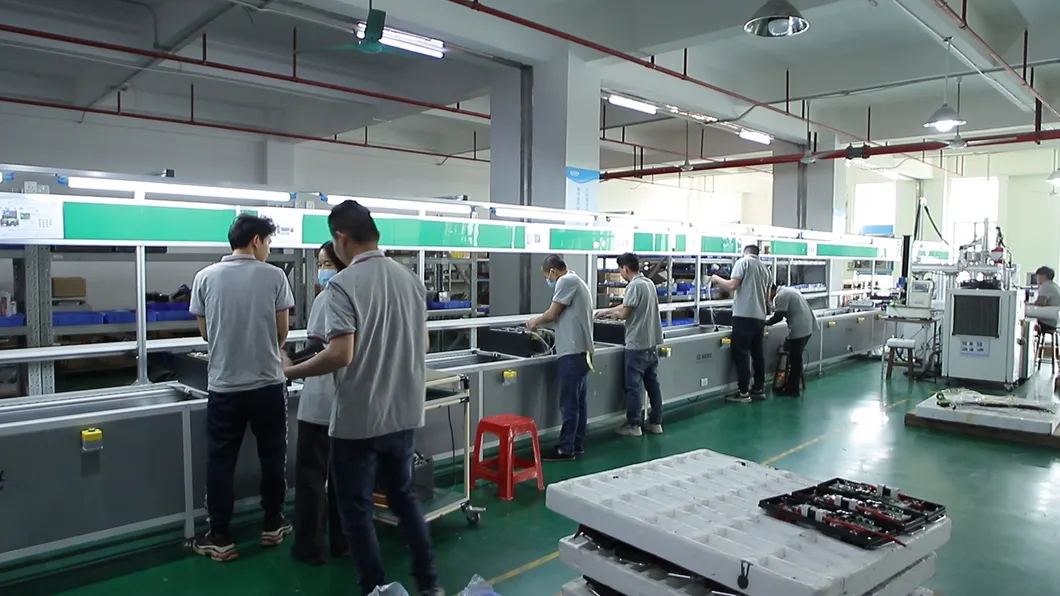

Production Process 1

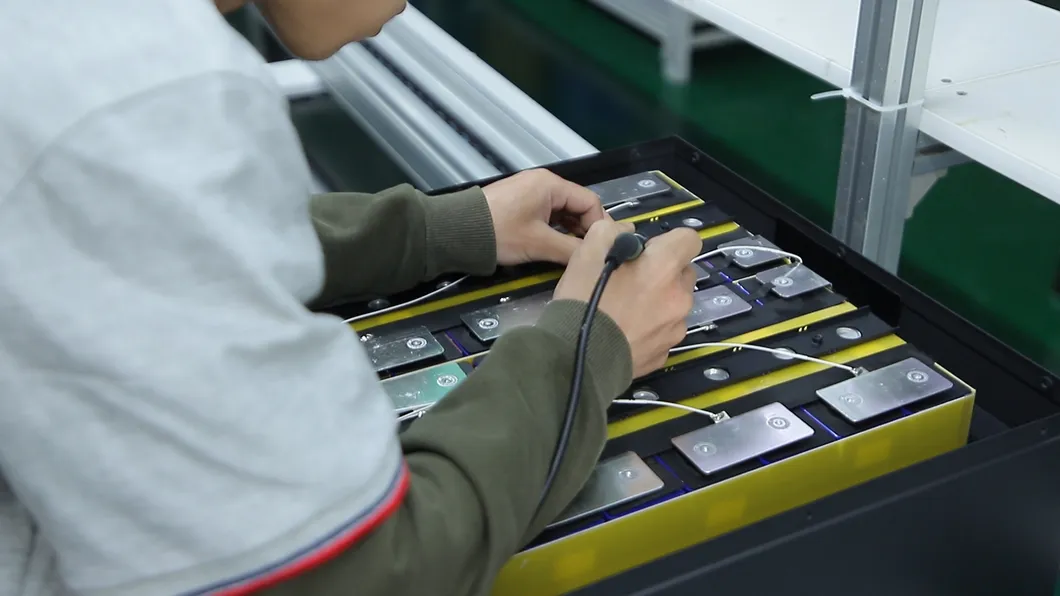

Production Process 2
❓ Frequently Asked Questions
How can we guarantee quality?
We employ the latest state-of-the-art fully automatic production equipment to maintain the highest quality standards. A rigorous, step-by-step final inspection system ensures every product is thoroughly vetted before shipment.
What can you buy from us?
Explore our professional offerings: Solar Panels, Lithium Batteries, and complete energy system sets tailored to your specific needs.
Are you a manufacturer?
Yes, we are a dedicated manufacturer committed to excellence in renewable energy technology with over 15 years of industry expertise.
What services can we provide?
We offer flexible delivery terms (FOB, CIF, EXW, Express) and accept multiple currencies (USD, EUR, HKD, CNY). Payment can be made via T/T or Cash. Our team provides multilingual support in English, Chinese, and French.
What is the lead time for orders?
Typically, orders are processed and ready for dispatch within 15 working days following the receipt of advance payment.
Do your batteries meet safety certifications?
Yes, our products are fully certified with CE, MSDS, UN38.8, and TUV, ensuring global safety and transport compliance.
