3.6V Disposable Cylindrical Non-Rechargeable Primary Lithium Battery Er14505 AA Industrial Battery

1 / 5

3.6V Disposable Cylindrical Non-Rechargeable Primary Lithium Battery Er14505 AA Industrial Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ER14505 ER14505M

Recycling

Recyclable

Size

Certification

CE, RoHS

Packaging

Simple

Type

Primary Battery

Transport Package

Carton

Specification

CE SGS ISO9001 UN38.3

HS Code

806500000

Production Capacity

20,000 PCS/Day

Product Description

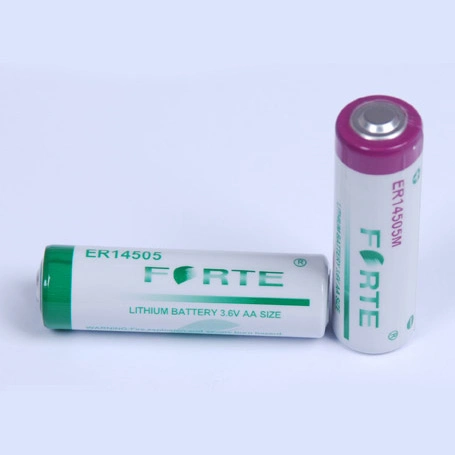

ER14505 (AA) Specifications

Nominal capacity: 2400mAh
Nominal voltage: 3.6V
Max. Constant current: 100mA
Max. Pulse current: 200mA
Operating temperature range: -55~+85 Celsius degree
Weight: 19g

ER14505M (AA) Specifications

Nominal capacity: 2000mAh
Nominal voltage: 3.6V
Max. Constant current: 400mA
Max. Pulse current: 800mA
Operating temperature range: -55~+85 Celsius degree
Weight: 19g

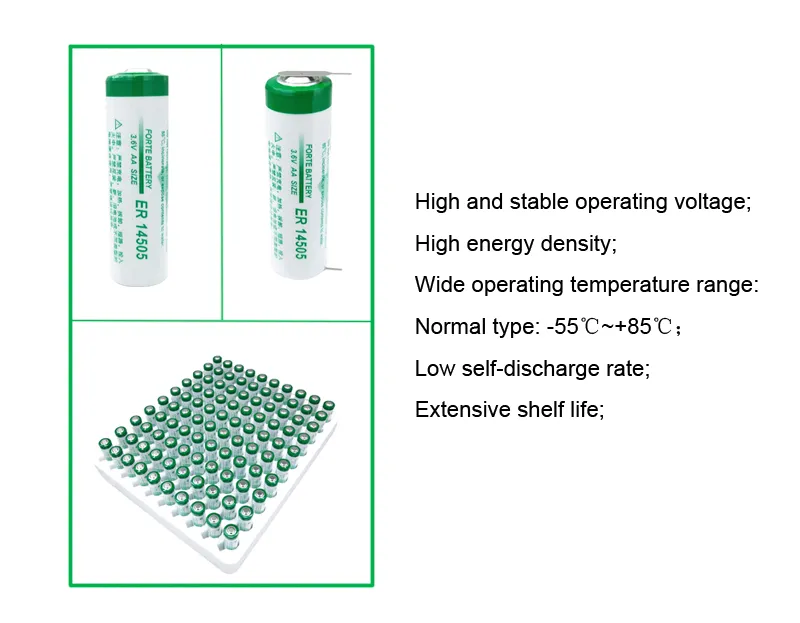

Key Characteristics

High and stable operating voltage
Superior voltage response during pulsing
Low self-discharge rate (less than 1% after 1 year of storage at 20°C)
Non-flammable inorganic electrolyte
Non-restricted transport

Model	Cell Size Ref	Nominal Voltage (V)	Nominal Capacity (mAh)	Max. Constant Current (mA)	Max. Pulse Current (mA)	Dimension (mm)
ER14250	1/2AA	3.6	1200	25	50	Φ14.5*25.0
ER14335	2/3AA	3.6	1650	75	150	Φ14.5*33.5
ER14505	AA	3.6	2500	100	200	Φ14.5*50.5
ER17335	2/3A	3.6	2200	100	200	Φ17*33.5
ER17505	A	3.6	3500	100	200	Φ17.5*50.5
ER18505	A	3.6	4000	130	200	Φ18.5*50.5
ER26500	C	3.6	8500	200	400	Φ26.2*50
ER34615	D	3.6	19000	230	400	Φ34.2*61.5
ER261020	CC	3.6	17000	200	400	Φ26.2*100
ER341245	DD	3.6	35000	400	600	Φ34.2*125
ER9V	-	10.8	1200	25	50	Φ261748.8

Frequently Asked Questions

Are ER14505 batteries rechargeable?

No, ER14505 and ER14505M are primary lithium-thionyl chloride (Li-SOCl2) batteries, which are non-rechargeable. Attempting to charge them can be dangerous.

What is the difference between ER14505 and ER14505M?

The standard ER14505 is a bobbin-type battery designed for low-current, long-term applications. The "M" version (ER14505M) is a spiral-type battery designed for higher current and pulse requirements.

What is the shelf life of these batteries?

Thanks to a very low self-discharge rate (less than 1% per year at room temperature), these batteries can be stored for up to 10 years while retaining significant capacity.

In what temperature range can these batteries operate?

They are designed for extreme environments, with an operating temperature range from -55°C to +85°C.

What are the typical applications for ER14505 batteries?

Typical applications include smart utility meters (gas, water, electricity), GPS tracking devices, wireless alarm systems, and industrial IoT sensors.

Are these batteries safe for international transport?

Yes, our batteries comply with UN38.3 specifications for safe transport. However, as lithium batteries, they must be handled according to specific shipping regulations for Class 9 dangerous goods.
