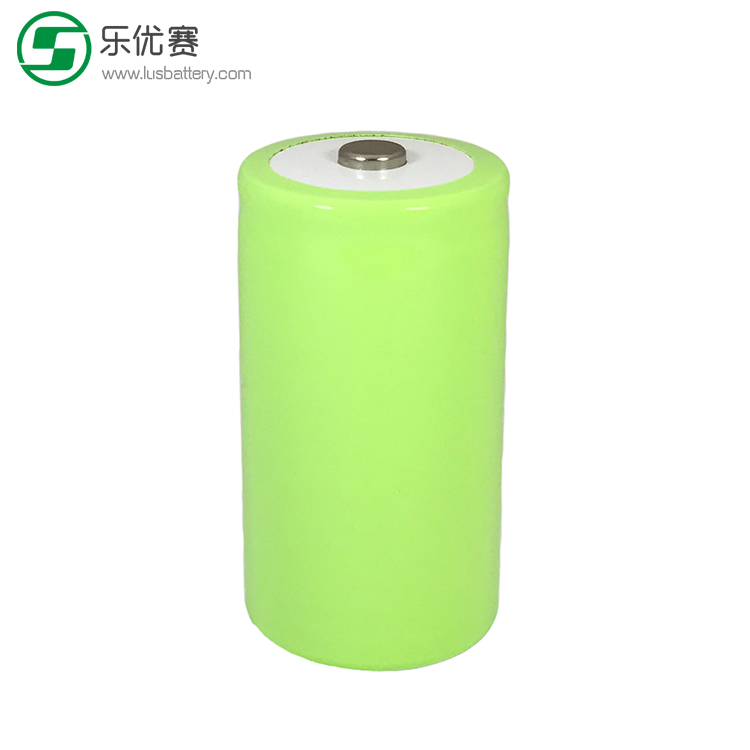

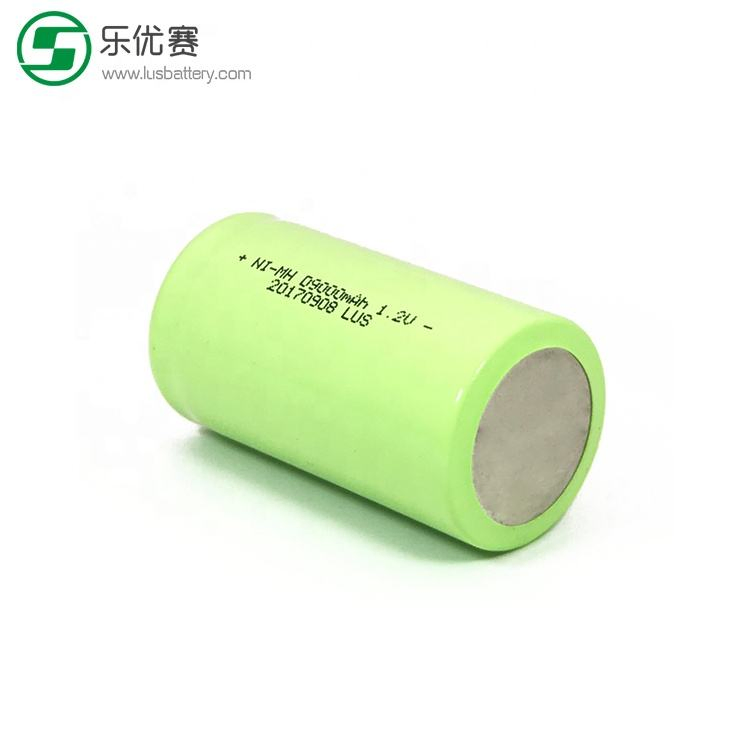

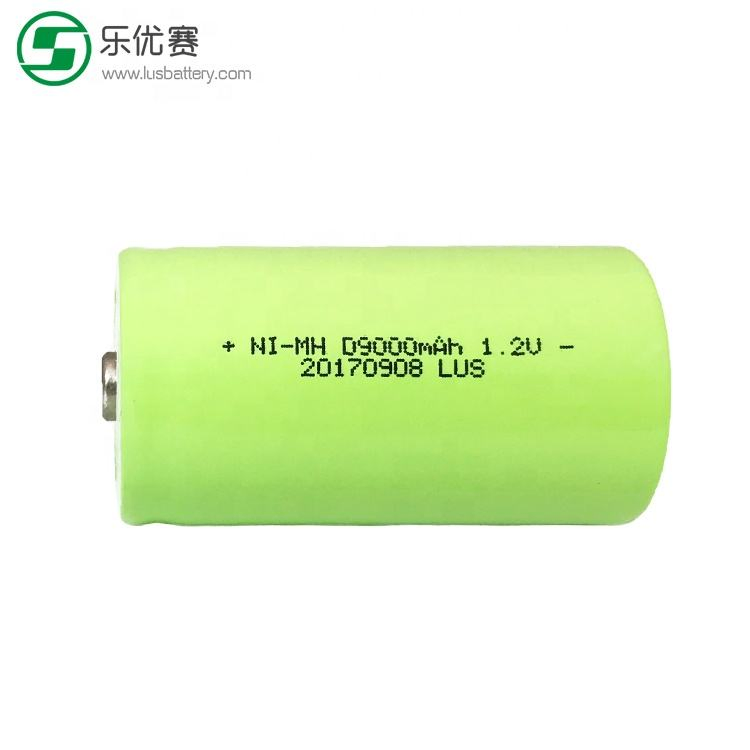

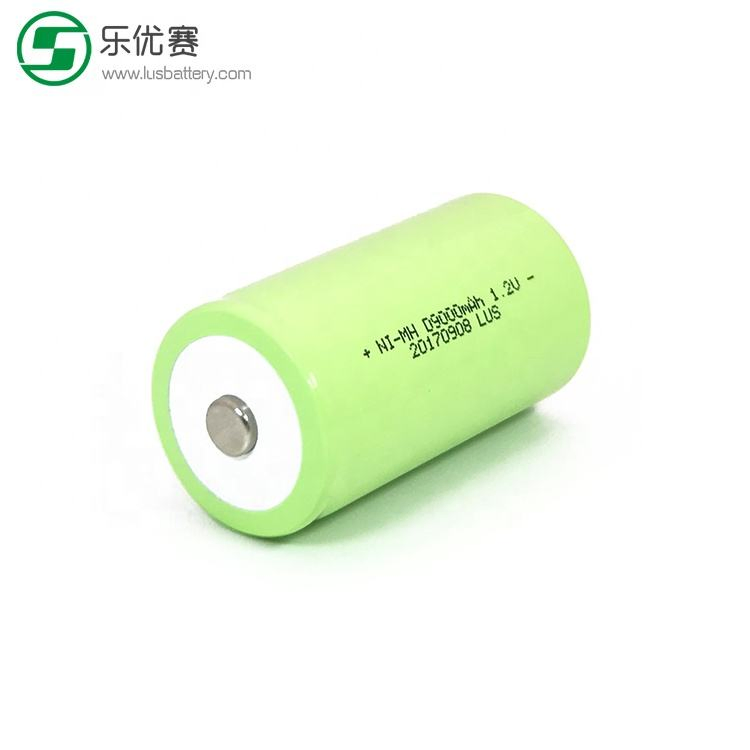

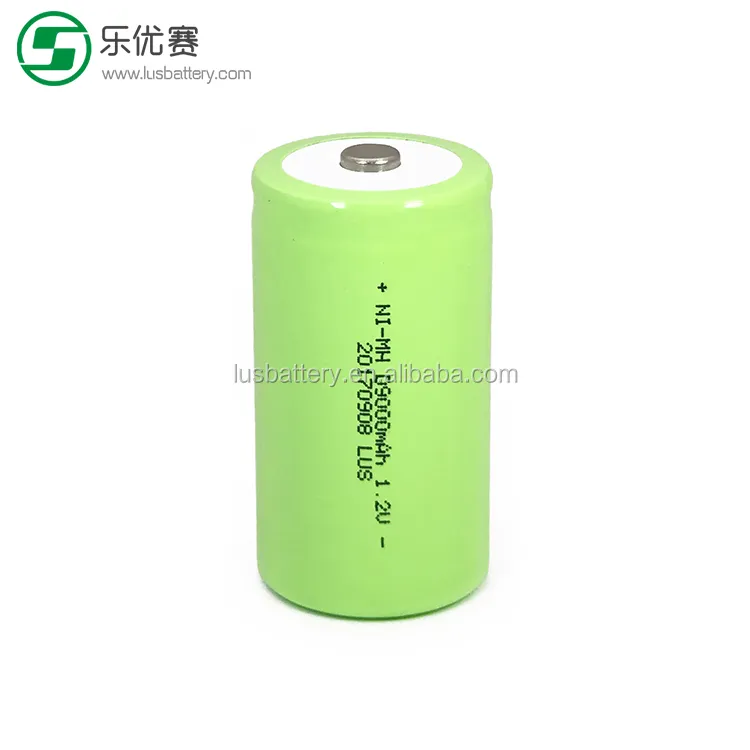

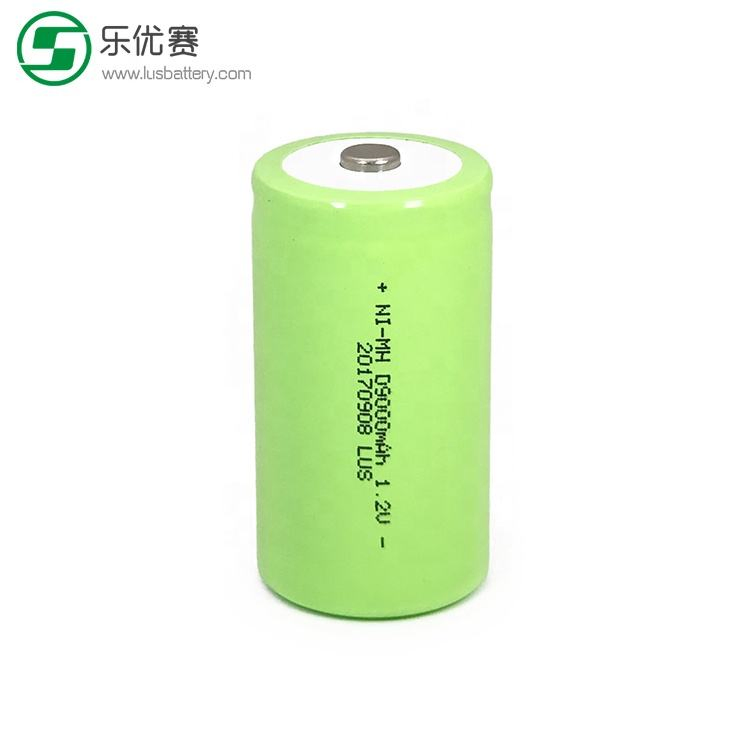

This high-capacity D-size NiMH battery is designed for long-lasting performance in high-drain devices. It offers a stable 1.2V output and is a reliable choice for both single use and custom battery pack configurations.
| Description | Specification | Conditions |
|---|---|---|
| Nominal Voltage | 1.2V | - |
| Nominal Capacity | 9000mAh | Standard Charge/Discharge |
| Minimum Capacity | 8640mAh | Standard Charge/Discharge |
| Standard Charge | 900mA (0.1C) × 16 hrs | Ta=0~45°C |
| Trickle Charge | 270-450mA (0.03C-0.05C) | Ta=0~45°C |
| Discharge Cut-off Voltage | 1.0V | - |
| Max Discharging Current | 9000mA (1C) | Ta= -20~50°C |
| Typical Weight | Approx 167.0g | - |

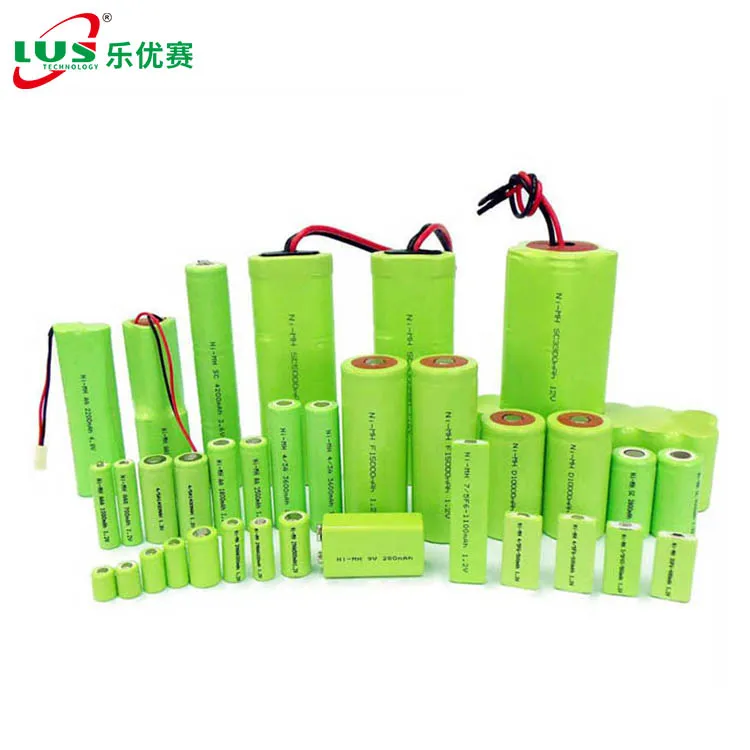

| Type | Voltage (V) | Capacity (mAh) | Height (mm) | Diameter (mm) |
|---|---|---|---|---|
| AAA | 1.2 | 600-850 | 44.0±0.5 | 10.0±0.2 |
| AA | 1.2 | 600-2400 | 49.5±0.5 | 13.9±0.2 |
| SC | 1.2 | 2400-3300 | 42.0±0.5 | 22.0±0.2 |
| C | 1.2 | 2500-4500 | 49.0±0.5 | 25.2±0.2 |
| D | 1.2 | 5000-9000 | 60.5±0.5 | 32.1±0.2 |
| F | 1.2 | 13000-14000 | 90.5±0.5 | 32.1±0.2 |
| 9V | 9.0 | 280 | 17.5 | 48.5*26.5 |

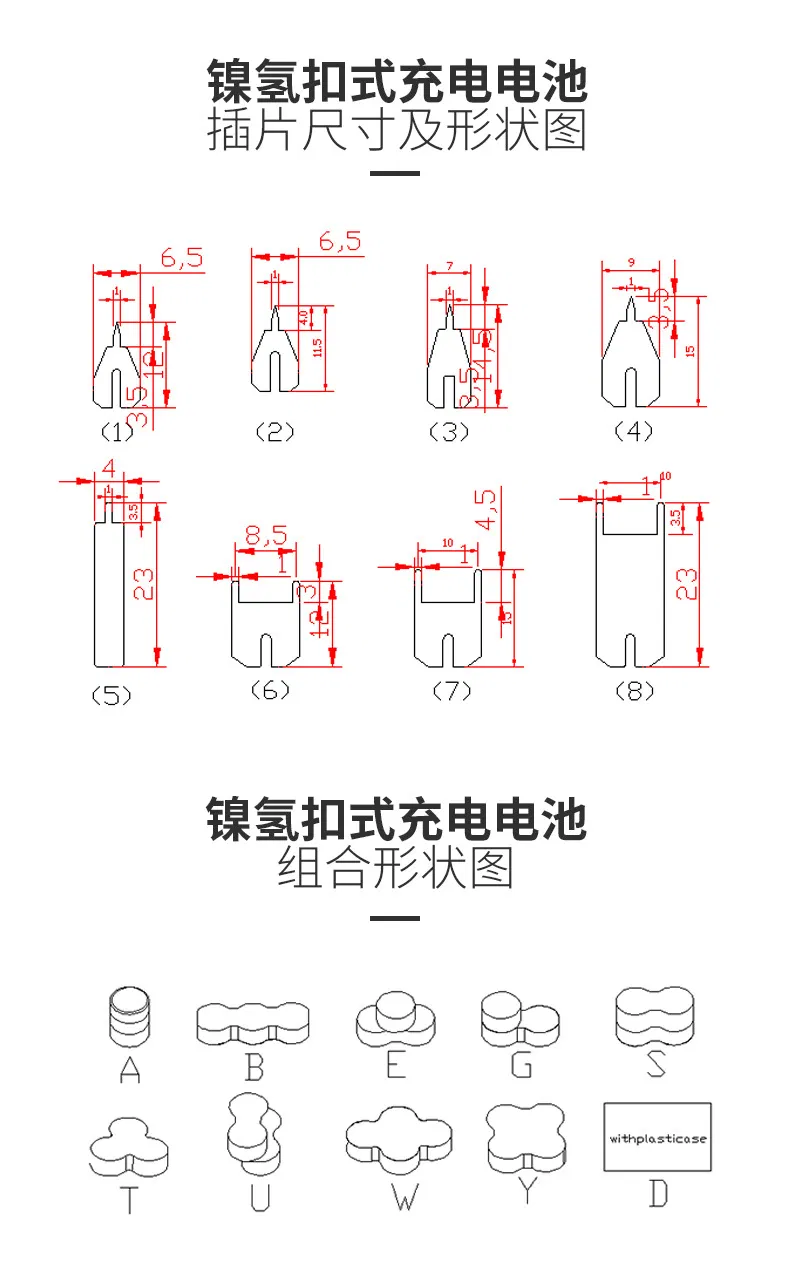

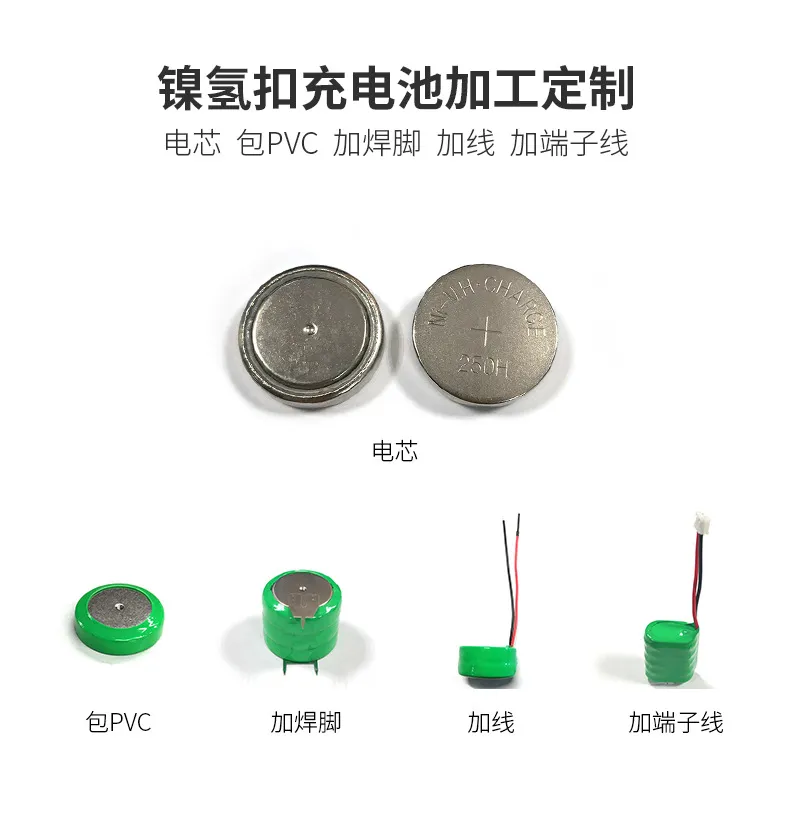

| Cell Model | Voltage (V) | Capacity (mAh) | Diameter (mm) | Height (mm) | Temp Range (°C) |
|---|---|---|---|---|---|
| 20H | 1.2 | 20 | 11.7±0.1 | 3.2±0.2 | 0~45 |
| 40H | 1.2 | 40 | 11.7±0.1 | 5.2±0.2 | 0~45 |
| 80H | 1.2 | 80 | 15.3±0.1 | 6.1±0.2 | 0~45 |
| 110H | 1.2 | 110 | 15.3±0.1 | 7.7±0.2 | 0~45 |
| 250H | 1.2 | 250 | 25.0±0.1 | 6.3±0.2 | 0~45 |
| 330H | 1.2 | 330 | 25.0±0.1 | 8.4±0.2 | 0~45 |
